Chief WM110AUS Ultra Short Throw & Universal Projector Mount Kit

Product ID 16826

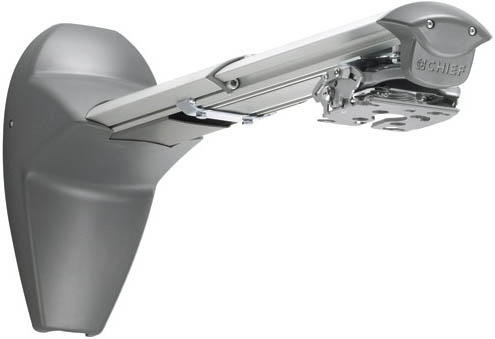

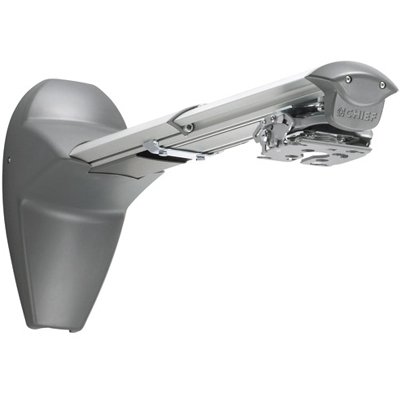

Chief WM110AUS Single Stud Ultra Short Throw Extension Arm (11.3"-18") and Universal Projector Mount Silver


Chief WM110AUS projector short throw kit includes single stud short throw extension arm (WM110S) and Universal Mini RPA Elite projector mount (RSMAUS) to provide unparalleled flexibility, precision and strength.

  • Also supports wall-mounted long-throw projectors

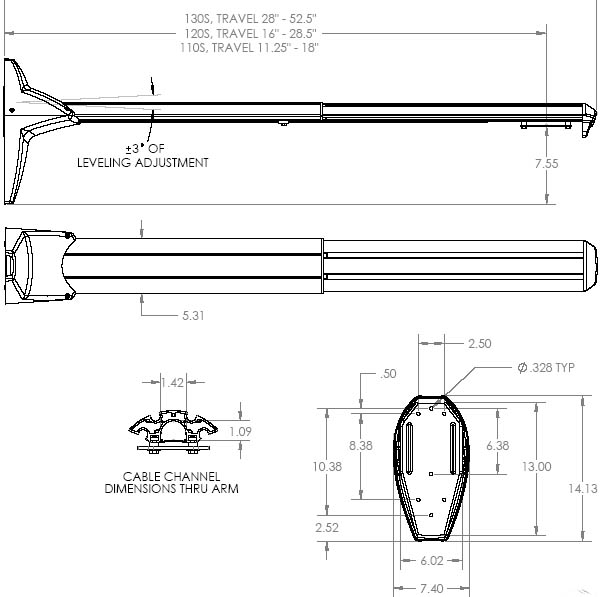

Technical Drawing

Technical Drawing of Chief WM110AUS Ultra single Stud Short Throw Projector Mount Extension Arm




  • Roll: 0°
  • Pitch: 3°
  • Yaw: 0°




11.3" - 18"

Overall Dimensions (H x W x D)

14.2" x 7.3" x 21.7" (360 x 185 x 551 mm)

Shipping Weight

22.80 lbs

Solution Type


Weight Capacity

25 lbs (11.3 kg)



  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Extension from wall, 11.25-18.00" (285.75-457 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Projector short throw kit includes single stud short throw extension arm (WM110S) and Universal Mini RPA Elite projector mount (RSMAUS)
  • Now includes new universal interface to further reduce installation time
  • Includes hardware for wood stud, steel stud and concrete wall construction
  • Also supports long-throw projectors
Model WM110AUS
Manufacturer Chief Mounts
Part Number WM110AUS
UPC 841872122960
Color Silver
Roll 0 degree
Pitch 3 degree
Yaw 0 degree
Extension 11.3" - 18"
Overall Dimensions 14.2" x 7.3" x 21.7" (360 x 185 x 551 mm)
Shipping Weight 22.80 lbs
Weight Capacity 25 lbs (11.3 kg)
Mounting Options Short Throw

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
