$302.00

Chief RPAU or RPAUS or RPAUW Universal Ceiling Projector Mount

Product ID 15334
Chief RPAU or RPAUS or RPAUW Universal Ceiling Projector Mount
Silver
White
Inused image of Chief RPAU Universal Projector Ceiling Mount Black
Inused image of Chief RPAU Universal Projector Ceiling Mount Black
Black
With projector
Chief RPAU or RPAUS or RPAUW Universal Ceiling Projector Mount

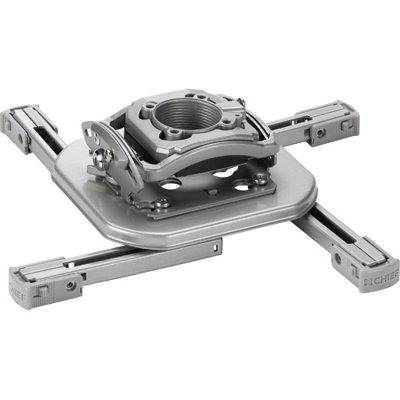

Silver

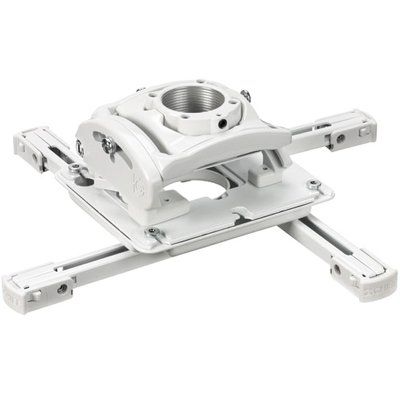

White
Inused image of Chief RPAU Universal Projector Ceiling Mount Black
Inused image of Chief RPAU Universal Projector Ceiling Mount Black

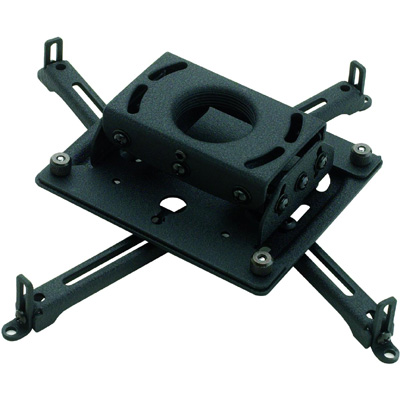

Black

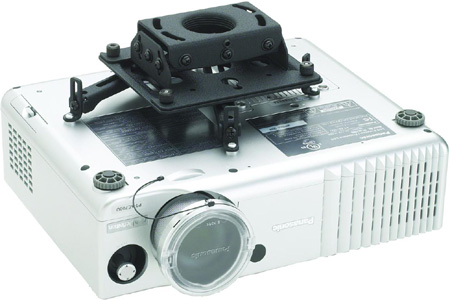

With projector

Related Products

Part Number

Description

RPAU

Black Universal Projector Ceiling Mount

RPAUS

Silver Universal Projector Ceiling Mount

RPAUW

White Universal Projector Ceiling Mount

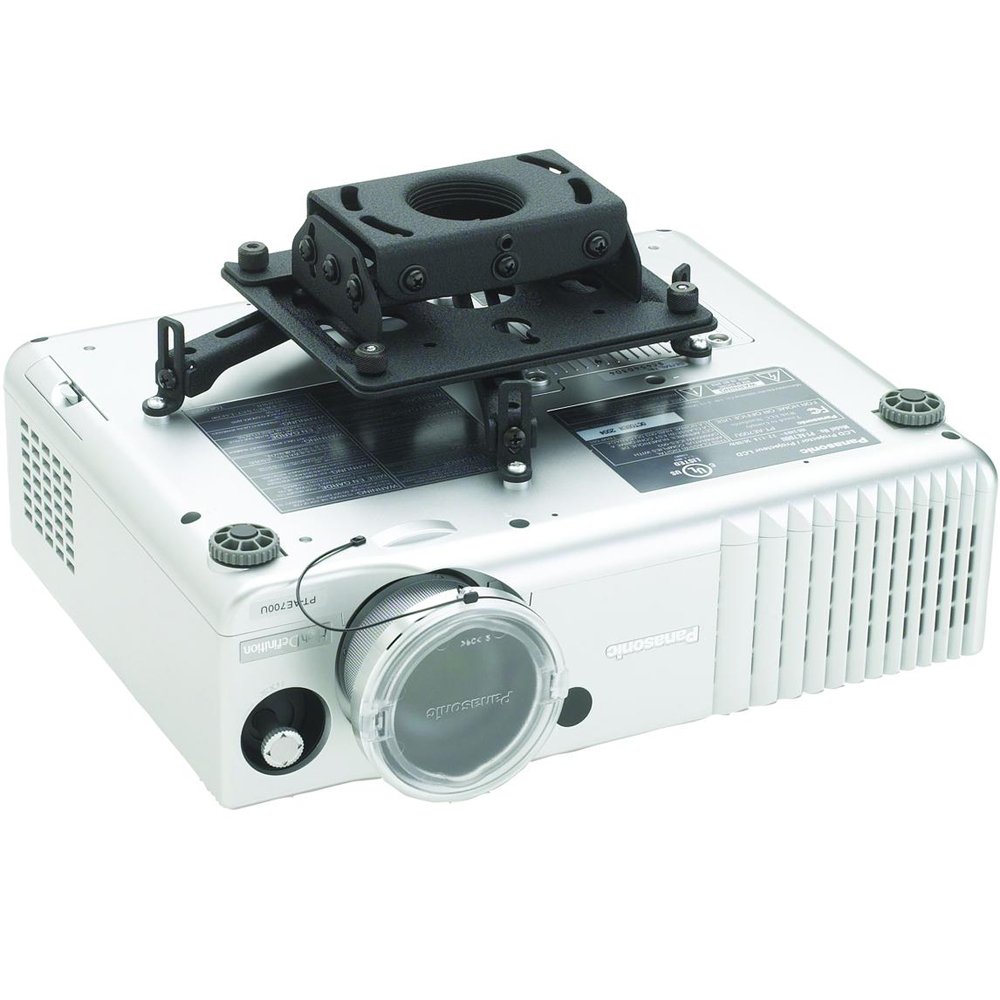

Chief RPAU Universal Ceiling Mount with projector

Description

Chief RPAU has all of the great features of the RPAO and even more. This Universal Projector Mount is coupled with the newly designed SLBU Universal Interface Bracket. This 2nd Generation Interface Technology has enhanced security and unlimited projector access.



Technical Drawing

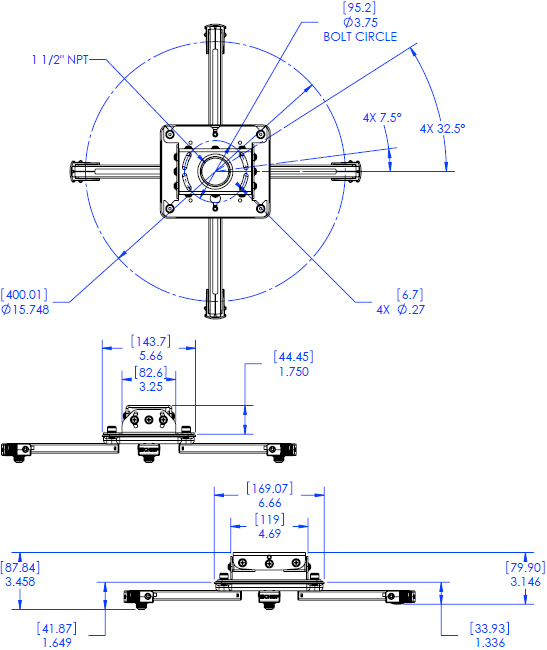

Technical Drawing for Chief RPAUS or RPAUW Universal Projector Ceiling Mount



Specifications

Adjustments

  • Roll: 4°
  • Pitch: 25°
  • Yaw: 360°

Certifications

UL Listed

Color

Black, Silver and White

Overall Dimensions (H x W x D)

1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)

Shipping Weight

5.75 lbs

Solution Type

Universal

Weight Capacity

50 lbs (22.7 kg)



Features

  • Ships newly designed SLB universal bracket to fit most inverted projectors on the market
  • Independent roll, pitch and yaw for quick and precise projector image registration
  • Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • Maintains registration when disconnected and doesn't affect preset adjustment
  • All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • Integrated cable management through top of mount without additional accessories

Frequently Asked Questions

q Do I need to order the SLBU projector bracket separately?
a

No, the assembly ships complete when you order an RPAU ceiling mount.

q How much assembly is required for the RPAU?
a

None, just attach the SLBU bracket to your projector. If you choose to use All-Pointsâ„¢ you will need to replace indicated screws with included hardware. No disassembly needed.

q How much weight does the mount hold?
a

The RPAU is designed to support up to 50 lbs (22.7 kg).

q How does Chief's All-Points Security System work?
a

All-Points is included with each RPAU and is optional to use. The system locks the projector and mount with security hardware at all key connection points: roll, pitch and yaw adjustments; bracket-to-projector; and mount-to-bracket.

q Do I have to order All-Points separately?
a

No, All-Points is included in all RPAU packages at no additional cost and is optional to use.

q Do I need any additional accessories to install the RPAU?
a

The RPAU can be flush mounted to the ceiling without any additional accessories for a low profile, simple installation. However, often times you will need to lower the projector from a structural, finished or suspended ceiling. For these common applications, you will want to order the appropriate accessories.

q When do I need to use the LSB100?
a

Often times, ceiling structures will not allow the projector to be mounted in exact alignment with the projection screen. The LSB100 Lateral Shift Accessory saves an abundance of time and hassles in trying to solve this common problem. Also use the LSB100 to easily accommodate different lens placement when projectors are replaced in existing installations.

q If I use the RPAU with a Suspended Ceiling Kit, do I need an extension column?
a

Yes. Any 1.5" NPT threaded extension column will work with Chief's Suspended Ceiling Kits.

Model RPAU, RPAUS, RPAUW
Manufacturer Chief Mounts
Part Number RPAU, RPAUS, RPAUW
UPC 841872039619
Weight lb(s)
Mounting Options Ceiling
Color Black, Silver and White
Roll 4 degree
Pitch 25 degree
Yaw 360 degree
Overall Dimensions 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)
Shipping Weight 5.75 lbs
Weight Capacity 50 lbs (22.7 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
