Chief PFCUB700 or PFCUS700 Mobile Cart PFCU with PAC700 Case
Large Accessory Shelf and Large CPU Holder are shown with the below image but you must be ordered separately
More shipping >
Description

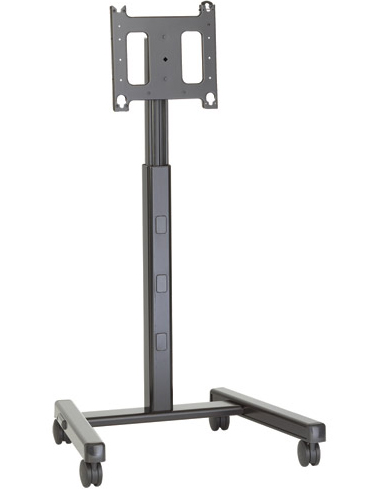

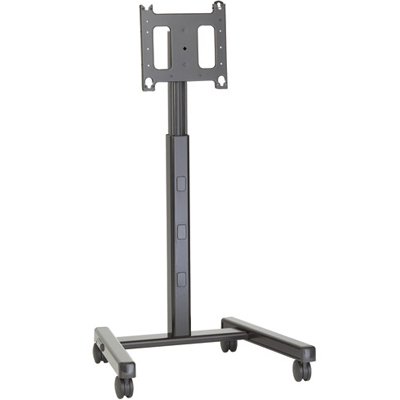

Chief PFCUB700 is a lightweight mobile cart with a collapsible design, including telescoping height-adjustment and integrated cable management.

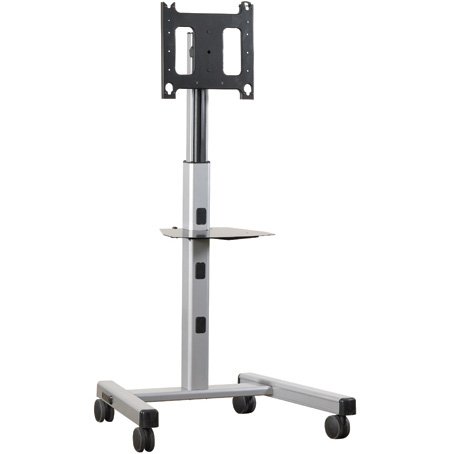

Shelf accessory must be ordered separately, PAC710 Height-Adjustable Accessory Shelf shown
Perfect for rental and staging to corporate applications
PFCUB and PFCUS ship with a universal interface bracket
PFC2000B and PFC2000S require a PSB interface to be purchased separately

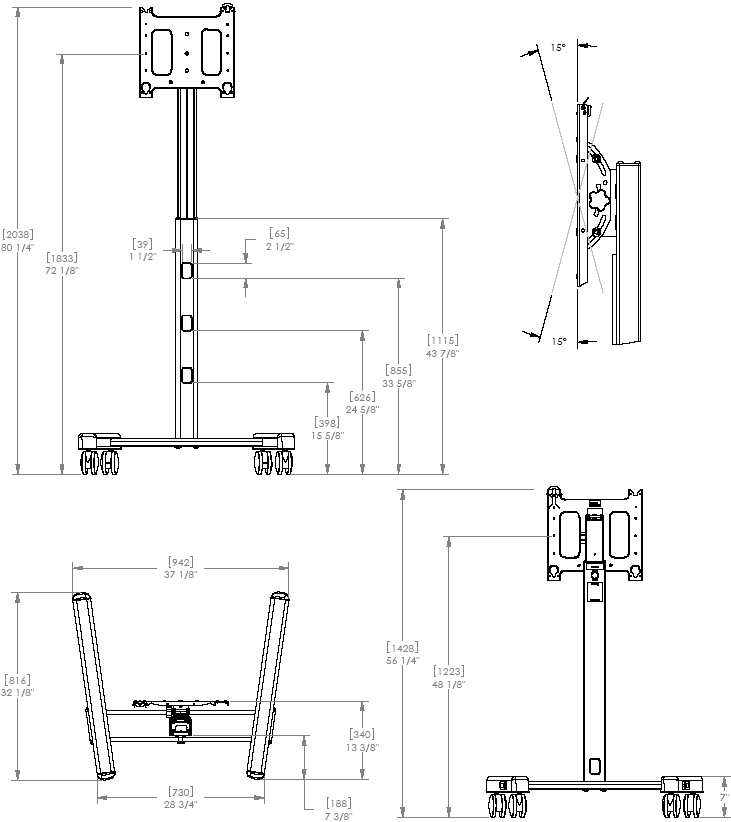

Technical Drawing
Specifications
|
Center of Display to Floor/Table Range |
48 - 72" (1219 - 1829mm) |
|
Color |
Black, Silver |
|
Manual Height Adjustment |
24" |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
81.6" x 37.1" x 32.1" (2073 x 943 x 816mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
104.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Centris Technology provides fingertip tilt and effortless display adjustment
- Tool-less telescoping height adjustment
- ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management with flexible covers to hide cables for a clean installation
- Smooth rolling casters for effortless positioning (2 locking casters)
- Unique angled base design allows corner positioning for flexible placement options
Product Options/Accessories
Frequently Asked Questions
| Model | PFCUB700, PFCUS700 |
| Manufacturer | Chief Mounts |
| Part Number | PFCUB700, PFCUS700 |
| UPC | 841872101804 |
| Color | Black, Silver |
| Center of Display to Floor/Table Range | 48 - 72" (1219 - 1829mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Manual Height Adjustment | 24" |
| Overall Dimensions | 81.6" x 37.1" x 32.1" (2073 x 943 x 816mm) |
| Shipping Weight | 104.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 42 - 71" |
| Weight Capacity | 200 lbs (90.7kg) |
| Mounting Options | Cart |
