Chief LCD2TS LCD Projector Table Stacker

Warning: Installations using a column longer than the 24 inches column supplied is not recommended, personal injury could be the result if this warning is ignored. Projector mounts not included (purchase separately).

Product ID 16857

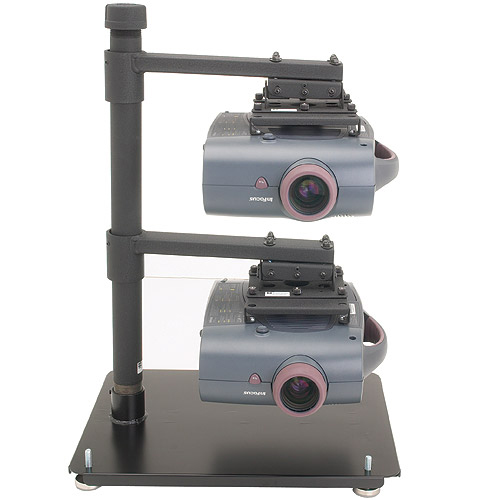

Chief LCD2TS Multiple LCD Projector Table Stacking System Black


Chief LCD2TS stacks multiple projectors: Table Stand (Projector mounts not included).

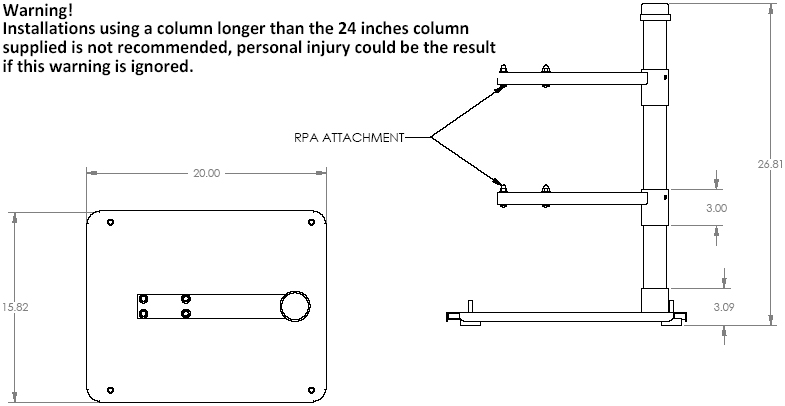

Technical Drawing

Technical Drawing of Chief LCD2TS Multiple LCD Projector Table Stacker Black




  • Roll: 4°
  • Pitch: 25°
  • Yaw: 12°



Max Equip Size (H X W X D)

0.0" x 18.0" x 0.0" (0 x 457 x 0 mm)

Overall Dimensions (H x W x D)

24.0" x 20.0" x 16.0" (610 x 508 x 406 mm)

Shipping Weight

29.00 lbs

Weight Capacity

100 lbs (45.4 kg)



  • Quick projector connect/disconnect
  • 12º of rotation on arm
  • Two models available: LCD2C (Ceiling Mount) and LCD2TS (Table Stand)
  • Independent roll, pitch & yaw make adjustments easy
  • Adjustable vertical projector spacing
Model LCD2TS
Manufacturer Chief Mounts
Part Number LCD2TS
UPC 841872002200
Color Black
Roll 4 degree
Pitch 25 degree
Yaw 12 degree
Max Equipment Size (H X W X D) 0.0" x 18.0" x 0.0" (0 x 457 x 0 mm)
Overall Dimensions 24.0" x 20.0" x 16.0" (610 x 508 x 406 mm)
Shipping Weight 29.00 lbs
Weight Capacity 100 lbs (45.4 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
