iPad Wall Mount Secure Short Reach Arm - Innovative 3500-8424

The Innovative 3500-8424 comes with a universal mounting option. It can be mounted on a desk as well as on the wall. iPad enclosure 8424 is compatible with iPad gen 1, 2, 3 and 4.

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 17059
iPad Wall Mount Secure Short Reach Arm - Innovative 3500-8424
Innovative FLEXmount
iPad Wall Mount Secure Short Reach Arm - Innovative 3500-8424
Innovative FLEXmount

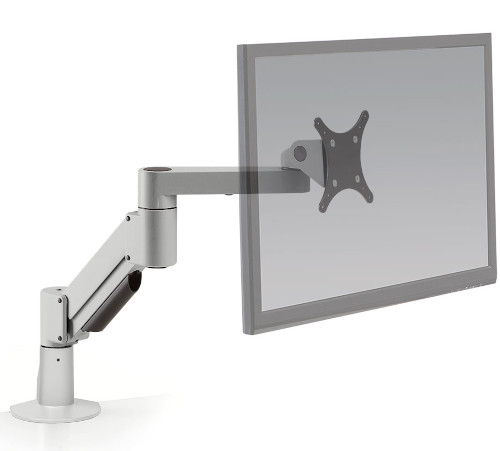

Ideal for tight spaces, the 3500 arm provides monitor flexibility in a space-saving configuration. Freely reposition the monitor, which floats above the desktop. Reclaim valuable desk space and work in comfort.

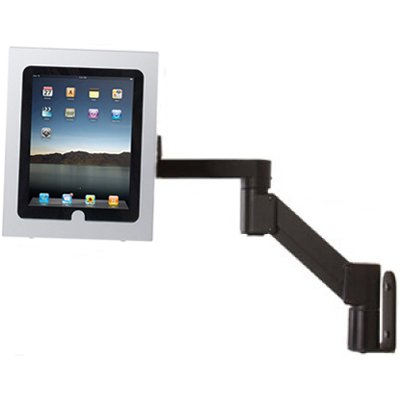

Secure iPad Holder with blocked 'home' button access. Compatible with all Innovative mounts. Keeps the iPad accessible yet safe. This version blocks user access to the 'home' button. Available in black, silver or white. Allows home button access for the user.

Combine with any Innovative mounting product for a secure self-service or POS application.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

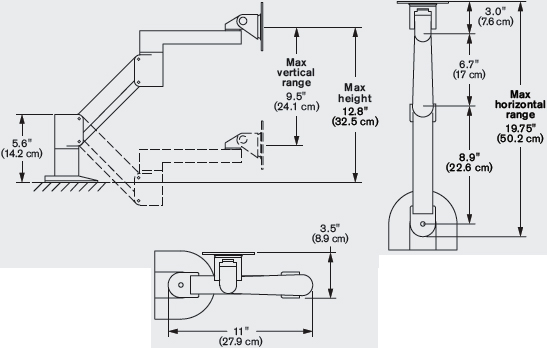

Technical Drawing

Technical Drawing for Innovative 3500-250-NM Short Reach Radial Arm (18")


Technical Specifications

Vertical Range


Horizontal Range



360 degrees at three joints

Monitor Tilt

200 degrees

Monitor Pivot

Landscape to portrait

Monitor Compatibility

VESA  75mm, 100mm

Cable Management

Cables are concealed in arm

Mounting Options

FLEXmount, Wall, Through Desk

Monitor Weight

2 - 12.5 lbs

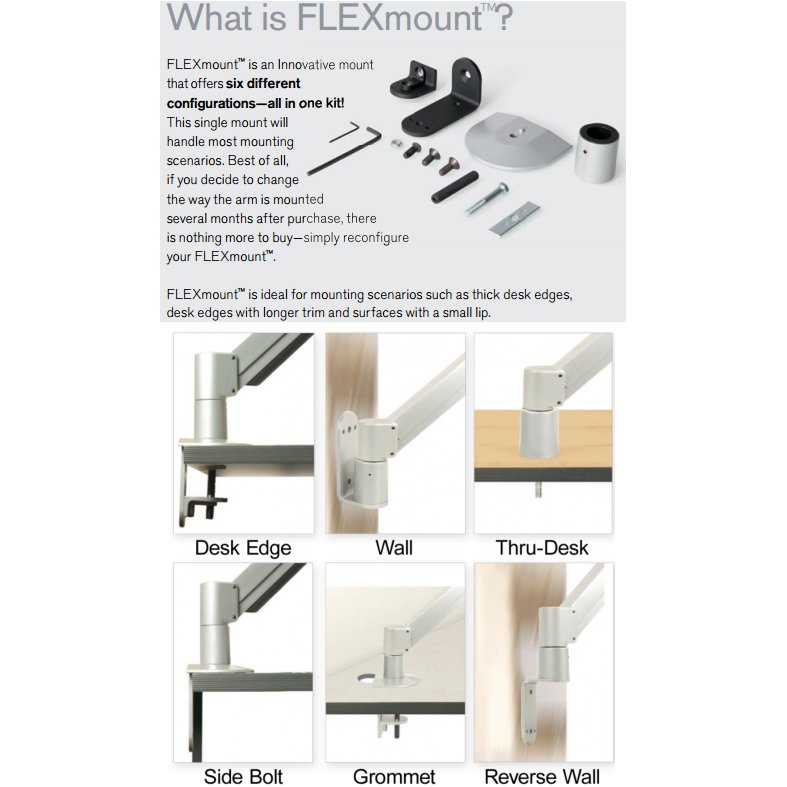

Innovative FLEXmount



  • 9-1/2" of vertical range
  • 19-3/4" of horizontal range
  • Folds up to occupy just 3" of space
  • Rotates 360 degrees at three joints
  • Monitor tilter mechanism can tilt over 200 degrees
  • VESA-monitor compatible - 75mm, 100mm VESA adapters included. Please call for non-VESA options

8424 or 8424-NHB

  • Secure and durable metal construction
  • Blocks user access to 'home' button
  • Perfect fit for iPad
  • Keeps iPad safe yet still accessible
  • Compatible with Innovative mounting products
  • Net weight 2.75 lbs

Model 3500-8424
Manufacturer Innovative LCD Arms
Part Number 3500-8424
Color Vista Black (104), Silver (124), Linen White (232)
Vertical Range 9.5"
Horizontal Range 19.75"
Weight Range 2 - 12.5 lbs
Mounting Options Desk
Mounting Options Wall
Device Apple
