Long Reach Camera Arm - ErgoDirect EDC-1201C

Product ID 17107


  • Long reach articulating arm for camera in color black
  • Allows camera to rotate 360 degrees and tilt 200 degrees
  • Enables movement along 3 axes to take photos directly from above
  • Carries cameras weighing 3-15 lbs
  • Offers 24" horizontal extension and 16" vertical adjustment (8" up, 8" down)
  • Attaches through camera's standard threaded socket
  • Ideal for still and tabletop pictures


EDC-1201C is a long reach adjustable arm for camera that lets you position your camera and take pictures from a variety of angles, that may be difficult from a tripod. Mount this arm on your desk or on the wall, attach your camera and you are ready to shoot pictures.

The arm articulates along its three axes and a wide 200 degree tilt allows shooting pictures directly from above on a table - an ideal situation for food photography. The sturdy design and construction of this arm also protects the camera from falls and resulting damage.

There is a bracket that attaches to the tilter head with one screw to the same threaded hole in the bottom of the camera, same as it is used on a tripod. The screw on top of tilter is designed to support standard hole in the bottom of the cameras.

Float your camera weightlessly - fluid motion on three joints allows you to effortlessly reposition. It’s perfect for still and tabletop photography.

Technical Drawing

Technical Drawing for Long Reach Camera Arm - ErgoDirect EDC-1201C

Technical Specifications

Color 104 - Vista Black
Extension Range 24" (61 cm)
Height Adjustment 16" (40.6 cm)
Pivot Landscape / Portrait
Rotation 360 degrees at three joints
Tilt 200 degrees
Monitor Weight 3 - 15 lbs (1.3 - 6.8 kg)
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility N/A
Warranty 10 Years


  • FLEXmount with 6 mounting options is available

  • Camera may be rotated 360 degrees

  • Arm articulates 360 degrees at 3 joints, allowing great flexibility

  • 200 degrees of tilt is available for the camera

  • Attaches via your camera’s standard 1/4 x 20 threaded socket

  • Power cables clip beneath the arm, keeping them out of your way

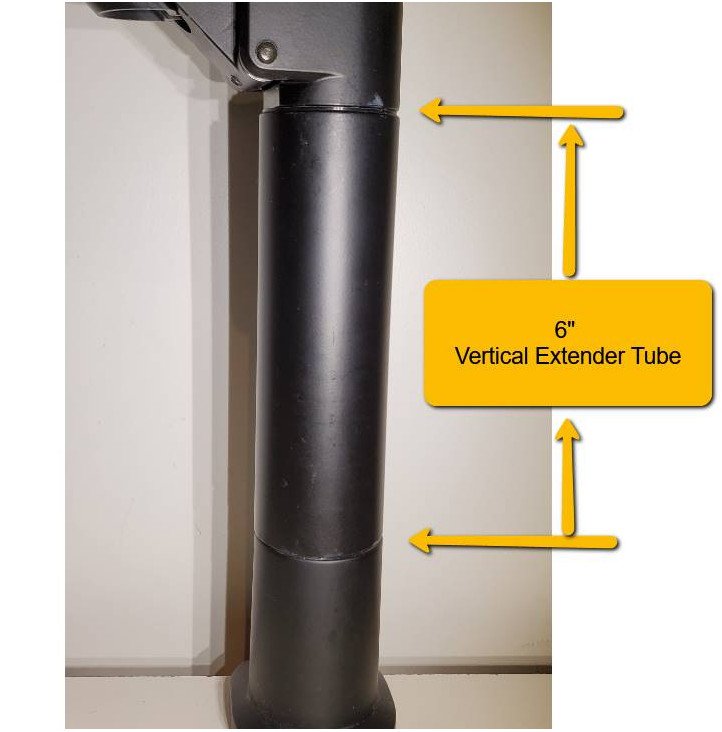

  • Optional 6" extender tube available to raise monitor (see Extender Tubes under Accessories)

Model EDC-1201C
Manufacturer Ergodirect
Part Number 7016-500hy
Color 104: Vista Black
Monitor Weight 3 - 15 lbs (1.3 - 6.8 kg)
Rotation At three joints 360 degree
Tilt 200 degree
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Mounting Options Pole
Number of Monitors 1 Monitor
Height Adjustment 16" (40.6 cm)
Extension 24" (61 cm)
Pivot Landscape to Portrait
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Warranty 10 Years
