$229.00

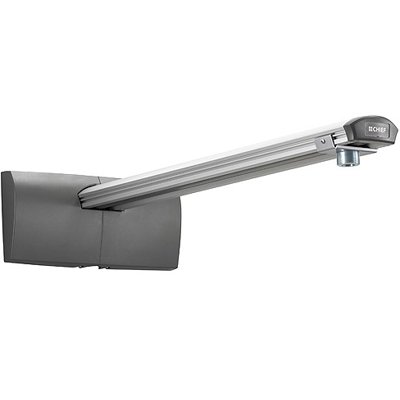

Chief WP22S Short Throw Projector Mount, Extension Arm (40")

Compatible with the RPA, Elite, RPA Mini and Elite Mini Series projector mounts (must order mount separately).

Product ID 17187
Chief WP22S Short Throw Projector Mount, Extension Arm (40")
Chief WP22S Short Throw Projector Mount, Extension Arm (40")

Description

Chief WP22S provides ideal placement and alignment for mounting to wood studs, steel studs and concrete. Compatible with the RPA, Elite, RPA Mini and Elite Mini Series projector mounts (must order mount separately). Also supports wall-mounted long-throw projectors.



Technical Drawing

Technical Drawing for Chief WP22S Short Throw Mount (40") Extension



Specifications

Adjustments

Leveling +4°/-0°

Certifications

UL Listed

Color

Silver

Extension

2.38" - 39.12" (6 - 99 cm)

Lateral Shift

1.75" (44 mm)

Notes

TAA Compliant

Overall Dimensions (H x W x D)

40.36" x 19.05" x 8.62" (103 x 48 x 22 cm)

Shipping Weight

10.16 lbs

Weight Capacity

25 lbs (11.3 kg)



Features

Precision adjustment
  • Projector mount slides along arm for infinite projector placement
  • Integrated micro leveling
  • Lateral shift of 1.75"

Integrated cable management

  • Aesthetic covers and inlay style cable management system conceal and protect cables for a clean finish

Multiple installation options

  • Designed for mounting to concrete, block wall, brick, dual wood or dual steel studs. Includes hardware for mounting to wood stud and concrete wall
  • 1.5" NPS collar provides compatibility with RPA & Elite Series projector mounts and other accessories
  • Ability to personalize your install with Chief's interchangeable logo card
  • Includes short throw arm only, projector mount must be ordered separately
  • Also sold in 24" & 56" length options
  • TAA compliant
Model WP22S
Manufacturer Chief Mounts
Part Number WP22S
UPC 841872153926
Color Silver
Extension 2.38" - 39.12" (6 - 99 cm)
Lateral Shift 1.75" (44 mm)
Overall Dimensions 40.36" x 19.05" x 8.62" (103 x 48 x 22 cm)
Weight Capacity 25 lbs
Adjustments Leveling +4/-0 degree
Shipping Weight 10.16 lbs
Mounting Options Short Throw
