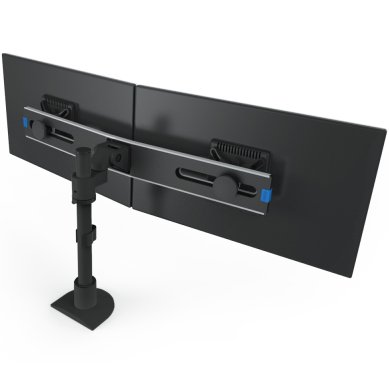

Innovative 9136-SWITCH-S-14 Dual LCD Monitor Arm with 14" Pole

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 17348

Innovative FLEXmount

Description

Innovative 9136-Switch-S-14 suspends 2 flat panels above your work surface with the Switch Multi-Monitor Mounting System. Save valuable workspace and reduce desktop clutter.

Our adjustable Switch bracket allows you to adjust monitors and also allows rotation. Includes our spring-assist monitor tilter for effortless motion. Monitors can be positioned either side-by-side or one over the other. Switch works with all VESA 100 mm VESA monitors.

Switch is a configurable multi-monitor mounting system by Innovative. Switch meets your current mounting requirements, but also easily adapts to meet your future requirements. You can convert your monitor configurations with little time or effort, often without even having to purchase additional components

Configure a two monitor setup vertically or horizontally with the 9136-Switch-S-14 dual monitor pole mount. Mount monitors to the desktop or the wall.

Introducing Switch - One Switch, many possibilities

A highly configurable solution for multi-monitor applications. Switch meets your current mounting requirements, but also easily adapts to meet your future requirements. You can convert your monitor configurations with little time or effort, often without even having to purchase additional components.

Workplace configurations are continually changing and evolving. That’s why you need a monitor mounting system that can quickly adapt.

Configurable solutions for a range of applications. Switch multi-monitor mounting system is ideal in any of these environments:

  • Financial trading

  • Command & control

  • A/V & multimedia

  • Call centers






Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter


Technical Drawing

Technical Drawing for Innovative 9136-SWITCH-S-14 Dual LCD Monitor Arm with 14

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Number of Monitors 2
Monitor Size Up to 24" (61 cm) widescreen
Monitor Weight Up to 15 lbs (6.8 kg) per monitor
Monitor Tilt Up to 180 degrees
Extension Range 4.7" (11.9 cm) from center of pole
Pole Size 14" (36 cm)
Pivot 90 degree
Rotation One rotation joint
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm quick-release adapter included
Warranty 10 years
Cable Management Cables to be tucked under the forearm extensions

Features

  • Dual monitor pole mount enables pivot, tilt, and rotation of monitors

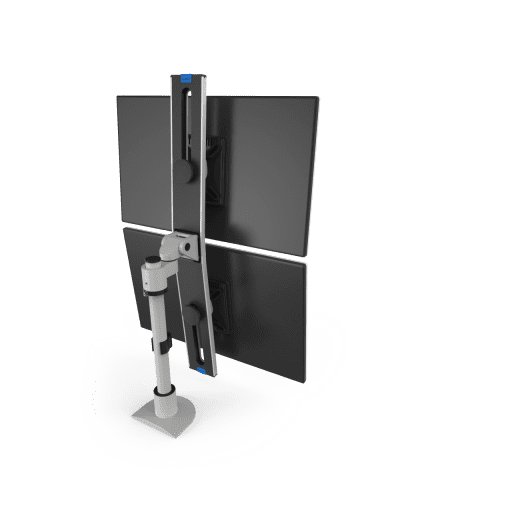

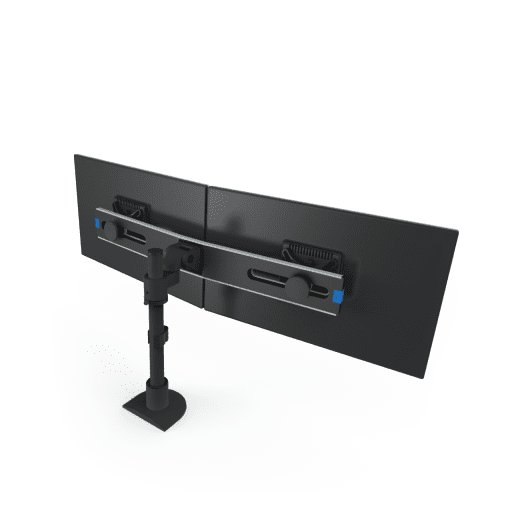

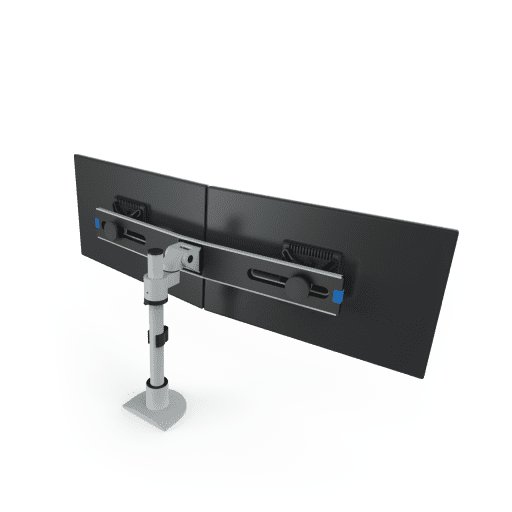

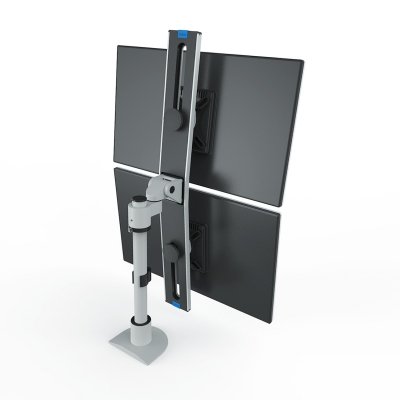

  • Monitors can be positioned horizontally (side-by-side) or vertically (stacked one over another)

  • Position monitors in either portrait or landscape

  • Set height at any desired position along the included 14" pole

  • Quick-install VESA adapter saves time at setup

  • Dual LCD mount is VESA-monitor compatible - 100 mm VESA adapter included

  • Tilt monitors up to 180 degrees

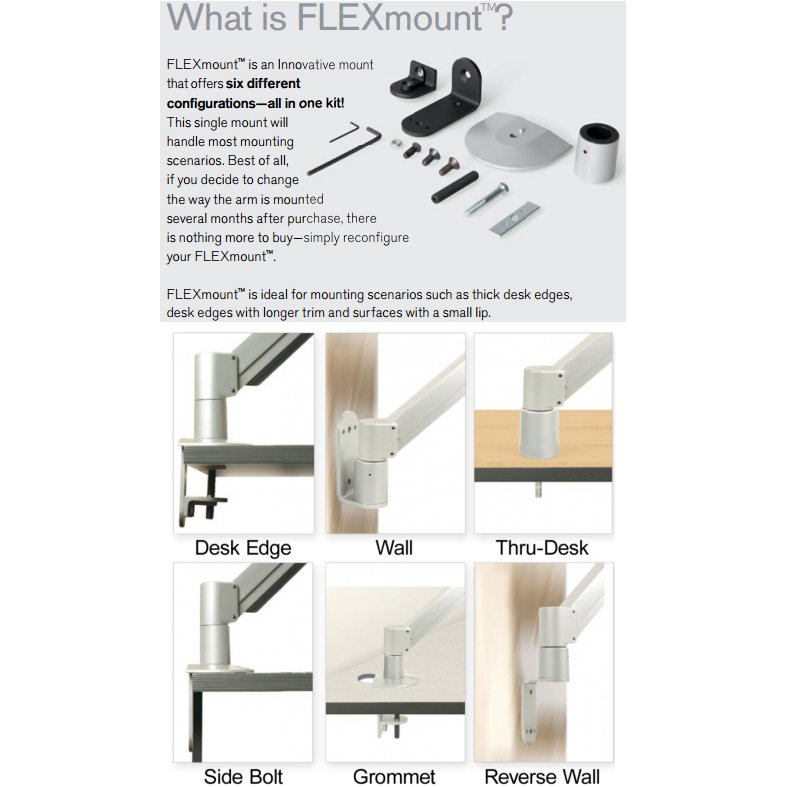

  • FLEXmount with six mounting options, including LCD wall mount is available

  • Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)

Model 9136-SWITCH-S-14
Manufacturer Innovative LCD Arms
Part Number 9136-SWITCH-S-14
Color 104 - Vista Black, 124 - Silver
Tilt Up to 180 degree
Monitor Size Up to 24" (61 cm)
Monitor Weight Up to 15 lbs (6.8 kg) per monitor
Pole Length 14" (36 cm)
Mounting Pattern VESA 100 mm
Number of Monitors 2 Monitors
Mounting Options Desk
Mounting Options Wall
Warranty 10 Years
Extension 4.7" (11.9 cm) from center of pole
Pivot 90 degree
Maximum Monitor Size 24"
Monitor Placement Side-by-Side
