$995.00

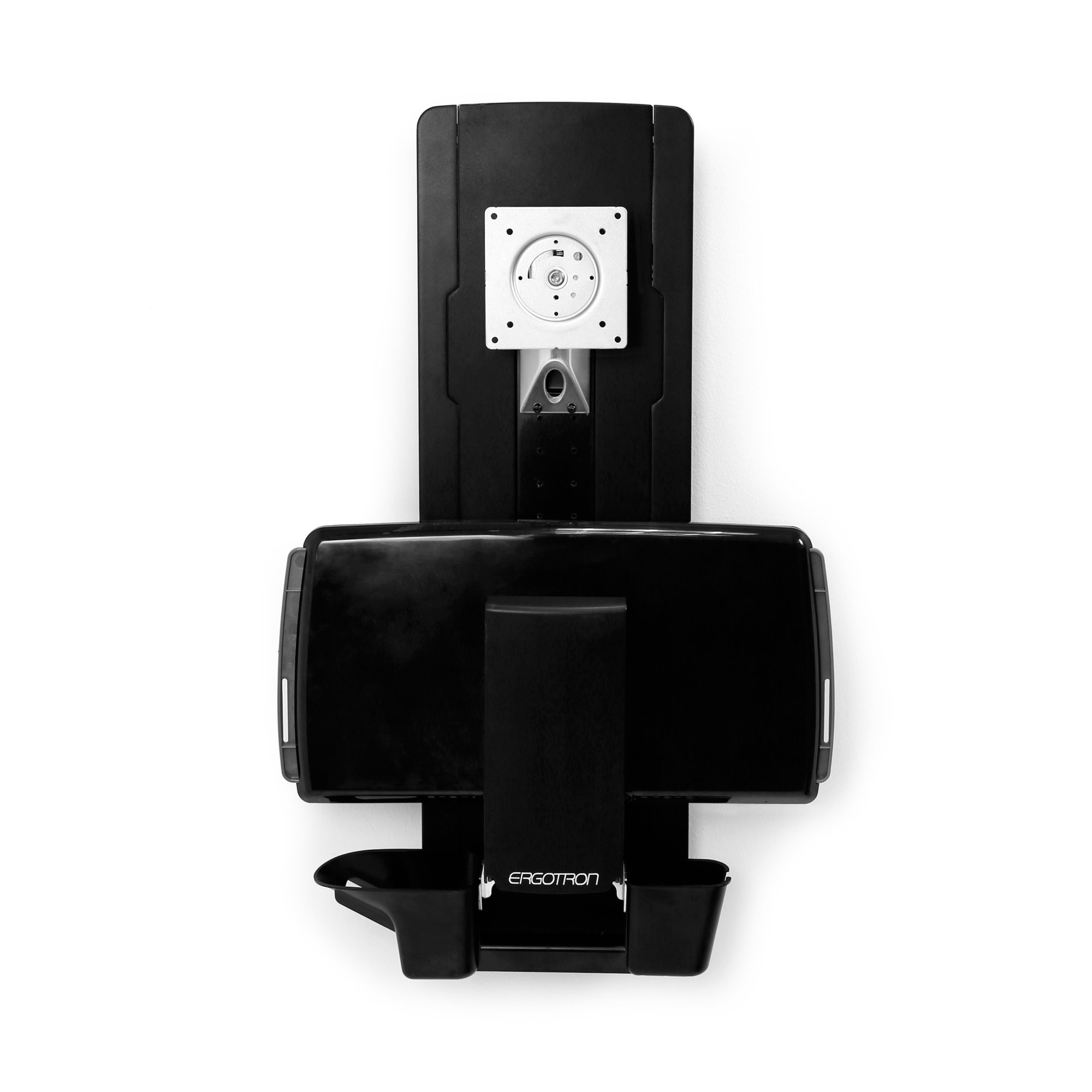

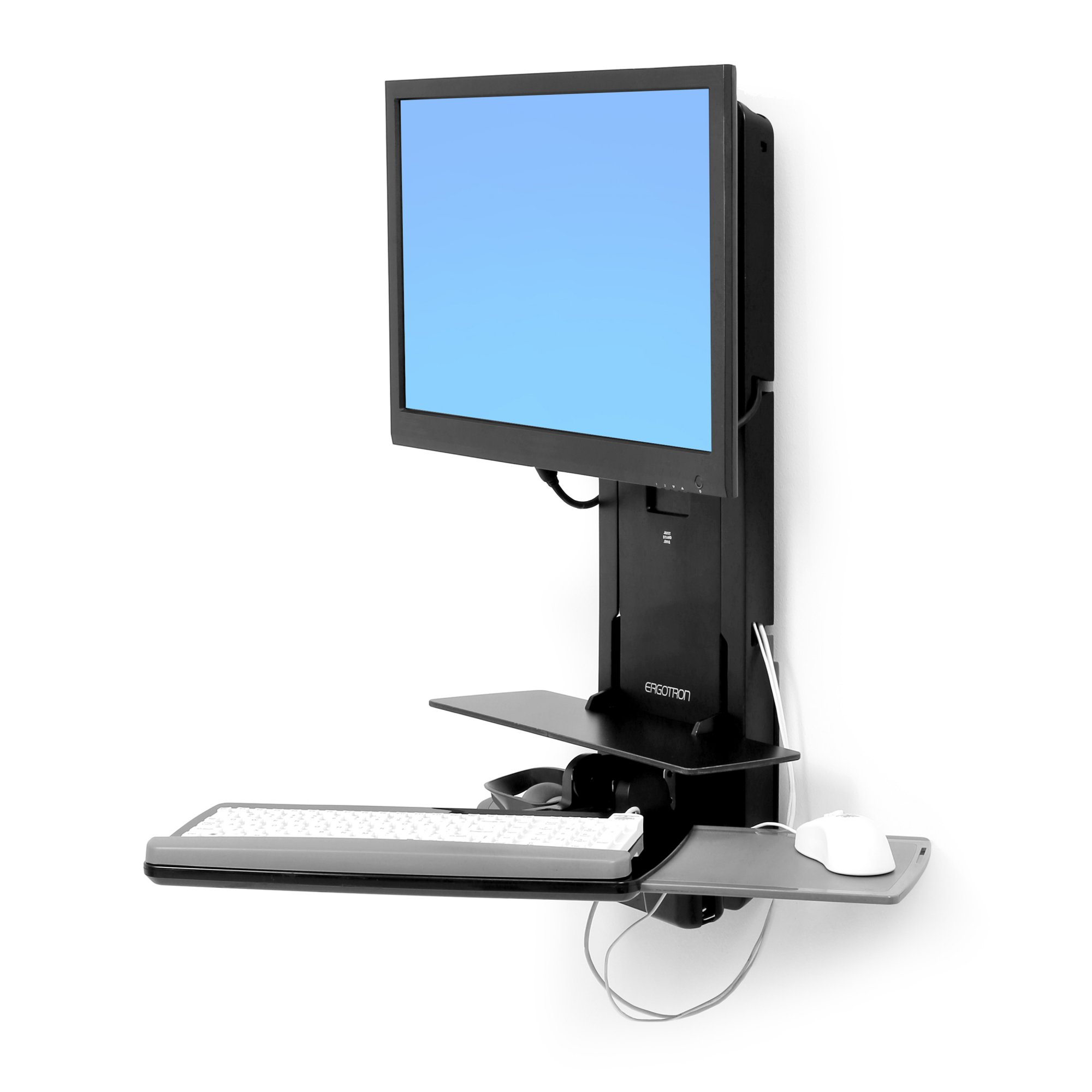

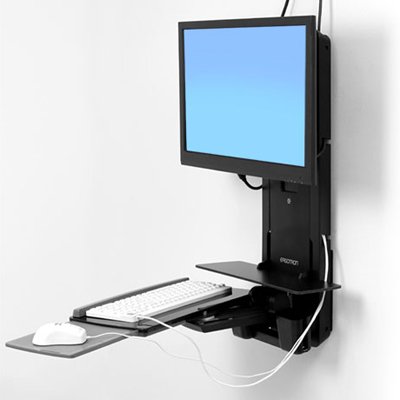

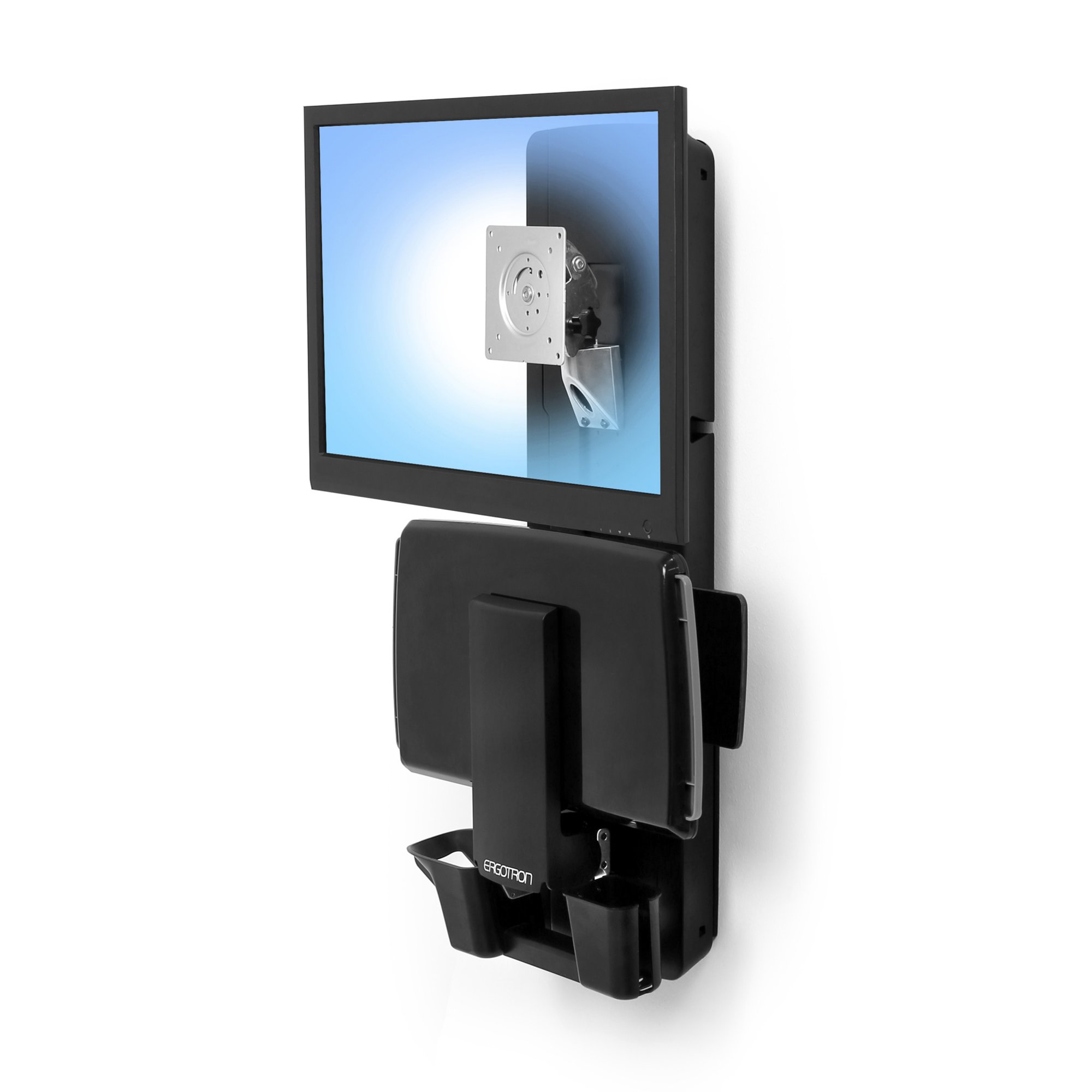

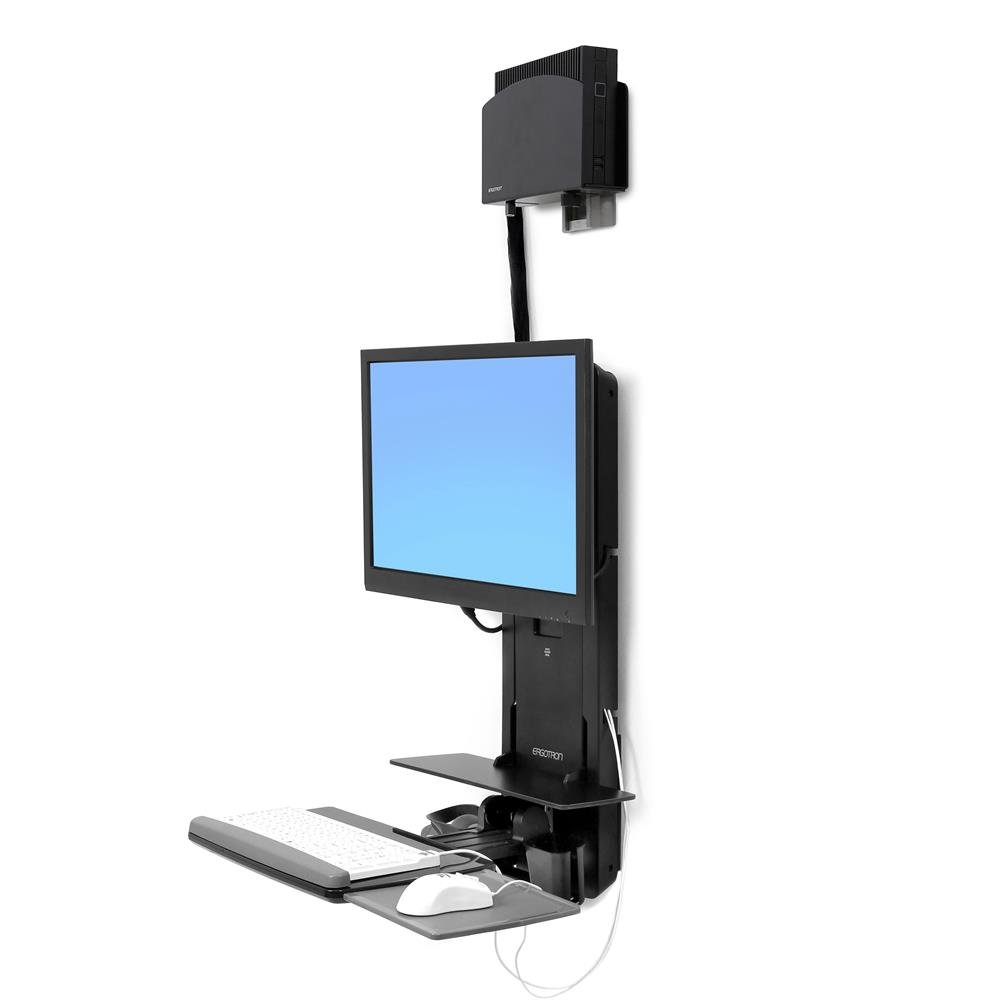

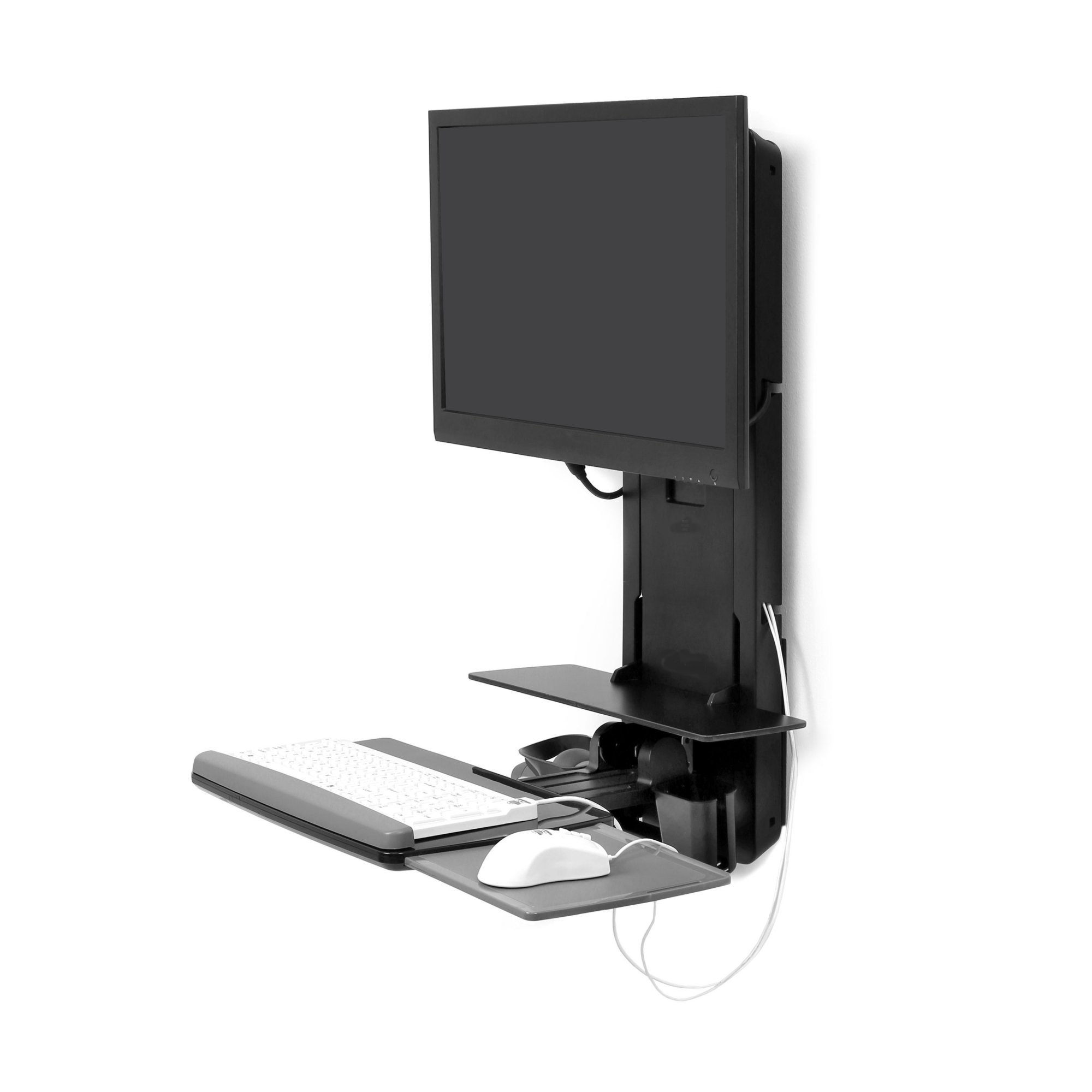

Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room

Product ID 17822
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
With Pan 50°

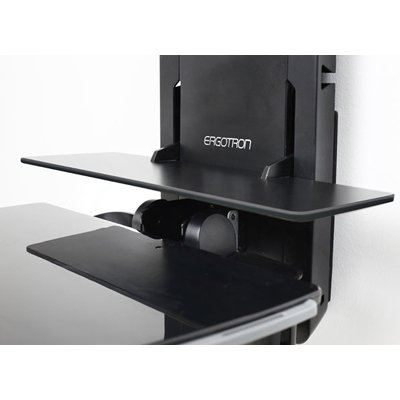

Shelf
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room
With Pan 50°
Shelf
Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room

Description

Ergotron 61-080-085 is a very low-profile workstation that adjusts between sitting and standing working heights: With a storage depth of just 6" (15.2 cm), it is the perfect solution for space-constrained patient rooms.

Move the entire system - monitor, keyboard, mouse and scanner - in a single motion. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promotes patient-caregiver interaction.

Technical Drawing

Technical Drawing for Ergotron 61-080-085 SV Sit-Stand Vertical Lift, Patient Room

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

8-33 lbs

3.6-15.0 kg

18"

45.7 cm

10° 45° - MIS-D

Product Information

Part Number 61-080-085
Description StyleView Sit-Stand Vertical Lift, Patient Room (black)
Includes
  • Sit-stand lift chassis

  • Monitor pivot

  • Covers

  • Shelf

  • Retractable keyboard tray

  • Slide-out mouse tray

  • Wrist rest

  • Mouse pouch

  • Scanner holder

Weight Capacity 8-33 lbs (3.6-15.0 kg). Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
Mounting Standards VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Pan Monitor pans left/right 45° (varies by size of monitor); keyboard tray pans left/right 120°
Scanner and Mouse Holder Scanner and mouse holder integrated into the keyboard tray
Keyboard Tray
  • Keyboard tray extends out up to 5" (12.7 cm) when in use

  • Back-tilt keyboard tray adjustable (0 to -10 degrees)

Cable Management System Integrated cable management system can be configured on either side of chassis
Exterior Easy-to-clean exterior
Product Weight 30 lbs (13.5 kg)
Shipping Dimensions 31.5" x 15.75" x 7.25" (80 x 40 x 18.5 cm)
Shipping Weight 35 lbs (16 kg)
Warranty Five (5) years

Benefits

  • Side-to-side pan of keyboard and display promotes patient-caregiver interaction while accessing data

  • Sit-stand height adjustment improves working comfort and ergonomics; easily accommodates the heights of multiple users

  • With the keyboard folded up, total system depth is as little as 6" (15.2 cm)

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry

  • Patented CF lift technology provides smooth adjustment while maintaining touch-screen stability

  • High-quality construction for long-lasting durability

  • Cable management system conceals and organizes cords and makes cleaning a snap

Model 61-080-085
Manufacturer Ergotron
Part Number 61-080-085
UPC 698833037654
Color Black
Monitor Size Up to 24"
Weight Capacity 8–33 lbs (3.6–15 kg)
Lift (45.7 cm) 18 in
Tilt 10 degree
Pan 45 degree
Mounting Pattern VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight 30 lbs (13.5 kg)
Shipping Dimensions 31.5" x 15.75" x 7.25" (80 x 40 x 18.5 cm)
Shipping Weight 35 lbs (16 kg)
Warranty Five (5) years
