Innovative 9136-S-14 Adjustable Monitor Pole Mount - 14" Pole
Description

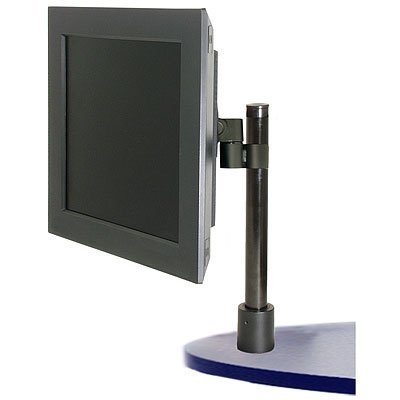

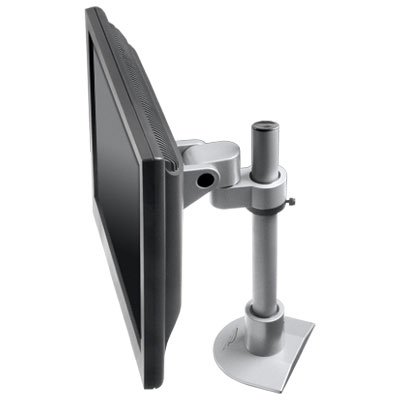

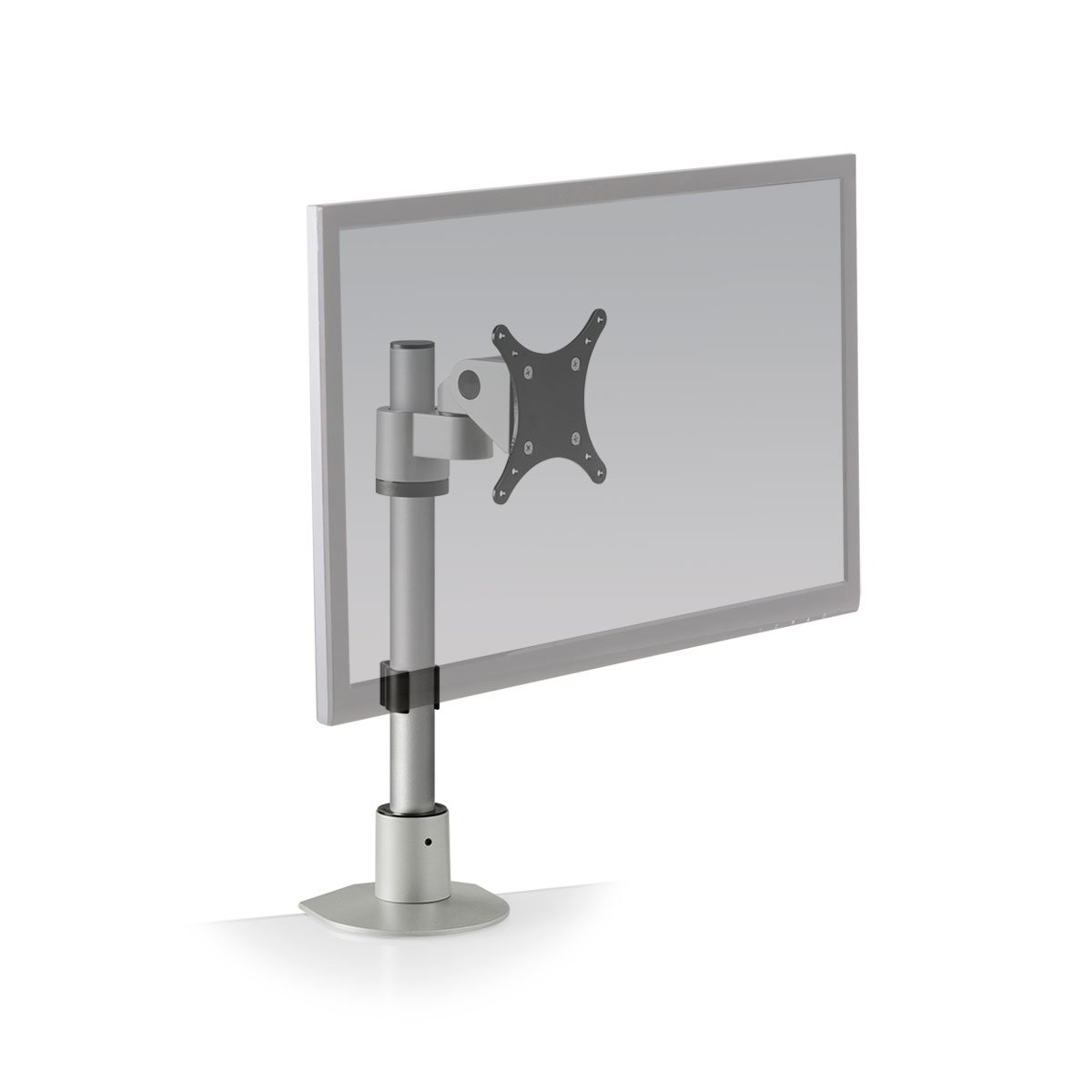

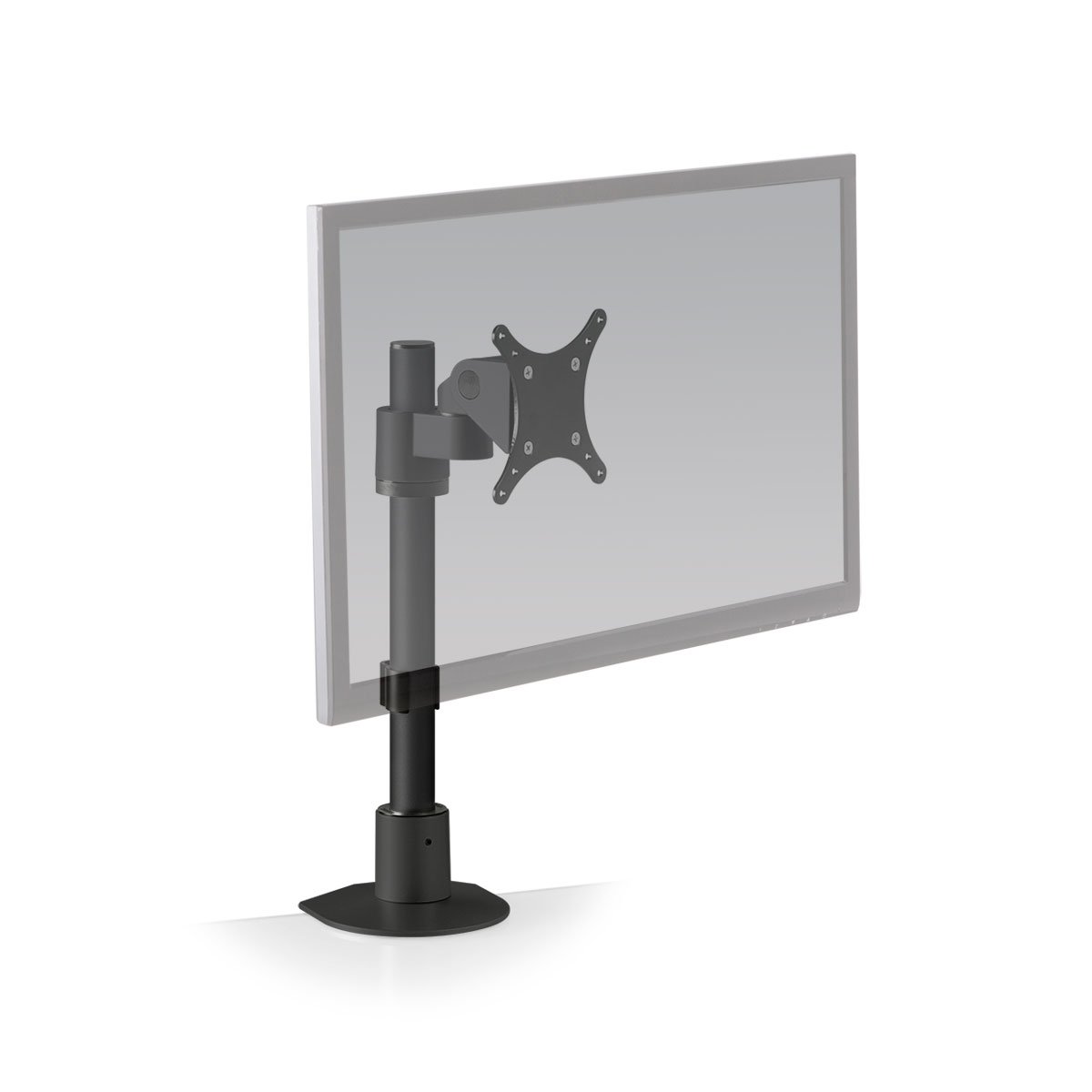

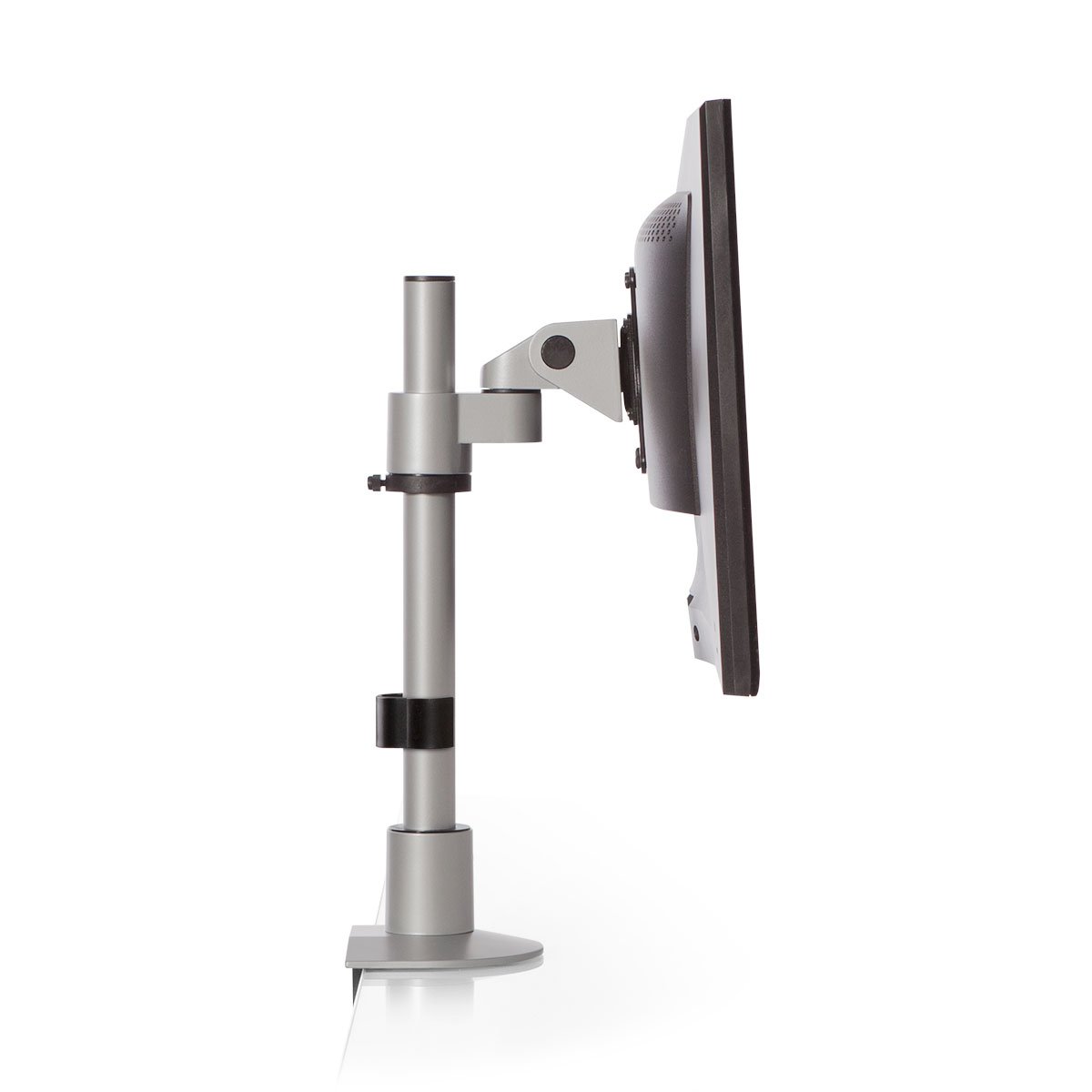

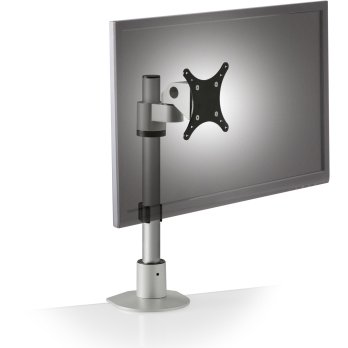

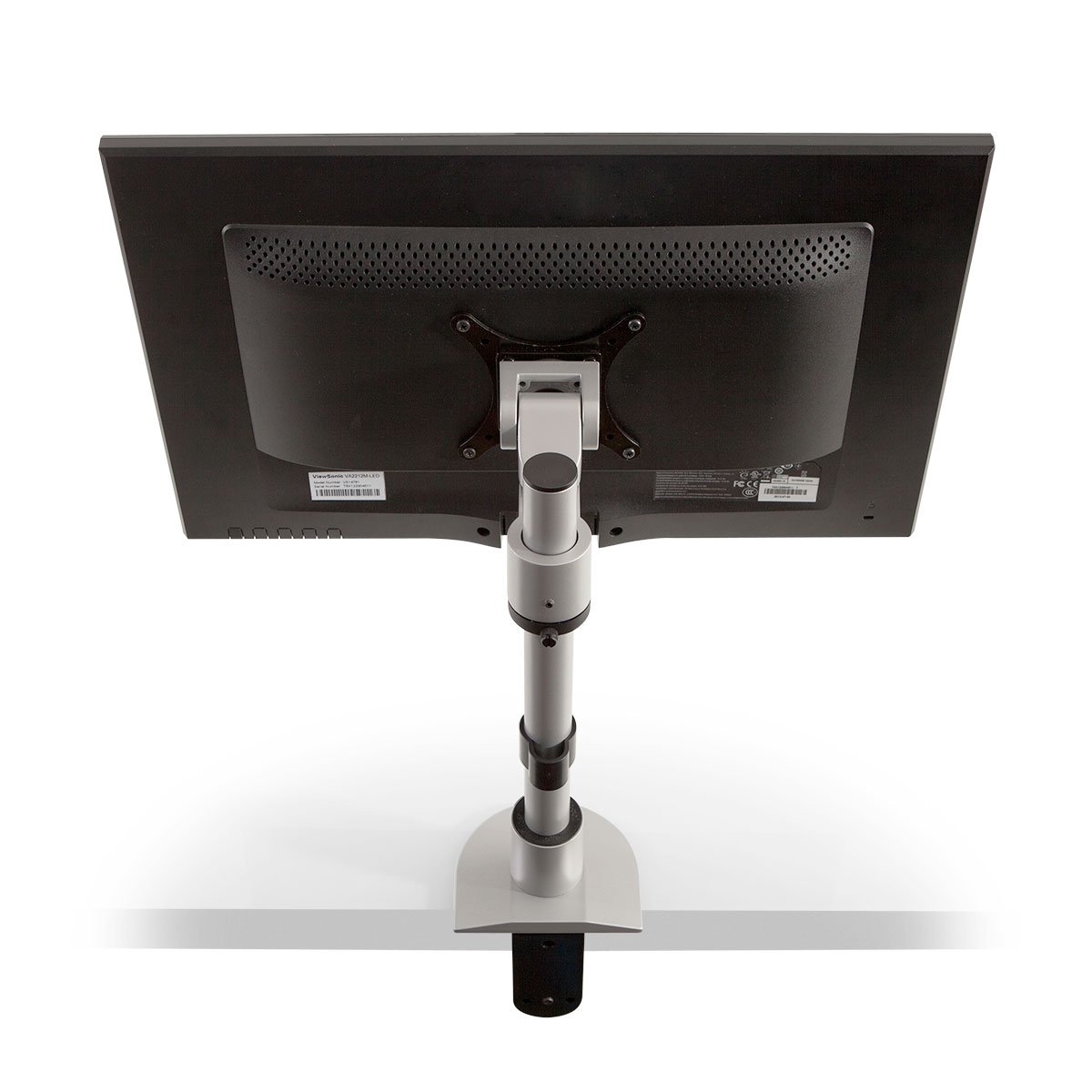

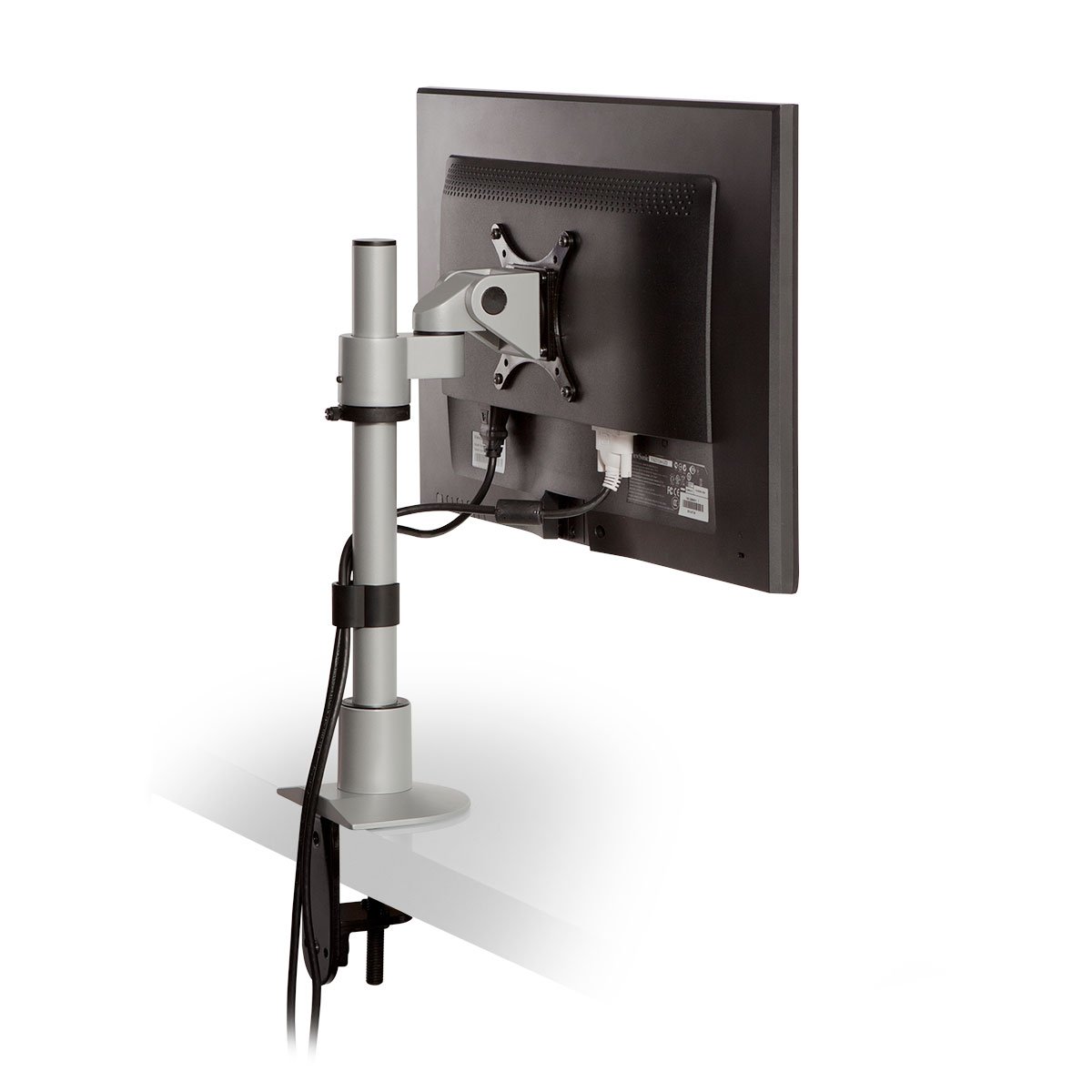

Innovative 9136-S-14 pole mount suspends the flat panel monitor above the work surface. Reposition articulating monitor arm along the 14" pole mount.
Save valuable desk space and work in greater ergonomic comfort by elevating your flat panel monitor above the work surface with the 9136-S-FM articulating pole mount. This height adjustable monitor arm allows the users to pivot and tilt the monitor for optimal viewing. Easily position the monitor at any height along the 14" pole mount.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
![]() 8500 Quick Release Monitor Tilter | ![]() 8336 Standard Monitor Tilter |
Technical Drawing
Technical Specifications
Color | 104 - Vista Black, 124 - Silver |
Screen Size | Up to 32" |
Extension Range | 5.7" |
Pivot | Landscape / Portrait |
Rotation | One rotation joint |
Pole Height | 14" (36 cm) |
Monitor Tilt | 200 degrees |
Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
VESA Compatibility | 100mm adapter included |
Weight Capacity | Up to 45 lbs (20.4 kg) |
Warranty | 10 years |
Features

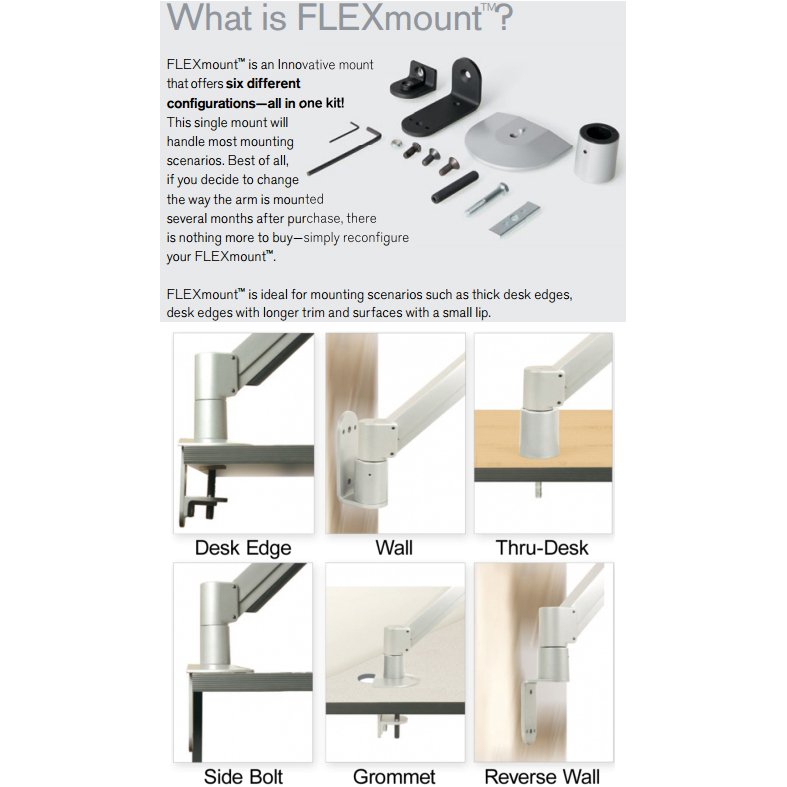

FLEXmount with six mounting options is available
Features a 14" standard pole mount; custom pole lengths are available
Enables easy pivot, tilt, and rotation of the computer monitor
Monitor tilter mechanism can tilt over 200 degrees
Adjustable tension at monitor mount joints - ideal for touch-screen applications
Monitor mount is ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)
VESA-monitor compatible - 100mm VESA adapter included; please call for non-VESA options
Optional upgrade to quick install/release monitor bracket; consult your sales rep for details
Product Options/Accessories
Model | 9136-S-14 |
Manufacturer | Innovative LCD Arms |
Part Number | 9136-S-14 |
Color | 104 - Vista Black, 124 - Silver |
Mounting Options | Desk |
Mounting Options | Wall |
Mounting Options | Slatwall |
Monitor Arm Types | 1 Monitor |
Number of Monitors | 1 Monitor |
Pole Length | 14" |
Tilt | 200 degree |
Mounting Pattern | VESA 100mm |
Monitor Weight | Up to 45 lbs (20.4 kg) |
Monitor Size | Up to 32" |
Extension | 5.7" (14.5 cm) |
Pivot | Landscape to Portrait |
Warranty | 10 Years |
