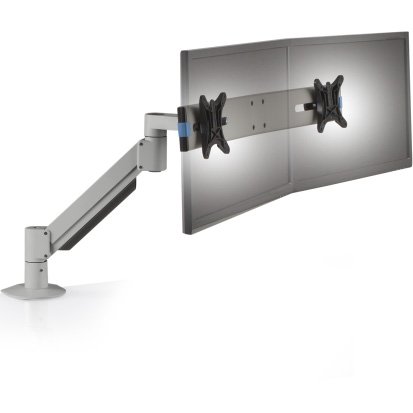

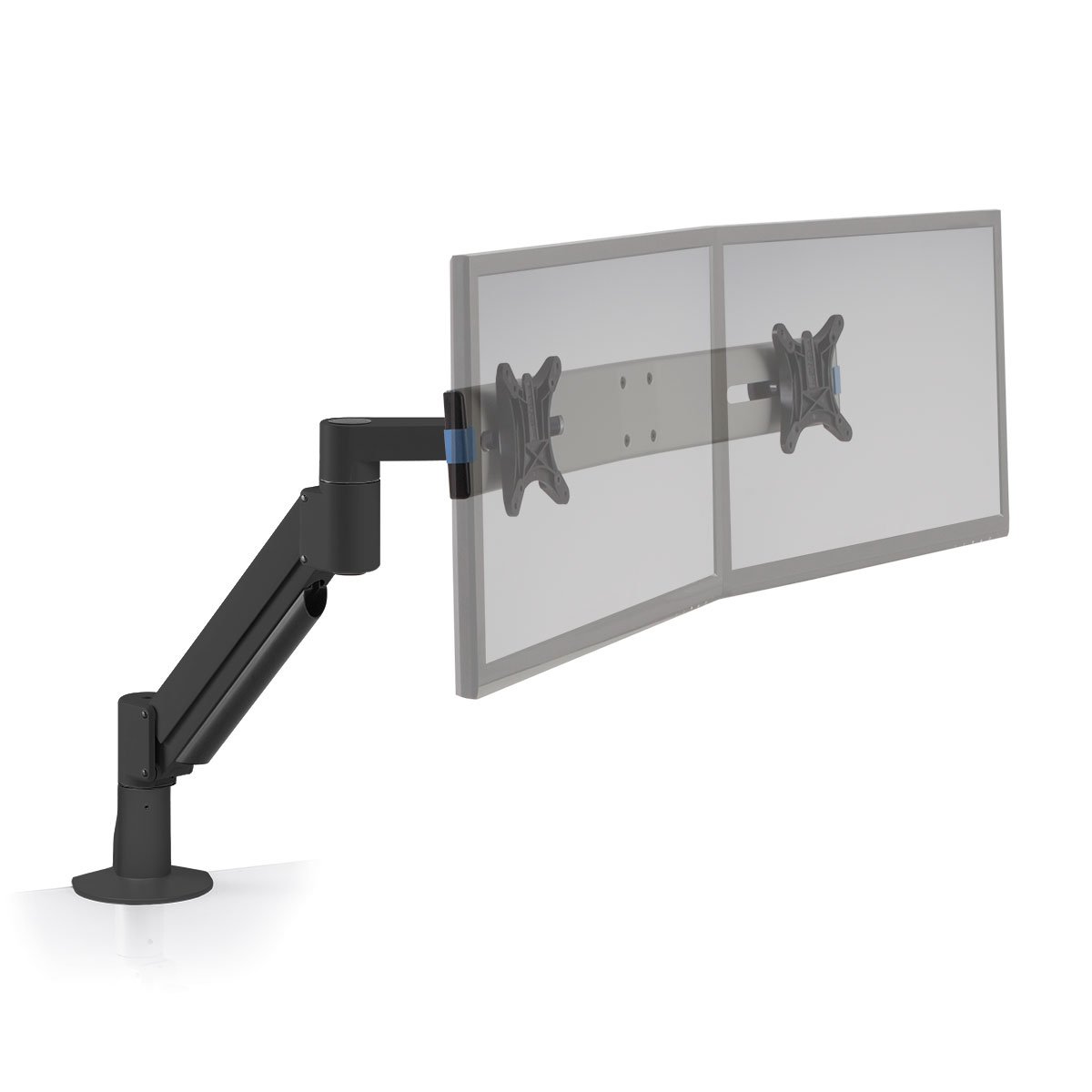

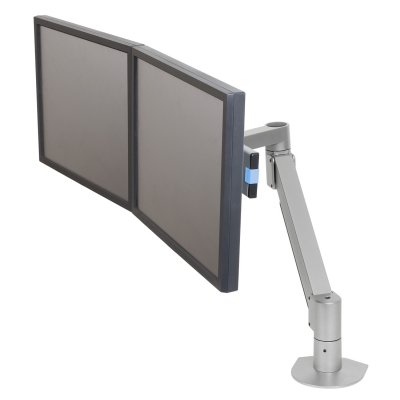

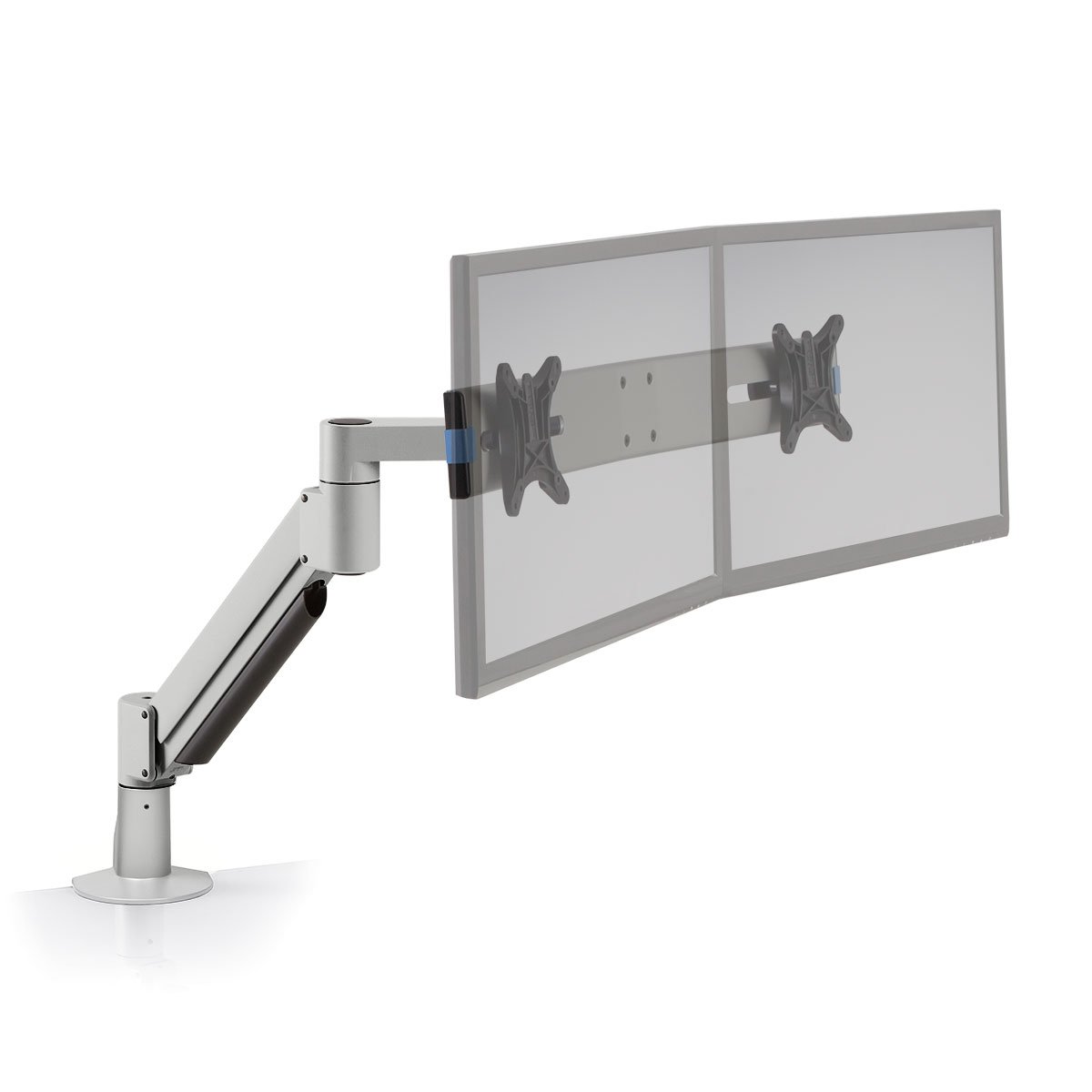

Innovative 7000-Switch Dual Monitor Arm with Switch Bracket
Monitors up to 24" widescreen
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description
Save valuable desk space by mounting two monitors to a single mount.
With Innovative 7000-Switch, both monitors will float above your
desktop, allowing you to quickly and easily adjust monitor height and

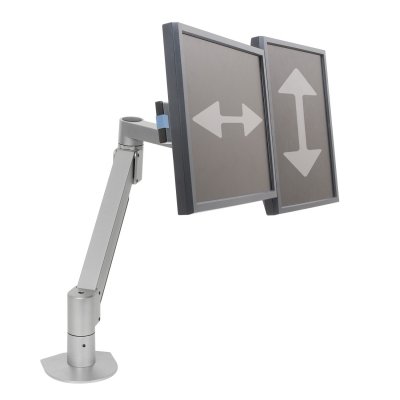

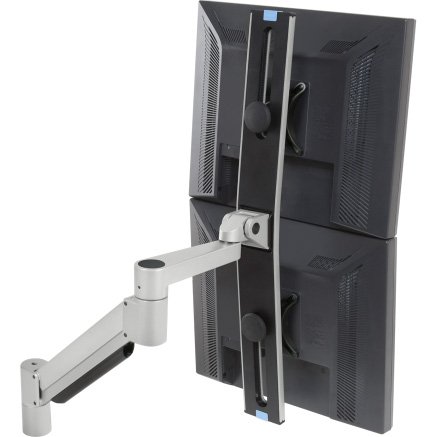

position. Monitors can be positioned either side-by-side or one above
the other.
Our adjustable wing bracket allows you to adjust monitors, and also

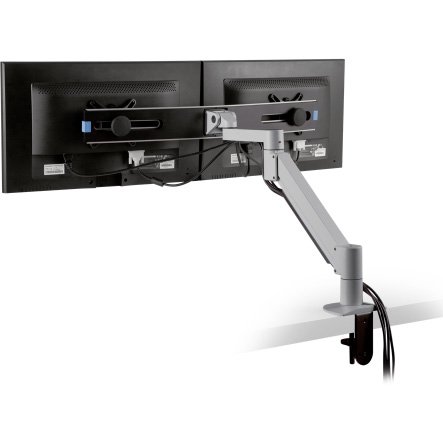

allows rotation. The 7000-Switch incorporates cable management, keeping
your work space clean and organized.
A member of the best-selling 7000 monitor arm family, this dual
monitor arm suspends two monitors above desk. Easily adjust both
monitors with one hand for ergonomic comfort.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.
Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
 8500 Quick Release Monitor Tilter |
 8336 Standard Monitor Tilter |

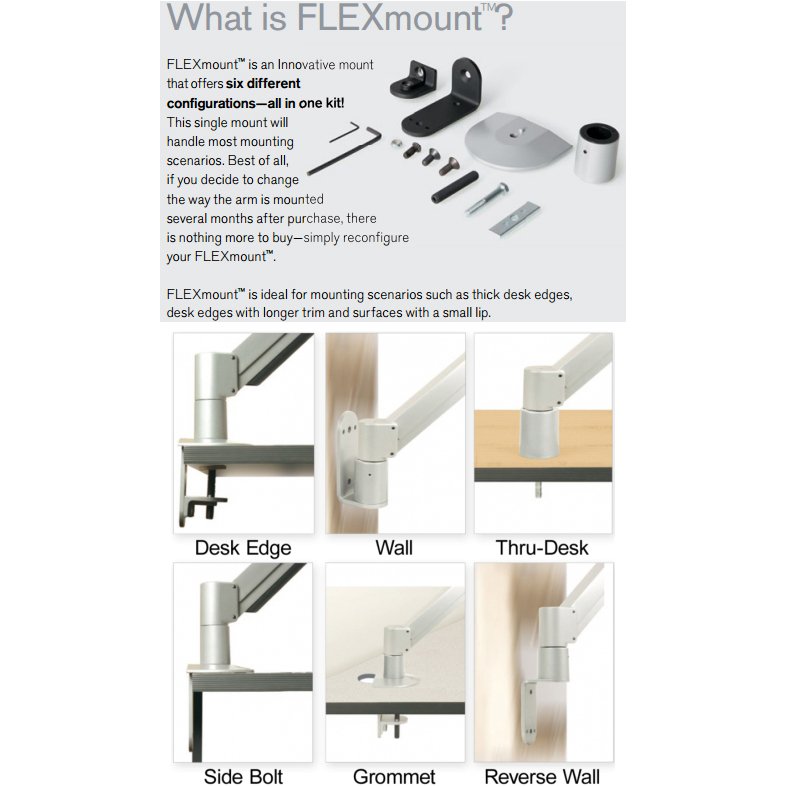

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount

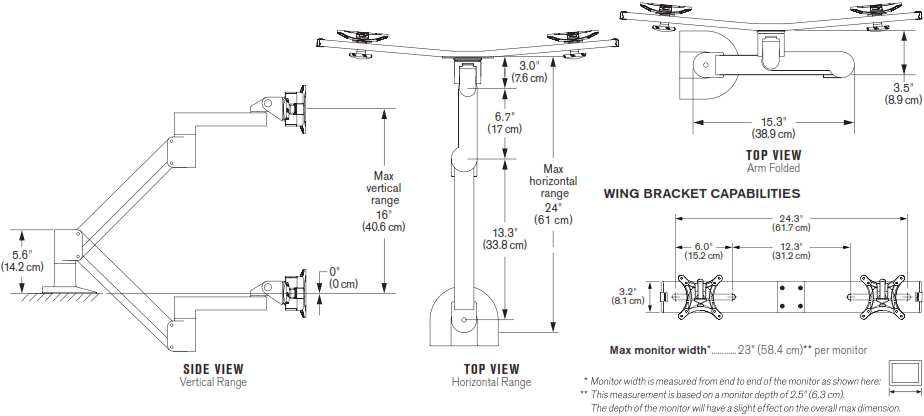

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Screen Size | Up to 24" |
| Height Adjustment | 16" |
| Extension Range | 22" |
| Monitor Pivot | Landscape / Portrait |
| Monitor Rotation | 360 degrees at three joints |
| Monitor Tilt | 200 degrees |
| VESA Compatibility | 100mm quick-release adapter included |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| Cable Management | Cables are concealed in arm |
| Weight Capacity | 3.5 - 13 lbs (1.6 - 5.9 kg) per monitor |
| Warranty | 10 years |
Features
Gas arm "floats" dual flat panel monitors above the desktop for instant height adjustment
Monitors can be positioned horizontally (side-by-side) or vertically (stacked one over another)
FLEXmount, featuring six mounting options is available
Quick-install/quick-release mechanism instantly and securely snaps monitors into position
VESA-monitor compatible - 100mm VESA adapter included please call for non-VESA options
Cable management routes cables underneath the dual monitor arm
Accommodates flat panel monitors up to 24" widescreen (monitor widths may vary)
Product Options/Accessories
| Model | 7000-Switch-1000 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7000-Switch-1000 |
| Monitor Size | Up to 24" (61 cm) |
| Color | 104 - Vista Black, 124 - Silver |
| Vertical Range | +/- 8" (20.3 cm) from horizontal |
| Horizontal Range | 24" (61 cm) |
| Rotation | At three joints 360 degree |
| Tilt | 200 degree |
| Pivot | Landscape/Portrait |
| Mounting Pattern | VESA 75mm and 100mm |
| Monitor Weight | 3.5 -13 lbs (1.6 - 5.9 kg) per monitor |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Mounting Options | Pole |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Warranty | 10 Years |
| Maximum Monitor Size | 24" |
| Monitor Placement | Side-by-Side |
