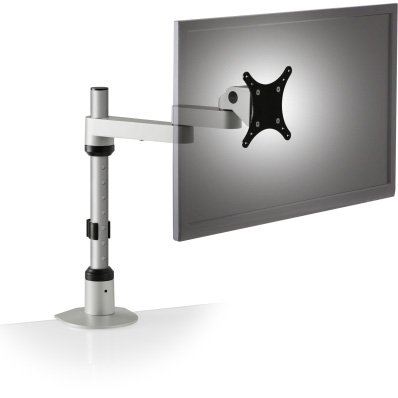

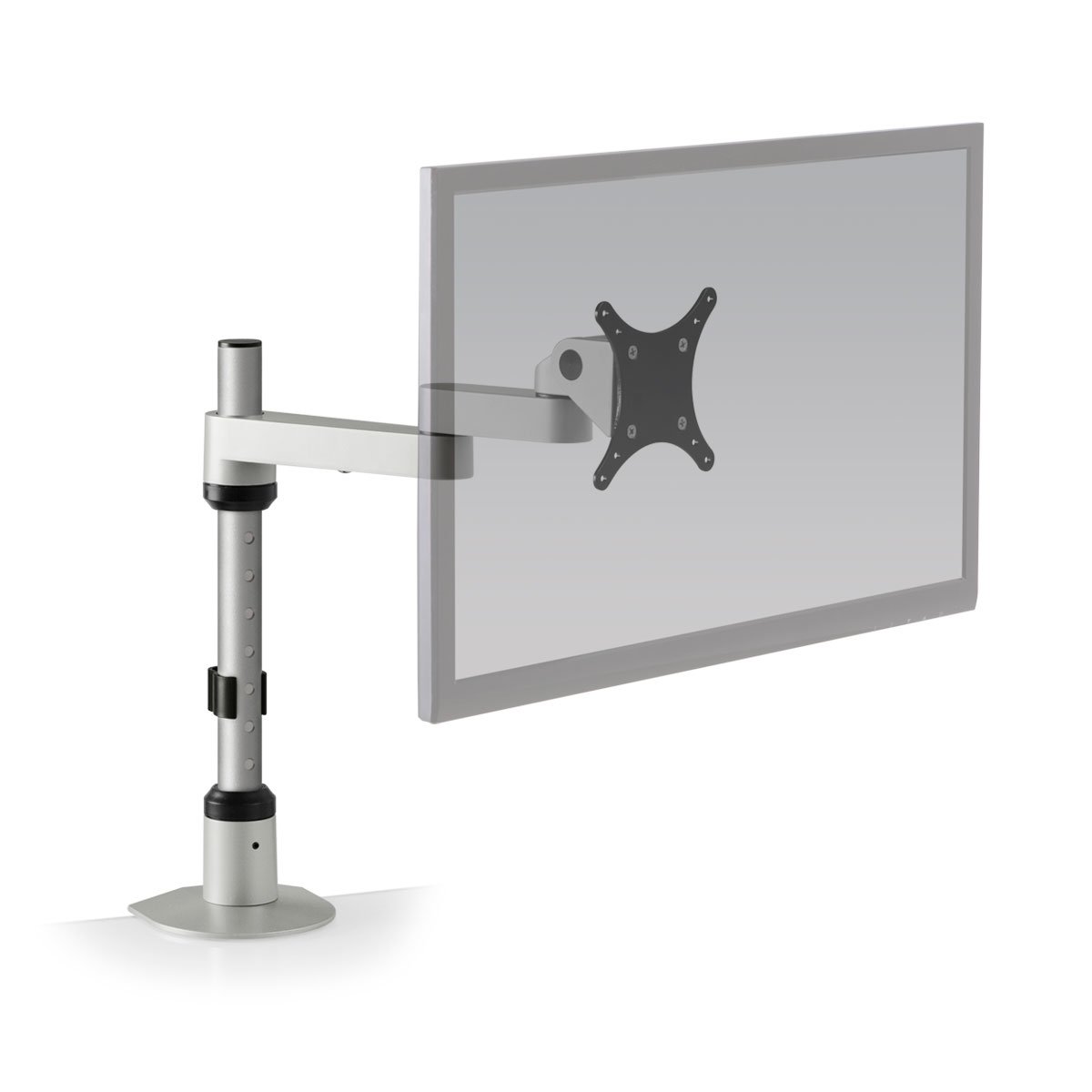

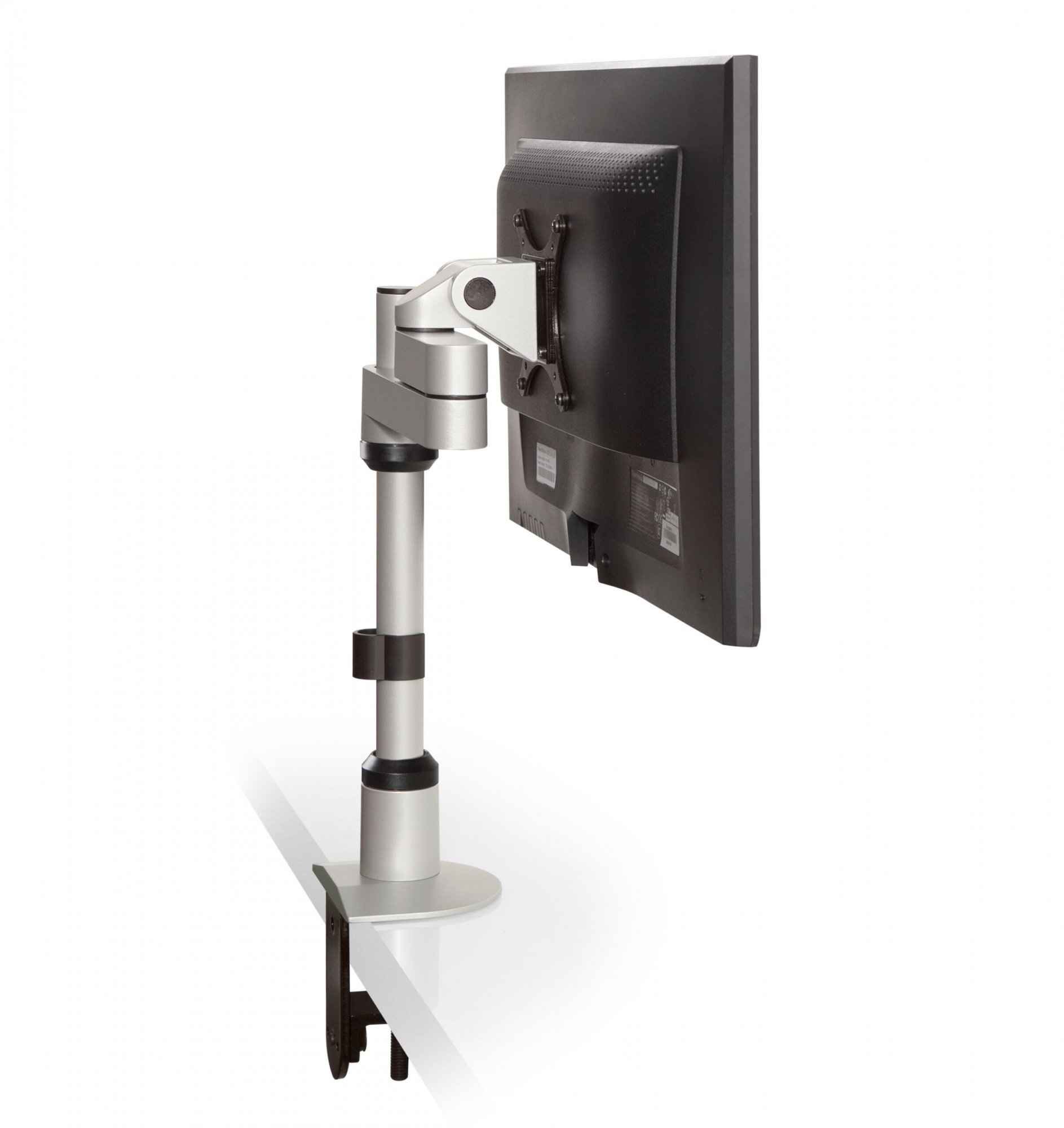

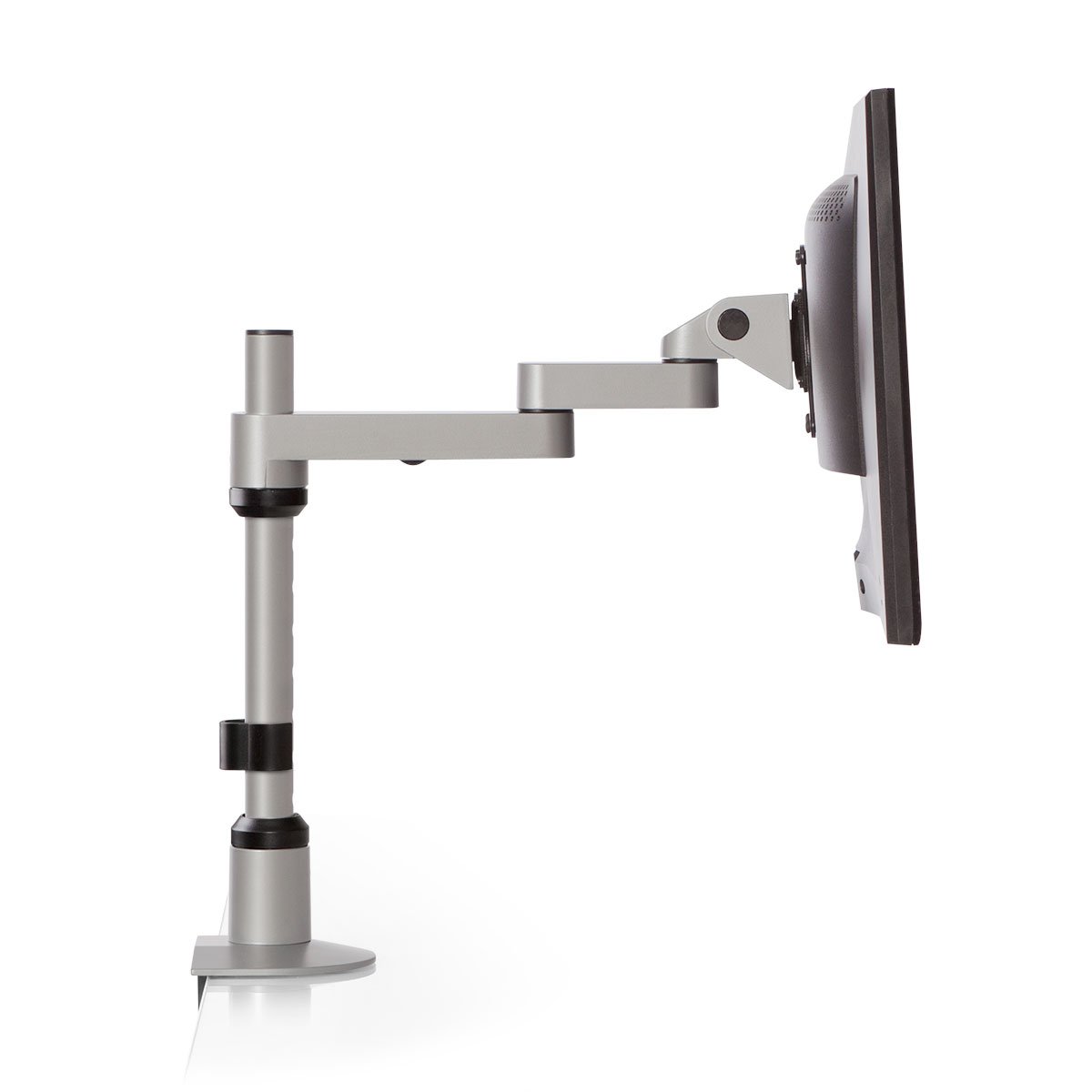

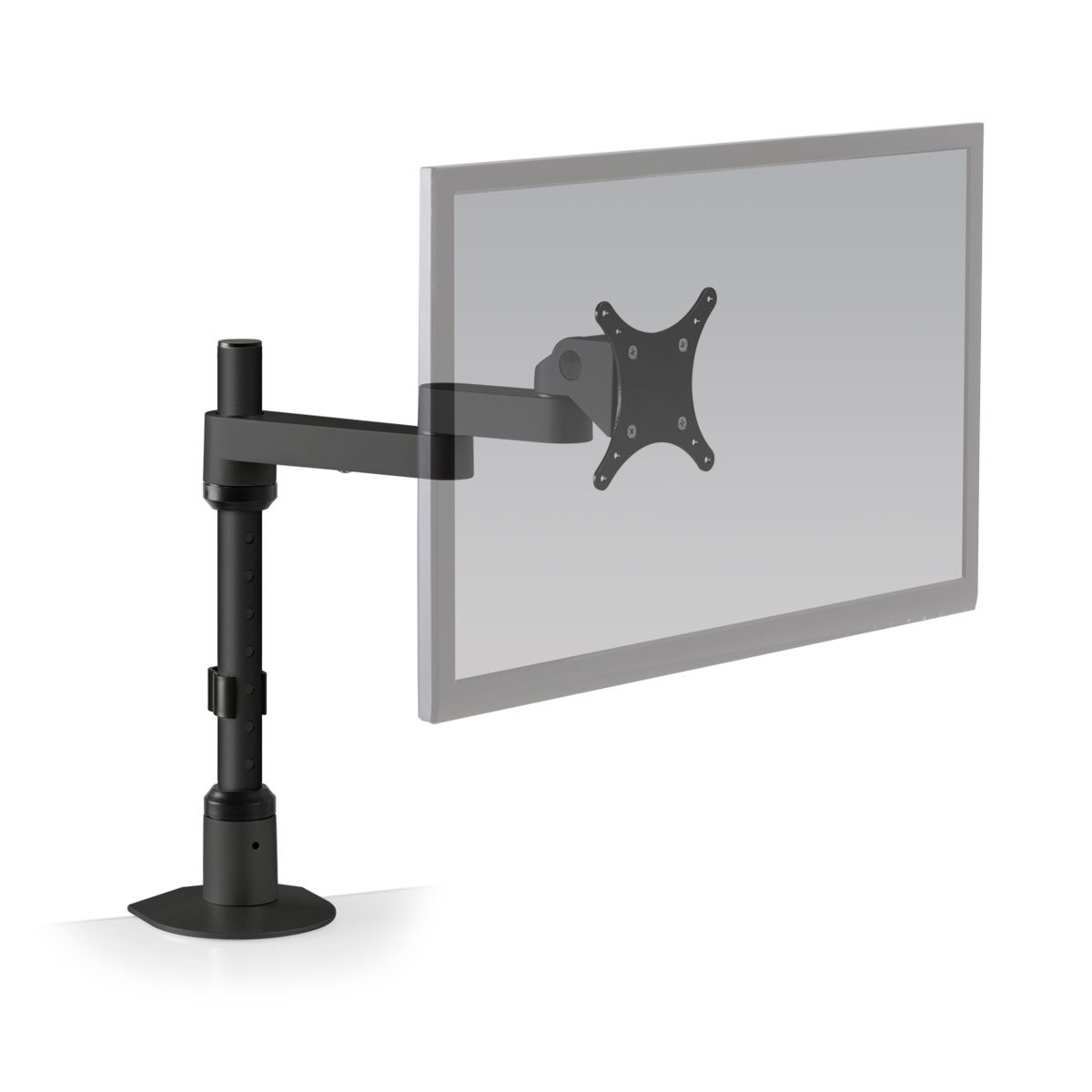

Innovative 9114-S-14 EURO Series Articulating Monitor Mount 14" Pole
Description

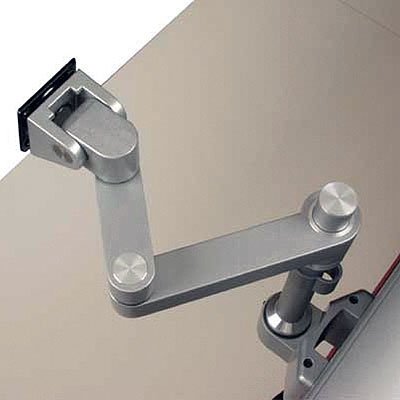

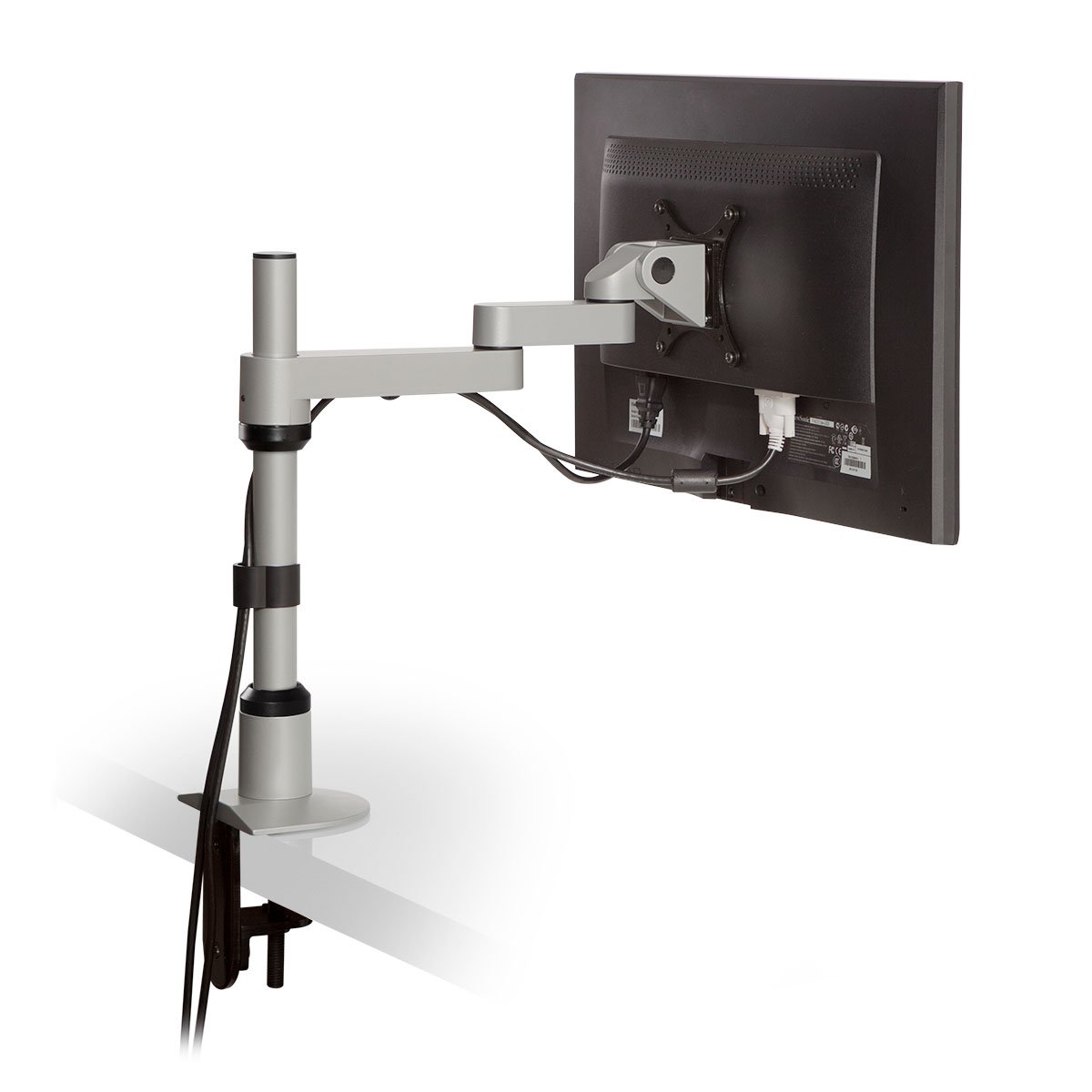

Innovative 9114-S-14 is a part of our EURO Series of stylish mounts. Model 9114 features foldable arms which adjust vertically up and down a 14" pole. The arms can fold up to fit in about 3" of space and extend out 14". Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to be tucked under the forearm extensions.
Part of Innovative’s EURO series, the 9114-S-FM pole mount features a flexible articulating monitor arm that can be adjusted along the 14" pole. Custom pole mount lengths are available.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

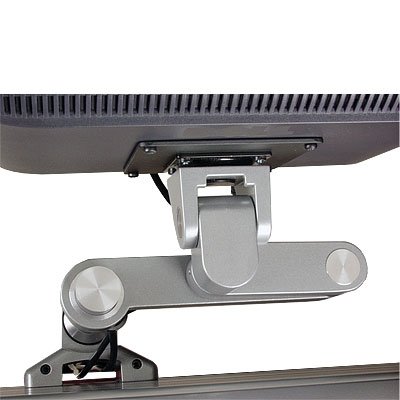

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |

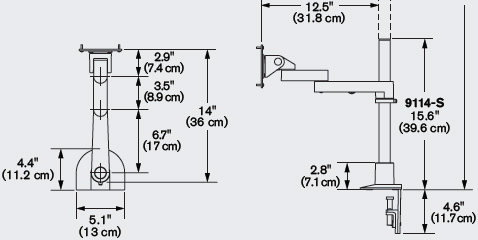

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Screen Size | Up to 32" |
| Extension Range | 14" (36 cm) |
| Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Pole Height | 14" (36 cm) |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 100mm adapter included |
| Weight Capacity | Up to 40 lbs (18.1) per monitor |
| Warranty | 10 years |
Features
Monitor tilter mechanism can tilt over 200 degrees

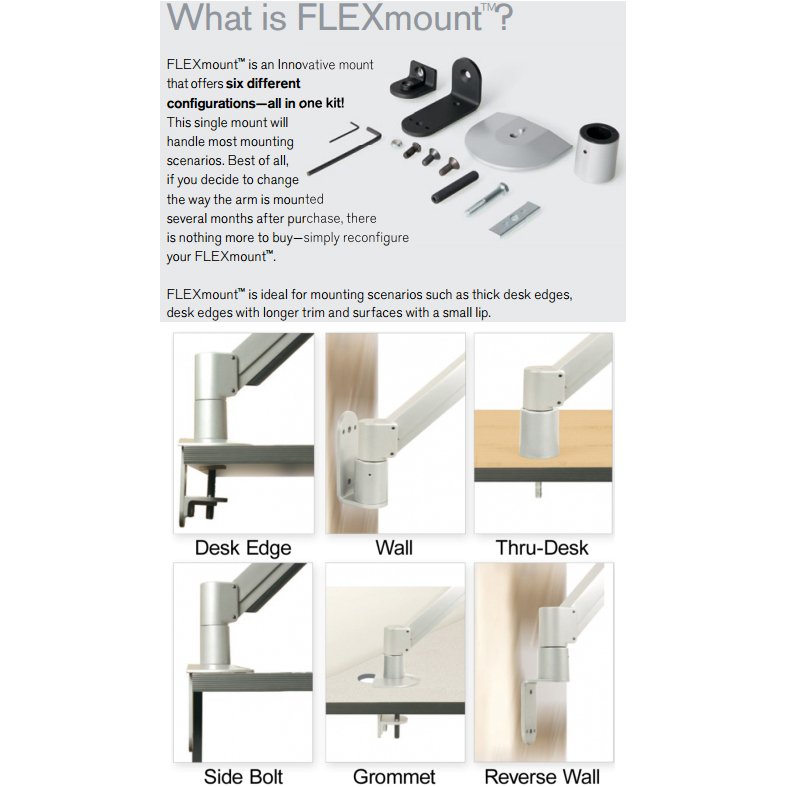

FLEXmount with six mounting options is available
Features a 14" standard pole mount; custom pole lengths are available
Mount rotates 360 degrees at three joints
Features adjustable tension at joints, ideal for touch-screen applications
Monitor arm is ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)
VESA-monitor compatible - 100mm VESA adapter included; please call for non-VESA options
Optional upgrade to quick install/release monitor bracket; consult your sales rep for details.
Product Options/Accessories
| Model | 9114-S-14 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9114-S-14 |
| Color | 104 - Vista Black, 124 - Silver |
| Pole Length | 14" |
| Rotation | 360 degree |
| Tilt | 200 degree |
| Mounting Pattern | VESA 100mm |
| Monitor Weight | Up to 40 lbs (18.1 kg) |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Monitor Size | Up to 32" |
| Extension | 14" (36 cm) |
| Pivot | Landscape to Portrait |
| Warranty | 10 Years |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
Seller warrants that its products will be free from defects in material and workmanship when the title passes to the buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of 10 years (exception: 1 year for Busby, 5 years for Winston Workstation, Winston-E, Winston Desk and Freedom Desk, 3 years for Tablik and 1 year for Bild motorized column) after the original date of sale, unless the product damage resulted from normal wear and tear, buyer abuse, misuse or negligence or failure to follow instructions related to the products’s installation or intended use. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from seller shall be buyer’s exclusive remedy.
