$5,120.00

Chief LCM2x2UP Portrait Large Ceiling Mounted 2x2 Video Wall

Product ID 18018
HIGHLIGHTS

Highlights

  • Ideal for Digital Signage installation
  • A ceiling mount solution for 2 x 2 portrait video wall system
  • UL Listed
  • Weight Capacity: 125 lbs per screen
  • Screen Sizes: 40 - 50"

Description

Chief's LCM2X2UP FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for digital signage installations.

  • Screen array configuration: screens wide x screens high

  • Confirm screen compatibility with MountFinder

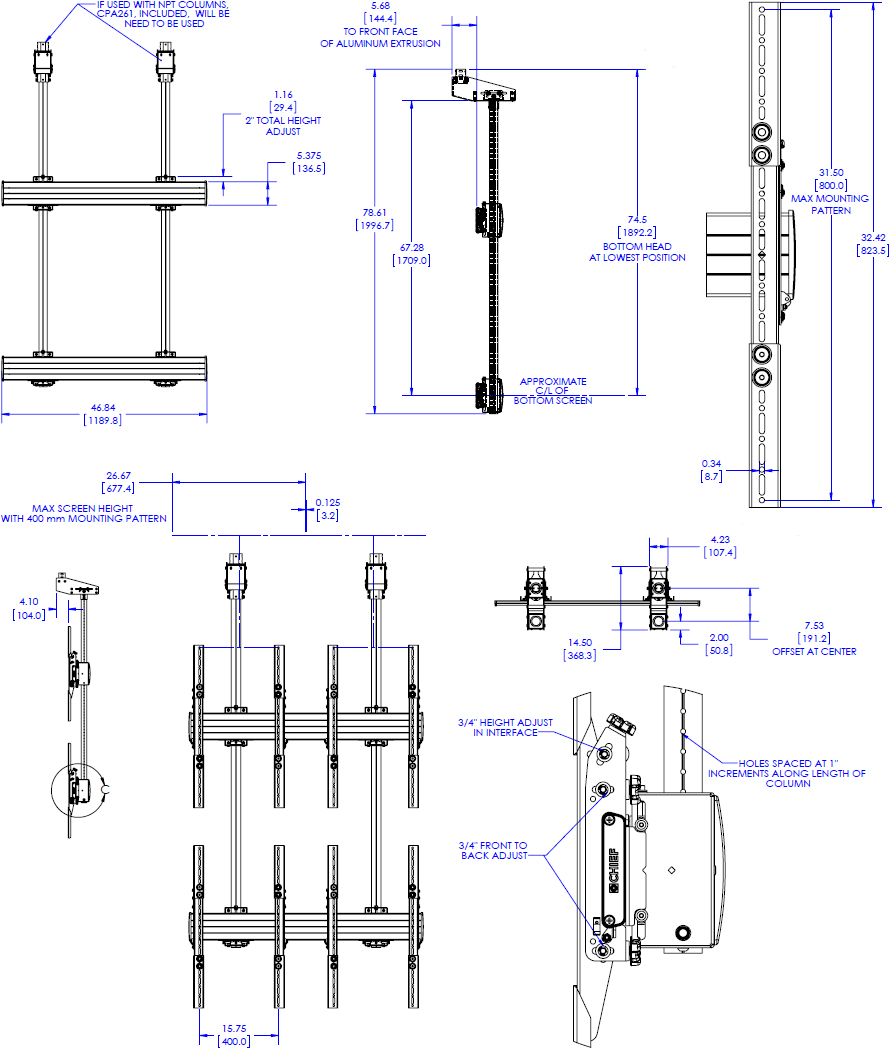

Technical Drawing

Technical drawing for Chief LCM2x2UP Portrait Large Ceiling Mounted 2x2 Video Wall



Features

  • Precise Screen Alignment - Easily align displays with independent knobs for height and plumb adjustments, no tools required.

  • Controlzone Leveling - Micro-height and leveling adjustment at all column intersection points.

  • Infinite Screen Positioning - Infinite vertical and lateral adjustments provide tight display rows and columns.

  • Heavy-Duty Construction - Solid construction supports displays up to 55".

  • Configurable - Add configurations side by side to create any video wall arrangements up to 3 screens tall.

  • Ceiling plate and extension column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility

  • TAA Compliant



Technical Specifications

Adjustments

Micro-Adjustments of 2" at structural intersection points

Certifications

UL listed

Color

Black

Manual Height Adjustment

1" (25 mm) increments at structural intersections

Mounting Pattern Compatibility (Universal Versions)

Any width x 100 mm - 400 mm

Notes

TAA Compliant

Orientation

Portrait

Plumb Adjustment

Micro-adjustment up to 0.75" (19 mm)

Screen Array Configuration

2 x 2

Shipping Weight

154 lbs

Typical Screen Sizes

40" - 50" (102 - 127 cm)

Weight Capacity

125 lbs per screen

Model LCM2x2UP
Manufacturer Chief Mounts
Part Number LCM2x2UP
UPC 841872159102
Color Black
Adjustments Micro-Adjustments of 2" at structural intersection points
Manual Height Adjustment 1" (25 mm) increments at structural intersections
Mounting Pattern Any width x 100 mm - 400 mm
Maximum Screen Height 45" (114 cm)
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Monitor Size 40" - 50" (102 - 127 cm)
Weight Capacity 125 lbs per screen
