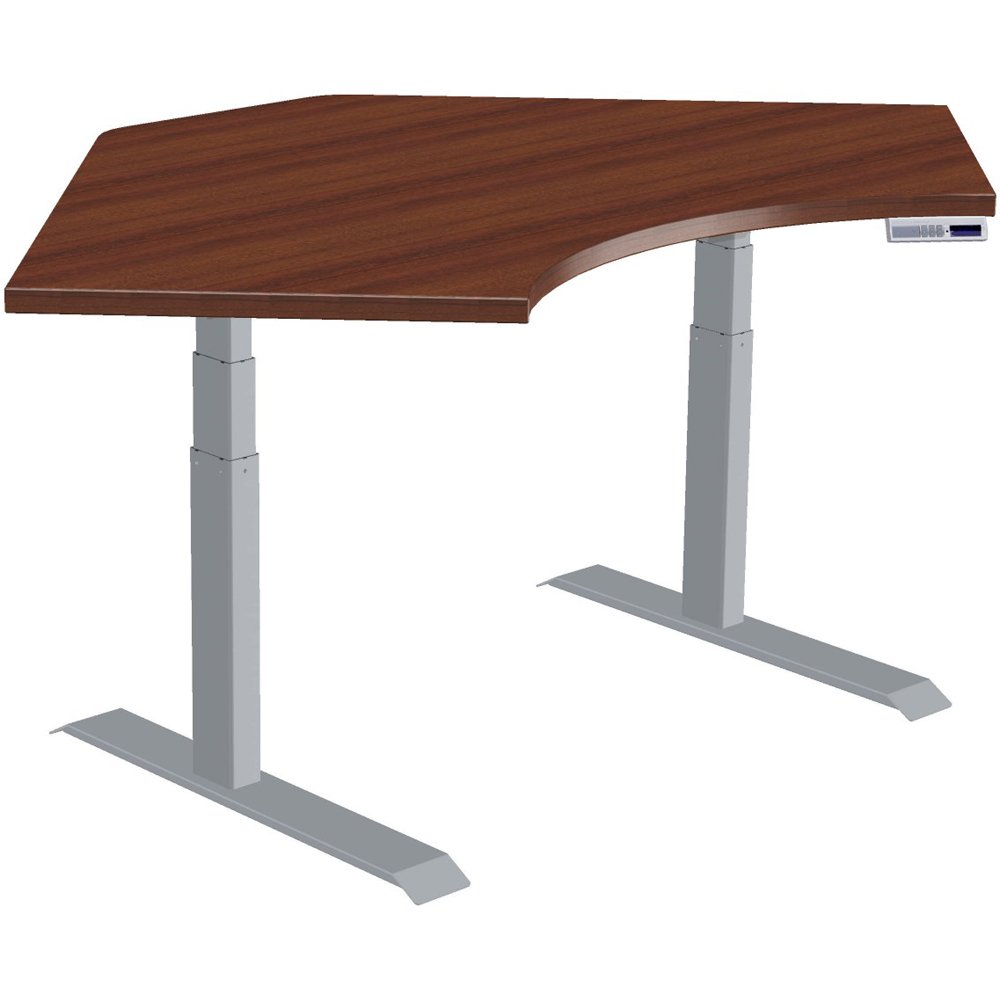

Workrite Fundamentals EX Electric Equal Corner 2 Leg Workcenter
Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less.
Description
Fundamentals EX/LX Electric Base Sets - All Fundamentals EX and LX Base Sets include a Frame Set (legs, brackets, motor(s) and cables), a Flat Foot Kit and Programmable Switch. Fundamentals EX/LX are designed to provide exceptional quality at an affordable price. Fundamentals EX/LX feature integrated computerized control and are two of the most energy efficient tables in the industry, using less than one dollar of electricity per year on average. The Frame Sets are designed to easily accommodate both 24" and 30" deep worksurfaces with equipment payloads up to 125 pounds.
10 Year Warranty - The Price Fighters. European engineering and exceptional pricing make the Fundamentals series the right choice for anyone looking for limited budget sit-stand reliability. Two stage (LX) and three stage (EX) options provide additional pricing flexibility depending on your height range requirements.

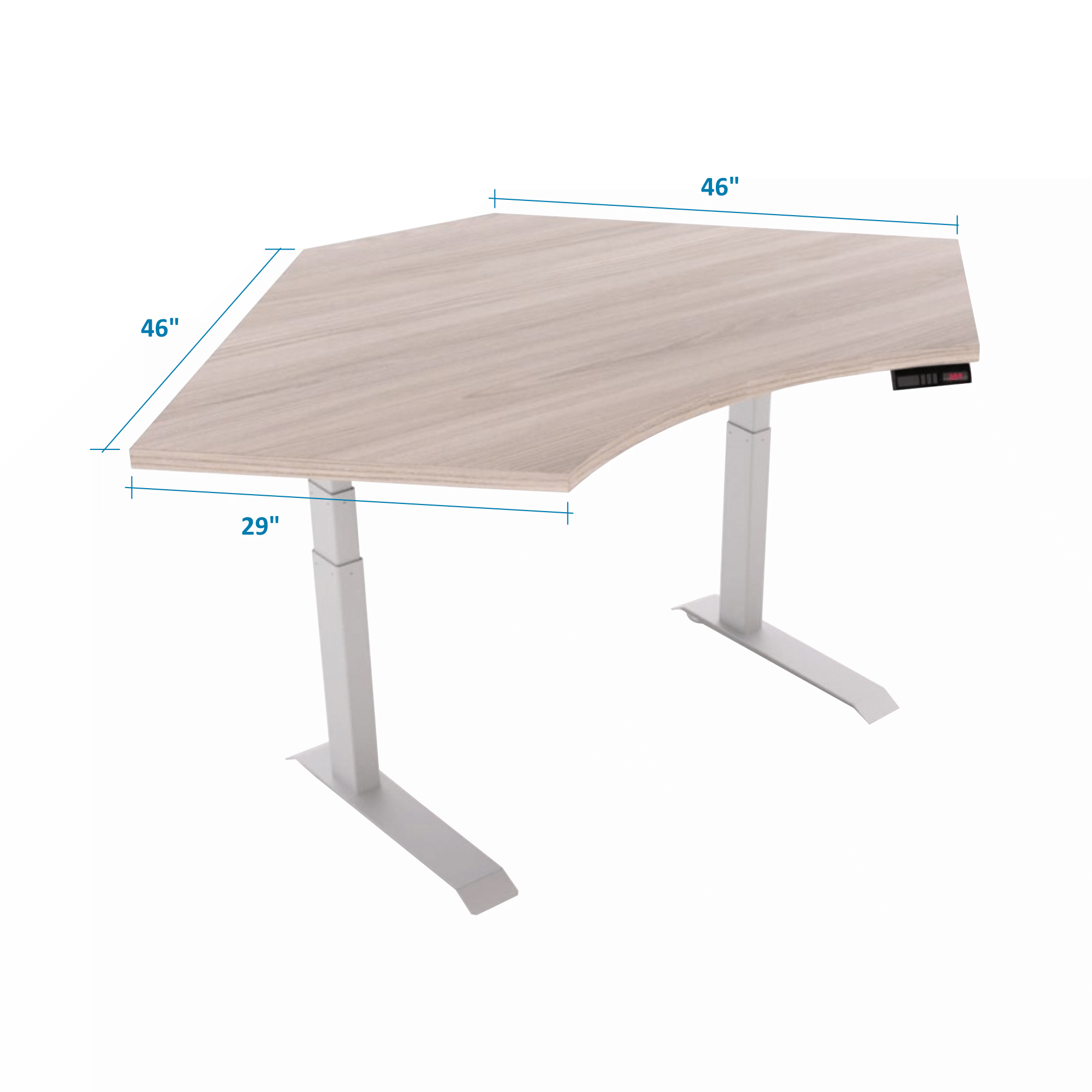

Dimensions
Frame Set Features
Available for 24" and 30" deep worksurfaces
Finish options: silver, black, white
Optional MEMS Anti-Collision technology
Adjustment speed: 1.6 inches per second
Standby power: 0.1 W
Meets BIFMA X5.5 standards for performance and durability
Workrite Fundamentals EX/LX has achieved GREENGUARD GOLD Certification
UL962 certified

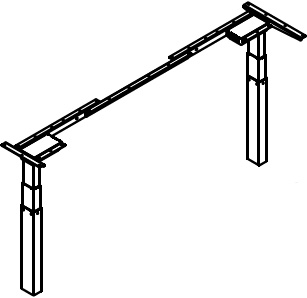

2-Leg Frame Set Features
Widths range from 30" to 72" wide
Height range of 22.5" to 48.7" meets BIFMA G1-2013 requirements
Payload carry capacity: 125 lbs (after top)
Gross load capacity: 220 lbs (not including top and safety factor)
Maximum current draw: 2.5 A at 120 V, 60 Hz
Meets Chicago code requirements
Product Options/Accessories
| Model | Equal Corner |
| Manufacturer | Workrite Ergonomics |
| Part Number | Equal Corner |
| Height Range | 22.5" to 48.7" |
| Lifting Capacity | 125 lbs |
| Desk Type | Electric |
| Desktop Shape | Corner |
| Travel Speed | 1.6" per second |
| Width Range | 30" to 90" |
| Motor Manufactured in | Denmark |
| Warranty | 10 Years |
| Base Frame Set Price | 695.40 |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
- Manufacturer Drawing of Laminate Top T404023-B3
- Manufacturer Drawing of Laminate Top T464623-B3
- Manufacturer Drawing of Laminate Top T464629-B3
- Workcenter Comparison Guide
- Workcenter Application Considerations
- Fundamentals EX - Quick reference chart
- Fundamentals EX & LX Cut Sheet
- Fundamentals Programmable Switch User Guide
- BT-PROSWITCH & Workrite App User Guide
- Fundamentals EX 2-Leg 30-48" Instructions
- Fundamentals EX 2-Leg 54-72" Instructions
- Fundamentals EX/LX 3-Leg 54-72", 42-72" Instructions
- Fundamentals EX/LX GREENGUARD Gold Certificate
- Fundamentals EX/LX UL 962 Certificate
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
