WorkRite Fundamentals EX Electric 120 degree 2 Leg Workcenter
Description
Fundamentals EX/LX Electric Base Sets - All Fundamentals EX and LX Base Sets include a Frame Set (legs, brackets, motor(s) and cables), a Flat Foot Kit and Programmable Switch. Fundamentals EX/LX are designed to provide exceptional quality at an affordable price. Fundamentals EX/LX feature integrated computerized control and are two of the most energy efficient tables in the industry, using less than one dollar of electricity per year on average. The Frame Sets are designed to easily accommodate both 24" and 30" deep worksurfaces with equipment payloads up to 125 pounds.
10 Year Warranty - The Price Fighters. European engineering and exceptional pricing make the Fundamentals series the right choice for anyone looking for limited budget sit-stand reliability. Two stage (LX) and three stage (EX) options provide additional pricing flexibility depending on your height range requirements.
Dimensions
Frame Set Features
Available for 24" and 30" deep worksurfaces
Finish options: silver, black, white
Optional MEMS Anti-Collision technology
Adjustment speed: 1.6 inches per second
Standby power: 0.1 W
Meets BIFMA X5.5 standards for performance and durability
Workrite Fundamentals EX/LX has achieved GREENGUARD GOLD Certification
UL962 certified
2-Leg Frame Set Features
Widths range from 30" to 90" wide
Height range of 22.5" to 48.7" meets BIFMA G1-2013 requirements
Payload carry capacity: 125 lbs (after top)
Gross load capacity: 220 lbs (not including top and safety factor)
Maximum current draw: 2.5 A at 120 V, 60 Hz
Meets Chicago code requirements
3-Leg Frame Set Features
Widths range from 42" to 90" wide
Payload carry capacity: 200 lbs (after top)
Gross load capacity: 330 lbs (not including top and safety factor)
Maximum current draw: 4 A at 120 V, 60 Hz
10′ power cord

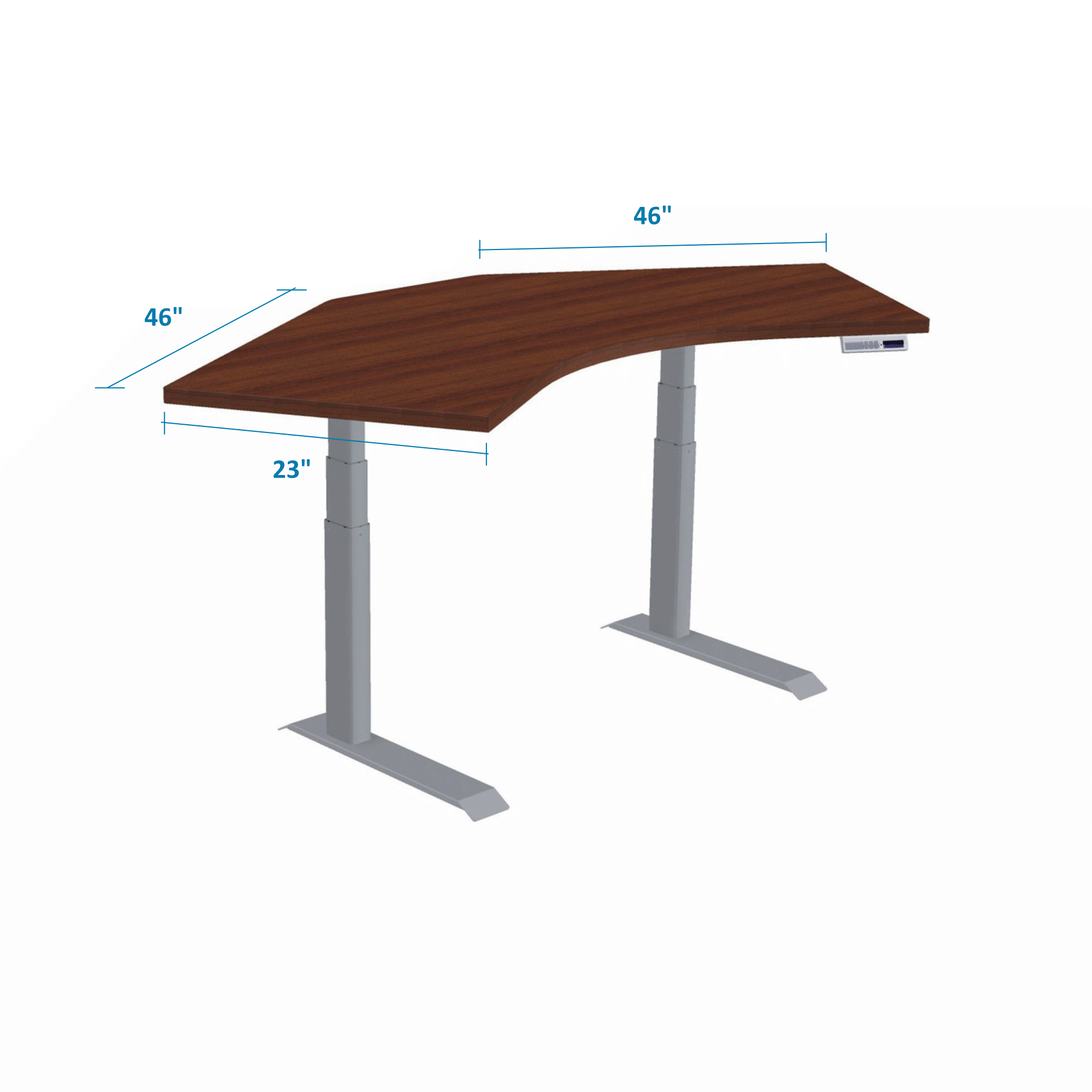

Option 1: Surface Dimensions

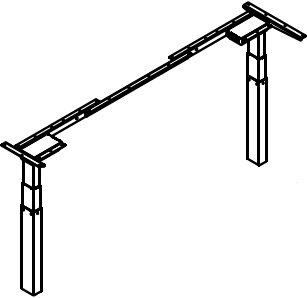

Worksurface 34" x 34" x 23" ST343423T-B3 and Frame Set FDEX30-48 |
Worksurface 40" x 40" x 23" ST404023T-B3 and Frame Set FDEX30-48 |
Worksurface 46" x 46" x 23" ST464623T-B3 and Frame Set FDEX30-48 |
Worksurface 34" x 34" x 29" ST343429T-B3 and Frame Set FDEX30-48 |
Worksurface 40" x 40" x 29" ST404029T-B3 and Frame Set FDEX30-48 |
Worksurface 46" x 46" x 29" ST464629T-B3 and Frame Set FDEX30-48 |

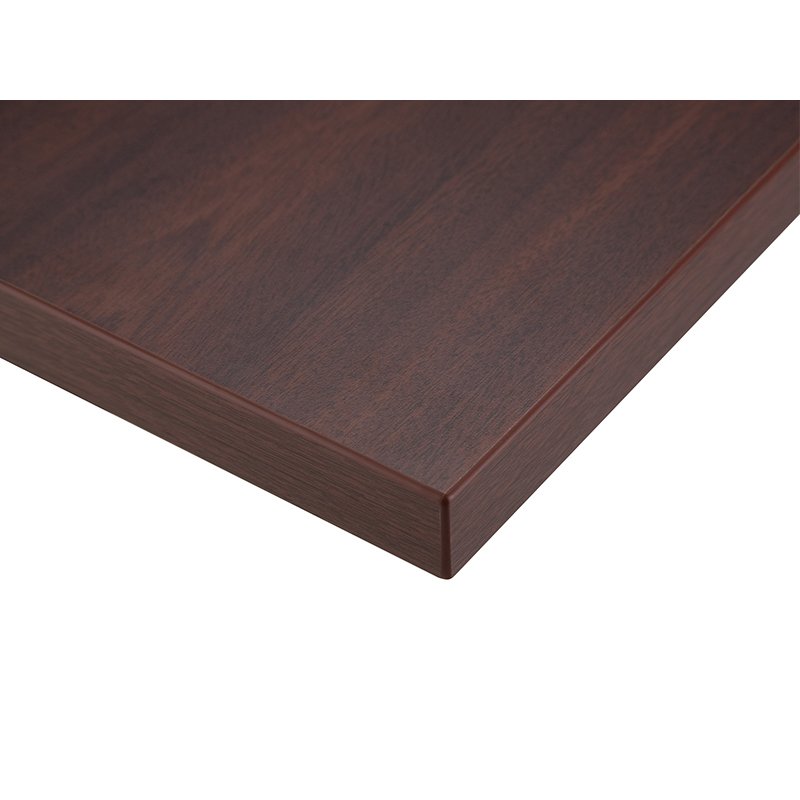

Option 2: Laminate Top Colors
Colors and patterns are representative only. Actual colors and patterns may vary slightly
Tier 1
Tier 2
Option 3: Base Frame Color

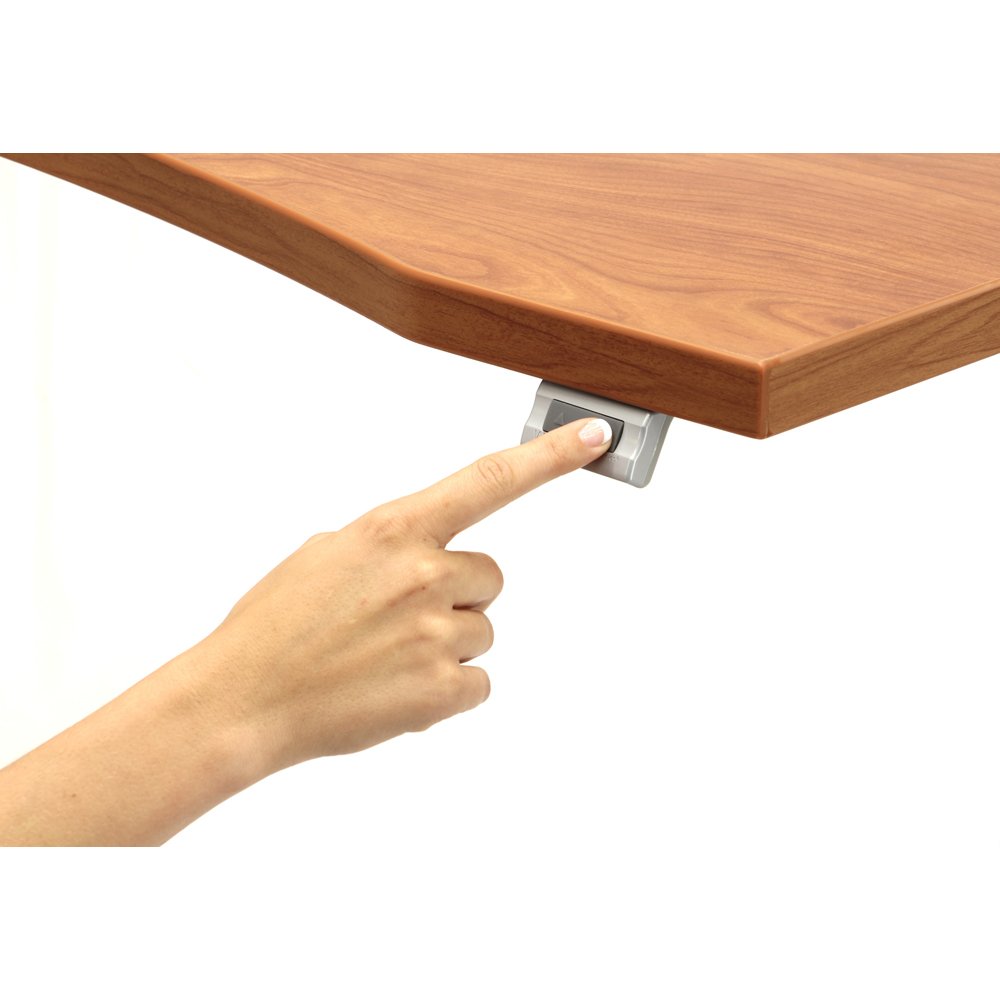

Option 4: Control Switch
Standard Switch STDSWITCH
Programmable Switch PROSWITCH
Bluetooth Switch BT-PROSWITCH
Standard switch for simple Up/Down control or the Programmable switch for more advanced options including 3 memory pre-sets that can be easily customized by the user or the Bluetooth switch.
Option 5: Foot Type
Flat Foot Set
Flat foot for use with any Workrite electric height adjustable workcenter. It is available in finishes that coordinate with our frame sets and in 23" or 29" lengths.
Option 6: Casters - Wheels
Low Profile Casters
- Dual wheel casters designed for use on carpet floors
- Low profile 2" w x 1.5" h, locking, 37 mm diameter black wheels
- Casters raise work centers by 1"
- Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
- 95234 - Four casters for 2-leg work centers, 95235 - five casters for 3-leg work centers
- 400 lbs gross capacity
Premium Polyurethane Casters
- Compatible with carpet and hard flooring
- Locking casters with smooth rolling 1"w × 3"h translucent polyurethane wheels
- Casters raise work centers by 3.5"
- Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
- ACC-CASTER-4PK3IN-CP - Four casters for 2-leg work centers, 400 lbs gross load capacity
- ACC-CASTER-5PK3IN-CP - Five casters for 3-leg work centers, 500 lbs gross load capacity

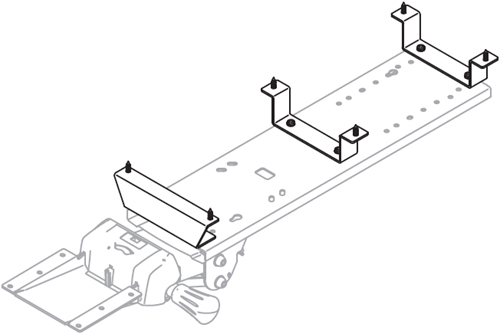

Option 7: Bench Mount Kit
Designed for mounting keyboard arms to Sierra HX Electric Workcenters where linear supports limit the availability of a flat mounting surface. Attaches between the underside of the worksurface and the keyboard arm track. Used for all installations of tracks greater than 17".
Fits all Workrite keyboard arms
Powered coated steel construction
Workcenter Ordering Information
Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.
Worksurfaces are pre-drilled with mounting location for frame sets or bases.
Joining kits are provided with all two piece worksurfaces.
Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.
Important Notes:
Workcenters ship unassembled and require simple hand tools to install.
If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.
If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.
All workcenters have adjustable glides providing 0.5" of adjustment.
Mobile pedestals may limit lower height range.
Product Options/Accessories
Model | 120 degree |
Manufacturer | Workrite Ergonomics |
Part Number | 120 degree |
Height Range | 22.5" to 48.7" |
Lifting Capacity | 125 lbs |
Desk Type | Electric |
Desktop Shape | 120 Degree |
Travel Speed | 1.6" per second |
Warranty | 10 Years |
Width Range | 30" to 90" |
Motor Manufactured in | Denmark |
