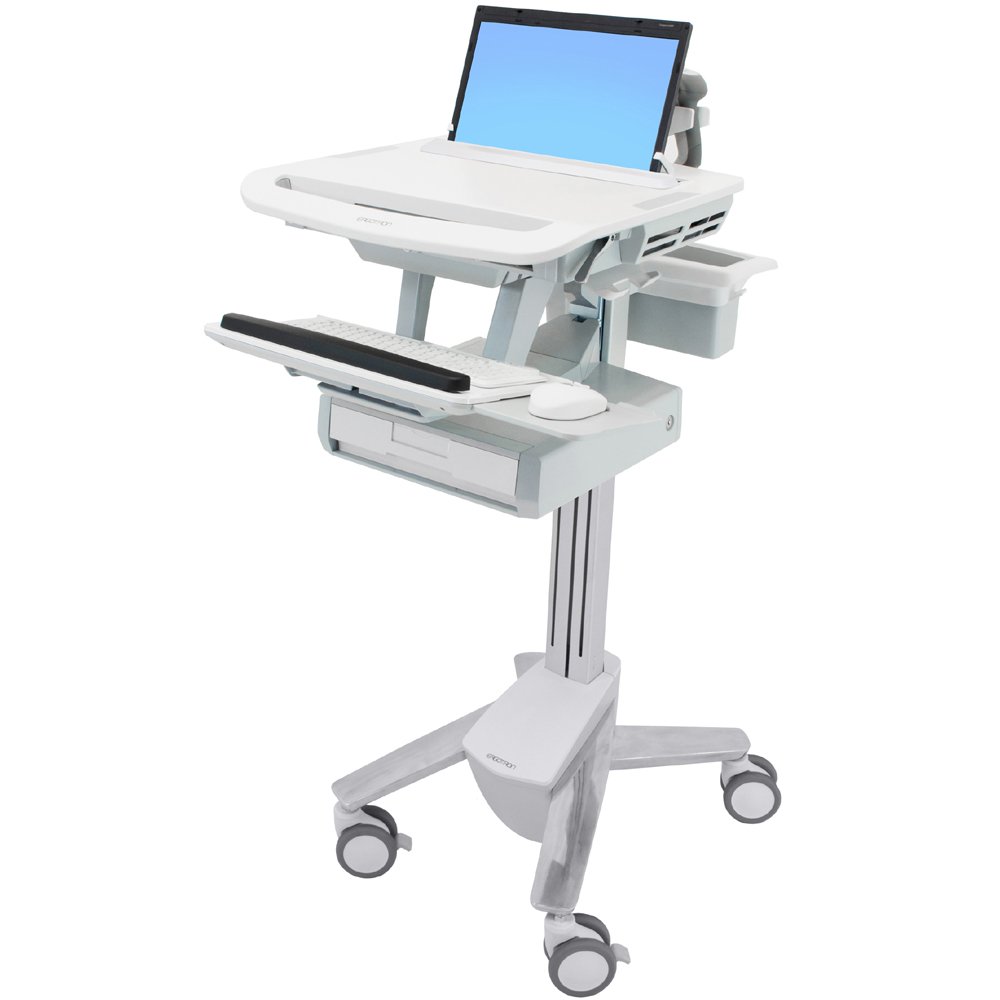

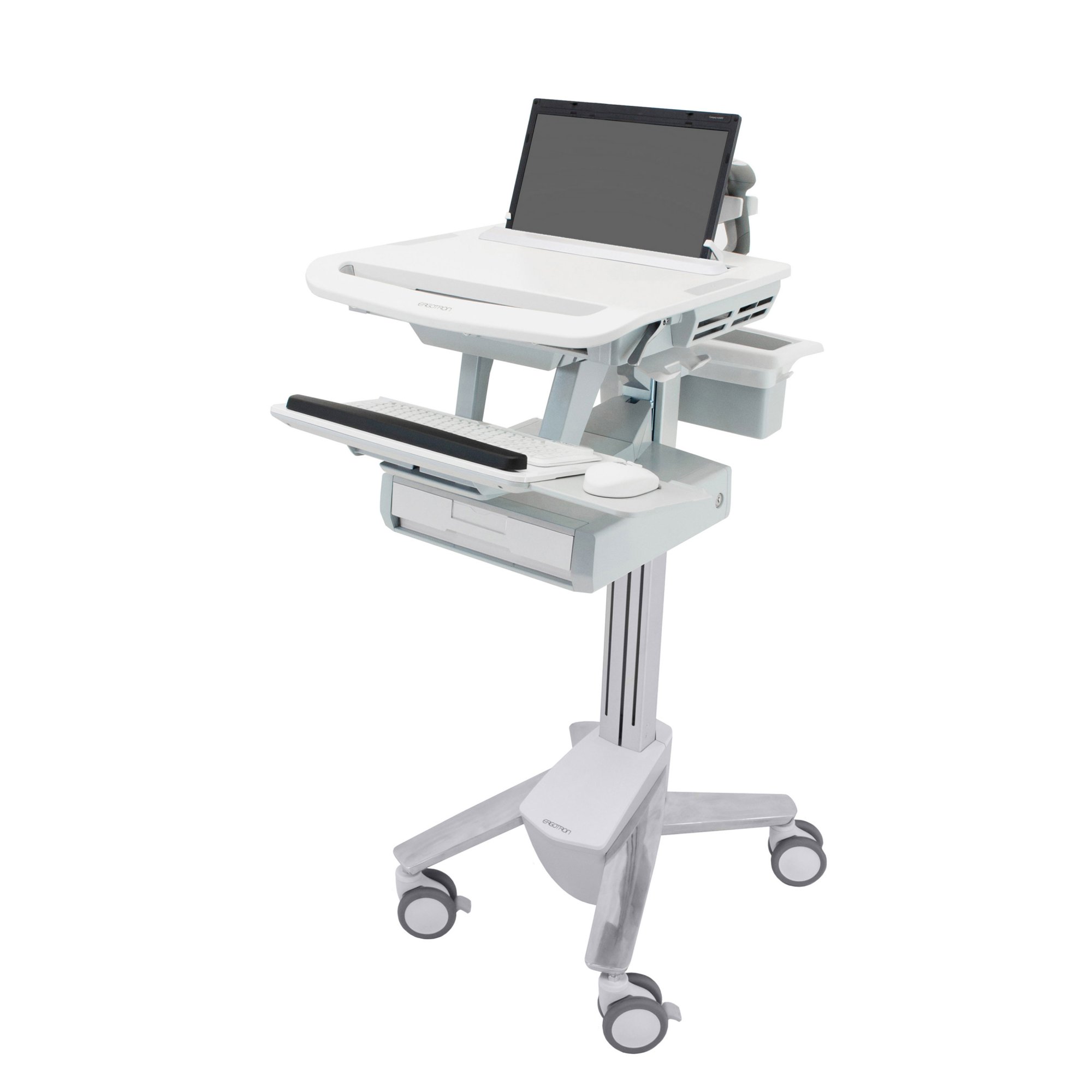

Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer



SV43-1110-0 is non-returnable/non-cancelable.

Product ID 18136
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer

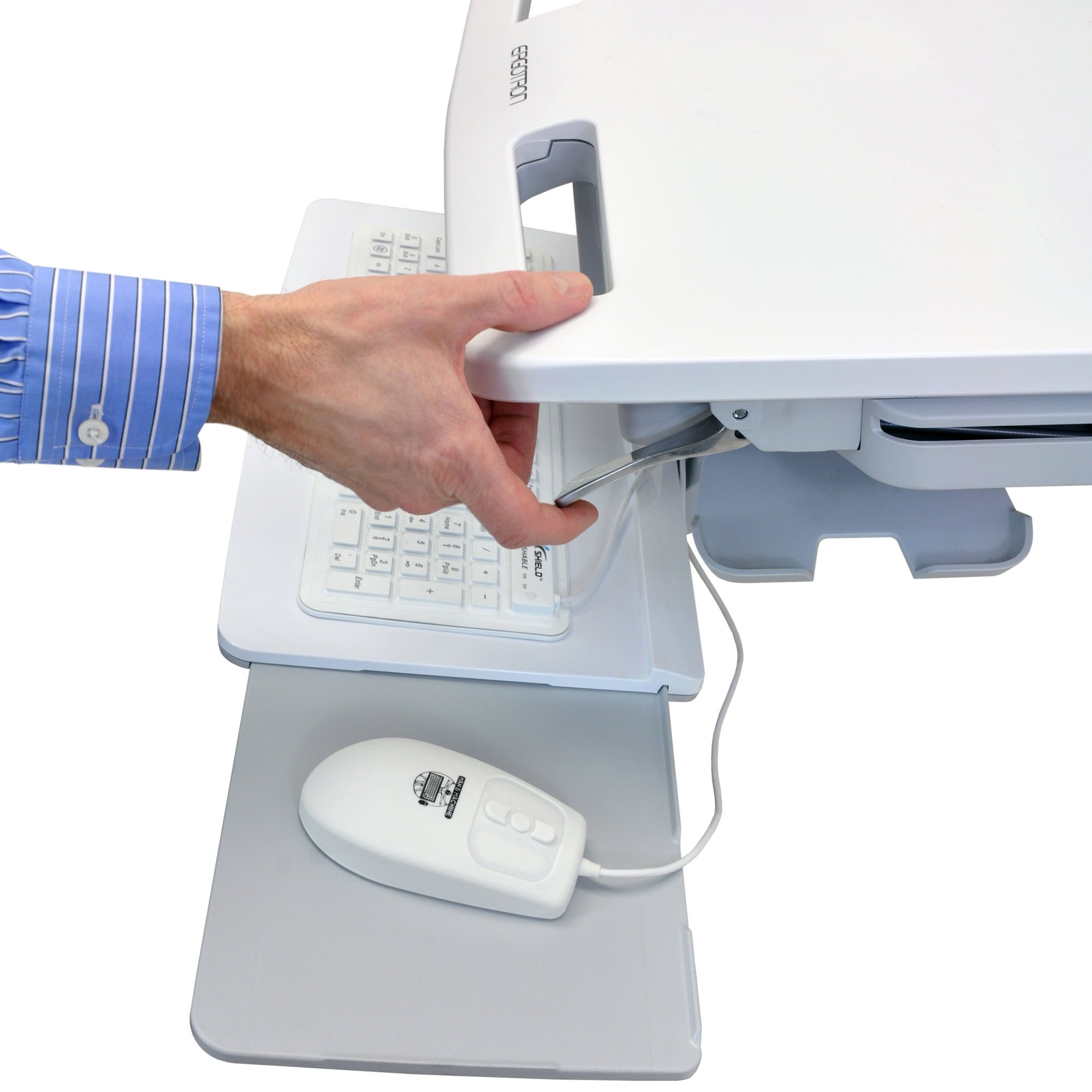

Brake

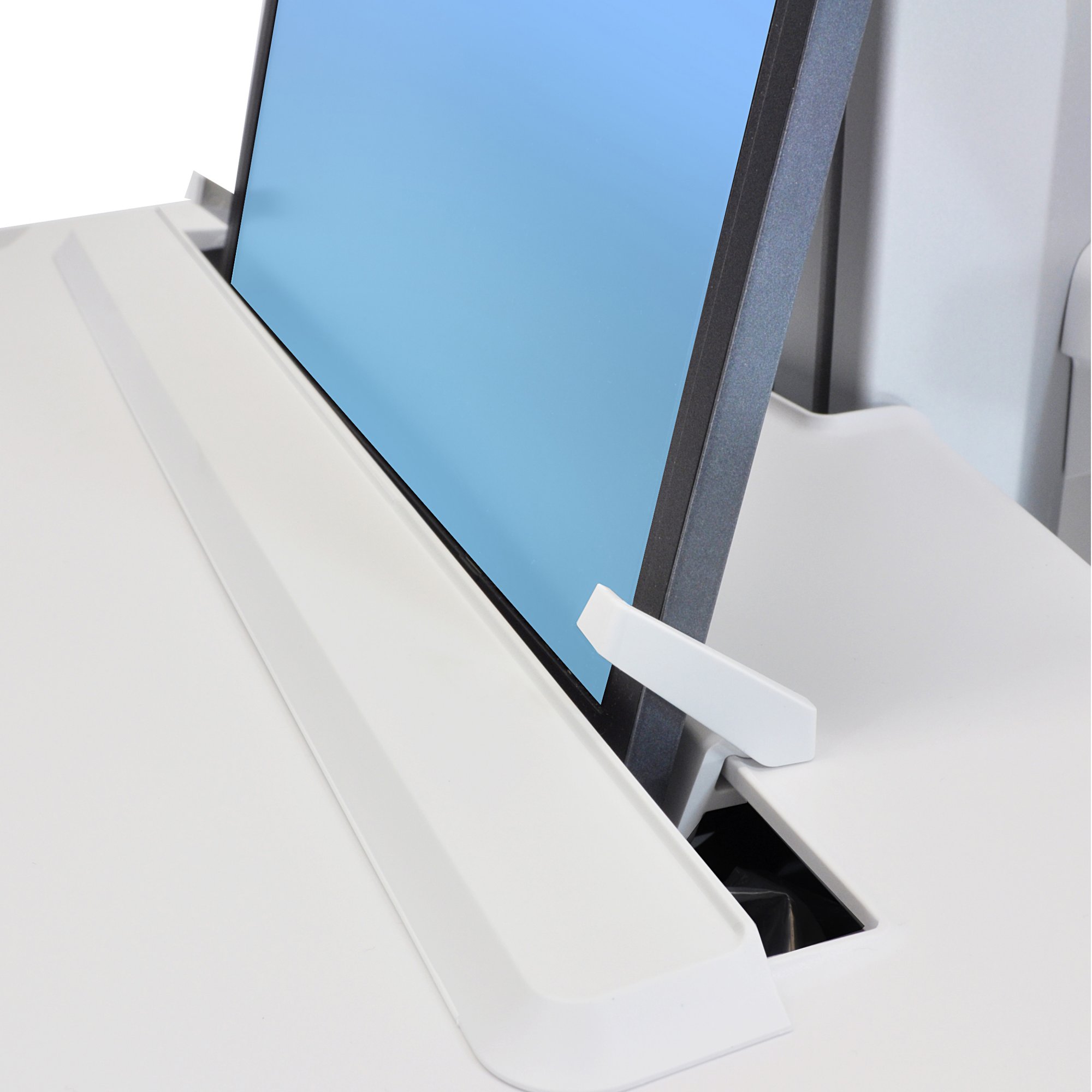

Laptop guide
Tray above

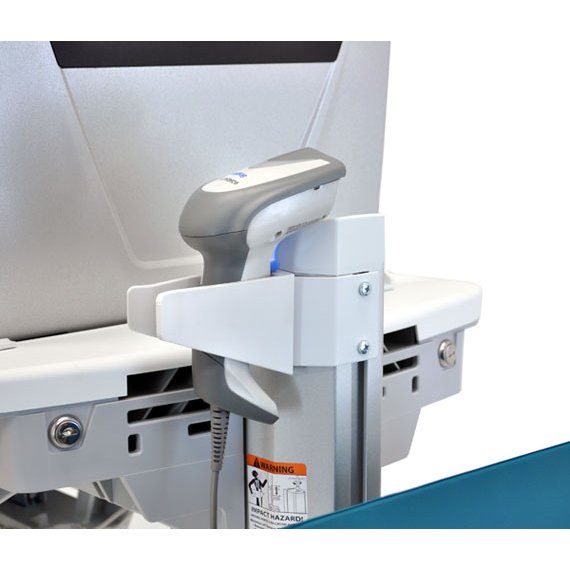

Scanner
This Is Your StyleView Cart from Ergotron
Ergotron StyleView: A Cart for Every Need
Ergotron StyleView: Your cart. Your way.
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Ergotron SV43-1110-0 StyleView Laptop Cart, non-powered, 1 Drawer
Brake
Laptop guide
Tray above
Scanner
This Is Your StyleView Cart from Ergotron
Ergotron StyleView: A Cart for Every Need
Ergotron StyleView: Your cart. Your way.



Description

Ergotron SV43-1110-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.



Technical Drawing

Technical Drawing for Ergotron SV43-1110-0 SV Laptop Cart, non-powered, 1 Drawer



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 20 lbs

9.1 kg

20"

51 cm

- - - -



Product Information

Part Number

SV43-1110-0

Description

StyleView Laptop Cart, non-powered, 1 Drawer (white, grey and polished aluminum)

Includes

  • Worksurface
  • CPU lock
  • Secure laptop compartment

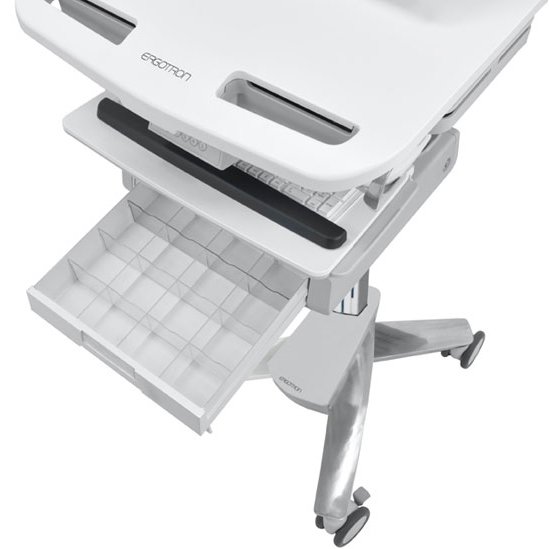

  • Primary single drawer
  • Drawer dividers
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 20 lbs (9.1 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)

Laptop and Worksurface

Adjust 20" (51 cm) in tandem

Cart

May be fitted with up to five rows of drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm ); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)

True Ergonomics

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
  • Actual cart weight is just 75 lbs (34 kg), making system relocation easy

Safe

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Covered by Global Service Program - 24/7 coverage
  • Includes free StyleLink software with enterprise capabilities for drawer management reporting

All the Details Covered

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Universal mounting slot for accessories and equipment
  • Ships fully assembled
  • Four-port USB hub
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
  • Laptop screen slot cover: Protection from large spills on the worksurface while retaining easy access to the laptop’s power button

Compatibility and Dimensions

  • Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades

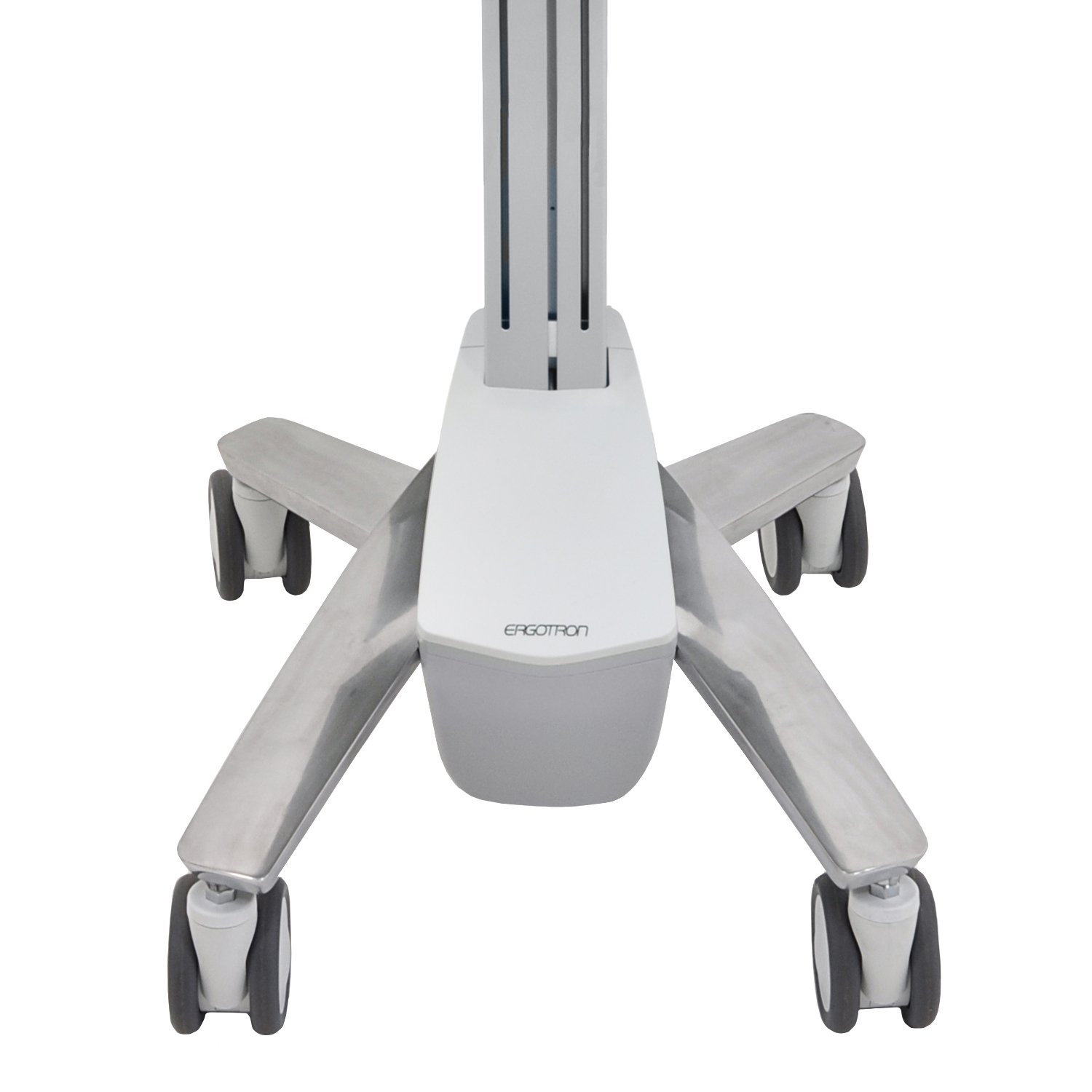

  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)


Worksurface Dimensions

22"W x 19.6"D (562 x 498 mm)

Shipping Dimensions

53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight

101 lbs (45.8 kg); actual cart weight = 75 lbs (34 kg)

Warranty

Five (5) years



Benefits

  • Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
  • Drawer system supports “Pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
  • Extra rows of drawers may be added - up to a maximum of 5 rows
  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment



Product Options/Accessories

Model SV43-1110-0
Manufacturer Ergotron
Part Number SV43-1110-0
UPC 698833043594
Weight lb(s)
Color White, grey and polished aluminum
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Weight Capacity Up to 20 lbs (9.1 kg)
Lift (51 cm) 20 in
Dimensions Internal: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 101 lbs (45.8 kg)
Cart Weight 75 lbs (34 kg)
Warranty Five (5) years
Power Type Non-powered
Display Type Laptop
Lift Technology Constant Force
Screen Size 17"-23" in
TAA Compliant No

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
