The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

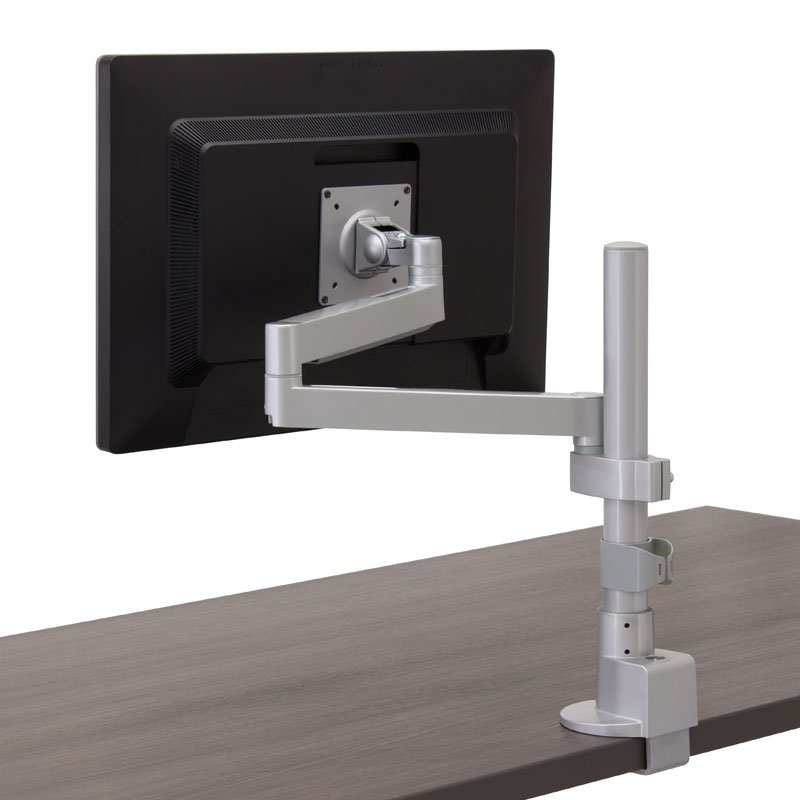

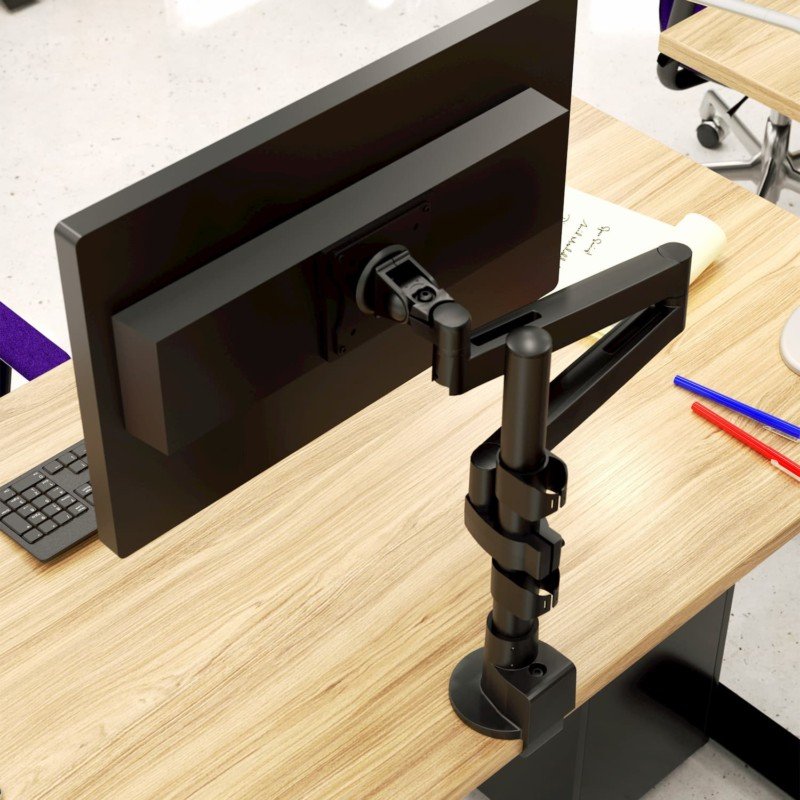

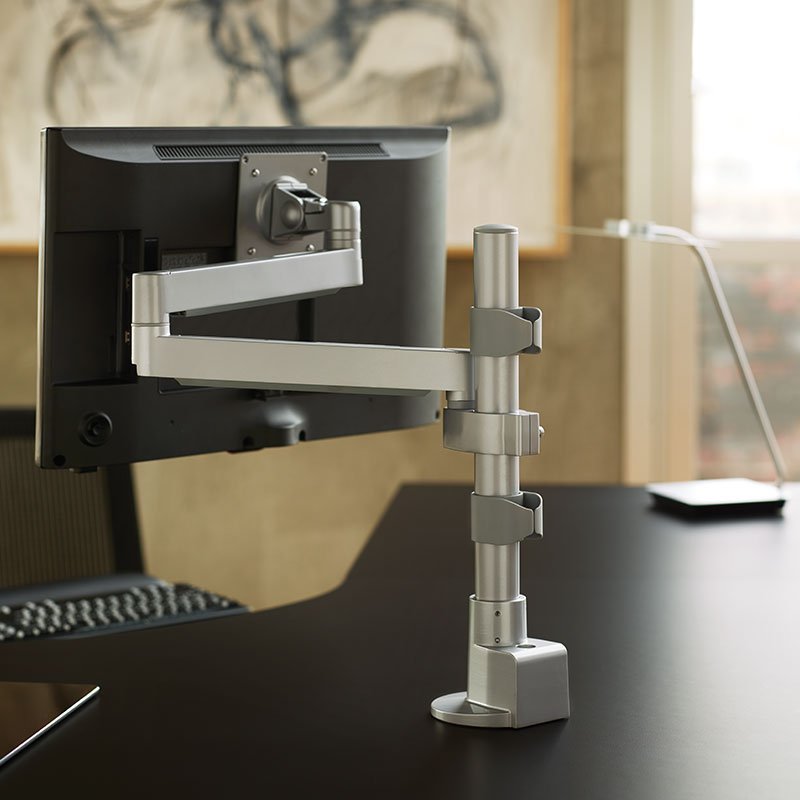

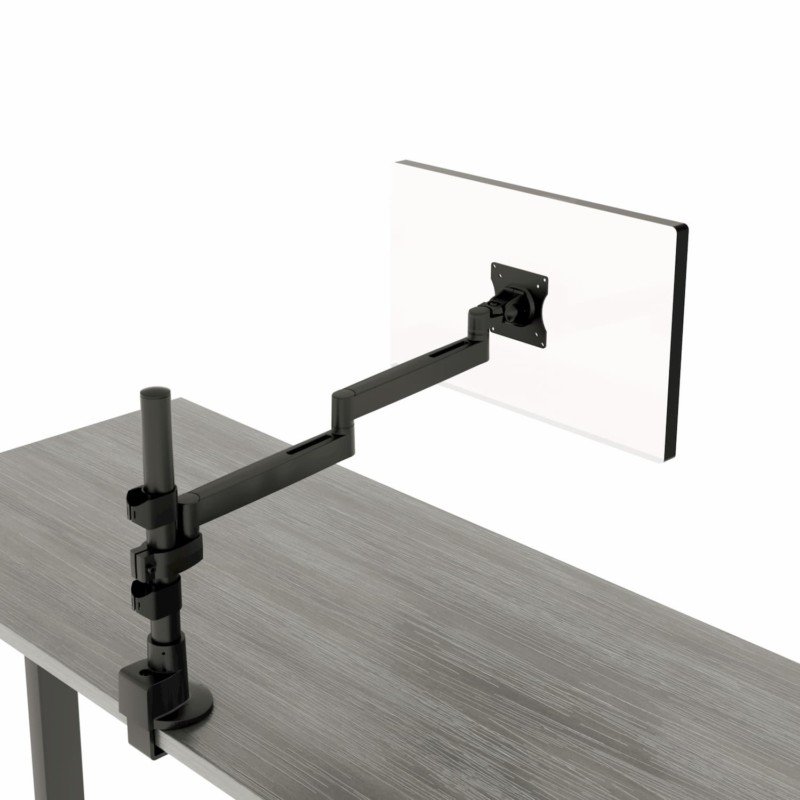

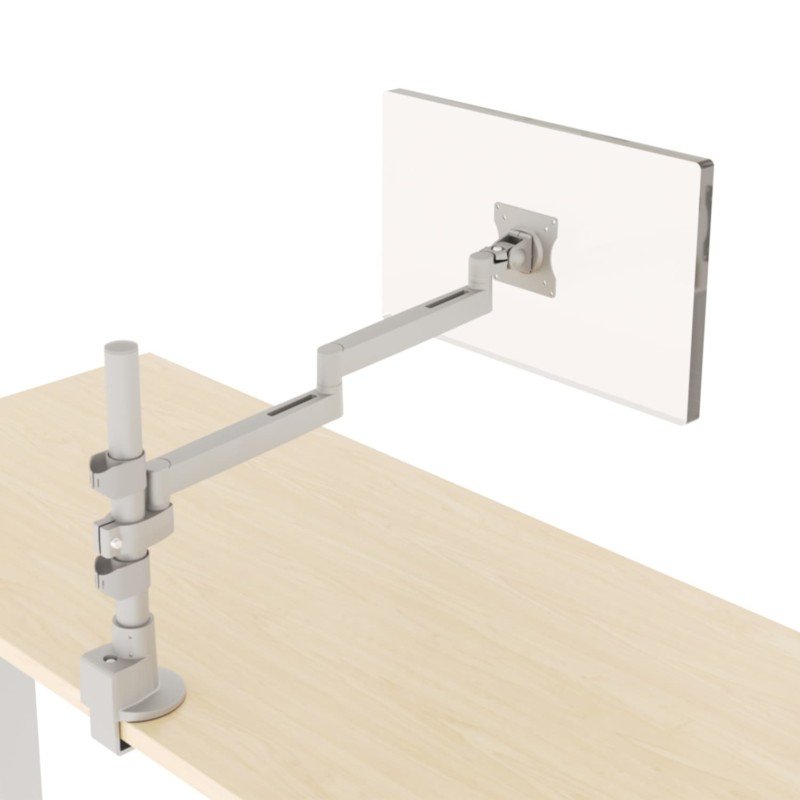

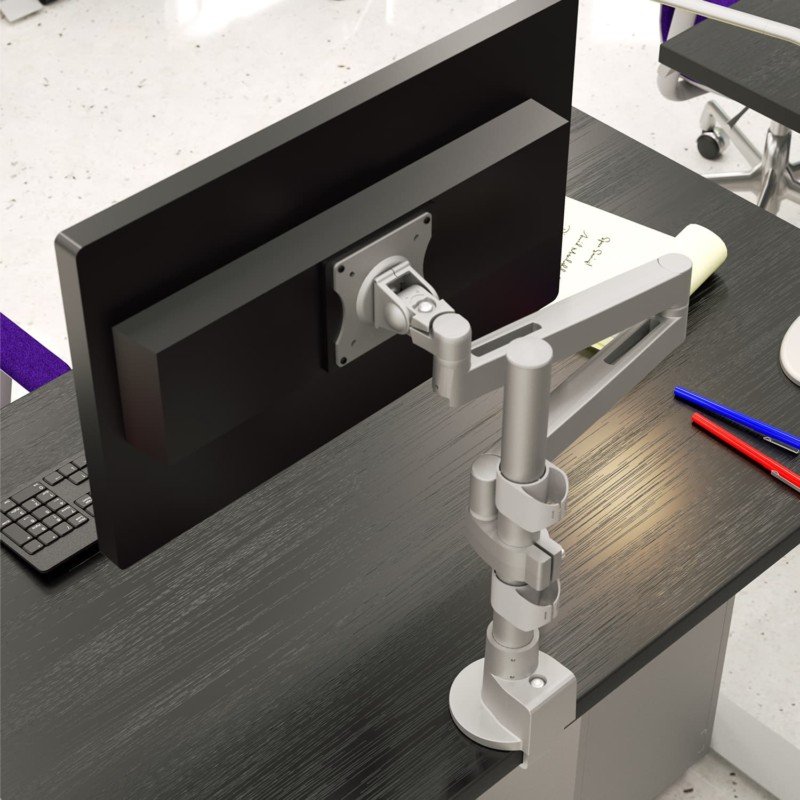

Workrite Ergonomics Conform Single Static Monitor Arm

Product ID 18496


  • TAA compliant (Assembled in the USA)
  • Single non-articulating monitor arm in Silver
  • Manual height adjustment on the pole
  • Horizontal reach: 24.5"
  • Monitor weight capacity: 0-16 lbs
  • Warranty: 10 year


The Conform Single Static Monitor Arm is designed to provide fixed resistance for touch screen monitors, laptops or keyboard platforms. As part of the Conform family it uses the pin assembly system, allowing it to be quickly mounted to a variety of bases and reconfigured with additional Conform monitor arms to adapt to your changing needs. The double jointed arm design provides over two feet of extension for optimal ergonomic reach. The Conform Single Static Monitor Arm has been engineered to support over 15,000 cycles and exceeds ANSI/BIFMA x5.5 requirements. TAA Compliant.

For more than 25 years, Workrite Ergonomics has been helping organizations create happier, healthier and more productive workplaces. We take issues like neck and back pain, blurred vision, and headaches caused by extended computer use seriously, and are committed to helping organizations fight these increasingly common problems.
Since creating our first elevated monitor solution two decades ago, the market and Workrite have changed, a lot. What hasn’t changed is our passion for developing the best ergonomic solutions possible and our keen focus on listening to the industry. Every Workrite product is designed with the direct input of the ergonomics community to ensure they not only perform complex functions but are also intuitively simple to use.

We took a ground up approach to developing the Conform Series, which resulted in the most ergonomic, flexible, and easy to install system that we’ve ever created. The Conform Series features a variety of articulating and static arms, mounts, and accessories, making it an extremely versatile product that can accommodate virtually any design application or monitor configuration.
Articulating Arm options feature a pneumatic strut coupled with a vertical linkage system, allowing users to easily position monitors weighing up to 40 lbs with one hand. Static Arms provide a range of up to 2 feet of reach over the work surface and can be easily configured in arrays from 1 to 6 monitors.

The core of the Conform Series is the pin connection system, which enables arms to be inter changed and attached to a variety of base options and accessories. This allows a single desk mounted monitor system to easily become a dual arm system, or a desk mounted system to become a toolbar mounted system, or a wall mounted system to become a pole mounted system. As your needs change, Conform can easily change with you.
Conform Articulating Arms are available with pneumatic struts that easily lift monitors weighing up to forty pounds with one hand, providing users with smooth one-touch adjustability. Precision bushings coupled with a vertical linkage system allow arms to effortlessly float back and forth as users reposition their monitors to their desired focal distance and angle.

These arms are designed for fast and easy installation, and are pre-assembled, ready to slip on to your selected base option with ease. Utilizing the interchangeable pin connection system, Articulating Arms can be used with Conform Static arms, accessories, and a variety of base options. Reconfigure the Conform as hardware and office personnel needs change.
Designed for mounting multiple monitors in shallow work environments, Conform Static Arms may be used to display up to 24" wide monitors in side-by-side configurations and stacked arrangements from two to six monitors. The static height design maintains monitor alignment for a consistent appearance.

Like the rest of the Conform series, the pin connection system allows a multiple monitor arrangement to be converted into an extended single arm solution for use with a touch screen monitor, laptop or keyboard application, should business needs change in the future.


Technical Drawing

Technical drawing for Workrite CONF-1SDS-WOPB-S Conform Single Static Monitor Arm


Technical Specifications


Silver and Black


One monitor 0-16 lbs

Maximum Monitor Height

Pole dependent

Articulation Range

0" (static arm)

Forward Reach


Stowed Depth


Monitor Tilt






Mounting Pattern

Standard VESA (75 mm & 100 mm)


10 years



  • Rigid support, for monitors, laptops or keyboard platforms up to 16 lbs

  • Extends to 24.5" of forward reach, for easy access and monitor viewing

  • Quickly folds down to 6.5", freeing up user workspace

  • Easily route and conceal cables through the integrated wire managers

  • Discrete silver color blends into office environments

  • Designed for fast and easy installation


Manufacturer Workrite Ergonomics
Part Number CONF-1SDS-PB-14CCG
Color Silver and Black
Weight Capacity 0-16 lbs
Monitor Height Pole dependent
Articulation Range 0" (static arm)
Forward Reach 24.5"
Stowed Depth 6.5"
Tilt +90/-45 degree
Pivot +/-90°
Rotation +/-90 degree
Mounting Pattern Standard VESA 75 mm & 100 mm
Warranty 10 years
Number of Monitors 1 Monitor
