Ergotron 33-416-062 WorkFit-SR Rear Mount Sit Stand Heavy Monitor Workstation - White
This product has been discontinued.
Description

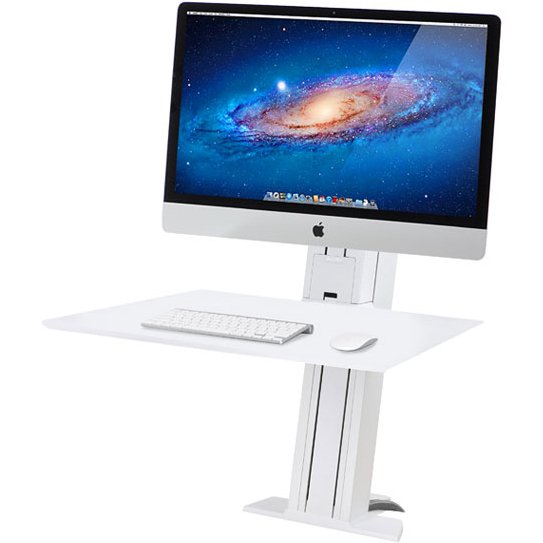

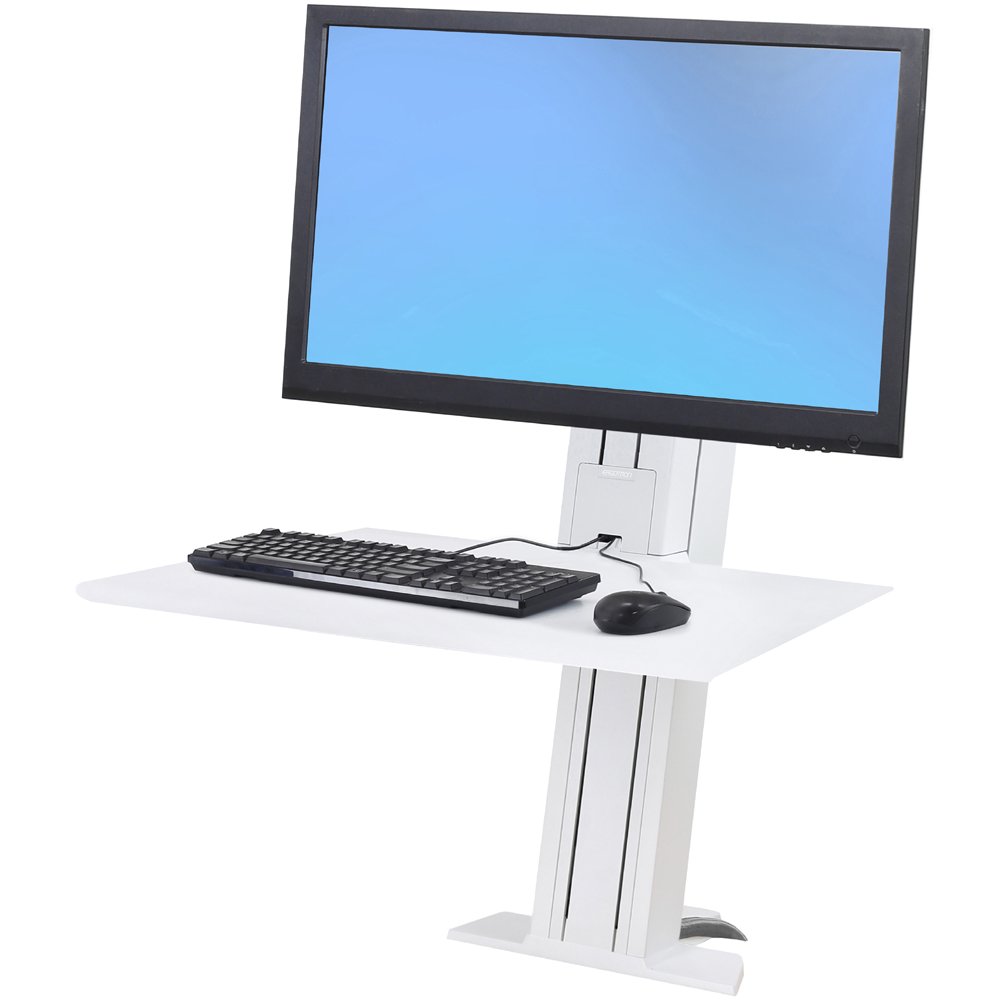

Ergotron 33-416-062 WorkFit-SR positions a complete workstation
within the footprint of your desktop without protruding into your space.
It clamps to the rear of most surfaces, converting any tabletop into a
healthy sit-stand desk.
This is a premium furniture retrofit solution, featuring refined
aesthetics and superior material construction. When in the seated
position, the thin worksurface always stays close to your desktop. The
all-aluminum composition is extremely sturdy, allowing for easy,
handle-free height adjustment.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 30" |
Up to 25 lbs 11.3 kg |
23" 58.4 cm |
30° | - | 360° | MIS-D |
Product Information
| Part Number | 33-416-062 |
| Description | WorkFit-SR, Heavy Monitor Sit-Stand Desktop Workstation, Deep Surface, furniture retrofit (white) |
| Includes |
|
| Note |
|
| Optimized | For desks that are 30"–36" deep (76–91 cm): on desks shorter than 30", worksurface will extend beyond desktop edge; on desks deeper than 36", worksurface will not extend to desktop edge |
| Worksurface Dimensions | 29.5" x 21.8" (75 x 55.4 cm) |
| Weight Capacity | Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 10–22 lbs (4.5–10 kg); worksurface ≤ 5 lbs (2.3 kg) |
| LCD and Keyboard | Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm) |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Product Weight | 39 lbs (17.7 kg) |
| Shipping Dimensions | 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm) |
| Shipping Weight | 56.5 lbs (25.7 kg) |
| Warranty | Five (5) years |
Benefits
This model is optimized to accommodate a single, heavier display
Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots
Worksurface/keyboard tray stays on top of the desktop, never intruding into your space
The ergonomic design offers 18" (45.7 cm) of in-tandem height adjustment for monitors and keyboard, with an extra 5" (13 cm) of independent lift for monitors. Screens tilt to your preferred angle and the deep worksurface lets you place the keyboard where you want it, controlling focal distance
Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights
Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items
Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity
Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 33-416-062
- Manufacturer Ergotron
- Part Number 33-416-062
- UPC 698833054309
- Color White
- Monitor Size Up to 30"
- Weight Capacity Up to 25 lbs (11.4 kg)
- Lift (58 cm) 23 in
- Tilt 30 degree
- Rotation 360 degree
- Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
- Worksurface Dimensions 29.5" x 21.8" (75 x 55.4 cm)
- Weight 39 lbs (17.7 kg)
- Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
- Shipping Weight 56.5 lbs (25.7 kg)
- Warranty Five (5) years
