Ergotron 33-419-085 WorkFit-SR Rear Mount Dual Short Surface Workstation - Black

This SR Model has a shorter work surface, and as the result the keyboard will be placed 6" closer to the monitor screen in comparison to the SR standard model.

Be the first to review this product
Product ID: 18534
Highlights
  • Dual Standing desktop workstation with shorter surface in black: Converts your traditional desk to a sit-stand desk
  • Desk size: Ideal for 24" - 30" deep desks
  • Maximum monitor height adjustment: 23"
  • Maximum screen size: 24"
  • Monitor weight: Minimum of 5 and maximum of 13 lbs.
  • Total weight capacity: 29 lbs
  • Work-surface dimensions: 29.5" x 15.8""
  • View standard WorkFit SR in black
  • Please see, if you want this workstation in white
Recommended Accessories
List Price: $1,195.00
Our Price: $695.99
Shipping: $29.99 *
* applies to Contiguous United States

Description

Ergotron  33-419-085 WorkFit-SR positions a complete workstation within the footprint of your desktop without protruding into your space. It clamps to the rear of most surfaces, converting any tabletop into a healthy sit-stand desk.

This is a premium furniture retrofit solution, featuring refined aesthetics and superior material construction. When in the seated position, the thin worksurface always stays close to your desktop. The all-aluminum composition is extremely sturdy, allowing for easy, handle-free height adjustment.



Technical Drawing

Technical drawing for Ergotron 33-419-085 WorkFit-SR Rear Mount Dual Short Surface Workstation - Black



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

 Up to 29 lbs

13.2 kg

 23"

58 cm

 35°

-

360°

MIS-D



Product Information

Part Number

 33-419-085

Description

WorkFit-SR, Dual Monitor Sit-Stand Desktop Workstation, Short Surface, furniture retrofit (black)

Includes
  • Height-adjustment column
  • Desk clamp
  • Crossbar
  • Two (2) LCD pivots
  • Worksurface/keyboard
  • One (1) USB extension cable
  • Two (2) cable wraps

Short Surface Models

Place the keyboard 6" (15 cm) closer to the monitor screen compared with standard WorkFit-SR models. This may not provide adequate focal separation for some users

Optimized

For desks that are 24"–30" deep (61–76 cm): on desks shorter than 24", worksurface will extend beyond desktop edge; on desks deeper than 30", worksurface will not extend to desktop edge

Worksurface Dimensions

29.5" x 15.8" (75 x 40 cm)

Weight Capacity

Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 5–13 lbs (2.3–5.9 kg) each; worksurface ≤ 5 lbs (2.3 kg)

LCD and Keyboard

Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Note

  • Extra-long cables are required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Product Weight

38 lbs (17.3 kg)

Shipping Dimensions

24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)

Shipping Weight

55.5 lbs (25.2 kg)

Warranty

Five (5) years



Benefits

  • This model is optimized to accommodate two displays up to 24" in size

  • Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots

  • Worksurface/keyboard tray stays on top of the desktop, never intruding into your space

  • A "Short Surface" allows this WorkFit-SR to be installed in space-constrained work areas where the desktop is only 24"–30" deep (61–76 cm)

  • Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights

  • Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items

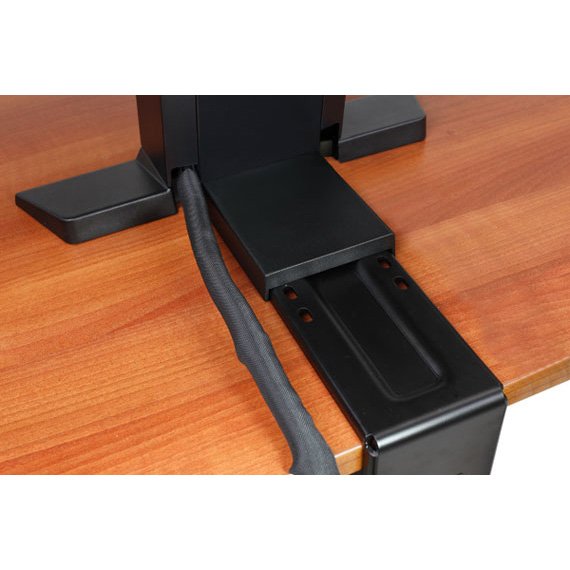

  • Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity

  • Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles



Model 33-419-085
Manufacturer Ergotron
Part Number 33-419-085
UPC 698833054842
Monitor Size Up to 24"
Weight Capacity Up to 29 lbs (13.2 kg)
Lift (58 cm) 23 in
Tilt 35 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 29.5" x 15.8" (75 x 40 cm)
Weight 38 lbs (17.3 kg)
Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
Shipping Weight 55.5 lbs (25.2 kg)
Warranty Five (5) years
Color Black
Price $600 - $699
