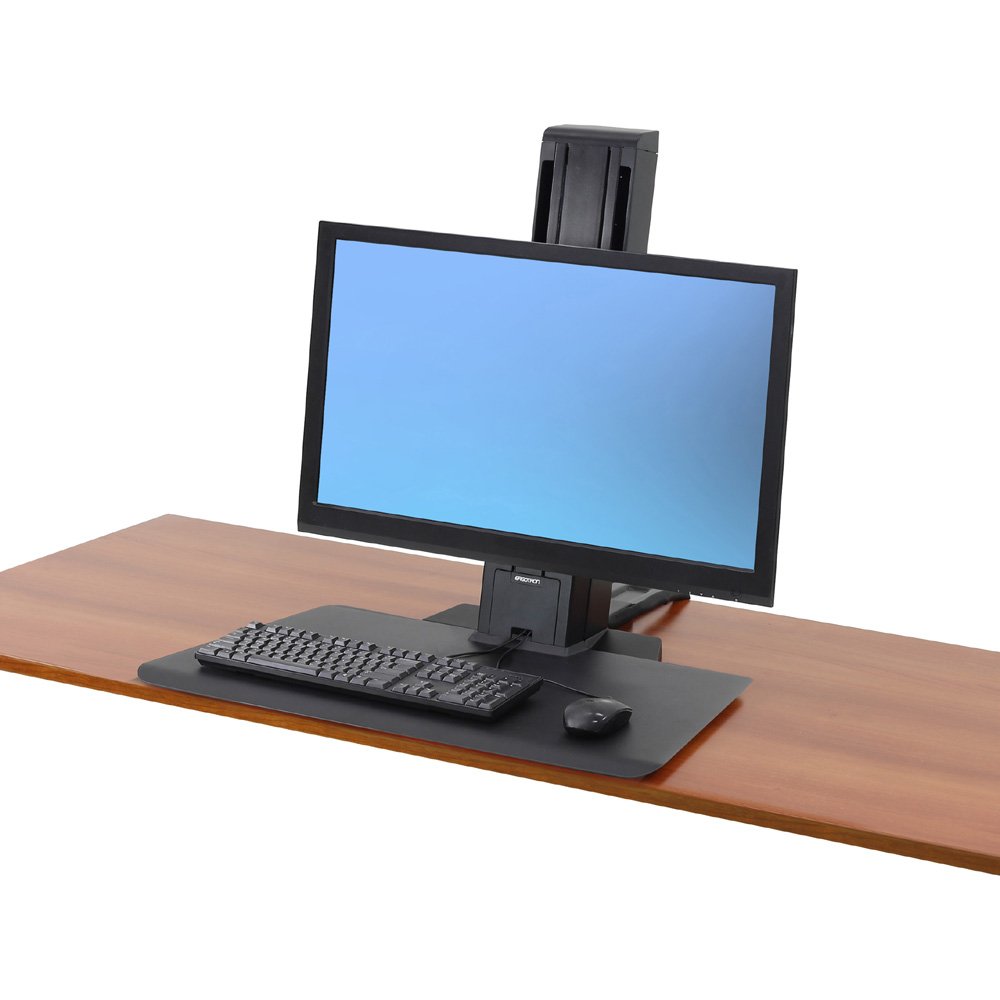

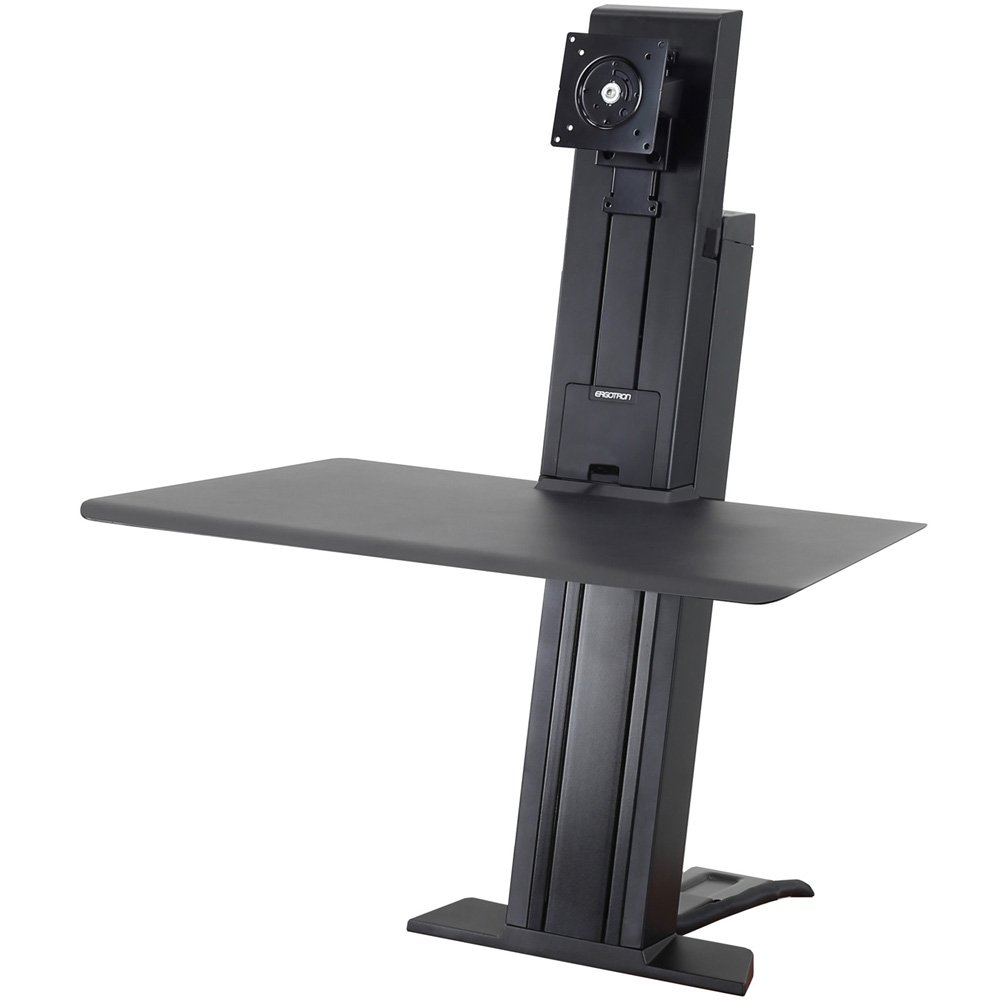

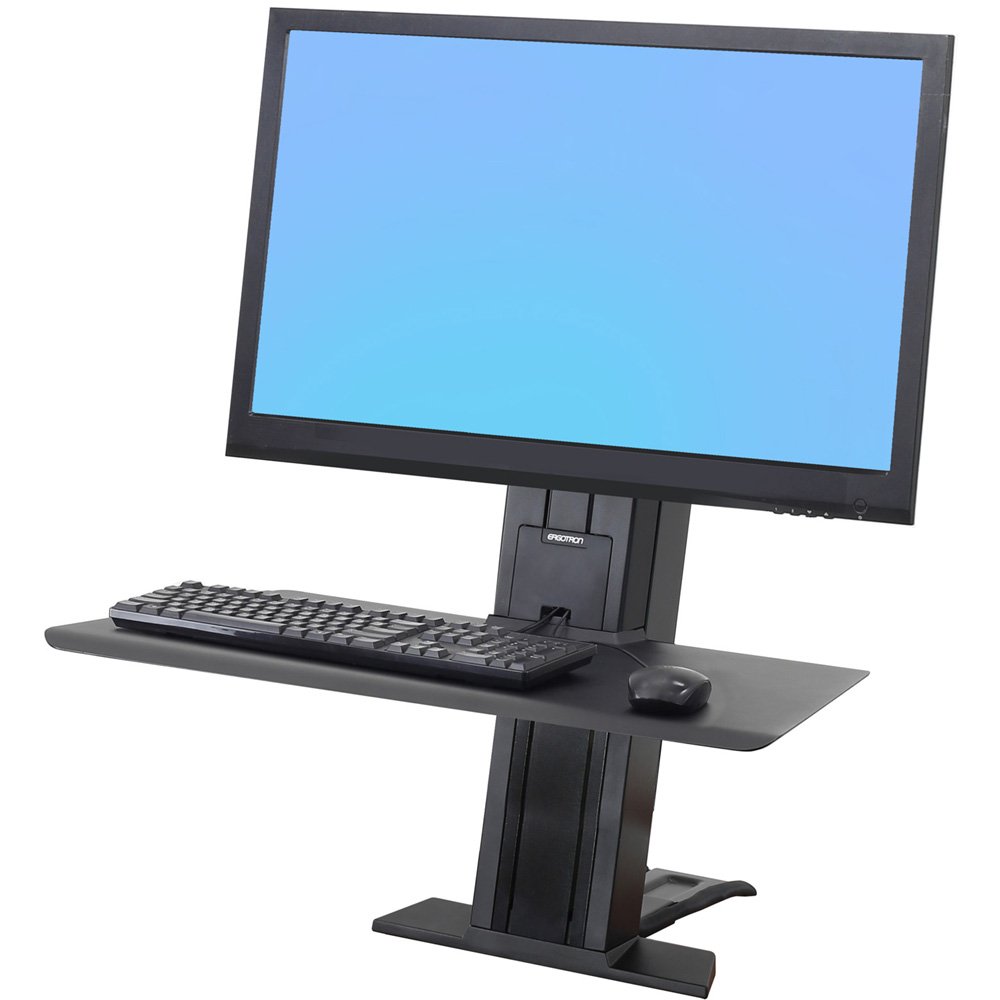

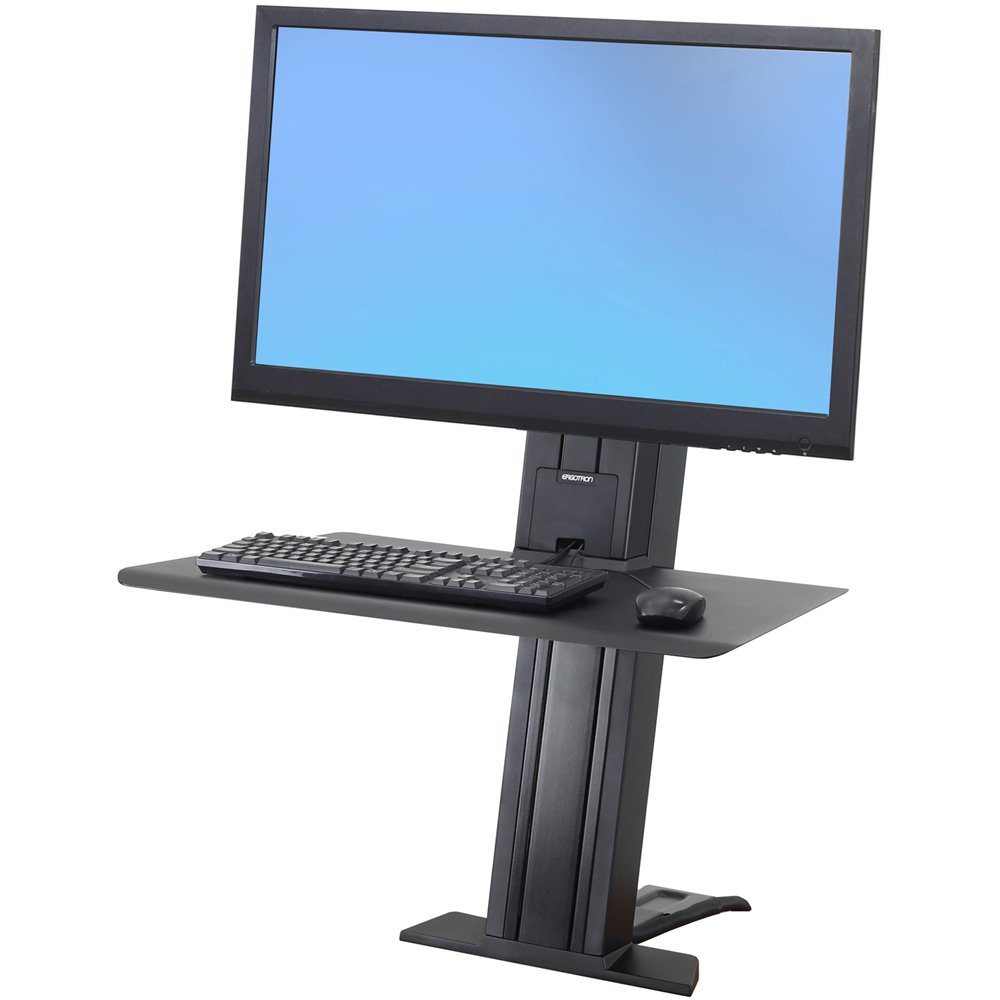

Ergotron 33-421-085 WorkFit-SR Rear Mount Heavy Monitor Short Surface Workstation, Black
This product has been discontinued.
Description
Ergotron 33-421-085 WorkFit-SR positions a complete workstation within
the footprint of your desktop without protruding into your space. It
clamps to the rear of most surfaces, converting any tabletop into a
healthy sit-stand desk.
This is a premium furniture retrofit solution, featuring refined
aesthetics and superior material construction. When in the seated
position, the thin worksurface always stays close to your desktop. The
all-aluminum composition is extremely sturdy, allowing for easy,
handle-free height adjustment.
Short Surface models are only recommended for desktops that are 24"–30"
deep (61–76 cm).

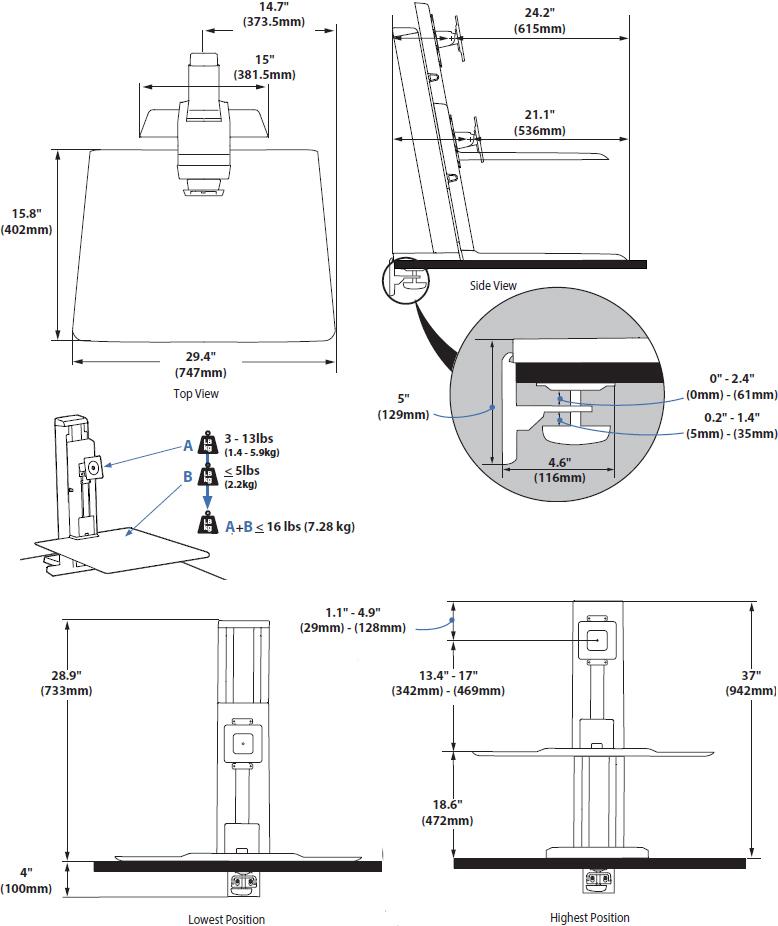

Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 30" |
Up to 29 lbs 13.2 kg |
23" 58.4 cm |
30° | - | 360° | MIS-D |
Product Information
| Part Number | 33-421-085 |
| Description | WorkFit-SR, Heavy Monitor Sit-Stand Desktop Workstation, Short Surface, furniture retrofit |
| Includes |
|
| Note |
|
| Short Surface Models | Place the keyboard 6" (15 cm) closer to the monitor screen compared with standard WorkFit-SR models. This may not provide adequate focal separation for some users |
| Optimized | For desks that are 24"–30" deep (61–76 cm): on desks shorter than 24", worksurface will extend beyond desktop edge; on desks deeper than 30", worksurface will not extend to desktop edge |
| Worksurface Dimensions | 29.5" x 15.8" (75 x 40 cm) |
| Weight Capacity | Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 14–26 lbs (6.4–11.8 kg); worksurface ≤ 5 lbs (2.3 kg) |
| LCD and Keyboard | Adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm) |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Product Weight | 35.5 lbs (16.1 kg) |
| Shipping Dimensions | 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm) |
| Shipping Weight | 53 lbs (24.1 kg) |
| Warranty | Five (5) years |
Benefits
This model is optimized to accommodate a single, heavier display
Premium aesthetics and sturdy construction: all-aluminum worksurface, bow and pivots
Worksurface/keyboard tray stays on top of the desktop, never intruding into your space
A “Short Surface” allows this WorkFit-SR to be installed in space-constrained work areas where the desktop is only 24"–30" deep (61–76 cm). Note that this may compromise focal distance between screen and operator
Configuration flexibility makes WorkFit-SR well suited to taller users: worksurface can lift higher than other WorkFit models; monitor pivots can be installed at tall-user heights
Spacious worksurface accommodates any keyboard and mousing device with plenty of room for other desktop items

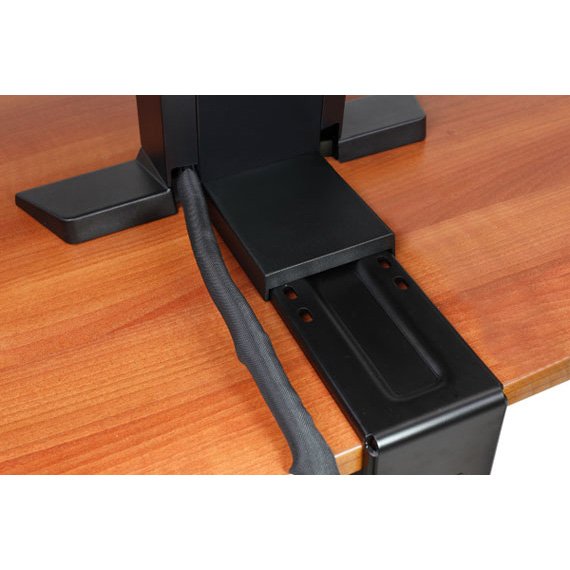

Internal cable management hides cord clutter; includes pre-installed USB cable for easy connectivity
Five-year warranty: tested and guaranteed! Proven lift technology is reliable through thousands of adjustment cycles
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 33-421-085
- Manufacturer Ergotron
- Part Number 33-421-085
- UPC 698833054866
- Color Black
- Monitor Size Up to 30"
- Weight Capacity Up to 29 lbs (13.2 kg)
- Lift (58 cm) 23 in
- Tilt 30 degree
- Rotation 360 degree
- Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
- Weight 35.5 lbs (16.1 kg)
- Shipping Dimensions 24.75" x 14.25" x 40.75" (62.9 x 36.2 x 103.5 cm)
- Shipping Weight 53 lbs (24.1 kg)
- Warranty Five (5) years
- Worksurface Dimensions 29.5" x 15.8" (75 x 40 cm)
- Price $600 - $699
