$1,172.00

Chief Dual Monitor Dynamic Column Mount, Reduced Height - K1C220BXRH

Product ID 18628
Chief Dual Monitor Dynamic Column Mount, Reduced Height - K1C220BXRH
Silver
White
White
Top Bottom Image of Dual Mount

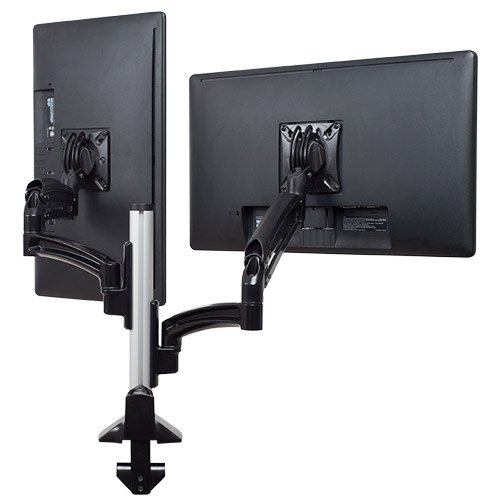

Chief Dual Monitor Dynamic Column Mount, Reduced Height - K1C220BXRH

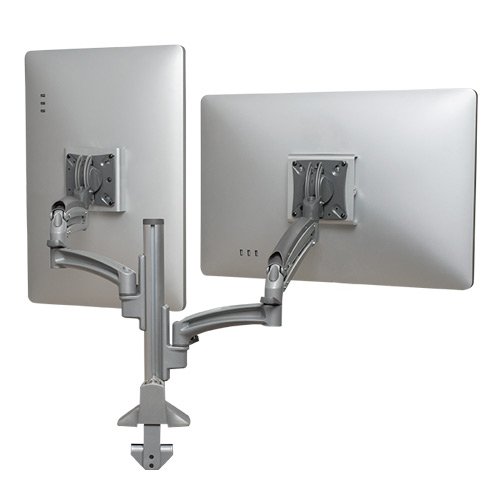

Silver

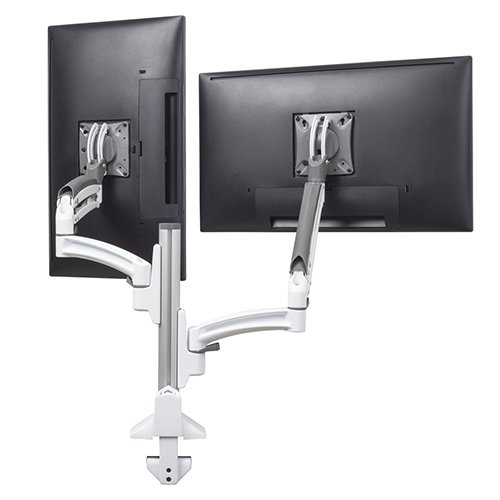

White

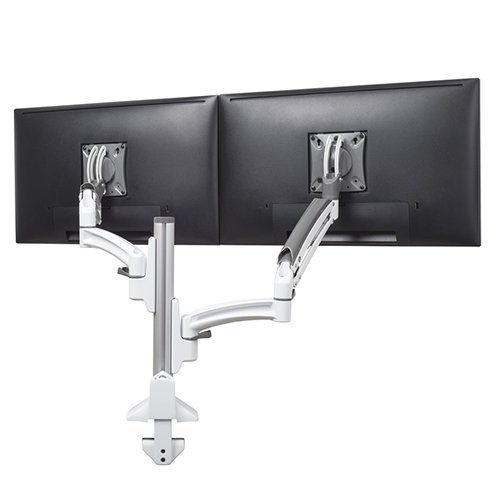

White

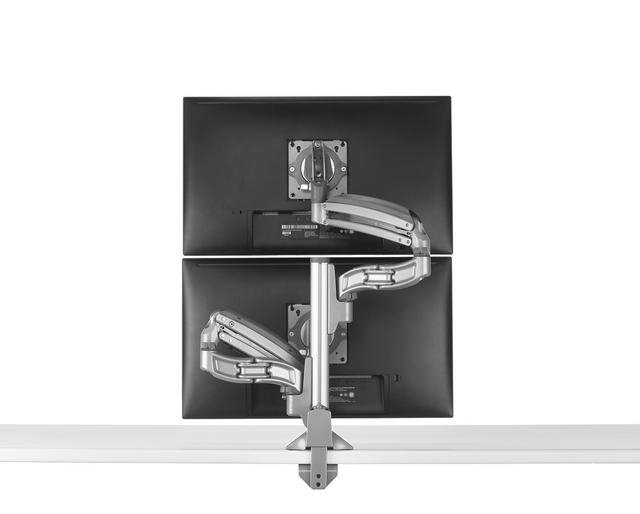

Top Bottom Image of Dual Mount

Description

Chief K1C220BXRH The enhanced Kontour K1C Dynamic Height-Adjustable Column Mount is the perfect solution for the office, healthcare facilities, or home. This Reduced Height model provides the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution, and is optimal for bi-focal wearers or touch-panel users that desire their displays as close to the work surface as possible.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

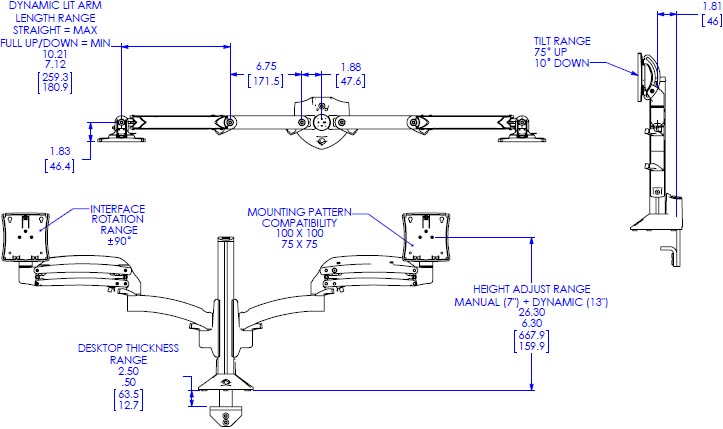

Technical Drawing

Technical Drawing for Chief K1C220BXRH Dual Monitor Dynamic Column Mount, Reduced Height

Specifications

Color Black, Silver and White
Certifications TAA Compliant
Desktop Thickness Range 0.50 - 2.50" (12.7 - 63.5 mm)
Dynamic Height Adjustment 13" (330.2 mm)
Manual Height Adjustment 7.0" (177.8 mm)
Maximum Extension 20.6" (523 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Shipping Weight 18.5 lbs (8.39 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait

Features

  • Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible

  • Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment

  • 20" (508 mm) of total height adjustment range

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Additional 7" (178 mm) of manual height adjustment on the column

  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

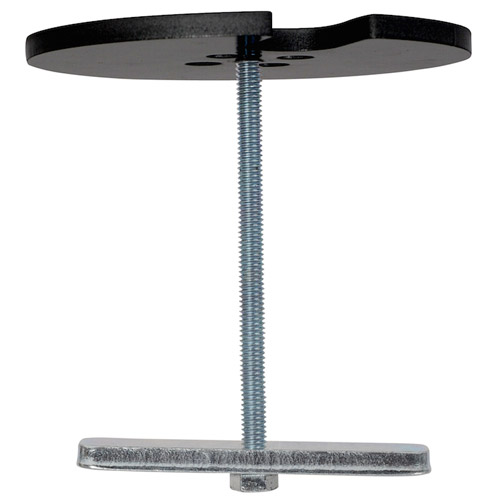

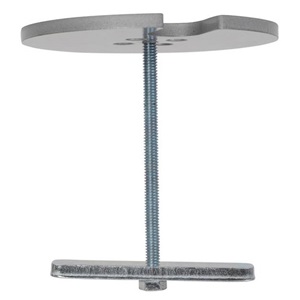

  • Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

Model K1C220BXRH, K1C220SXRH, K1C220WXRH
Manufacturer Chief Mounts
Part Number K1C220BXRH, K1C220SXRH, K1C220WXRH
UPC 841872163055
Color Black, Silver and White
Desktop Thickness Range 0.50 - 2.50" (12.7 - 63.5 mm)
Dynamic Height Adjustment 13" (330.2 mm)
Manual Height Adjustment 7.0" (177.8 mm)
Maximum Extension 20.6" (523 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern 75 x 75mm and 100 x 100mm
Shipping Weight 18.5 lbs (8.39 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Maximum Monitor Size 30"
Monitor Placement Side-by-Side
