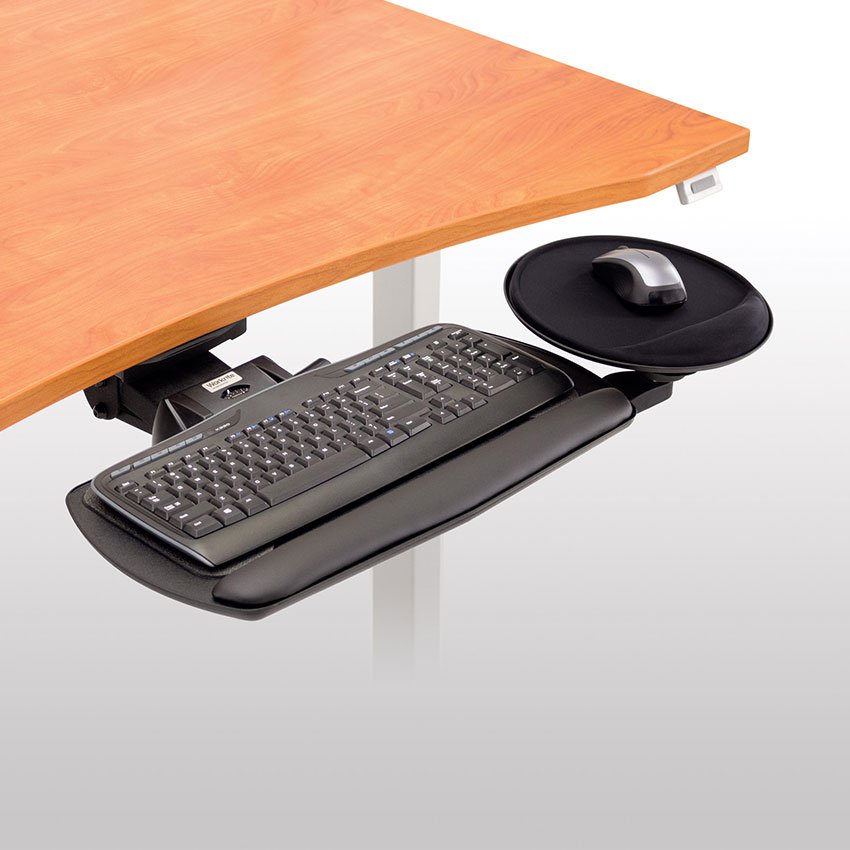

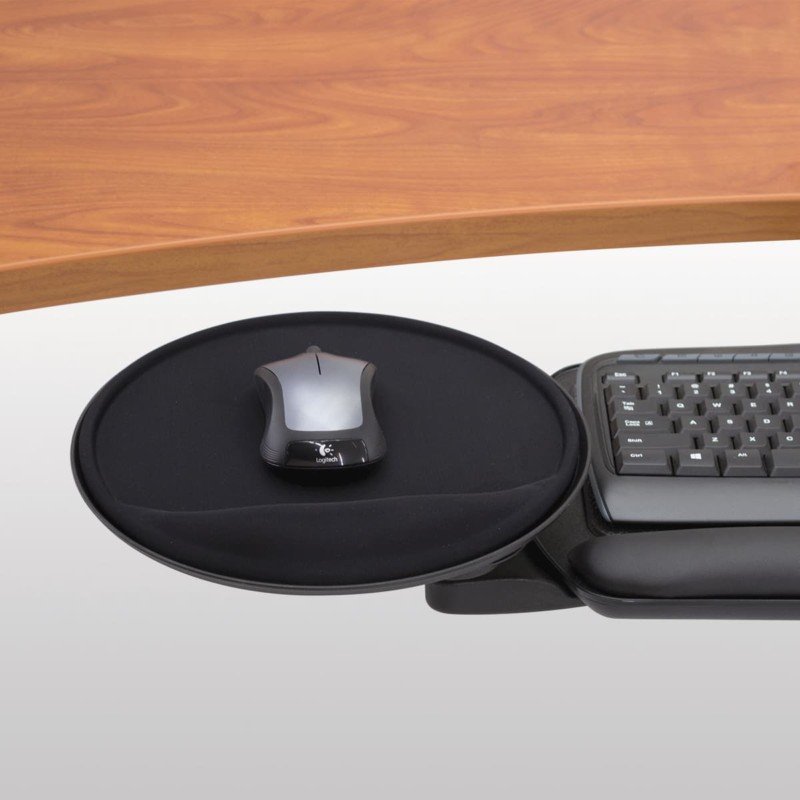

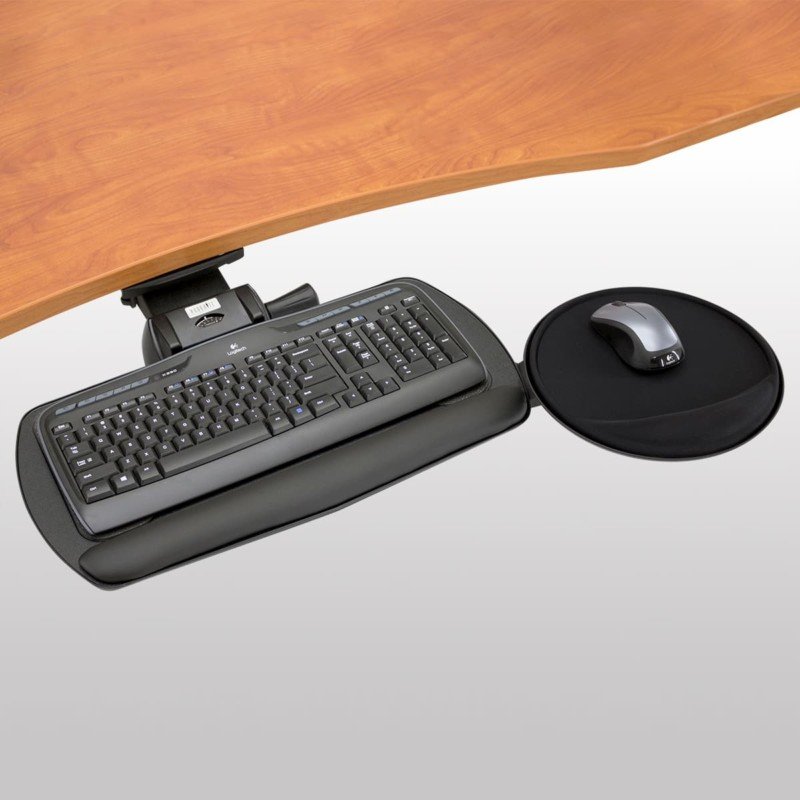

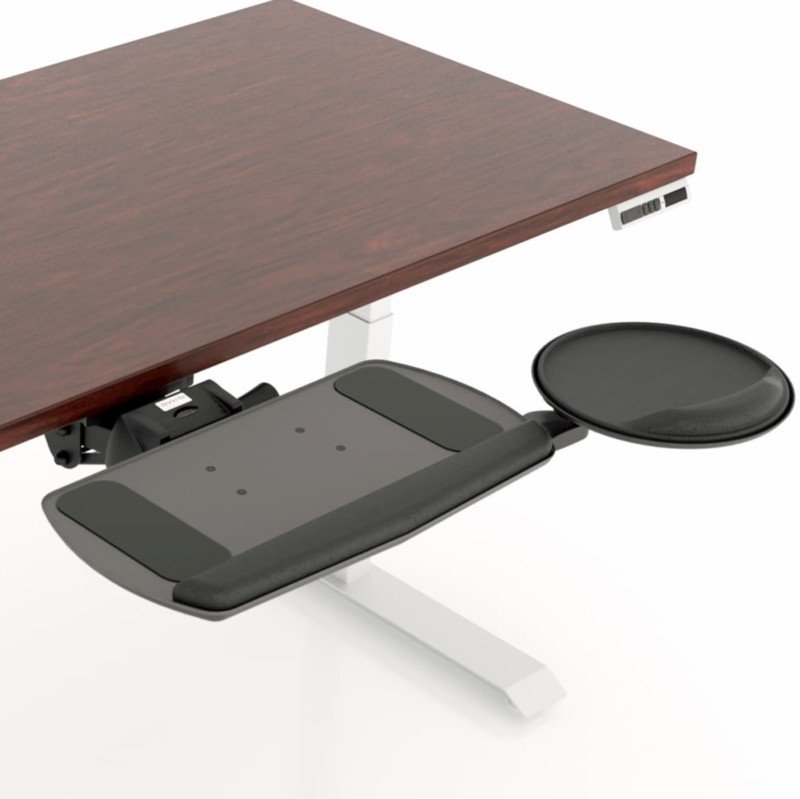

Workrite AKP02 Fundamentals Adjustable Keyboard Platform System

Mounts between adjustable arm and tray. provides an additional 45° pivot point for extra adjustability and special storage or mounting requirements.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

For mounting adjustable arms when edge is thicker than the rest of the worksurface. Select 16" or 21" length and desired thickness.

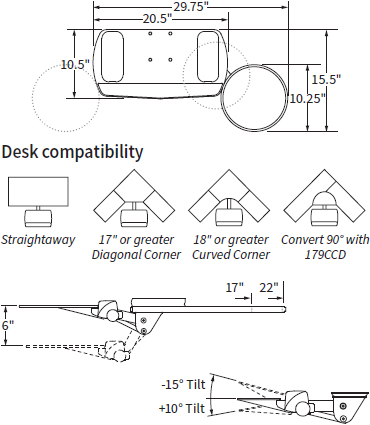

Converts 90° & curved corners (up to 9") to usable work areas. Allows use of adjustable arm and keyboard tray when the natural corner of the worksurface does not permit it.

- Adjusts to fit 1.125" to 2.25" thick worksurfaces

- Works with the Pinnacle 2 and Pinnacle AD arms

- Works with the following Workrite trays: 2180S, 2181SN, 2100FT, 317RL, 2110D, 2110RL, 180

Converts 90° corners and diagonal corners less than 17" to usable work areas.

- Designed specifically to fit model #321RL with Pinnacle 2 Arm

- Works with the Pinnacle 2 and Pinnacle AD arms

- Works with the following Workrite trays: 188, 488, 2180S, 2181SN, 2100FT, 317RL, 2110D, 2110RL, 2110RLN, 321RL,180,187, 487

Converts 90° corners and corners with keyboard cutouts to usable diagonal corners

- Works with all Workrite keyboard arms

- Works with the following Workrite trays: 188, 488, 2180S, 2181SN, 2100FT, 317RL, 2110D, 2110RL, 2110RLN, 321RL,180, 187, 487, 385RL, 386RL, 482, 483, 485, 486, 182, 183, 185, 186

- Pinnacle 2 only, not available for Pinnacle AD

- For “no positive tilt” ergonomics applications

- No tools required to install

- Restricts arm tilt to a range of 0° to –15°

• Measure the clearance required to drop the keyboard track below the supports of the work center
• BMK-1-B can be used for all 1.12" to 1.5" clearance requirements
• Attaches between underside of worksurface and keyboard arm
• Fits all Workrite keyboard arms

• Measure the clearance required to drop the keyboard track below the supports of the work center
• BMK-2-B can be used for all 1.88" to 2.25" clearance requirements
• Attaches between underside of worksurface and keyboard arm
• Fits all Workrite keyboard arms
