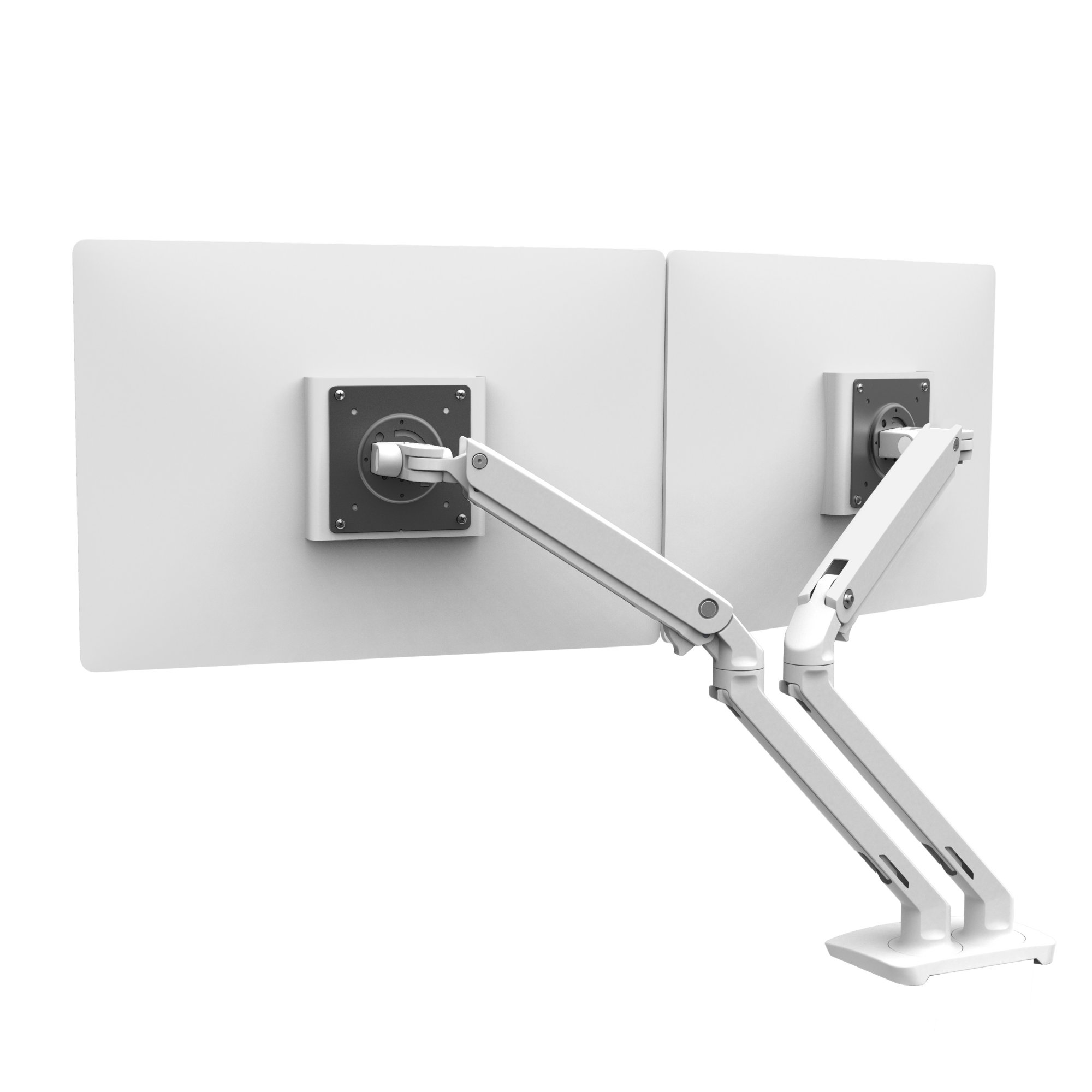

Ergotron 45-496-216 MXV Desk Mount Dual LCD Monitor Arm (white)
Ergotron 45-496-216 adds style to your dual monitor desk
without sacrificing functionality. The sleek and lightweight MXV
incorporates a modern V-shaped design with proven engineering to create
a stable yet flexible platform for your side-by-side screens.
With a slim profile, MXV offers 13" (33 cm) of integrated height adjustment, integrated tilt and more - all on a convenient swivel base. The arm’s adjustability helps increase viewing comfort, while its upscale finish leaves a stylish impression.
|Up to 24"||
Up to 40 lbs
|Part Number||45-496-216 (white)|
|Description||MXV Desk Mount Dual LCD Monitor Arm|
|Notebook Tray||Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)|
|Quality Tested||10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment|
|Arm||Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas|

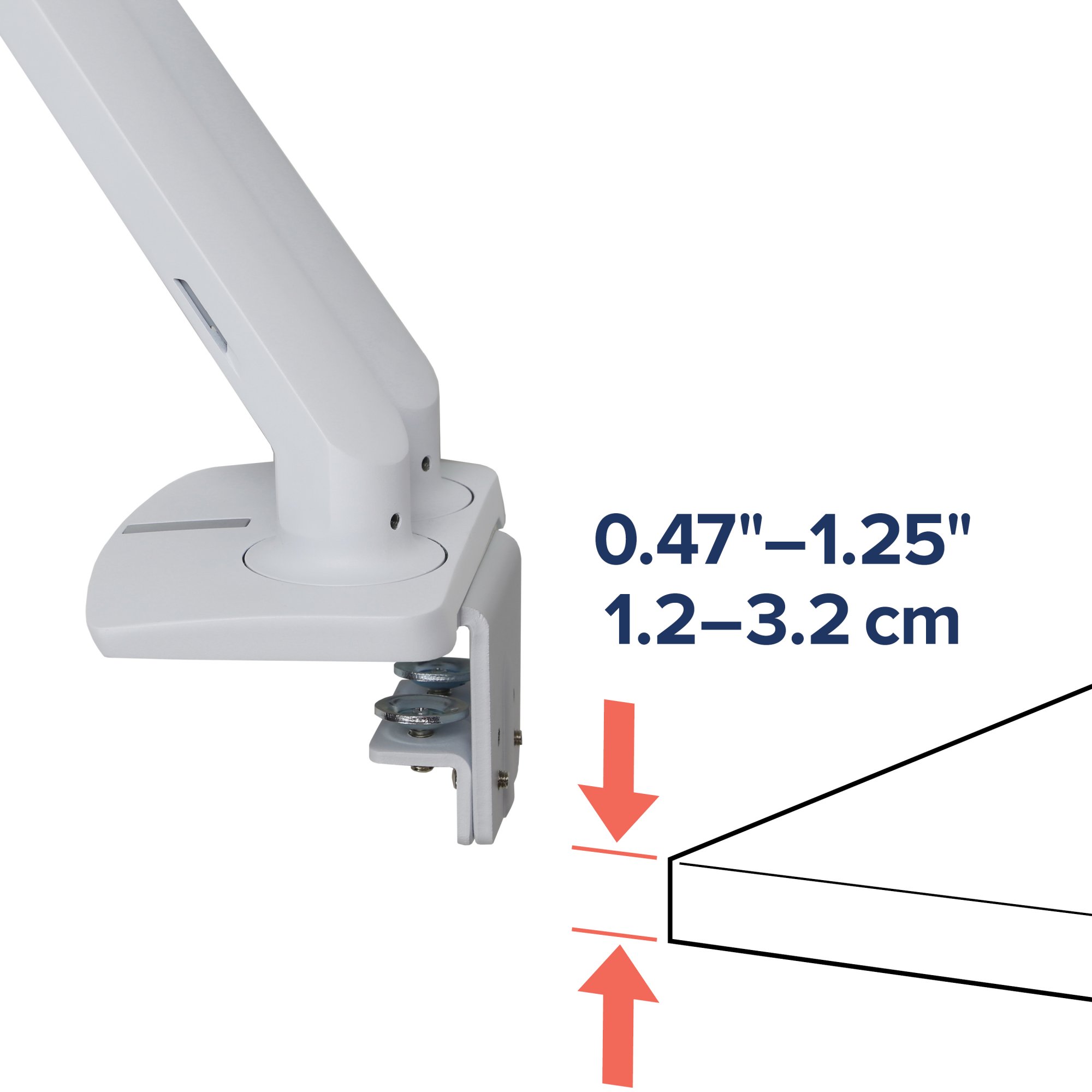

|Mounting Options||Desk clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick|

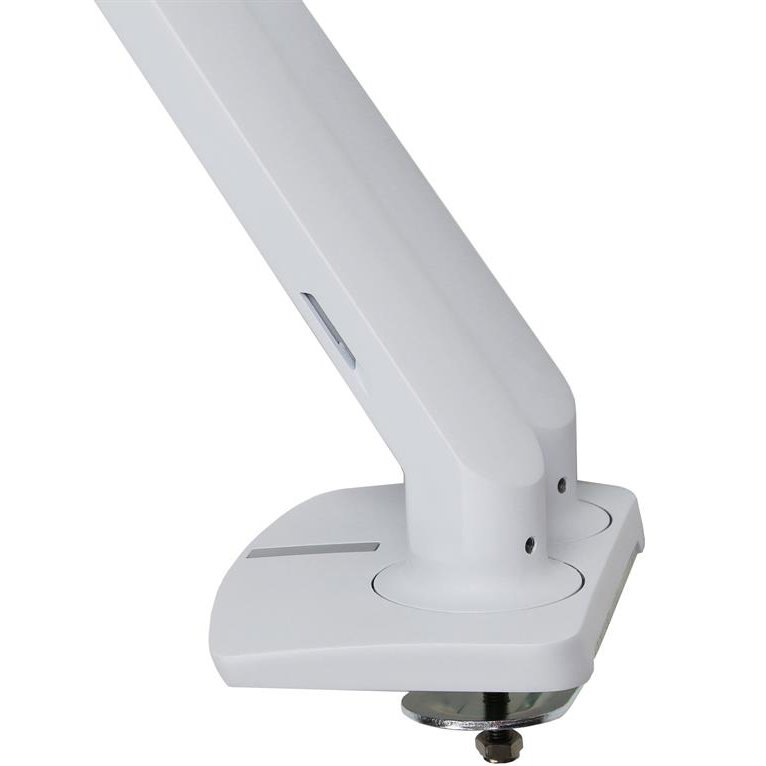

|Grommet Mount||An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-111|
|Desk Clamp||Has anti-rotation screws to prevent base from slipping|
|Mounting Standards||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Screens Sizes||Up to 24" can be accommodated though there will be a reduction in adjustment capability|
|Weight Capacity||Individual monitor weight = 7 to 20 lbs (3.2 to 9.1 kg); maximum combined weight of displays = 40 lbs (18.1 kg)|

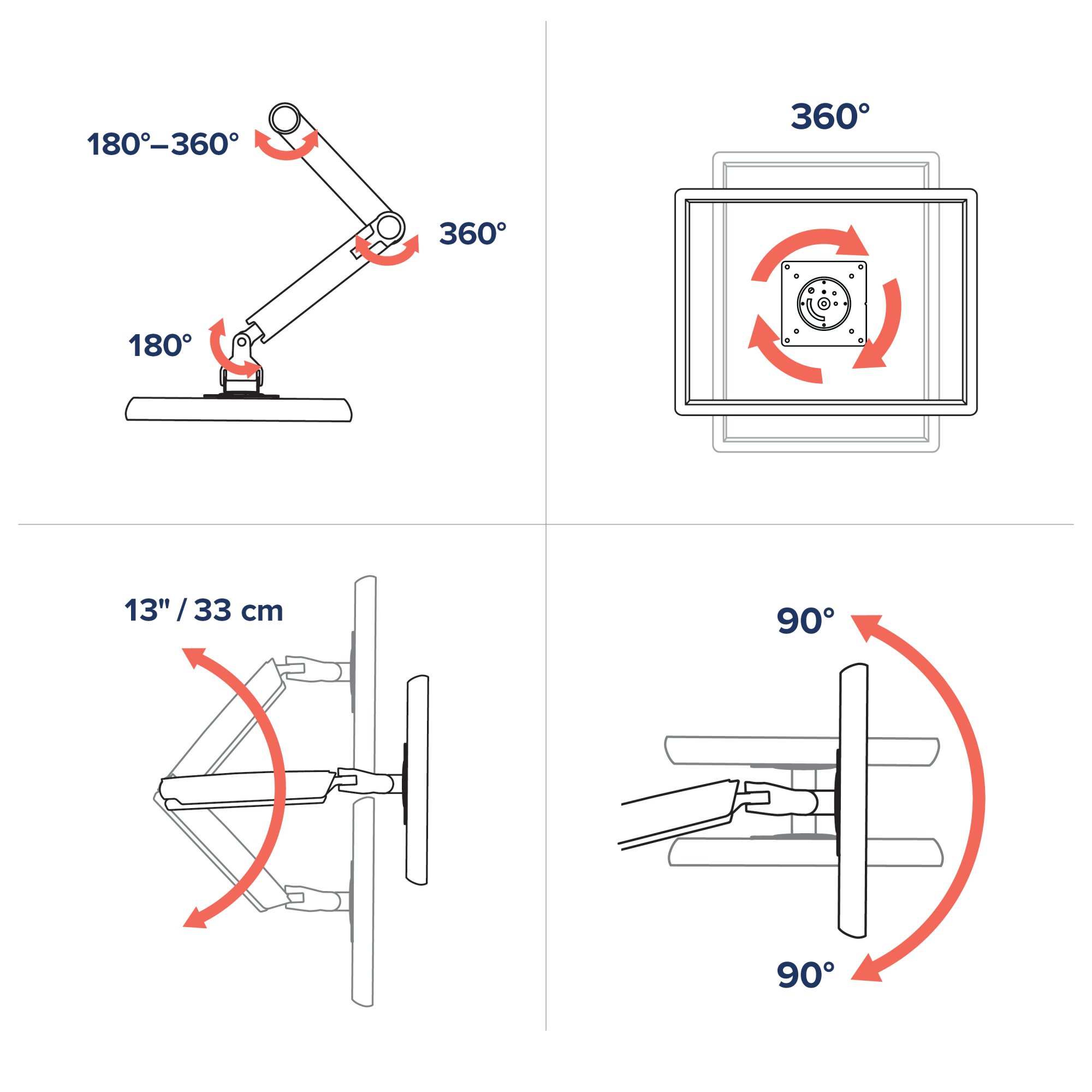

|Tilt Range||90° backward, 90° forward|
|Pan Range||180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to 360°|

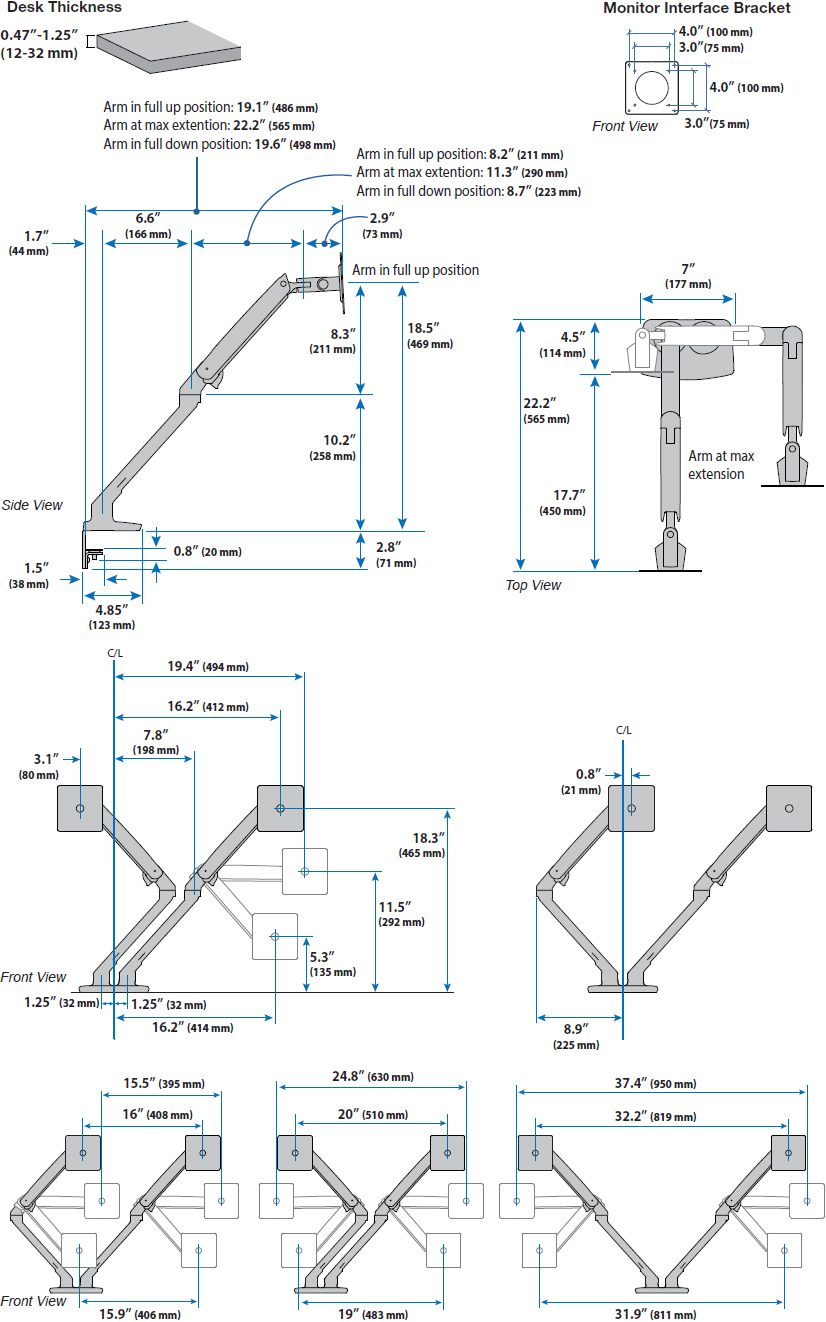

|Extension Range||17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate|
|Product Weight||10.1 lbs (4.9 kg)|
|Shipping Dimensions||37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)|
|Shipping Weight||15.1 lbs (6.9 kg)|
|Warranty||Ten (10) years|
Enhance productivity by positioning your work across two screens. Easily turn one or both screens from landscape to portrait mode to view full pages and additional applications without scrolling

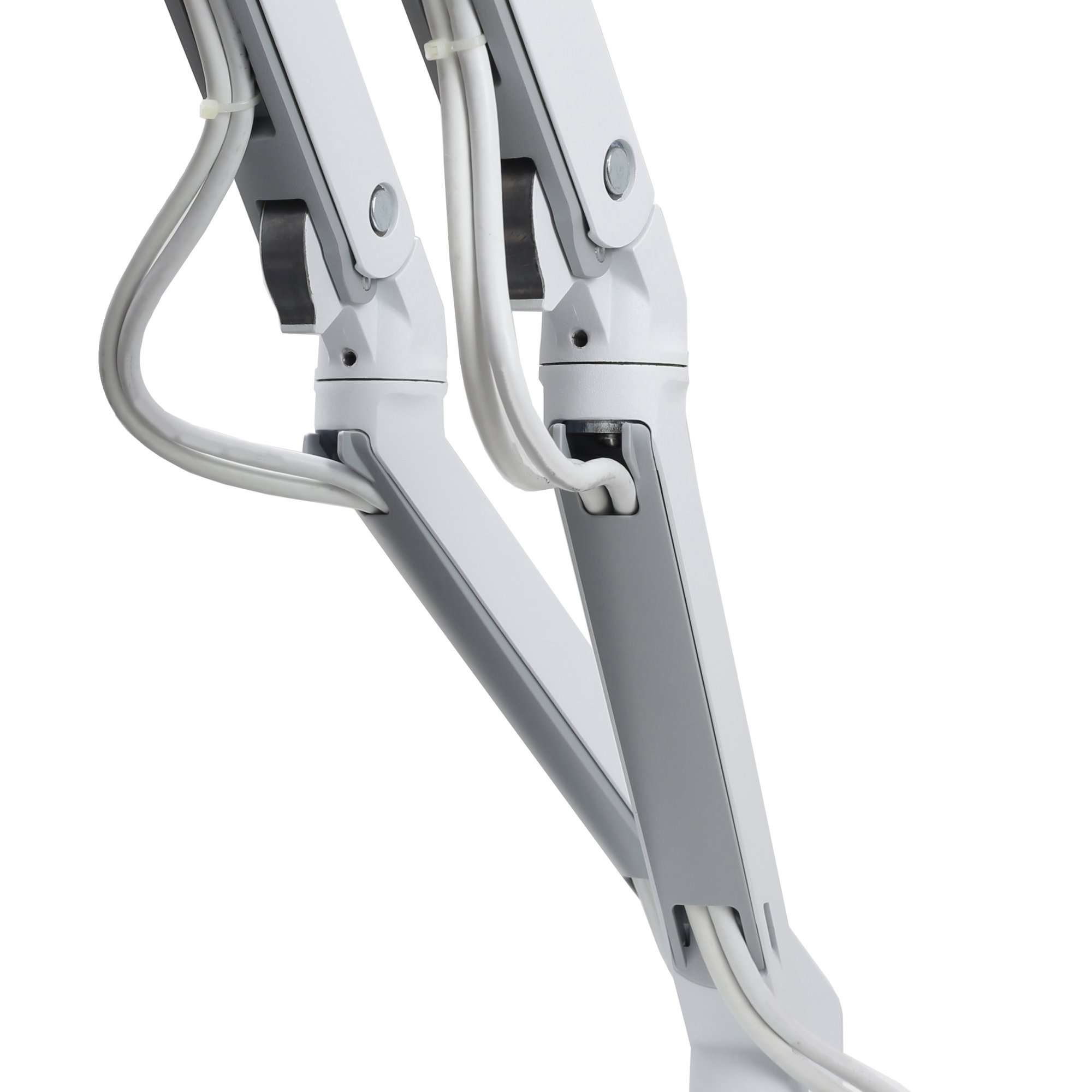

Saves valuable desk space with the cable management system and narrower profile - 25% slimmer than the LX arm
Allows you to easily adjust your display with a light touch thanks to patented Constant Force technology
Creates additional flexibility with a friction pivot that offers a 180-degree tilt
Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
Monitor can extend out up to 22.2" (56 cm)
Sits securely on your workstation with a low-profile desk clamp base that can fit in tight places
Keeps your monitors within your desk space with a solid rotation-stop, perfect for call centers and back-to-back desks
Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

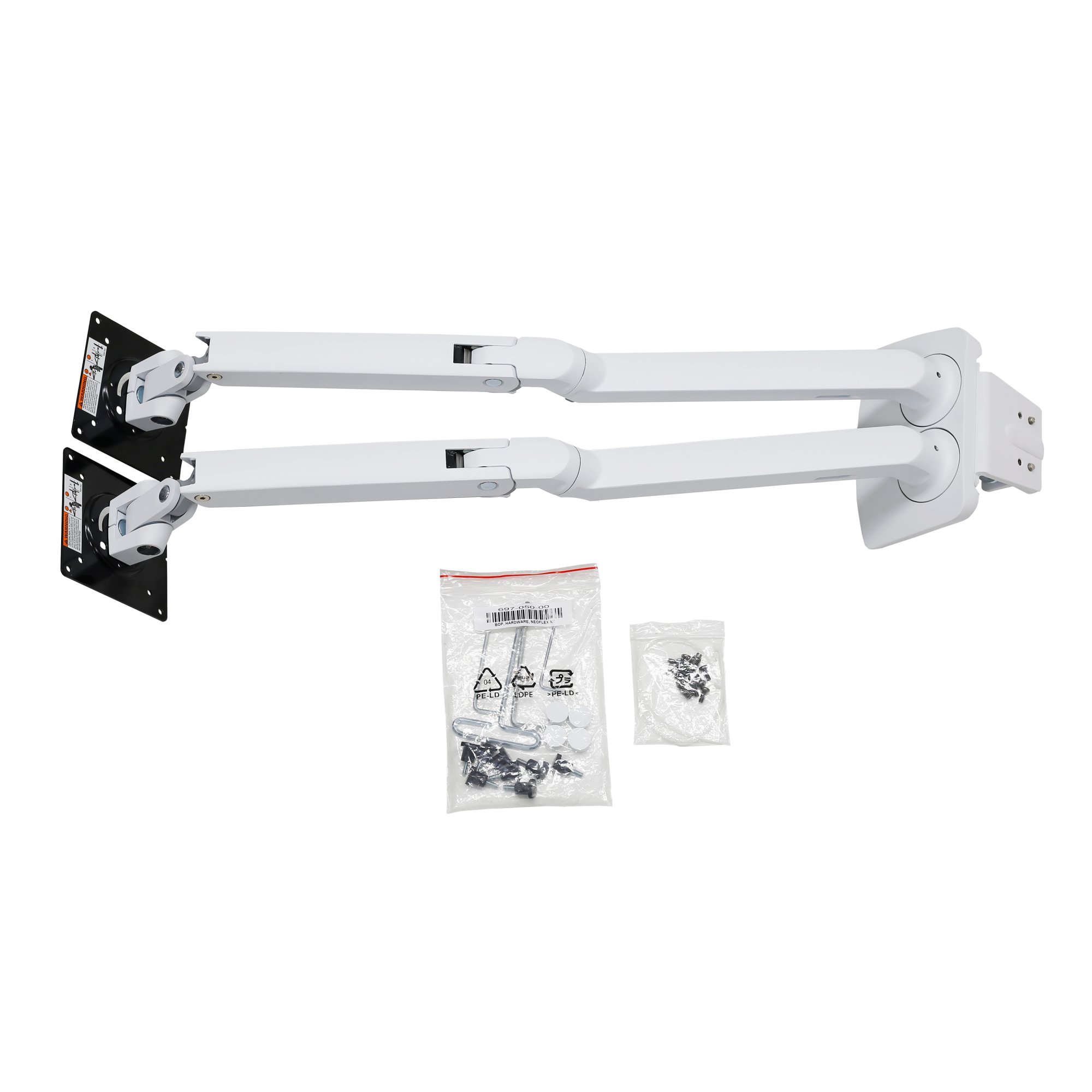

Arrives fully assembled for you to easily attach to your desk, add your monitor and adjust the tension
|Weight Capacity||Up to 40 lbs (18.1 kg)|
|Lift||(33.0 cm) 13 in|
|Mounting Pattern||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Desk Thickness||0.47" to 1.25" (12 to 32 mm) thick|
|Extension||17.8" (45 cm); maximum extension reach = 22.2" (56 cm)|
|Weight||10.1 lbs (4.9 kg)|
|Shipping Dimensions||37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)|
|Shipping Weight||15.1 lbs (6.9 kg)|
|Warranty||Ten (10) years|
|Maximum Monitor Size||24"|
