$1,315.00

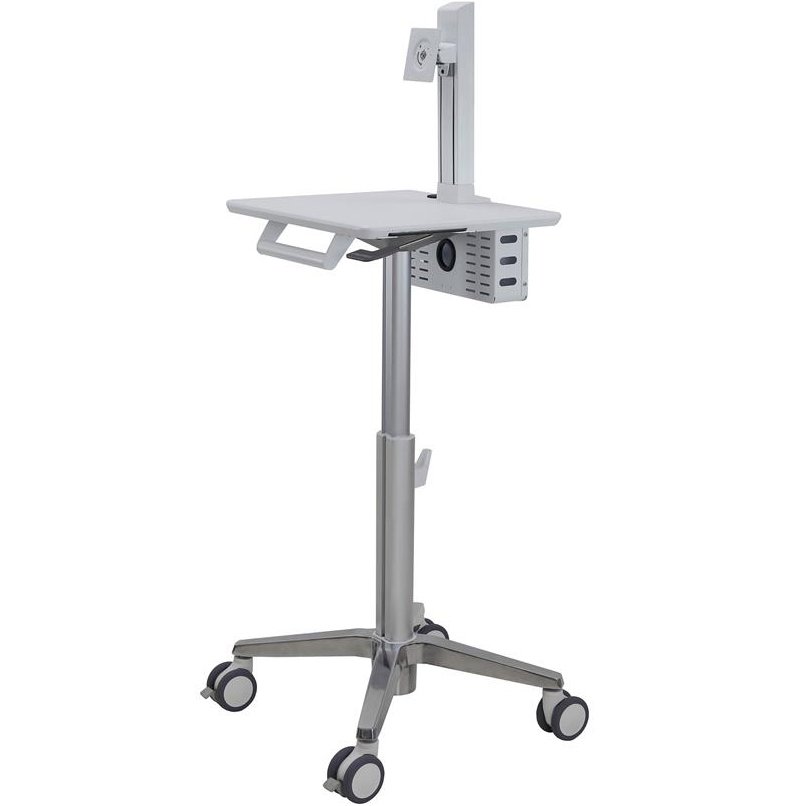

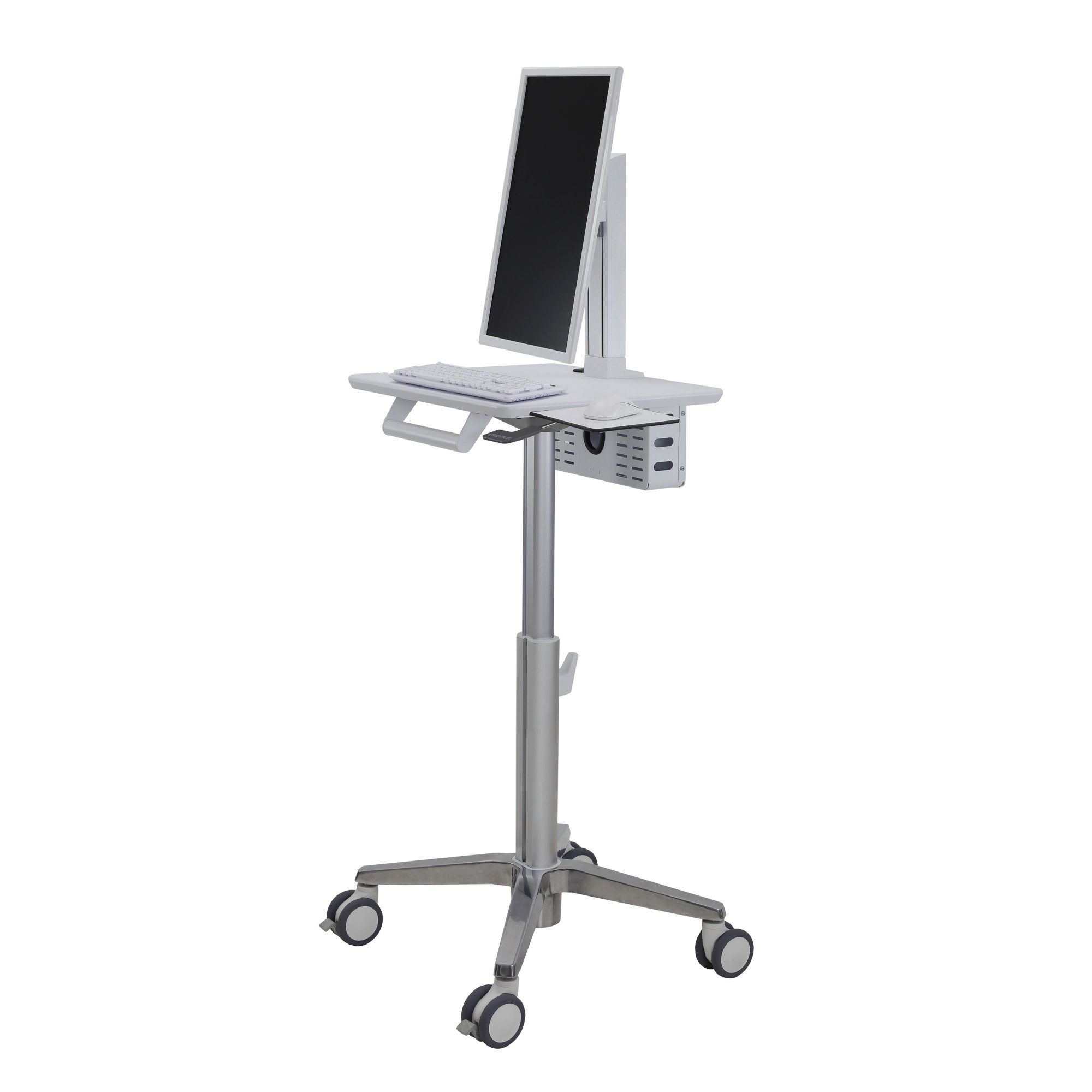

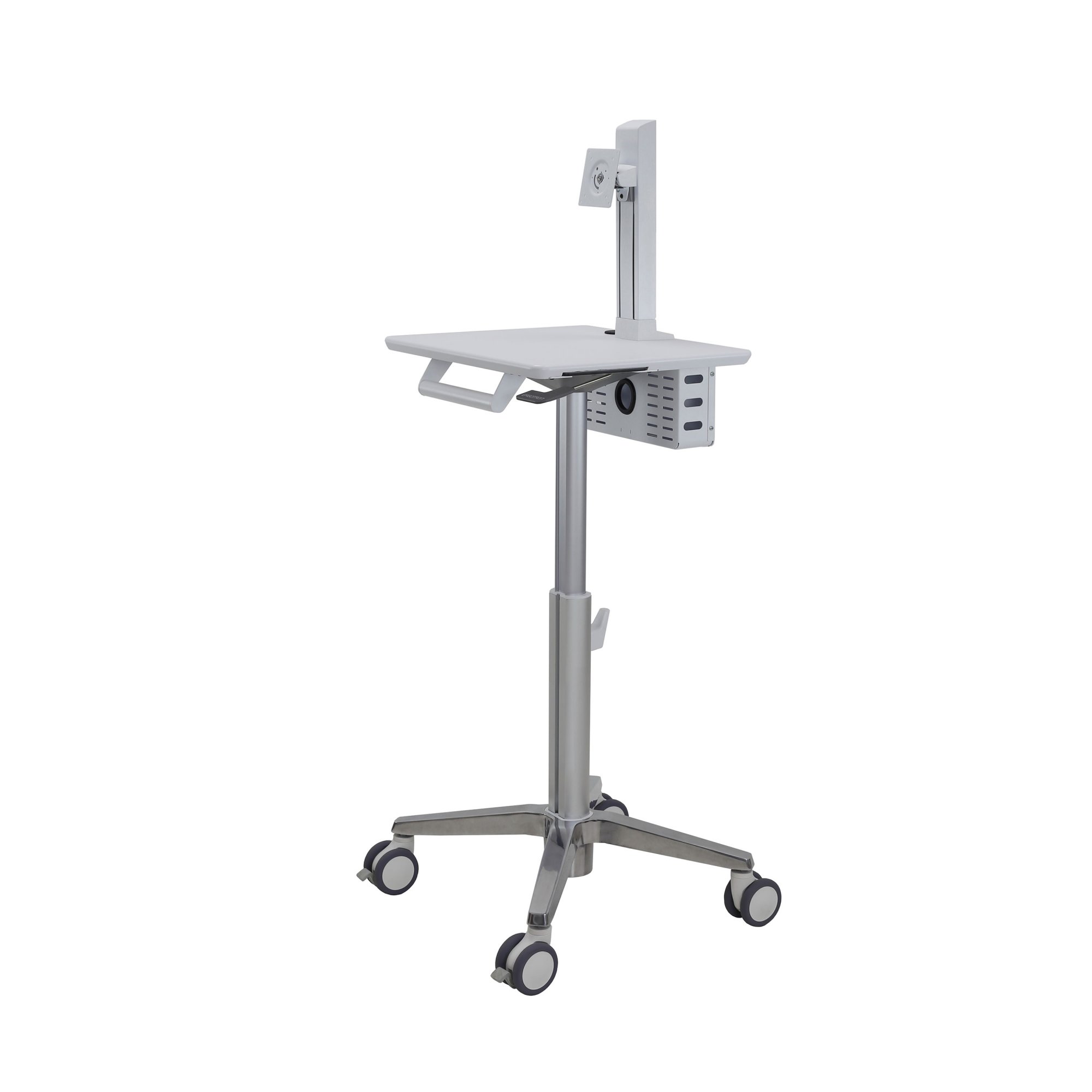

Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10

Product ID 18935
HIGHLIGHTS
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10
Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10

Highlights

  • Light-Duty Medical Cart
  • Small footprint so the cart fits in tight spaces
  • Adjusts 16" vertically for comfortable sitting and standing
  • Monitor rises an additional 5"
  • Supports monitors weighing 6-16 lbs range and up to 24" in size
  • Offers retractable mouse shelf

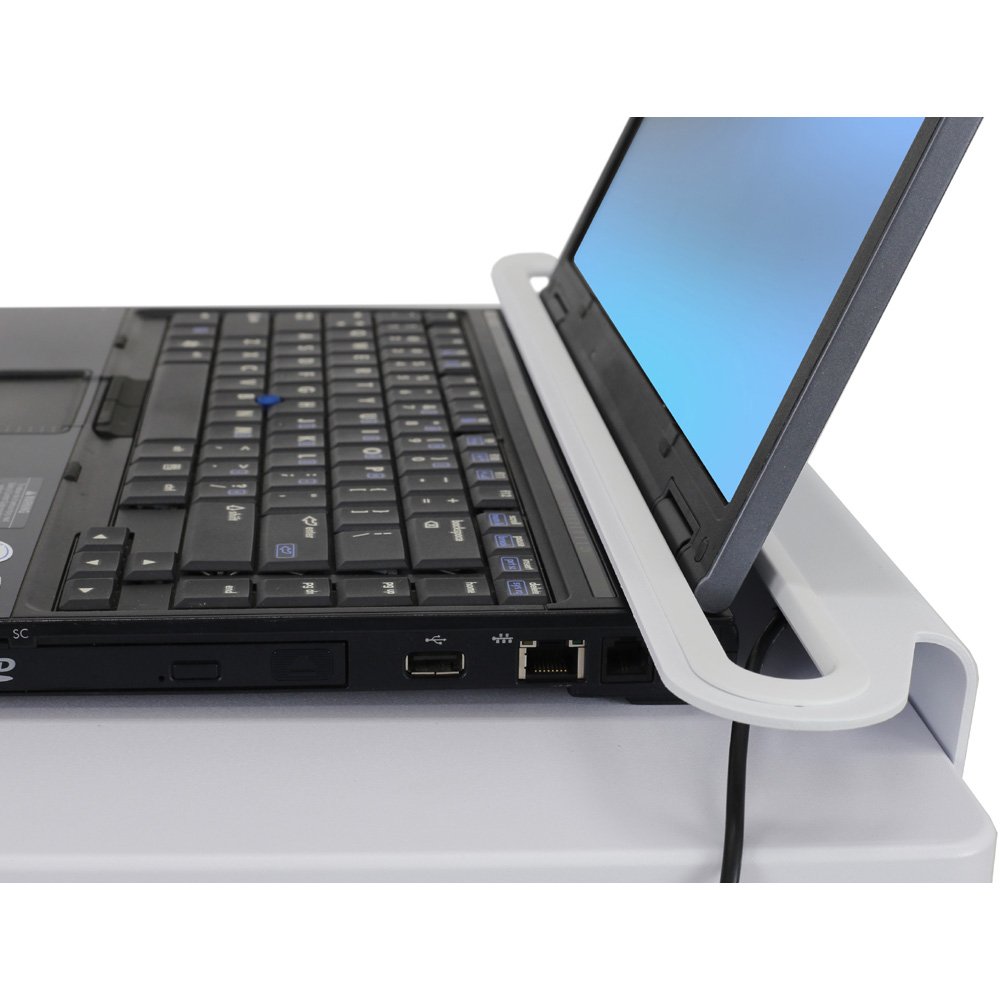

  • Looking for Laptop Cart or a Tablet Cart?

Description

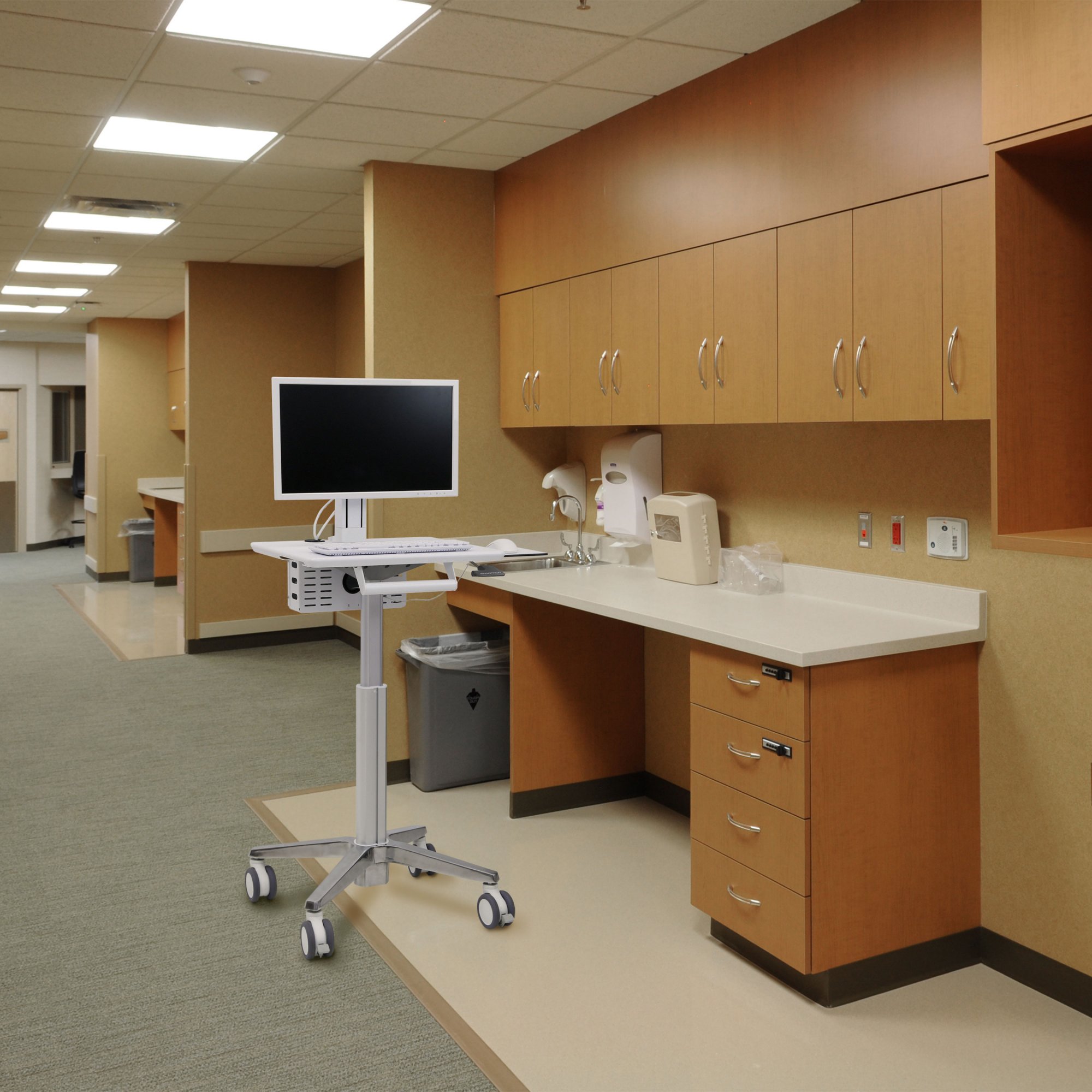

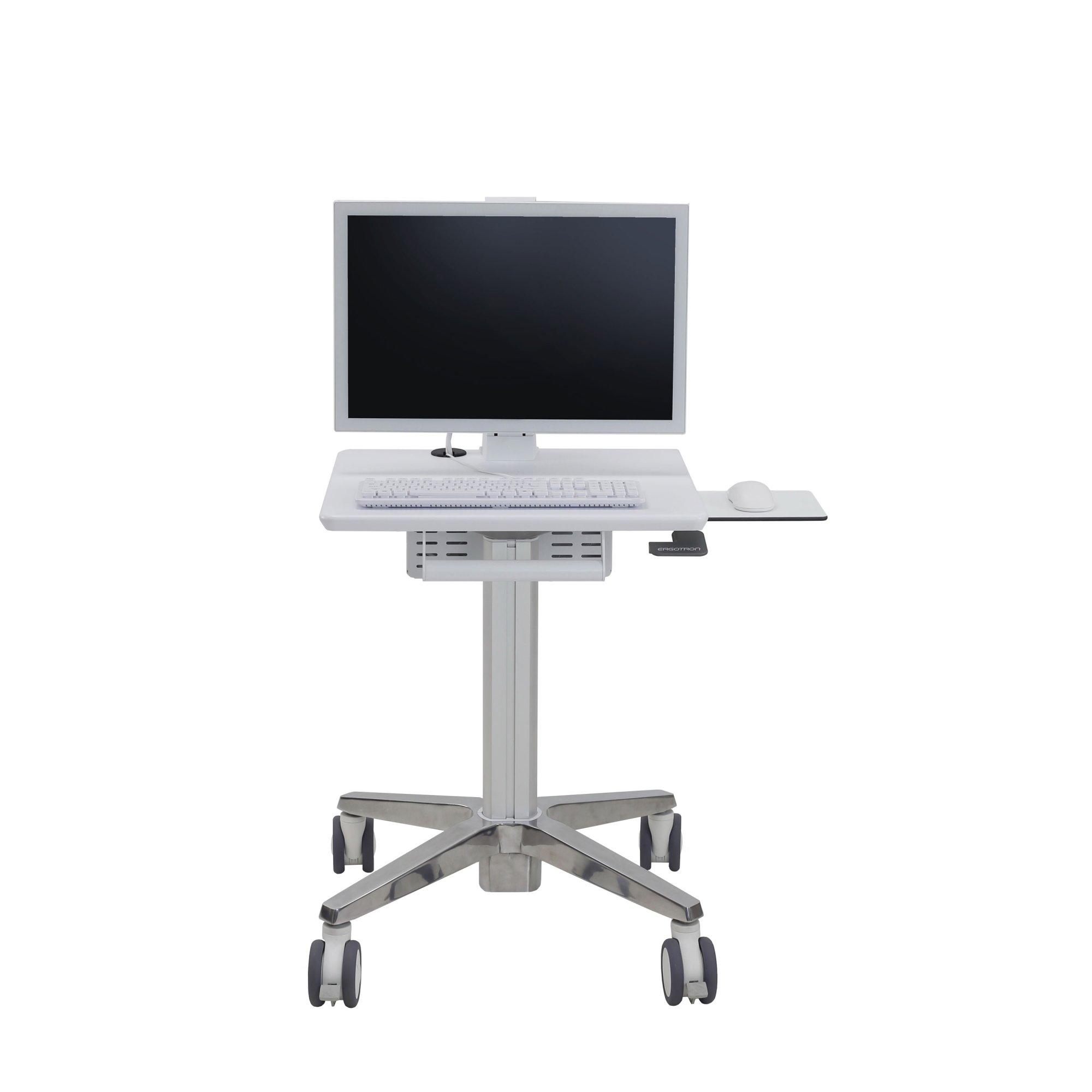

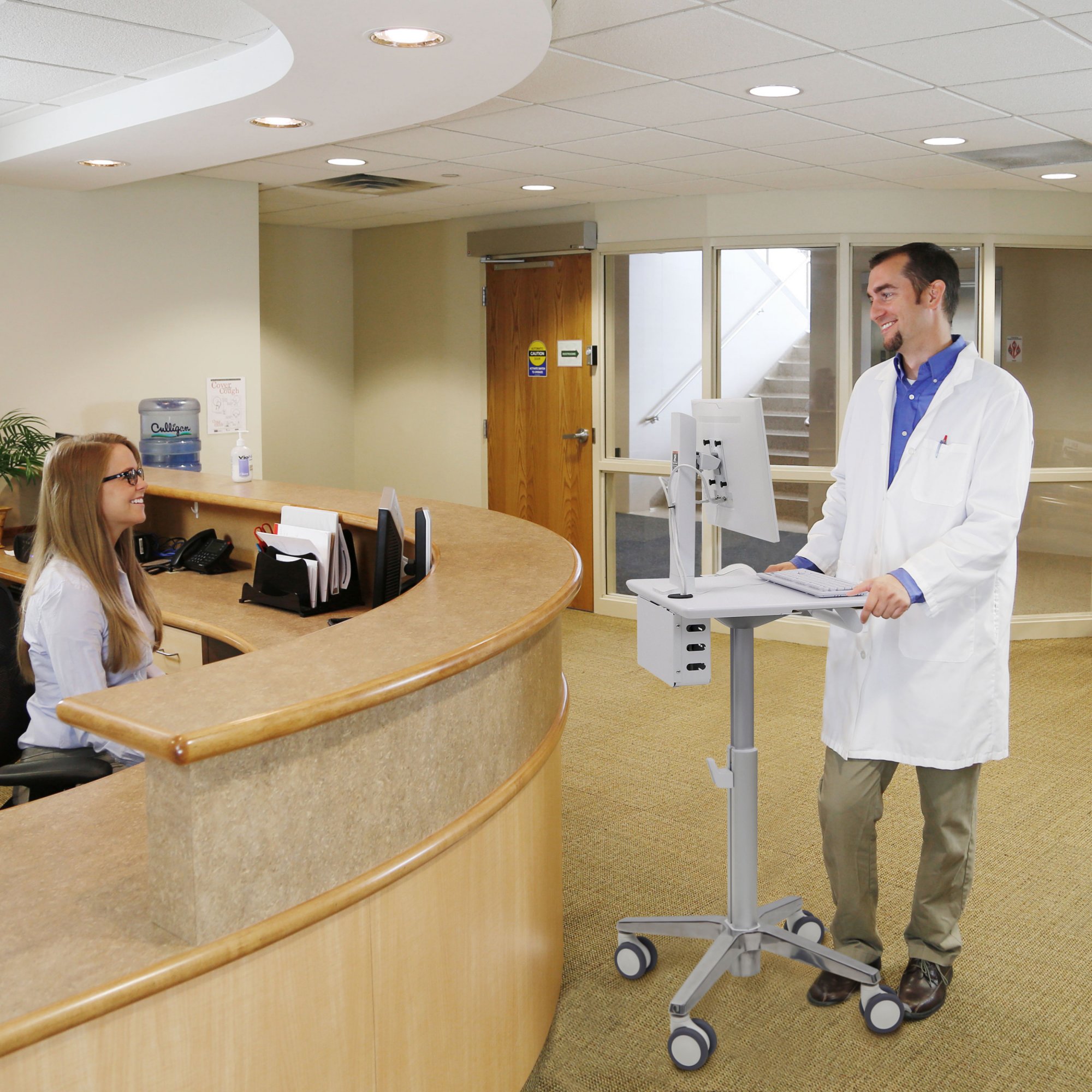

The Ergotron SV10-1300-0 Lean WOW cart is an agile workstation-on-wheels for your display or all-in-one with a small footprint that fits into tight spaces. The height-adjustable column moves 16" (40 cm) so you work comfortably sitting or standing.

The monitor riser provides additional height adjustment for the display. Add the slide-out mouse shelf, comfortable handle, clean cable management and you have a lightweight cart that's ready for heavy duty use.

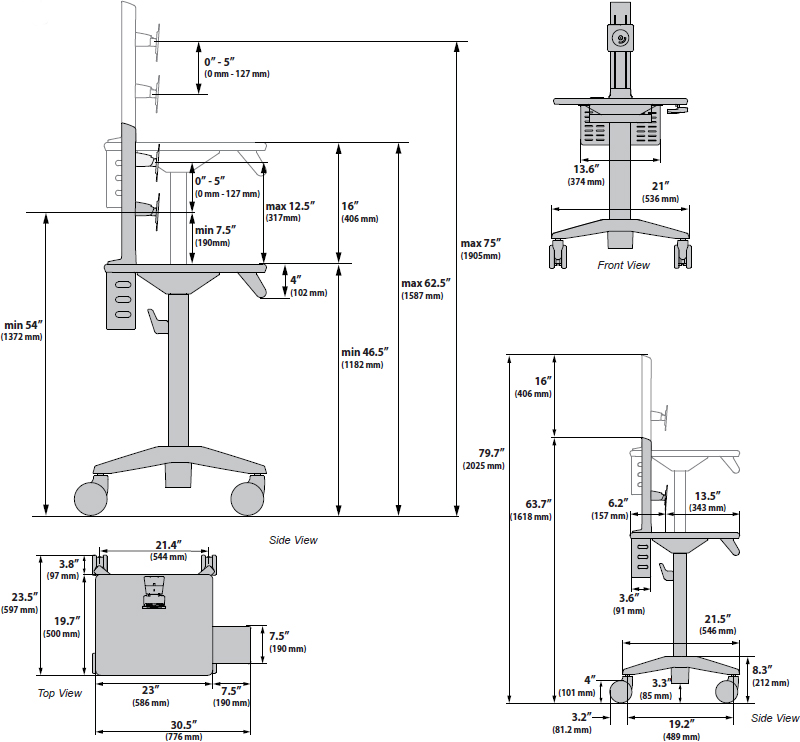

Technical Drawing

Technical Drawing for Ergotron SV10-1300-0 StyleView Lean WOW Cart, SV10

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

6-16 lbs

2.7-7.3 kg

16"

40.6 cm

30° - 360° MIS-D

Product Information

Part Number SV10-1300-0
Description StyleView Lean WOW Cart, SV10 (white and aluminum)
Includes
  • Worksurface with cord pass-through

  • Pull-out mouse shelf measures 7.5" square (19 cm)

  • Handle

  • Monitor riser with 5" (12.7 cm) height range

  • Cable/brick storage compartment with tooled access

  • Storage hook

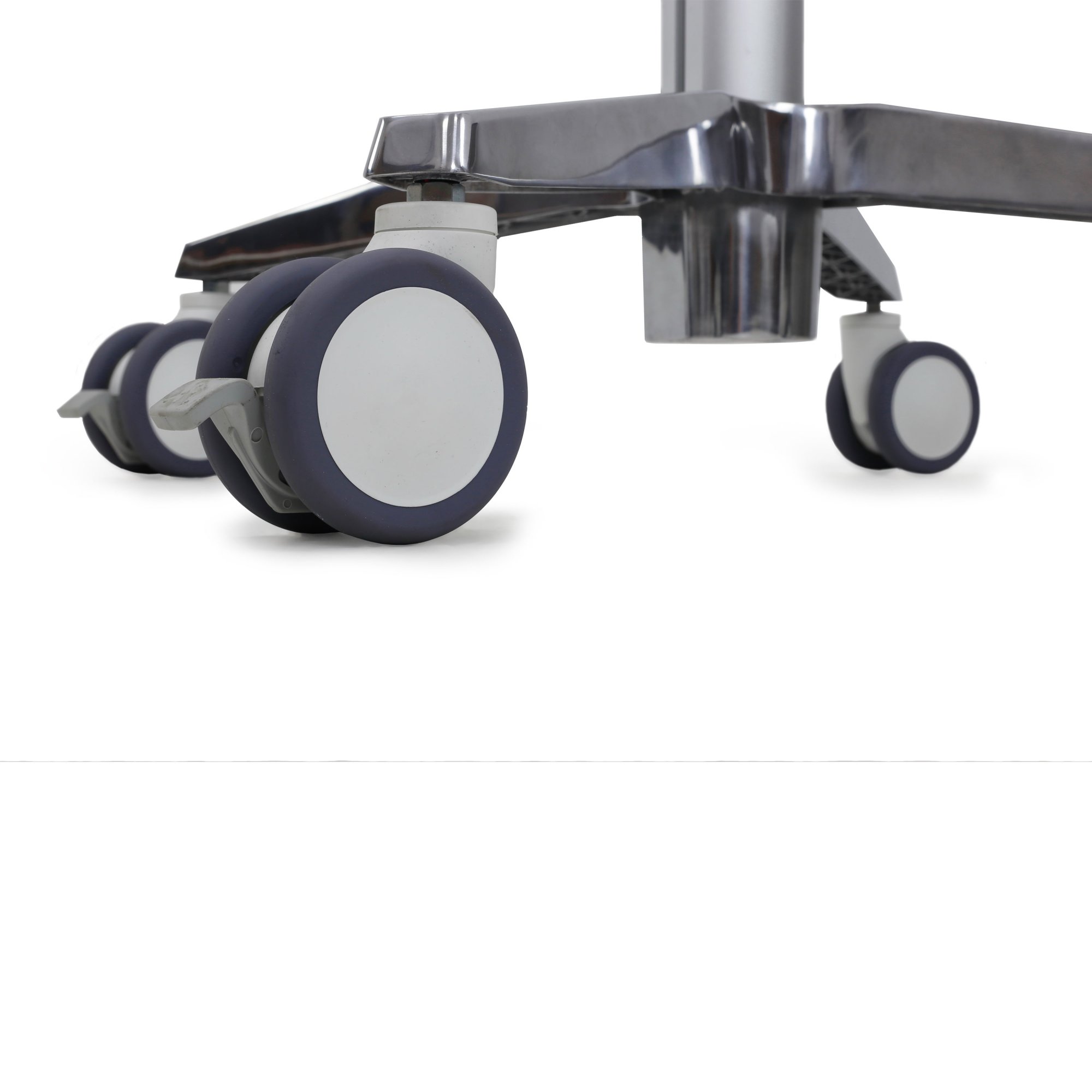

  • Four 4" (10.2 cm) casters (2 locking)

Worksurface Height Minimum worksurface height = 30.25" (76.8 cm); maximum worksurface height = 46.25" (117.5 cm)
Worksurface Dimensions 23" x 20" (58.4 x 50.8 cm)
Cable Management Enclosed cable management cubby beneath the worksurface for storage of power adapters, cables and even an ultra small form factor computer
Pull-out Mouse Shelf Extends left or right side. Mouse surface measures 7.5" x 7.5" (19 x 19 cm) when fully extended. Slides under the worksurface when not in use

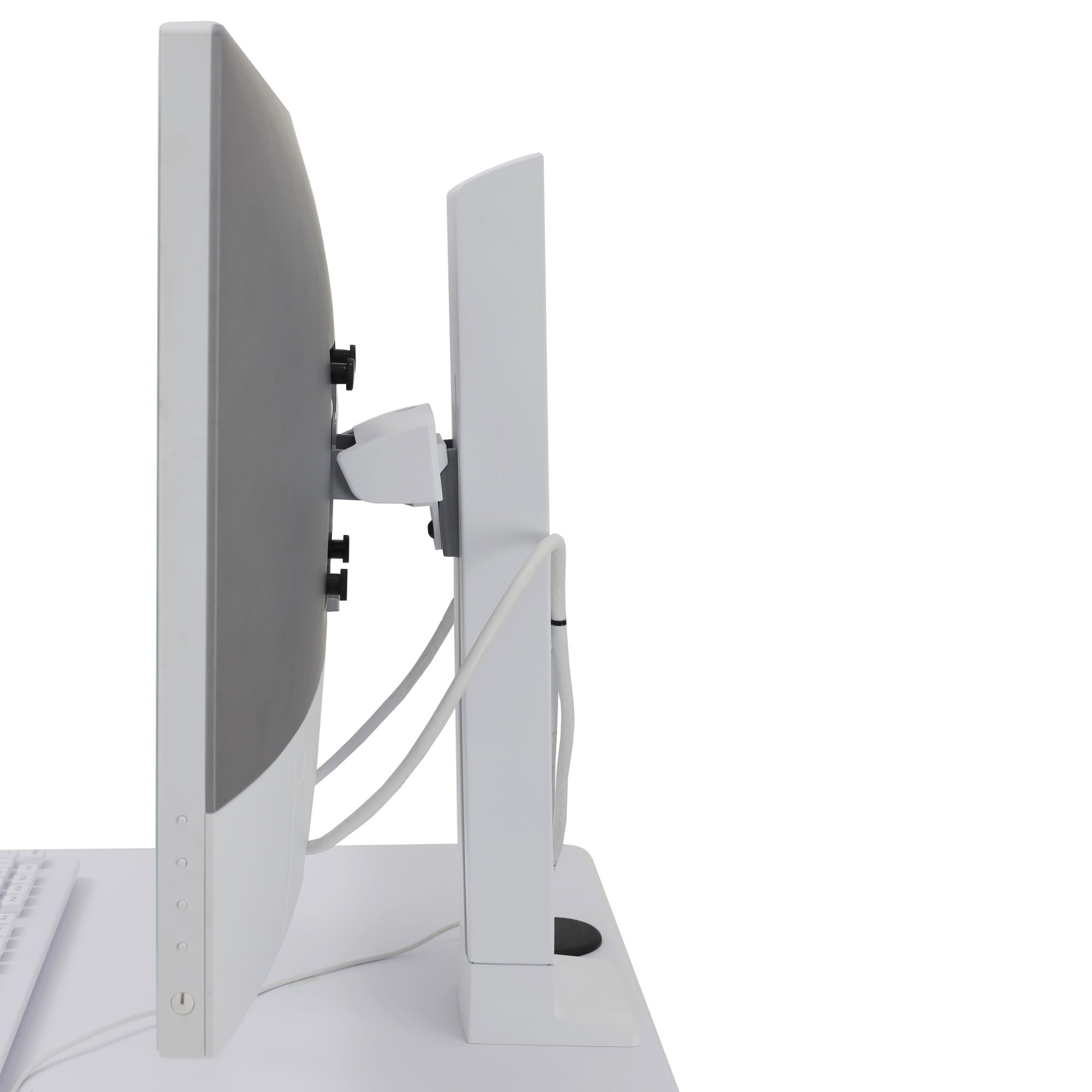

Monitor Riser Supports displays 6-16 lbs (2.7 - 7.3 kg) and provides an additional 5" (12.7 cm) of height adjustment. Riser attaches at the back of the worksurface so you have plenty of work area in front
Base Footprint Dimensions 24" x 22" (61 x 56 cm)
Powder Coat Paint Finish on steel surfaces
Cart Weight 58 lbs (26.3 kg)
Shipping Dimensions 30.5" x 33.6" x 55.6" (77.5 x 85.3 x 141.2 cm)
Shipping Weight 99 lbs (44.9 kg)
Warranty Seven (7) years on cart, Five (5) years on riser

Benefits

  • Features a small footprint and light feel so you can complete documentation in any location

  • Adjusts 16" (40 cm) in height so you're comfortable sitting or standing

  • Supports displays up to 24", 6-16 lbs (2.7-7.3 kg) and provides 30 degrees of tilt and 360 degree rotation

  • Lifts your display - even an all-in-one, with 5" (12.7 cm) of additional adjustment

  • Provides plenty of space for a keyboard, scanner and other small items you need on the large worksurface

  • Routes cords directly into a cable cubby with a grommeted cord pass-through at the back of the shelf to organize your cords, power adapters, and even an ultra-small form factor computer

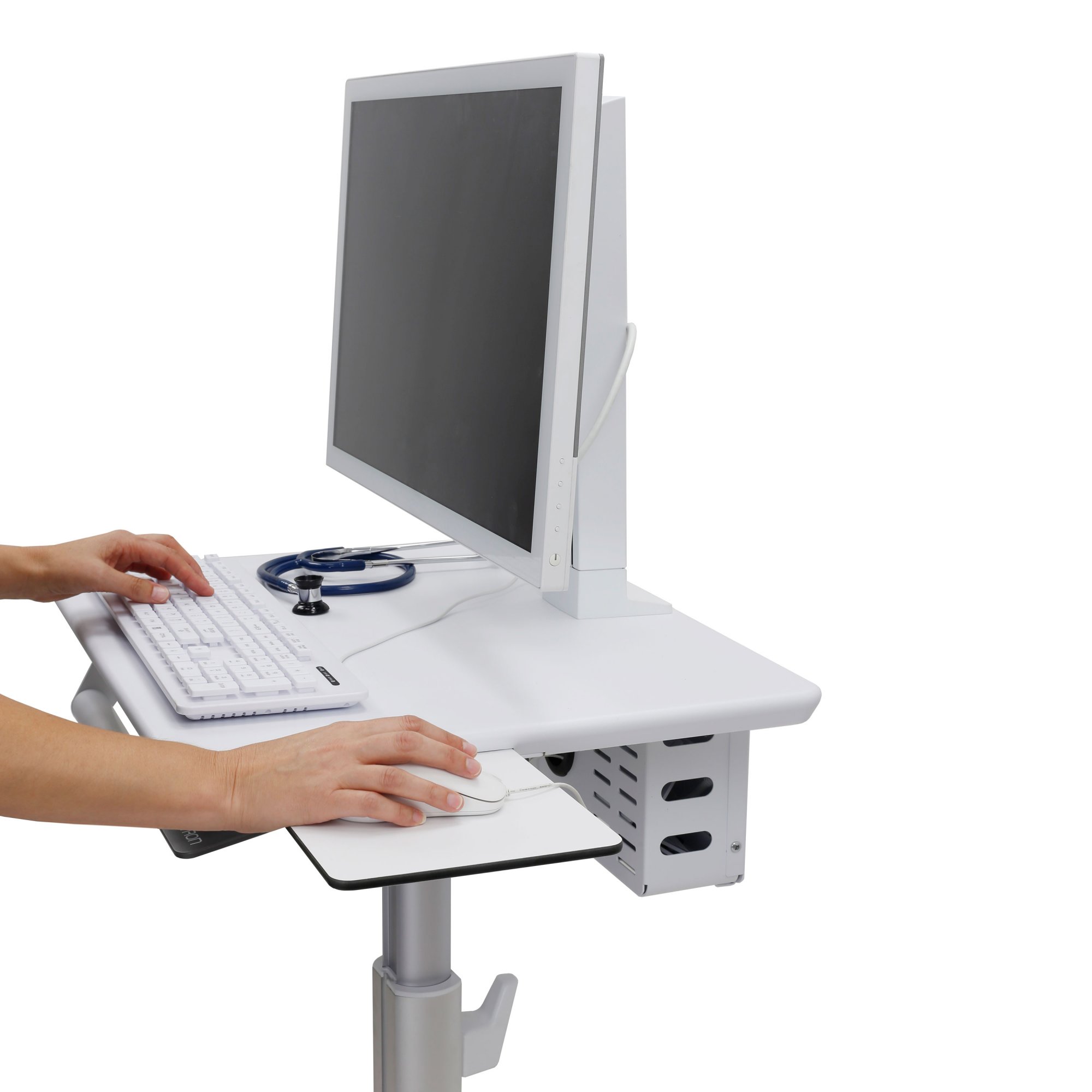

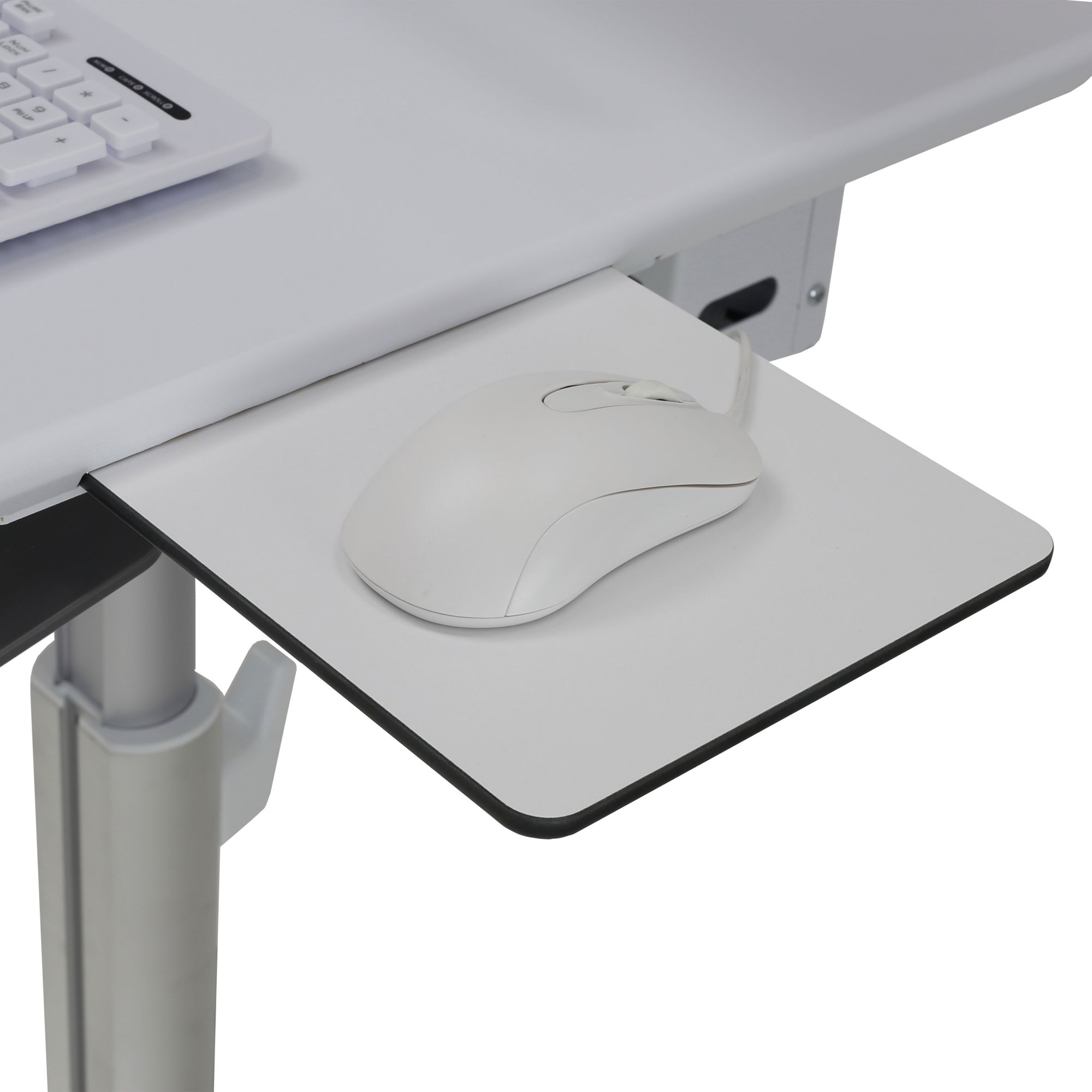

  • Offers a retractable mouse shelf that easily pulls out on the left or right and then stows away under the worksurface when not in use

  • Keeps the comfortable, rounded handle tucked under the worksurface so it's easily accessible yet out of the way

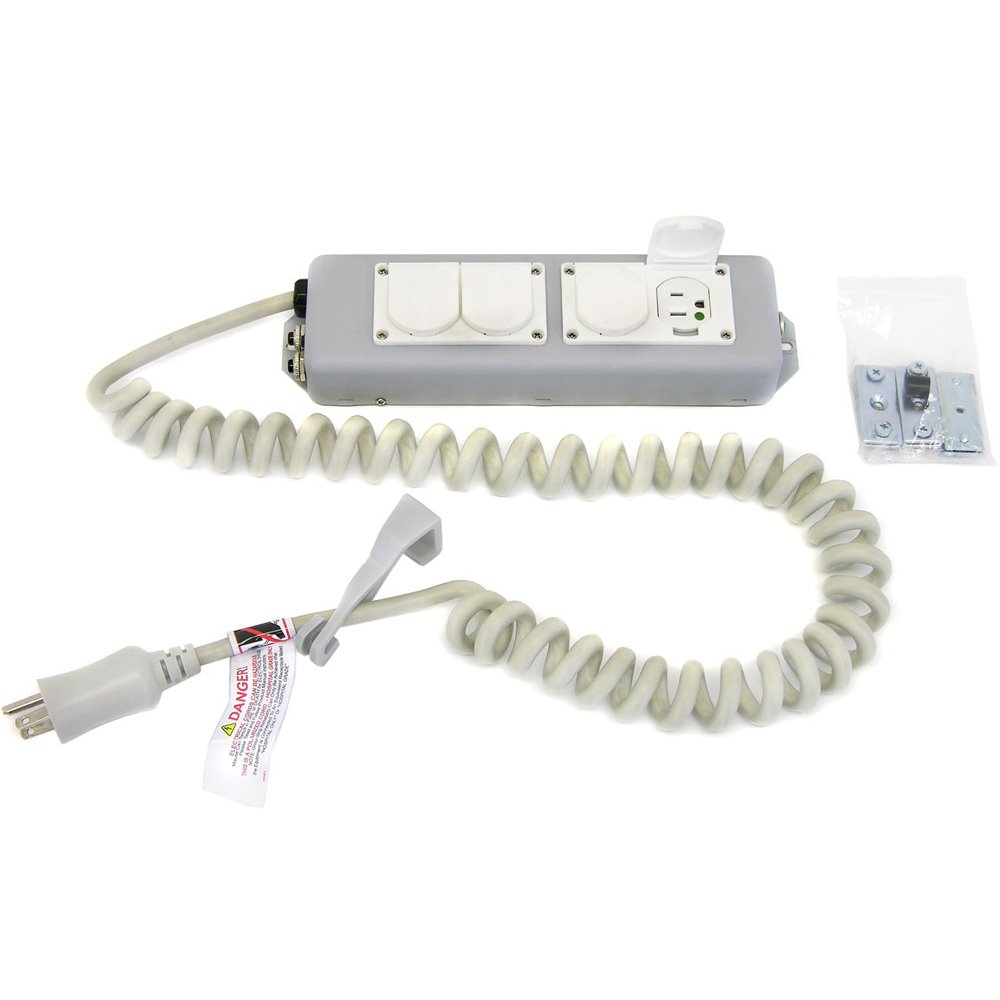

  • Add an optional Power System to turn Lean WOW into a powered cart! Check the Accessories section for all the options

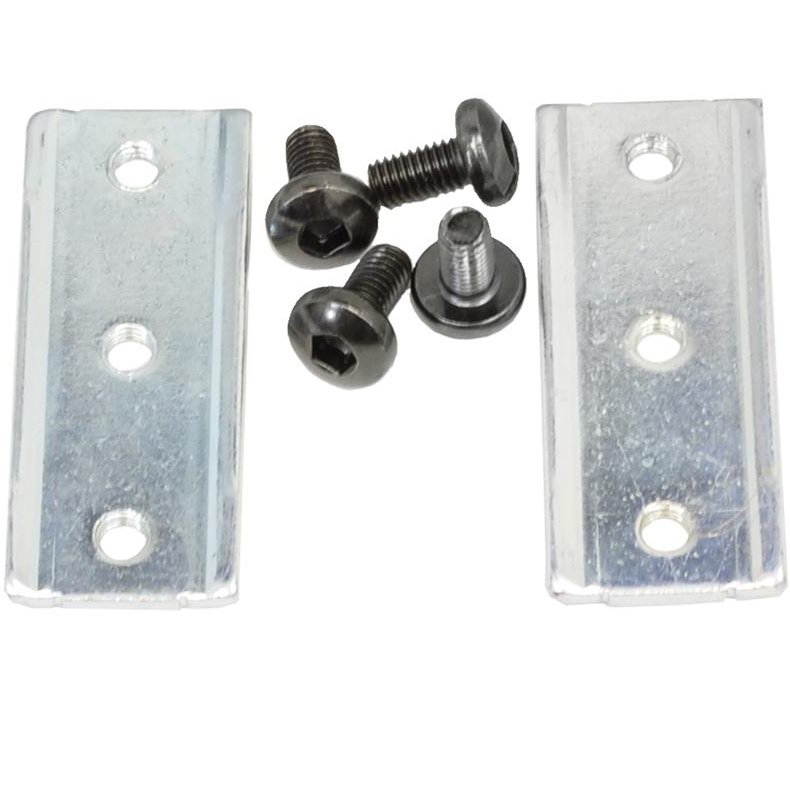

  • Creates a personalized set-up with a t-slot channel interface on the cart's column that allows you to integrate your favorite accessories

  • Comes with a storage/cable hook installed beneath the cable cubby

Model SV10-1300-0
Manufacturer Ergotron
Part Number SV10-1300-0
Color White and aluminum
Monitor Size Up to 24"
Weight Capacity 6-16 lbs (2.7-7.3 kg)
Lift (40.6 cm) 16 in
Tilt 30 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Height Minimum = 30.25" (76.8 cm) and maximum = 46.25" (117.5 cm)
Worksurface Dimensions 23" x 20" (58.4 x 50.8 cm)
Footprint Dimensions: 24" x 22" (61 x 56 cm)
Cart Weight 58 lbs (26.3 kg)
Shipping Dimensions 30.5" x 33.6" x 55.6" (77.5 x 85.3 x 141.2 cm)
Shipping Weight 99 lbs (44.9 kg)
Warranty Seven (7) years on cart, Five (5) years on riser
Mounting Options Cart
Product Type LCD Monitor
Power Type Non-powered
Cart Type Light Duty Medical Cart
Display Type Single Monitor Cart
Lift Technology Gas Spring
