$495.00

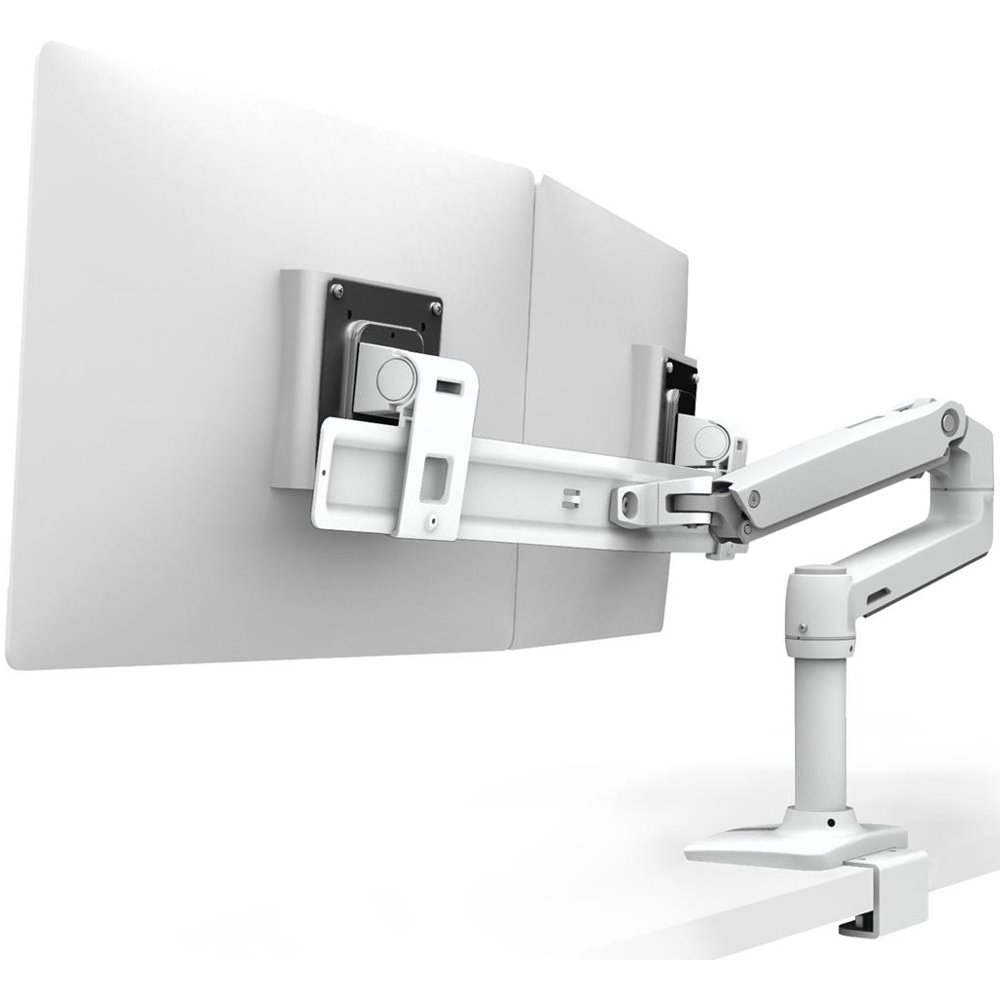

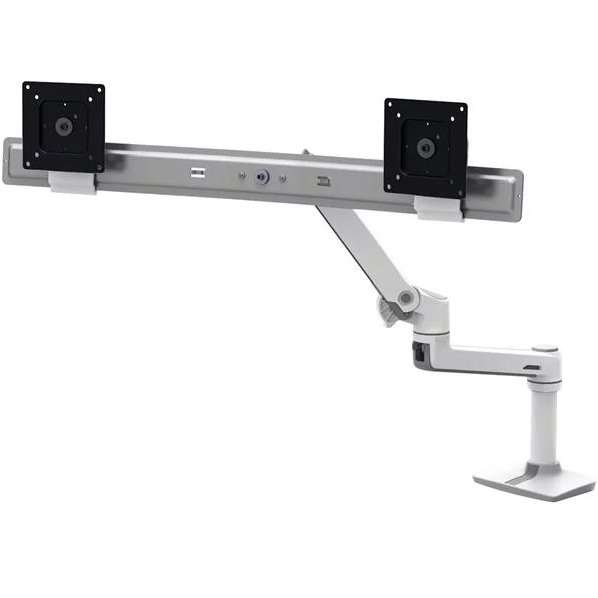

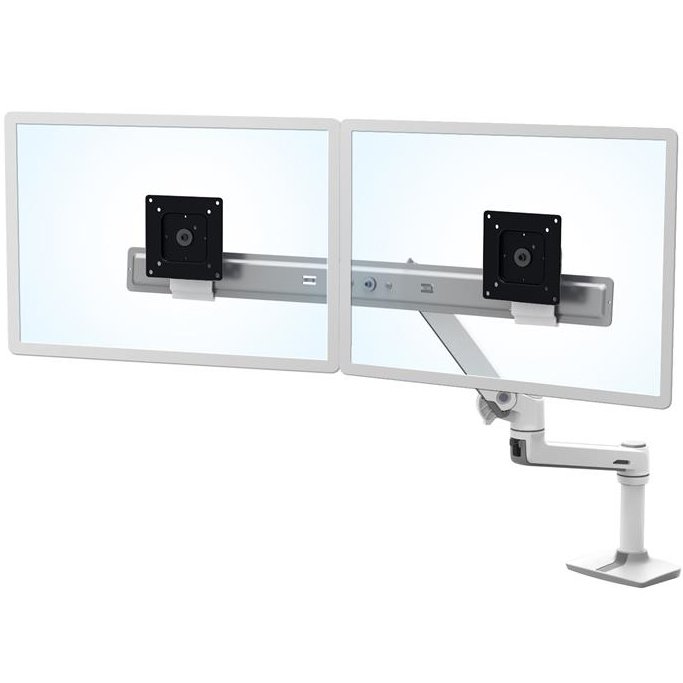

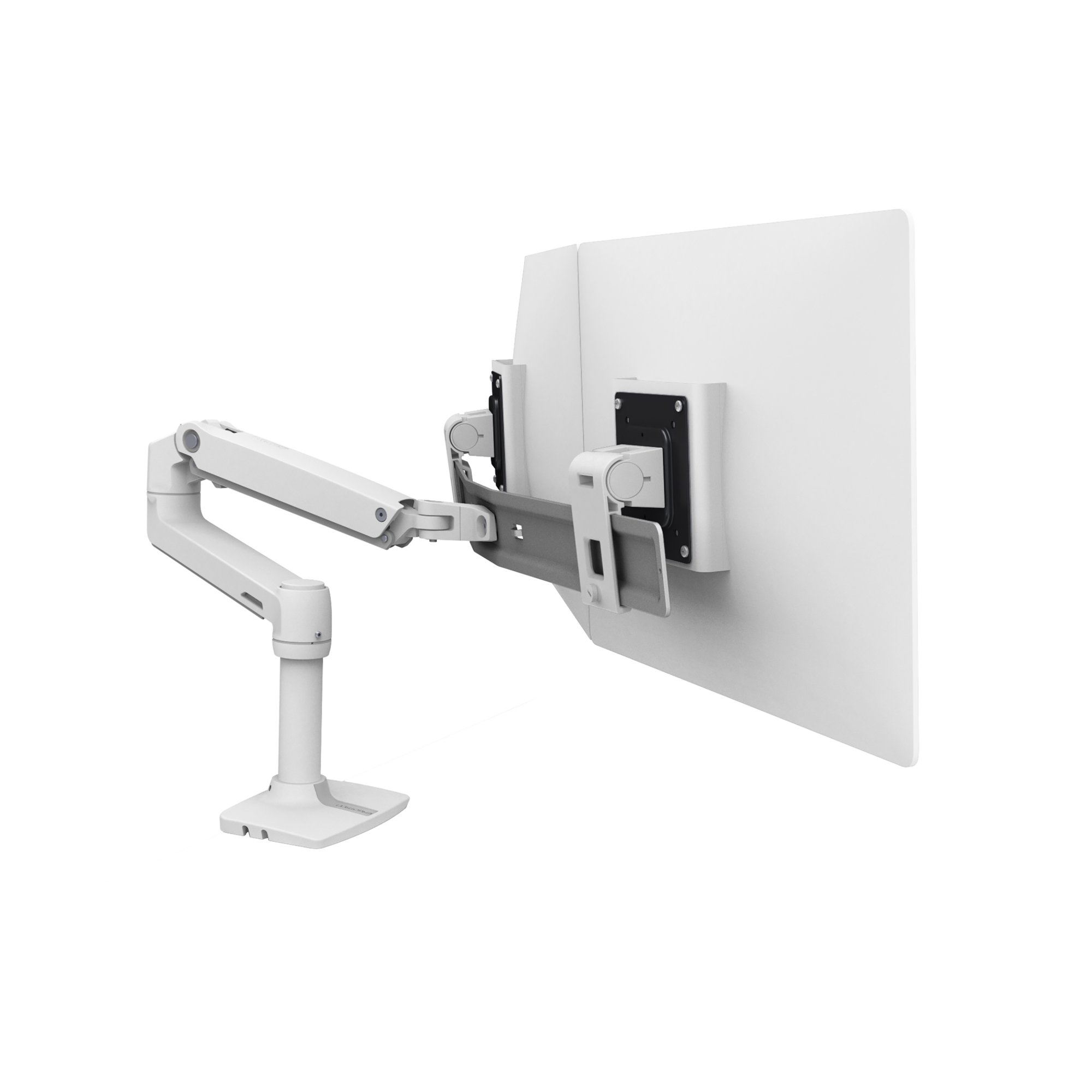

Ergotron 45-522-216 LX Desk Dual Direct Arm with Under Mount C-Clamp

Product ID 18997

Description

Create a fully adjustable side-by-side monitor configuration that lifts both LCD screens simultaneously to where they’re easier to see while reclaiming valuable desktop space. Ergotron 45-522-216 model includes an under mount c-clamp, which features a cleaner look and requires less space for attachment under the edge of the desk’s surface.

Reposition your LCDs with just a touch. Up. Down. Forward. Back. The low–profile crossbow allows monitors to move simultaneously with ease. Monitors pivot up and down independently providing a compact range of motion and optimal monitor alignment

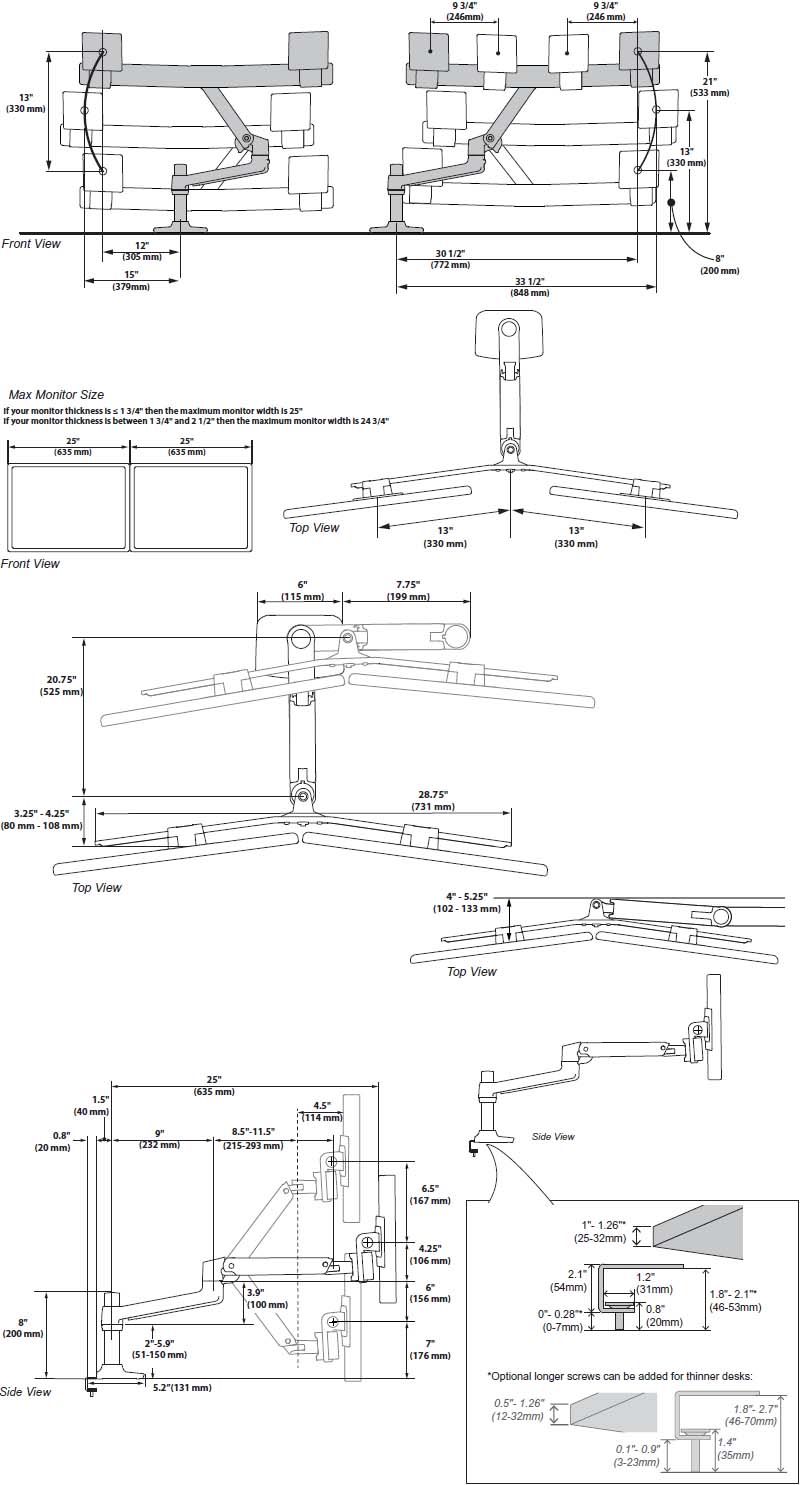

Technical Drawing

Technical Drawing for Ergotron 45-522-216 LX Desk Dual Direct Arm with Under Mount C-Clamp

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 25"

2 - 11 lbs

0.9 - 5.0 kg

13"

33.0 cm

30° 360° 360° MIS-D

Product Information

Part Number 45-522-216 (white)
Description LX Desk Dual Direct Arm with Under Mount C-Clamp
Includes
  • Arm

  • Extension

  • Dual bow

  • (2) monitor pivots

  • Under mount c-clamp

  • Monitor attachment hardware

Cable Management Streamline cable management that routes cables under arm and within extension
Portrait/Landscape Rotation Portrait/landscape rotation with lockout
Handle Handle for Dual Direct Arm available as an accessory (98–037–062)
Under Mount C-Clamp Benefits
  • One piece formed structural steel

  • Set back 0.8" (2 cm) to allow panel dividers to nest behind arm base

  • Clamp attaches to surface edge 0.5" to 1.26" (1.2–3.2 cm) thick

  • Made for tight installations: C-Clamp protrudes only 0.8" (2 cm) or 1.4" (3.5 cm) for desks thinner than 1" (2.5 cm) - from bottom of worksurface

  • Installation requires 1.2" (3 cm) from edge of desktop to back wall in order to slide clamp on from rear; alternatively, clamp can slide on from the side if open

Mounting Standards VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity Maximum individual LCD weight = 2–11 lbs (0.9–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)
Tilt Range 15° backward, 15° forward
Extended Reach Up to 24.3" (61.7 cm)
Vertical Height Adjustment 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Monitor Size Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness
Product Weight 9.0 lbs (4.1 kg)
Shipping Dimensions 32.9" x 12.8" x 6.9" (83.6 x 32.5 x 17.5 cm)
Shipping Weight 13.6 lbs (6.2 kg)
Warranty Ten (10) years

Benefits

  • C-clamp mount presents a cleaner look when viewing the desk from the back and requires less space to attach underneath the desk edge, so it doesn’t interfere with cable management or structural supports

  • Increases viewing comfort: Helps reduce eye, back and neck strain

  • The low-profile monitor cross-bar provides a compact range of motion

  • Easily move two monitors simultaneously

  • Each monitor has individual tilt

  • Position LCD screens for maximum ergonomic comfort - promotes wellness in any work area

  • Free up your desktop to increase your workspace

  • Easy to use - simple installation and effortless operation

  • Patented CF motion technology provides premium ease-of-use display adjustment

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Easy installation

  • Sturdy, one-piece formed structural steel constuction

Model 45-522-216
Manufacturer Ergotron
Part Number 45-522-216
UPC 698833062793
Color White
Monitor Size Up to 25"
Weight Capacity 2–11 lbs (0.9–5.0 kg)
Lift (33.0 cm) 13 in
Tilt 30 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Extension Up to 24.3" (61.7 cm)
Weight 9.0 lbs (4.1 kg)
Shipping Dimensions 32.9" x 12.8" x 6.9" (83.6 x 32.5 x 17.5 cm)
Shipping Weight 13.6 lbs (6.2 kg)
Warranty Ten (10) years
Maximum Monitor Size 25"
Monitor Placement Side-by-Side
