Ergotron SV42-7202-1 SV Electric Lift Cart with LCD Arm, LiFe Powered

SV42-7202-1 is non-returnable/non-cancelable.

Product ID 19076
Ergotron SV42-7202-1 SV Electric Lift Cart with LCD Arm, LiFe Powered
Brake

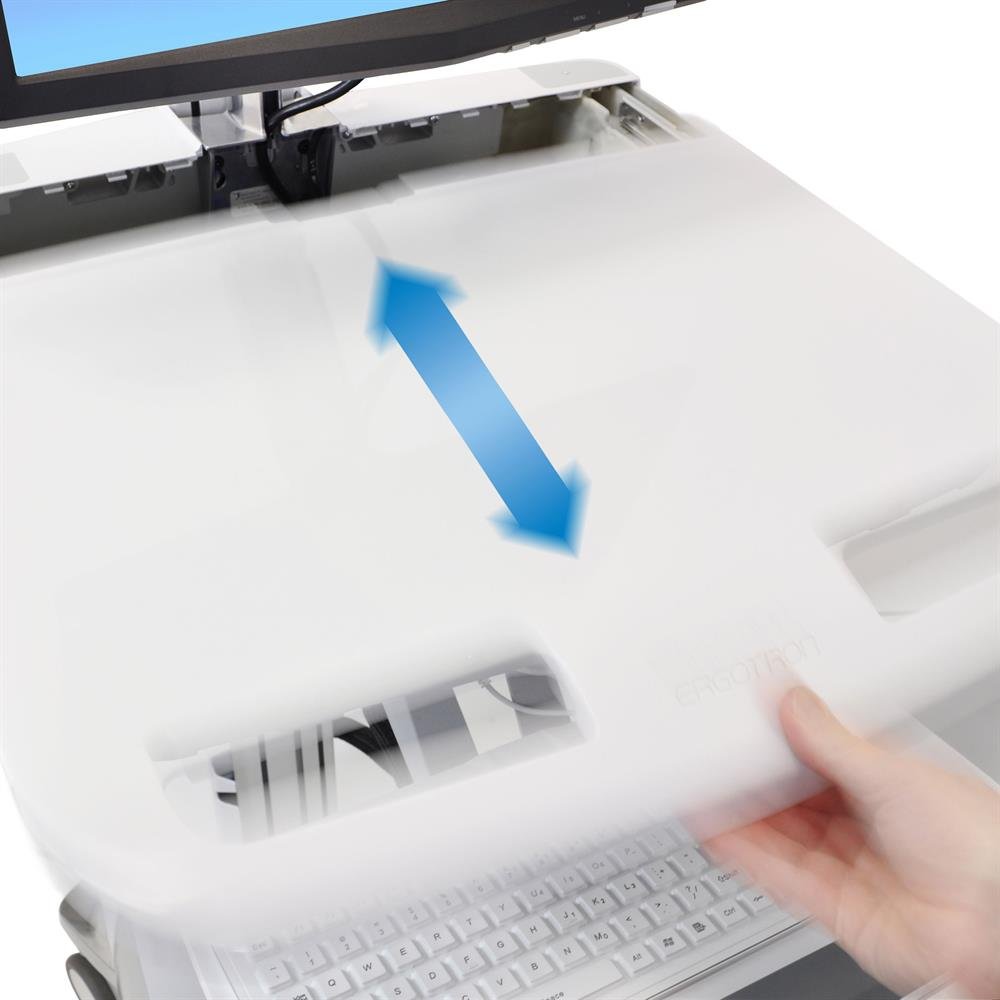

Adjusts the full 20" (51 cm) range in less than 15 seconds with a simple up and down switch
Documentation Medical Cart
Inused image
Head slide
Inused image

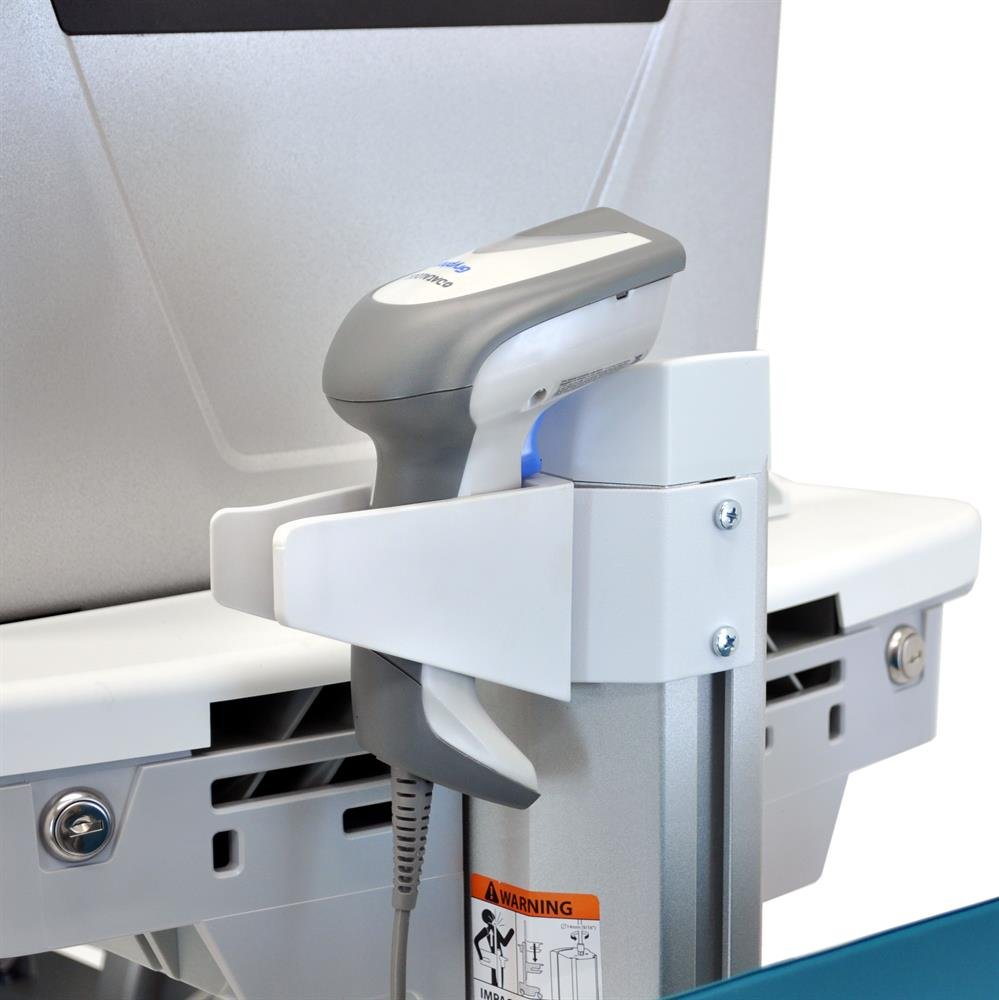

Scanner

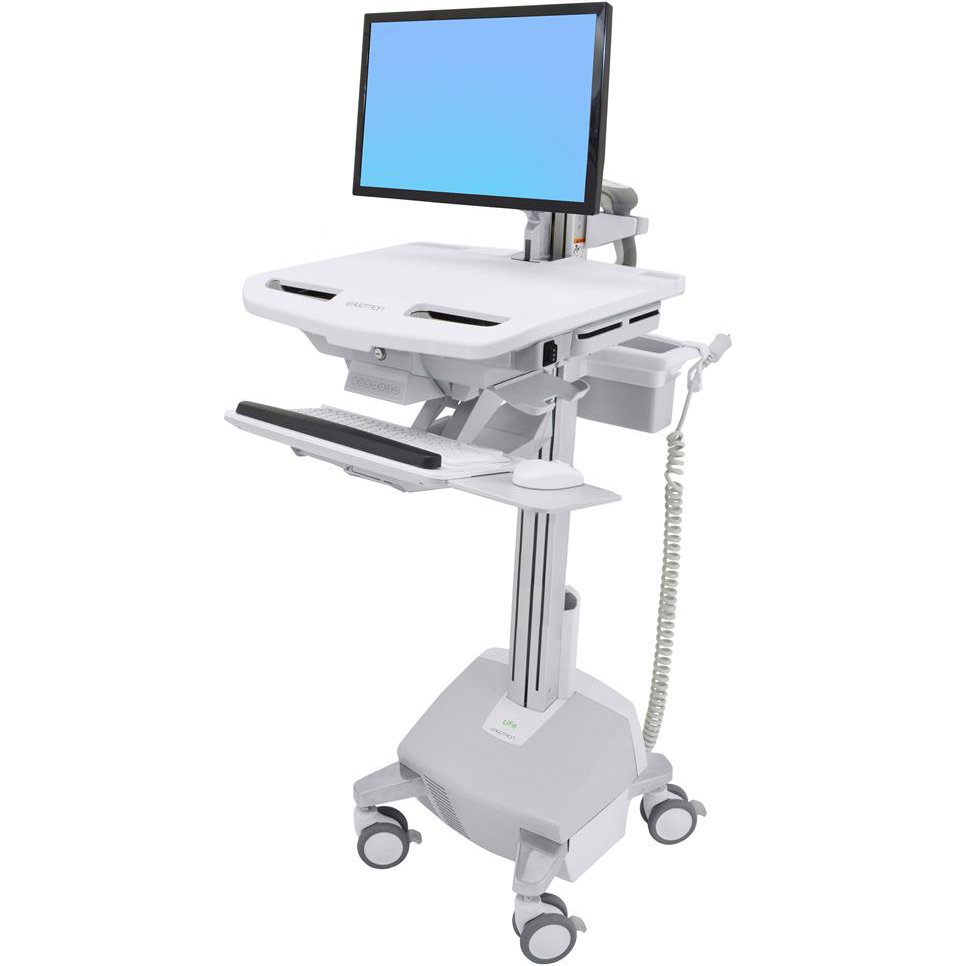

Ergotron SV42-7202-1 SV Electric Lift Cart with LCD Arm, LiFe Powered
Brake
Adjusts the full 20" (51 cm) range in less than 15 seconds with a simple up and down switch
Documentation Medical Cart
Inused image
Head slide
Inused image
Scanner

Description

Ergotron SV42-7202-1 versatile and compact StyleView medical cart with electric lift provides 20 inches (51 cm) of adjustment to simultaneously move the worksurface and keyboard to match changing workflows. Designed for any caregiver, the electric lift removes user effort and supports multiple drawers and heavier loads. At the push of a button, caregivers can go from sitting to standing for a comfortable, ergonomic fit that adjusts farther and faster than our competitors’ electric carts.

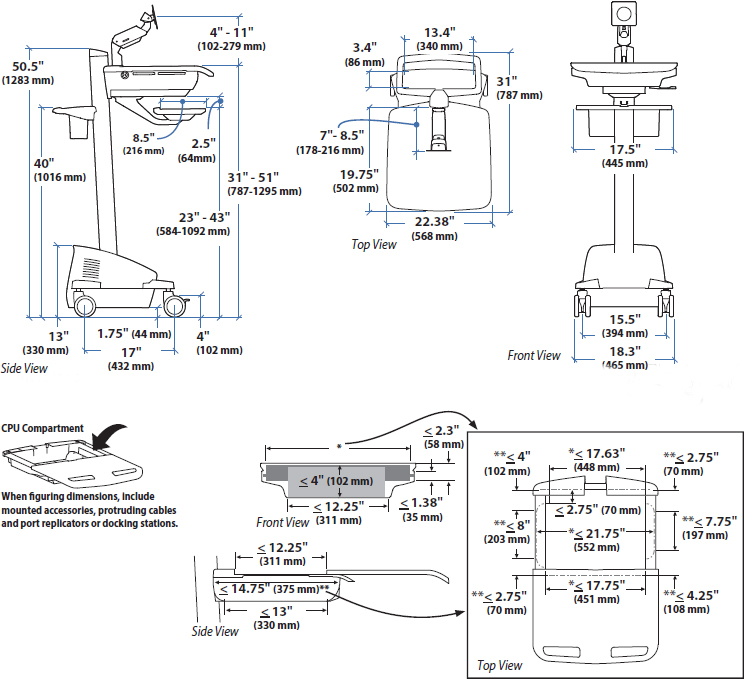

Technical Drawing

Technical Drawing for Ergotron SV42-7202-1 SV Electric Lift Cart with LCD Arm, LiFe Powered

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 31 lbs

14.1 kg

27"

68.6 cm

65° 180° 360° MIS-D

Product Information

Part Number SV42-7202-1
Description StyleView Electric-Lift LCD Cart, LiFe Powered, Arm (no drawers)
TAA (Trade Agreements Act) compliant
Includes
  • LCD arm

  • Worksurface

  • CPU lock

  • Secure CPU compartment

  • Four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Keyboard lights

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (lockable, 1 tracking function)

  • Single-battery 40 Ah LiFe power system

  • 10-foot (3 m) coiled cord

  • Three AC outlets

  • Power system user interface

Total Maximum Load on Height-Adjustment Assembly 31 lbs (14.1 kg). This is the sum of the following components: LCD arm = 5–11 lbs (2.3–5 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 12 lbs (5.5 kg)
Note If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
LCD and Worksurface Adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17 cm) independently; maximum LCD height adjustment = 27" (68 cm)
Monitor Up/Down Tilt +60°/-5°
Portrait Screen Orientation May be incompatible with widescreen displays > 19"
True Ergonomics
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

  • Electric lift reduces the user force to zero for effortless adjustment between sitting and standing

  • Actual cart weight is 97 lbs (44.1 kg), making system relocation easy

  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • For patient and caregiver safety the entire power system as well as the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90. Also complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large smooth worksurface; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • CPU lock provided inside the storage compartment for additional security

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • StyleLink SKY compatible: A cloud-based service that facilitates easy and remote management of your cart fleet

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

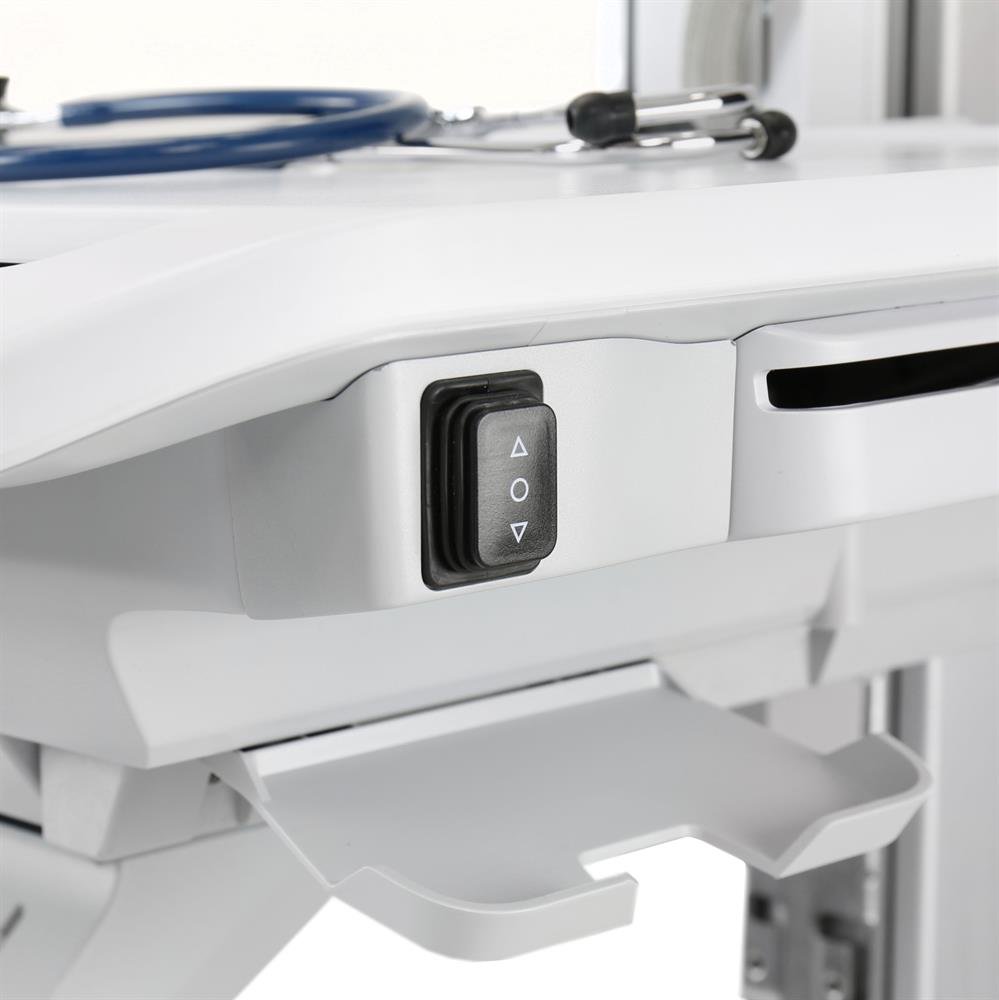

  • Button for LED lights is located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Three-receptacle power strip located in the CPU storage compartment

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

  • Four-port USB hub

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability (International LiFe Carts include four locking casters)

Compatibility and Dimensions
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • VAC: 120V/60Hz

  • Grounded Plug: NEMA 5-15P Hospital Grade

  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions 56.5" H x 34" W x 24.5" D (144 x 86 x 62 cm)
Shipping Weight 131 lbs (59.5 kg); actual cart weight = 97 lbs (44.1 kg)
Warranty Five years for cart’s mechanical components; three years on electric lift; two years on power module; five years on LiFe battery, including two-year capacity guarantee. See complete warranty for details

Benefits

  • Electric lift reduces the user force to zero for effortless adjustment between sitting and standing

  • Meets the needs of an expanding demographic of healthcare users by providing accessibility for all - older, shorter or taller caregivers or those with physical limitations

  • Adjusts the full 20" (51 cm) range in less than 15 seconds with a simple up and down switch

  • Allows users to raise or lower the keyboard and display in one simple motion for an easy, ergonomic fit

  • Auto-stop sensor prevents the lift engine from lowering too far

  • Electric lift comes with a three-year warranty

  • LiFe makes the cart extremely lightweight and easy to move

  • Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours

  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing to promote caregiver wellness and productivity

  • Surfaces are treated with antimicrobial for product protection

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

Product Options/Accessories

Model SV42-7202-1
Manufacturer Ergotron
Part Number SV42-7202-1
Monitor Size Up to 24"
Weight Capacity Up to 31 lbs (14.1 kg)
Lift (68.6 cm) 27 in
Tilt 65 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Shipping Dimensions 56.5"H x 34"W x 24.5"D (144 x 86 x 62 cm)
Shipping Weight 131 lbs (59.5 kg)
Cart Weight 97 lbs (44.1 kg)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
VAC 120V/60Hz
Grounded Plug NEMA 5-15P Hospital Grade
Warranty Five years for cart’s mechanical components; three years on electric lift; two years on power module; five years on LiFe battery, including two-year capacity guarantee. See complete warranty for details
Power Type LiFe
Display Type 1 Monitor
Lift Technology Electric
Screen Size 24"-30" in
TAA Compliant Yes
