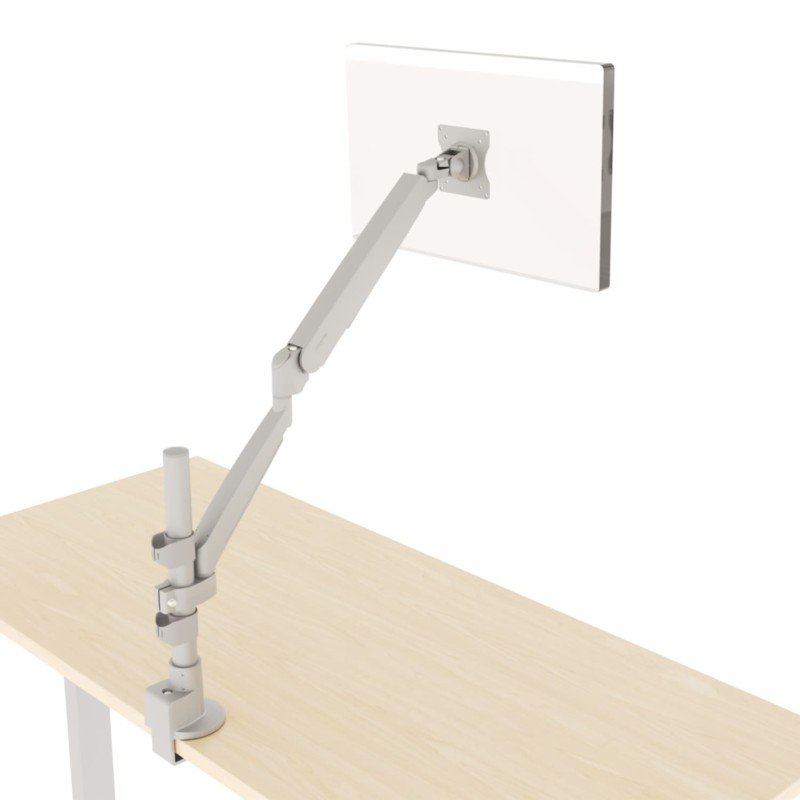

Workrite CONF-STS-WOPB Conform Sit to Stand Monitor Arm
Description
A Sit to Stand Monitor Arm with Enough Reach to Accommodate 100% of
Standing Men and Women
True Sit to Stand arm exceeds ANSI/BIFMA x5.5 recommendations. Mounted

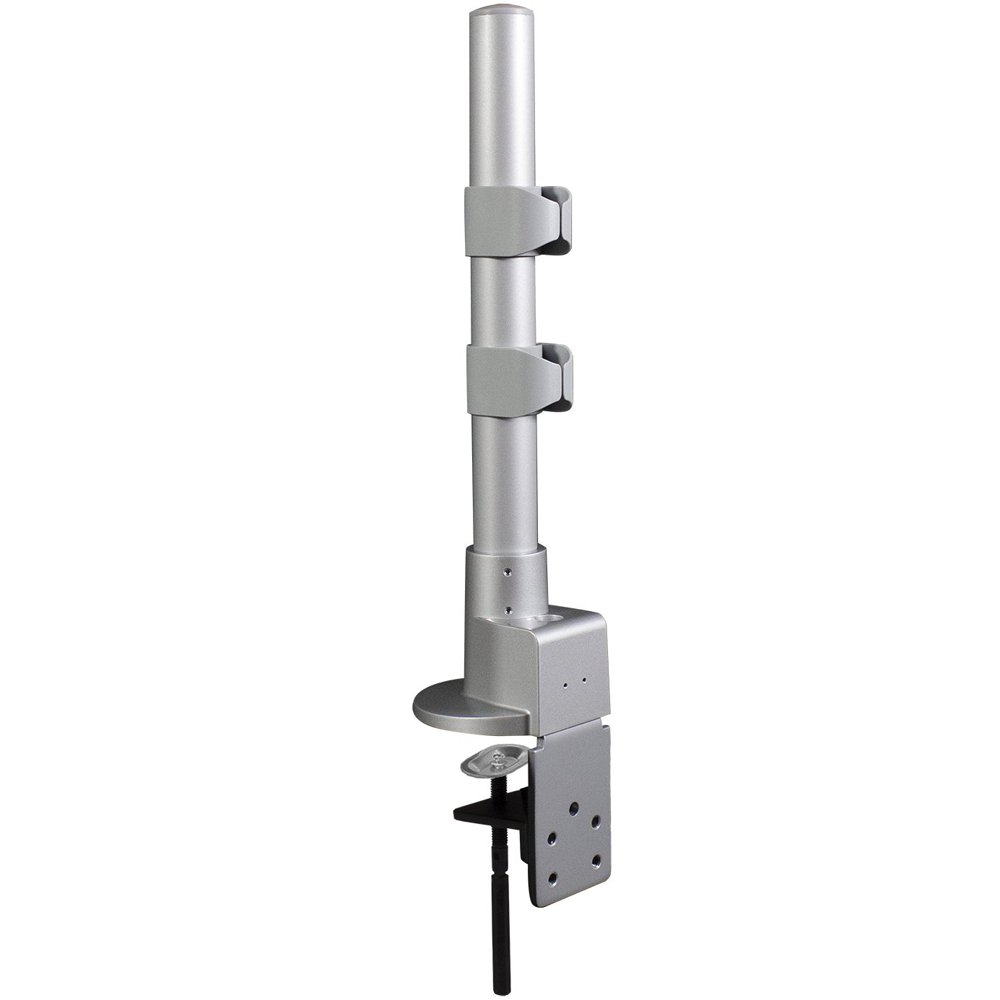

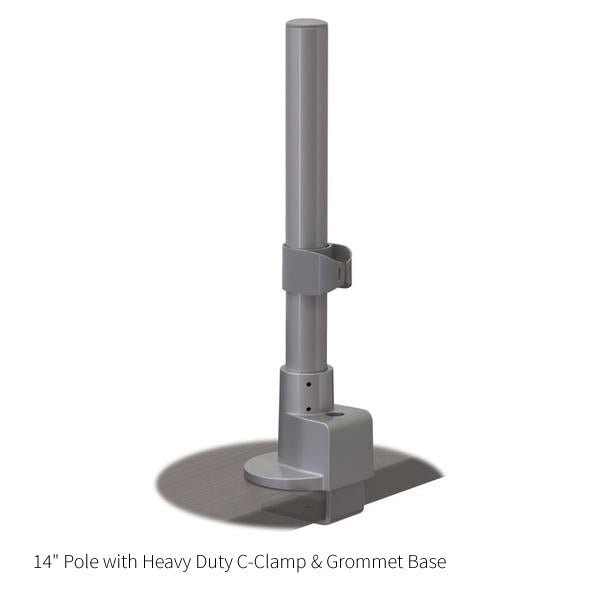

on the heavy duty 14" pole and with 20" height adjustment range, you can
position and adjust the monitor high enough to accommodate 100% of
standing men and women. TAA compliant. As with the entire Conform
series, it’s expandable and future proof due to the pin-pole system.
Technical Drawing
Technical Specifications
| Single Pole Mount | Included |
| Supports | One 5-17 lbs monitor |
| Articulation Range | 20" |
| Forward Reach | 28.4" |
| Monitor |
|
| Mounting Options | Standard VESA (75 mm & 100 mm) |
| Warranty | 10 years |
Benefits
Multiplies applications, with its longer forward reach and height adjustment
Smooth lifting, maintenance-free gas spring (supports 5-17 lbs)
Expandable, interchangeable components for future adaptability
Fast, easy installation
Easily route and conceal cables through the integrated wire managers
Product Options/Accessories
| Model | CONF-STS-WOPB |
| Manufacturer | Workrite Ergonomics |
| Part Number | CONF-STS-WOPB |
| Weight Capacity | 5-17 lbs monitor |
| Articulation Range | 20" |
| Forward Reach | 28.4" |
| Tilt | +90 degree/-45 degree |
| Pivot | +/- 90 degree |
| Rotation | +/- 90 degree |
| Mounting Pattern | VESA 75 mm & 100 mm |
| Warranty | 10 years |
| Color | Silver and Black |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 1
by Allison Knowles, Grain Valley, Missouri, Feb 23, 2022
This is the third arm I have purchased to give me three independent articulated arms to move my monitors at my convenience. I love them. Great quality and the hydraulic pressure can be adjusted to handle different monitor weights within the range of the product. Absolutely would recommend. And the customer service at Ergo was above and beyond. They took the time to talk with me about what I was looking for, gathered data on my monitors, height of sit down/stand up desk, made a few suggestions and help me find the perfect product.
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
