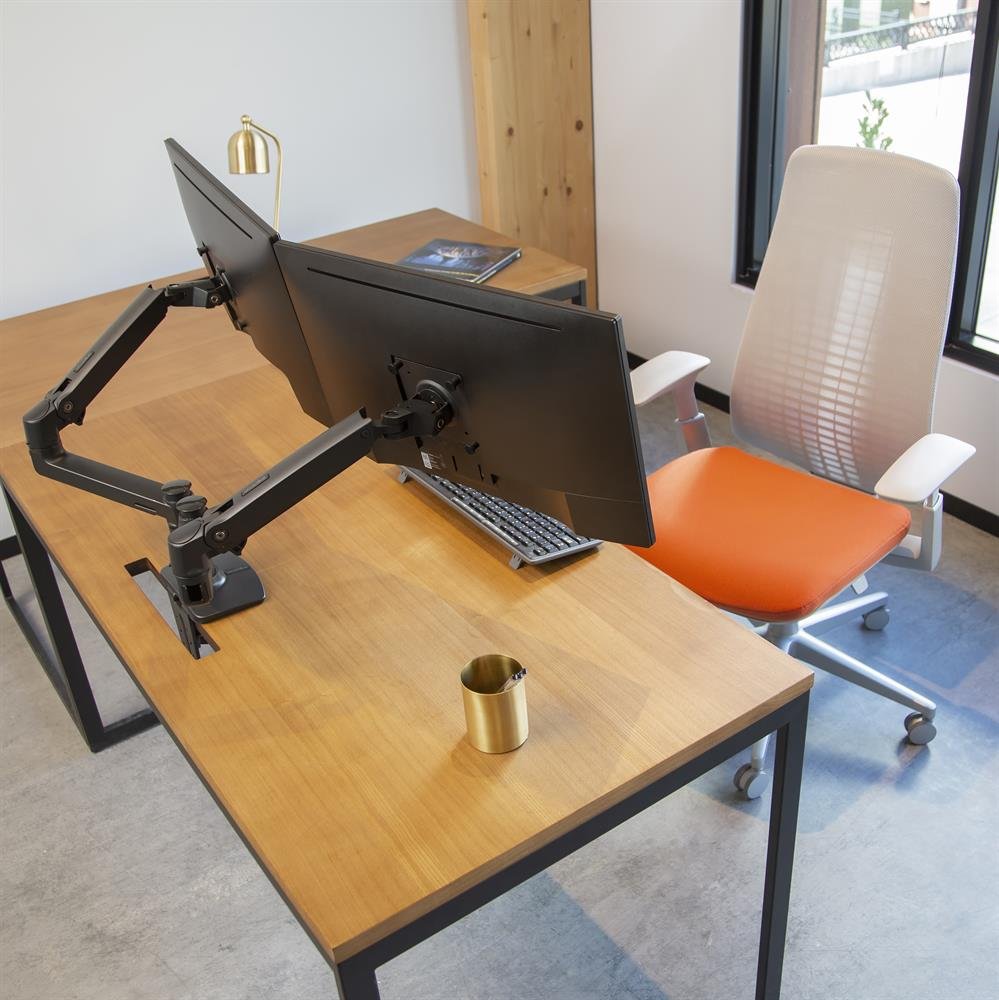

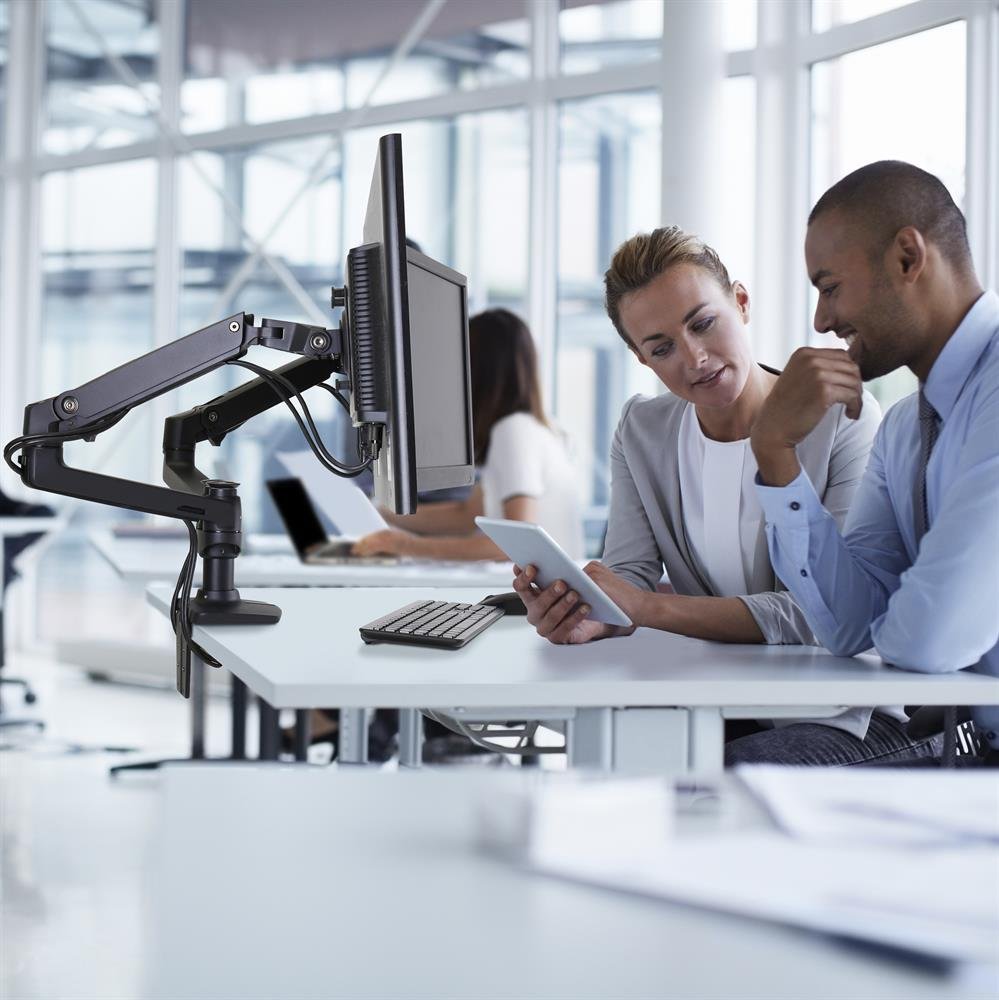

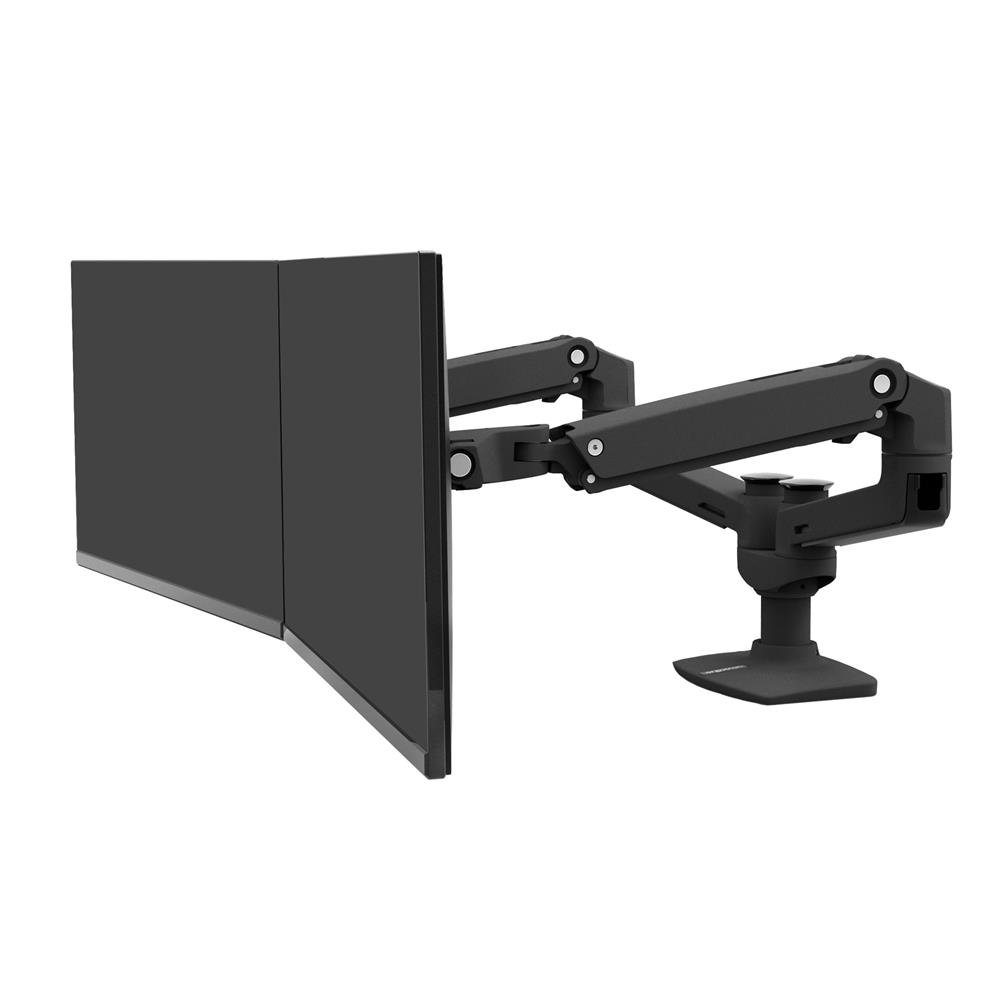

Find your best view, save desk space and discover your most productive self, thanks to Ergotron 45-245-224 LX Dual Side-by-Side Arm. This dual monitor mount is perfect for side-by-side or low angle views. Project wrapped up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.
|Up to 27"||
|Part Number||45-245-224 (matte black)|
|Description||LX Dual Monitor Arm, Side-by-Side|
|Notebook Tray||Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)|
|Quality Tested||10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment|
|Improved LX Arm Features & Benefits||
|Larger Displays||Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side|
|Weight Capacity||Individual monitor weight = 7–20 lbs (3.2–9.1 kg); maximum combined weight = 40 lbs (18.1 kg)|
|Mounting Standards||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Desk Clamp||Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick|
|Certified||This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)|
|Product Weight||13.9 lbs (6.3 kg)|
19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
|Shipping Weight||17.3 lbs (7.9 kg)|
|Warranty||Ten (10) years|
Extra flexibility- Designed for side-by-side or low-angle screen views
Full extension - Extends screens out up to 25" (64 cm)
More workspace - Free up your desktop for office essentials
Dual purpose - Holds two screens up to 27" in size
Sleek build - Streamlined look enhances your work area
Quality design - Built for years of use by passing our 10,000-cycle motion test
Product Options/AccessoriesErgotron 50-193-200 Laptop Tray $70.00 $58.25 60-589-060 Quick Release Bracket $50.00 $32.00 80-105-064 Universal CPU Holder $85.00 $59.35 97-582-009 Neo-Flex Underdesk Keyboard Arm $325.00 $179.00 97-711 Six Outlet Power Strip $135.00 $102.14 Ergotron 80-107-200 Thin Client Mount ( Black) $130.00 $69.00 Ergotron 97-845 Tall-User Kit for WorkFit Single Display $30.00 $27.01 Ergotron 45-460-026 Lockable Tablet Mount $185.00 $129.01 Ergotron 98-017 LX Arm Grommet Mount, WorkFit-T/TL $25.00 $24.12
|Monitor Size||Up to 27"|
|Weight Capacity||14-40 lbs (6.4-18.1 kg)|
|Lift||(33.0 cm) 13 in|
|Mounting Pattern||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Mounting Options||Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick|
|Weight||13.9 lbs (6.3 kg)|
|Shipping Dimensions||19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)|
|Shipping Weight||17.3 lbs (7.9 kg)|
|Warranty||Ten (10) years|
