Description

Alleviate power anxiety on medical carts with this innovative battery system designed to support multiple workflows, including hot swap or on-cart charging. The three-part system - 98-246 battery, 98-247 smart battery dock and 98-258 optional external four-bay charger - minimizes downtime by monitoring battery run-time with a LCD screen and using the unique magnetic connection feature for an easy swapping process.

Safe and reliable, Lithium Iron Phosphate (LiFe) battery technology supports about twice as many cycles as Lithium Ion batteries and up to six times the amount of cycles compared to SLA batteries.

Product Information

UPC 698833069464
Description LiFeKinnex Add-On Power System for Medical Carts (white)
Input Voltage 100–240V (50/60Hz)
Output Voltage 100VAC/120VAC/230VAC (50/60Hz)
Safe Chemistry To minimize safety risks, Lithium Iron (LiFe) chemistry is used; LiFe has lower energy densities and is less reactive compared to Lithium Ion or Lithium Polymer technology
Compatible With CareFit Slim carts, StyleView SV10, SV40, SV41 and SV43 series carts, Neo-Flex carts and WorkFit-C workstations
Technology Patent pending technology
For a "Hot Swap" LiFeKinnex Power System, order the following part numbers:
  • 98-246 LiFeKinnex Battery, 245Wh (≥ 2 per cart)

  • 98-247 LiFeKinnex Smart Battery Dock, US/CA/MX (1 per cart)

  • 98-258 LiFeKinnex 4-Bay Charger, US/CA/MX (1 for ≤ 4 carts)

For an “on-cart” LiFeKinnex Power System, order the following part numbers:
  • 98-246 LiFeKinnex Battery, 245Wh (1 per cart)

  • 98-247 LiFeKinnex Smart Battery Dock, US/CA/MX (1 per cart)

When installing to Neo-Flex carts (24-205-214 or 24-206-214), also order the following part number:
  • 97-818-214 NF Cart Mounting Bracket (1 per cart)

  • This bracket is only required for these Neo-Flex carts

When installing to Neo-Flex carts (24-189-055 or 24-194-055) or the WorkFit-C workstation (24-198-055), also order the following part number:
  • 60-587-207 Interface Bracket Kit (2 per cart)

  • This bracket is only required for these Neo-Flex and WorkFit-C carts


LiFeKinnex Battery 98-246
Lithium Iron Phosphate 245Wh, Lithium Iron Phosphate (LiFePO4)
Lithium Battery Product This lithium battery product ships charged with >30% of its capacity and cannot be delivered by airfreight
Certification & Compliance UN/DOT 38.3, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions 6" x 10.2" x 3.1" (15.4 x 25.9 x 7.9 cm)
Product Weight 6.7 lbs (3 kg)
Shipping Dimensions 13.8" x 7.9" x 6.5" (35.0 x 20.0 x 16.5 cm)
Shipping Weight 9 lbs (4.1 kg)
Warranty 2,000 cycles or three years to 80% nominal capacity

LiFeKinnex Smart Battery Dock, US/CA/MX 98-247
Includes Charger and inverter, cable management cover, cable wrap and ties, mounting hardware, input power cord, output power cord, user-interface screen
Internal Battery Internal battery to maintain continuous power during battery swaps
Includes LCD scale gauge to show remaining battery capacity
Certification & Compliance UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions (module with battery) 6" x 14" x 6.9" (15.3 x 35.6 x 17.4 cm)
Product Weight (module only) 9.9 lbs (4.5 kg)
Shipping Dimensions 16.9" x 9.1" x 10.2" (42.9 x 23.1 x 26 cm)
Shipping Weight 10.9 lbs (5 kg)
Warranty Two years

LiFeKinnex 4-Bay Charger, US/CA/MX 98-258
Includes Four-bay charger, input power cord, wall mounting hardware, deck-mount feet, cable restraint clip
Optional Component Optional component for hot-swap applications (not required for direct on-cart charging)
Installation On-wall or on-desk installation
Charges Charges up to 4 batteries simultaneously
LED LED indicates which battery is ready for use
Certification & Compliance UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions (wall mount) 25" x 12" x 3.7" (63.5 x 30.5 x 9.6 cm)
Product Dimensions (desk mount) 25.7" x 12.7" x 8.5" (65.4 x 32.3 x 21.6 cm)
Product Weight 16.1 lbs (7.3 kg)
Shipping Dimensions 14.4" x 29.5" x 6.7" (36.5 x 75 x 17 cm)
Shipping Weight 19 lbs (8.6 kg)
Warranty Two years

Benefits

  • Designed for multiple workflows - on-cart charging or hot swap - so caregivers can focus less on battery time remaining and more on patient care

  • Flexible architecture helps IT departments maximize fleet investments by adapting to non-powered carts and changing technology

  • LiFe battery technology minimizes safety risks often associated with Lithium Ion or Lithium Polymer batteries

  • Supports more cycles leading to fewer replacements

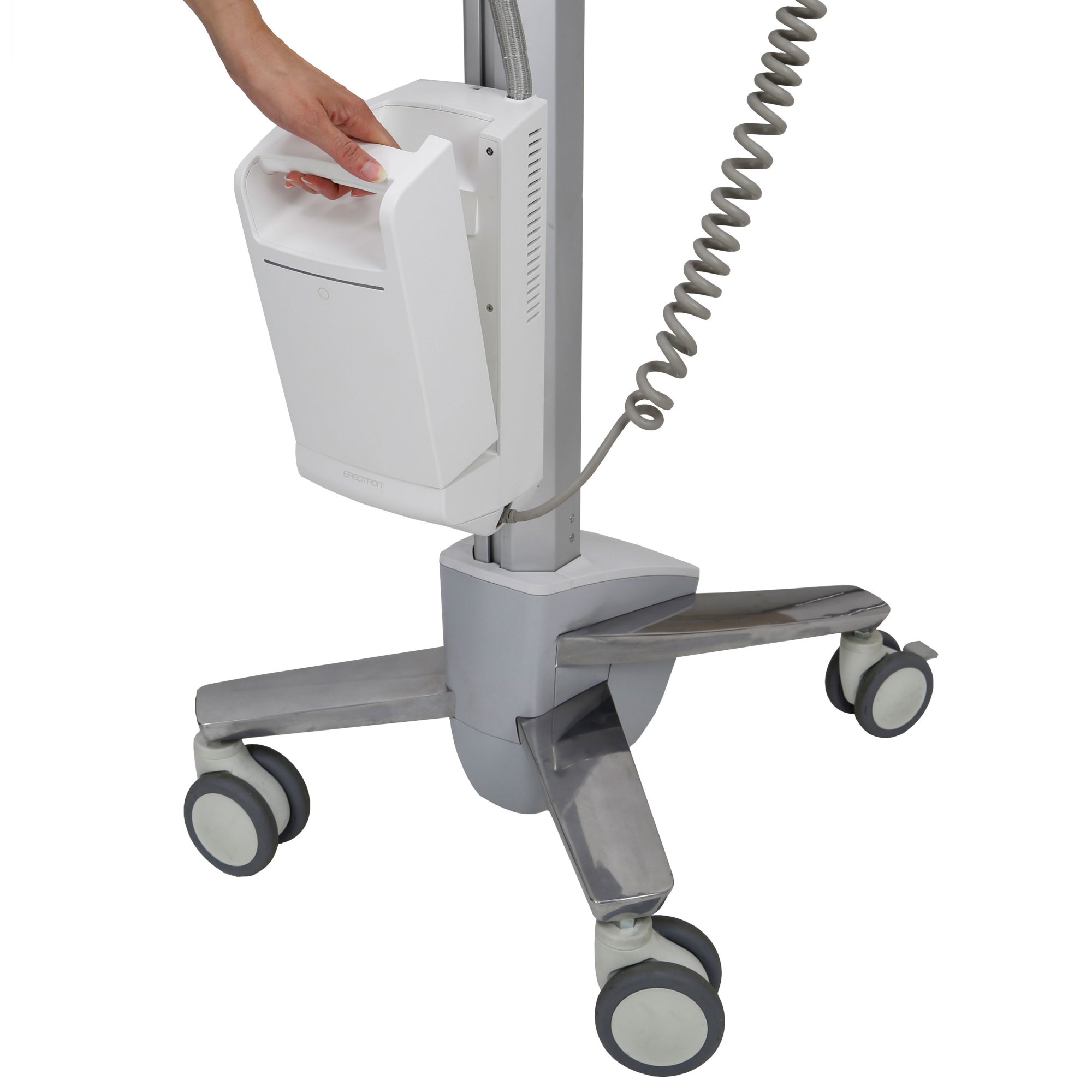

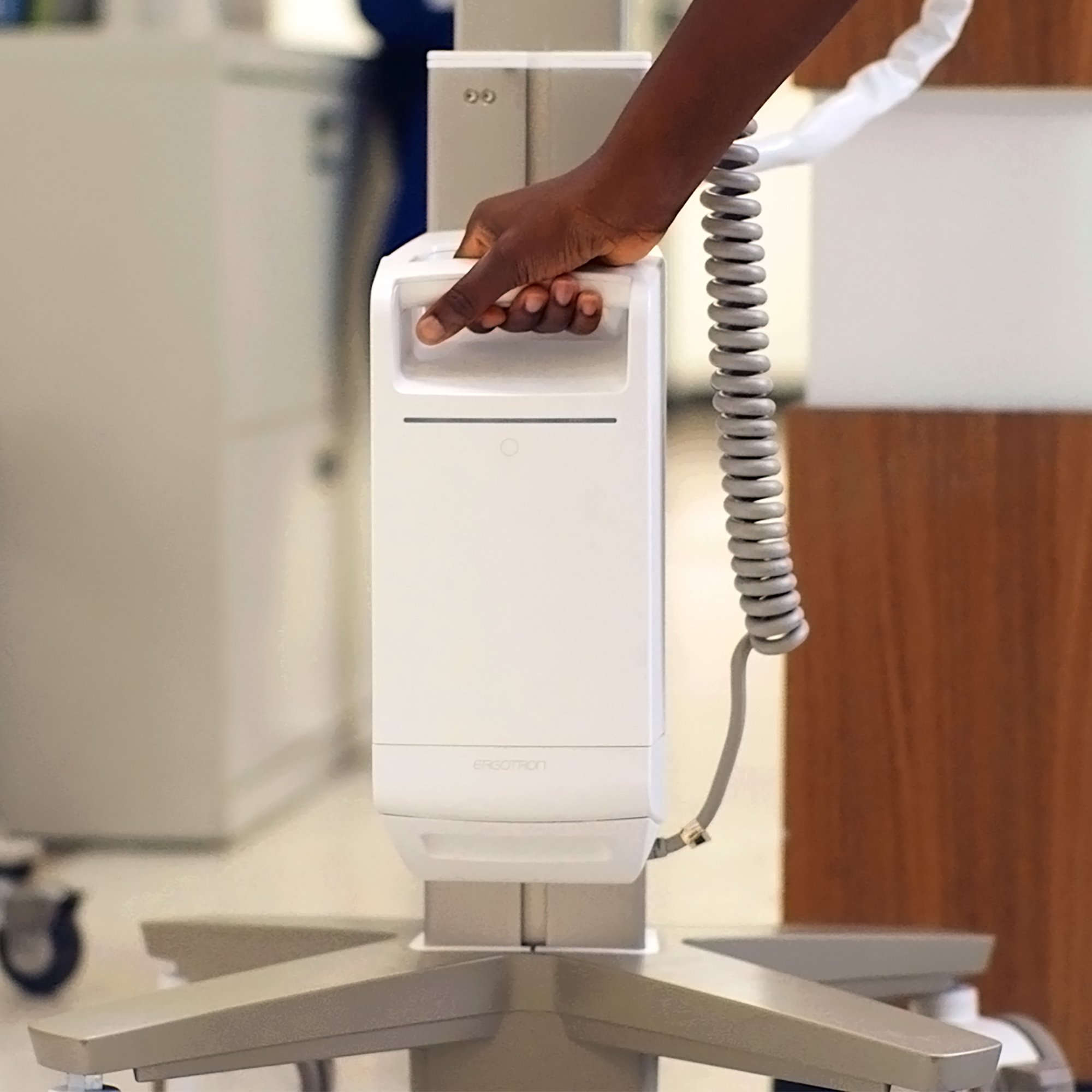

  • Unique magnetic alignment feature creates a quick and easy battery swap

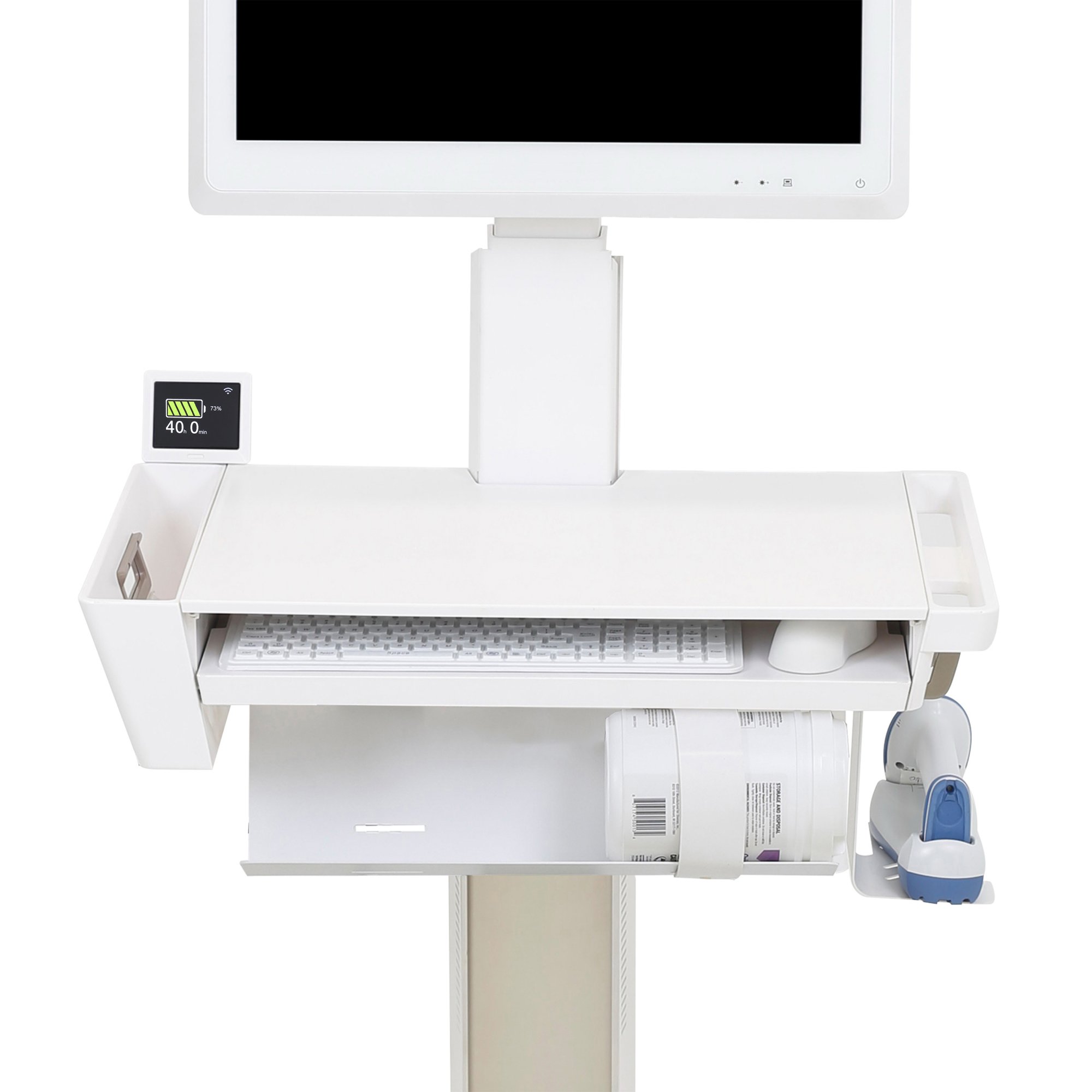

  • User-friendly 3.5" LCD screen displays the remaining run time in hours and minutes

  • Allows you to check the battery charge level without being docked

  • Screen offers flexible mounting options, making it compatible with different carts, equipment and user preferences

  • Enhances existing cart design without adding bulk and creates a streamlined look with built-in cable management and cover

  • Integrates with Ergotron’s cloud-based fleet management software to provide data on battery time remaining, cycle count and more via a comprehensive dashboard

  • Optional compact, four-bay wall/desk charger sits on a desk or mounts on the wall or in a hallway to charge up to four batteries at once in under four hours with a battery light indicating the charge level

  • Compatible with StyleView SV10 and SV4X carts, CareFit Slim medical carts, Neo-Flex carts and WorkFit-C workstations

Model 98-246
Manufacturer Ergotron
Part Number 98-246
Input Voltage 100-240V (50/60Hz)
Output Voltage 100VAC/120VAC/230VAC (50/60Hz)
Dimensions 6" x 10.2" x 3.1" (15.4 x 25.9 x 7.9 cm)
Weight 6.7 lbs (3 kg)
Shipping Dimensions 13.8" x 7.9" x 6.5" (35.0 x 20.0 x 16.5 cm)
Shipping Weight 9 lbs (4.1 kg)
Warranty 2,000 cycles or three years to 80% nominal capacity
Compatible CareFit Slim carts, StyleView SV10, SV40, SV41 and SV43 series carts, Neo-Flex carts and WorkFit-C workstations
