Ergotron 98-247 LiFeKinnex Smart Battery Dock for Medical Carts

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 19400
List Price: $2,500.00
You save $975.00
Our Price: $1,525.00
Shipping: $34.98 *
* applies to Contiguous United States

Description

Alleviate power anxiety on medical carts with this innovative battery system designed to support multiple workflows, including hot swap or on-cart charging. The three-part system - 98-246 battery, 98-247 smart battery dock and 98-258 optional external four-bay charger - minimizes downtime by monitoring battery run-time with a LCD screen and using the unique magnetic connection feature for an easy swapping process.

Safe and reliable, Lithium Iron Phosphate (LiFe) battery technology supports about twice as many cycles as Lithium Ion batteries and up to six times the amount of cycles compared to SLA batteries.

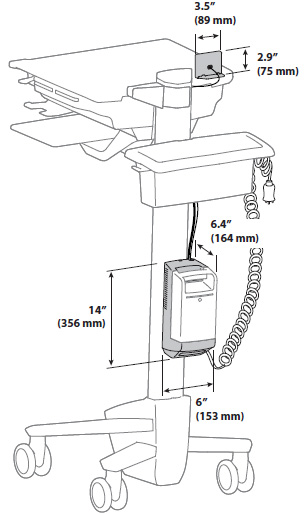

Technical Drawing

Technical Drawing for Ergotron 98-247 LiFeKinnex Smart Battery Dock for Medical Carts

Product Information

UPC 698833069464
Description LiFeKinnex Add-On Power System for Medical Carts (white)
Input Voltage 100–240V (50/60Hz)
Output Voltage 100VAC/120VAC/230VAC (50/60Hz)
Safe Chemistry To minimize safety risks, Lithium Iron (LiFe) chemistry is used; LiFe has lower energy densities and is less reactive compared to Lithium Ion or Lithium Polymer technology
Compatible With CareFit Slim carts, StyleView SV10, SV40, SV41 and SV43 series carts, Neo-Flex carts and WorkFit-C workstations
Technology Patent pending technology
For a "Hot Swap" LiFeKinnex Power System, order the following part numbers:
  • 98-246 LiFeKinnex Battery, 245Wh (≥ 2 per cart)

  • 98-247 LiFeKinnex Smart Battery Dock, US/CA/MX (1 per cart)

  • 98-258 LiFeKinnex 4-Bay Charger, US/CA/MX (1 for ≤ 4 carts)

For an “on-cart” LiFeKinnex Power System, order the following part numbers:
  • 98-246 LiFeKinnex Battery, 245Wh (1 per cart)

  • 98-247 LiFeKinnex Smart Battery Dock, US/CA/MX (1 per cart)

When installing to Neo-Flex carts (24-205-214 or 24-206-214), also order the following part number:
  • 97-818-214 NF Cart Mounting Bracket (1 per cart)

  • This bracket is only required for these Neo-Flex carts

When installing to Neo-Flex carts (24-189-055 or 24-194-055) or the WorkFit-C workstation (24-198-055), also order the following part number:
  • 60-587-207 Interface Bracket Kit (2 per cart)

  • This bracket is only required for these Neo-Flex and WorkFit-C carts


LiFeKinnex Battery 98-246
Lithium Iron Phosphate 245Wh, Lithium Iron Phosphate (LiFePO4)
Lithium Battery Product This lithium battery product ships charged with >30% of its capacity and cannot be delivered by airfreight
Certification & Compliance UN/DOT 38.3, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions 6" x 10.2" x 3.1" (15.4 x 25.9 x 7.9 cm)
Product Weight 6.7 lbs (3 kg)
Shipping Dimensions 13.8" x 7.9" x 6.5" (35.0 x 20.0 x 16.5 cm)
Shipping Weight 9 lbs (4.1 kg)
Warranty 2,000 cycles or three years to 80% nominal capacity

LiFeKinnex Smart Battery Dock, US/CA/MX 98-247

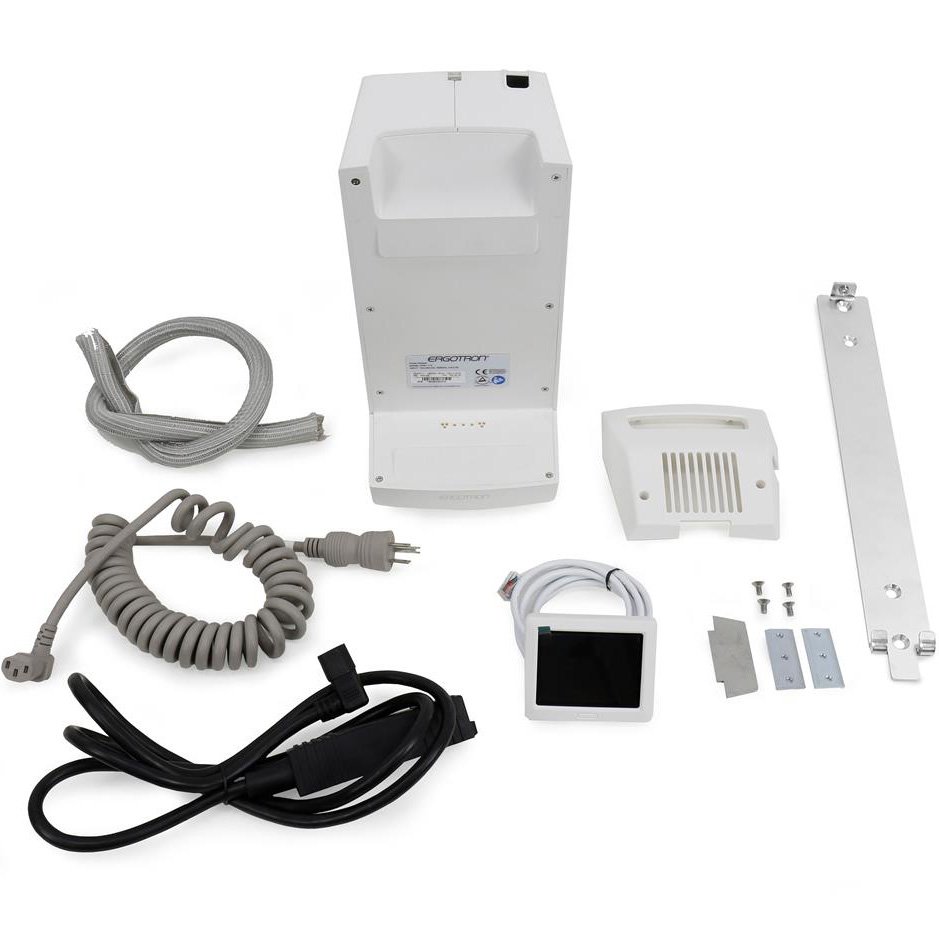

Includes Charger and inverter, cable management cover, cable wrap and ties, mounting hardware, input power cord, output power cord, user-interface screen
Internal Battery Internal battery to maintain continuous power during battery swaps
Includes LCD scale gauge to show remaining battery capacity
Certification & Compliance UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions (module with battery) 6" x 14" x 6.9" (15.3 x 35.6 x 17.4 cm)
Product Weight (module only) 9.9 lbs (4.5 kg)
Shipping Dimensions 16.9" x 9.1" x 10.2" (42.9 x 23.1 x 26 cm)
Shipping Weight 10.9 lbs (5 kg)
Warranty Two years

LiFeKinnex 4-Bay Charger, US/CA/MX 98-258
Includes Four-bay charger, input power cord, wall mounting hardware, deck-mount feet, cable restraint clip
Optional Component Optional component for hot-swap applications (not required for direct on-cart charging)
Installation On-wall or on-desk installation
Charges Charges up to 4 batteries simultaneously
LED LED indicates which battery is ready for use
Certification & Compliance UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS
Product Dimensions (wall mount) 25" x 12" x 3.7" (63.5 x 30.5 x 9.6 cm)
Product Dimensions (desk mount) 25.7" x 12.7" x 8.5" (65.4 x 32.3 x 21.6 cm)
Product Weight 16.1 lbs (7.3 kg)
Shipping Dimensions 14.4" x 29.5" x 6.7" (36.5 x 75 x 17 cm)
Shipping Weight 19 lbs (8.6 kg)
Warranty Two years

Benefits

  • Designed for multiple workflows - on-cart charging or hot swap - so caregivers can focus less on battery time remaining and more on patient care

  • Flexible architecture helps IT departments maximize fleet investments by adapting to non-powered carts and changing technology

  • LiFe battery technology minimizes safety risks often associated with Lithium Ion or Lithium Polymer batteries

  • Supports more cycles leading to fewer replacements

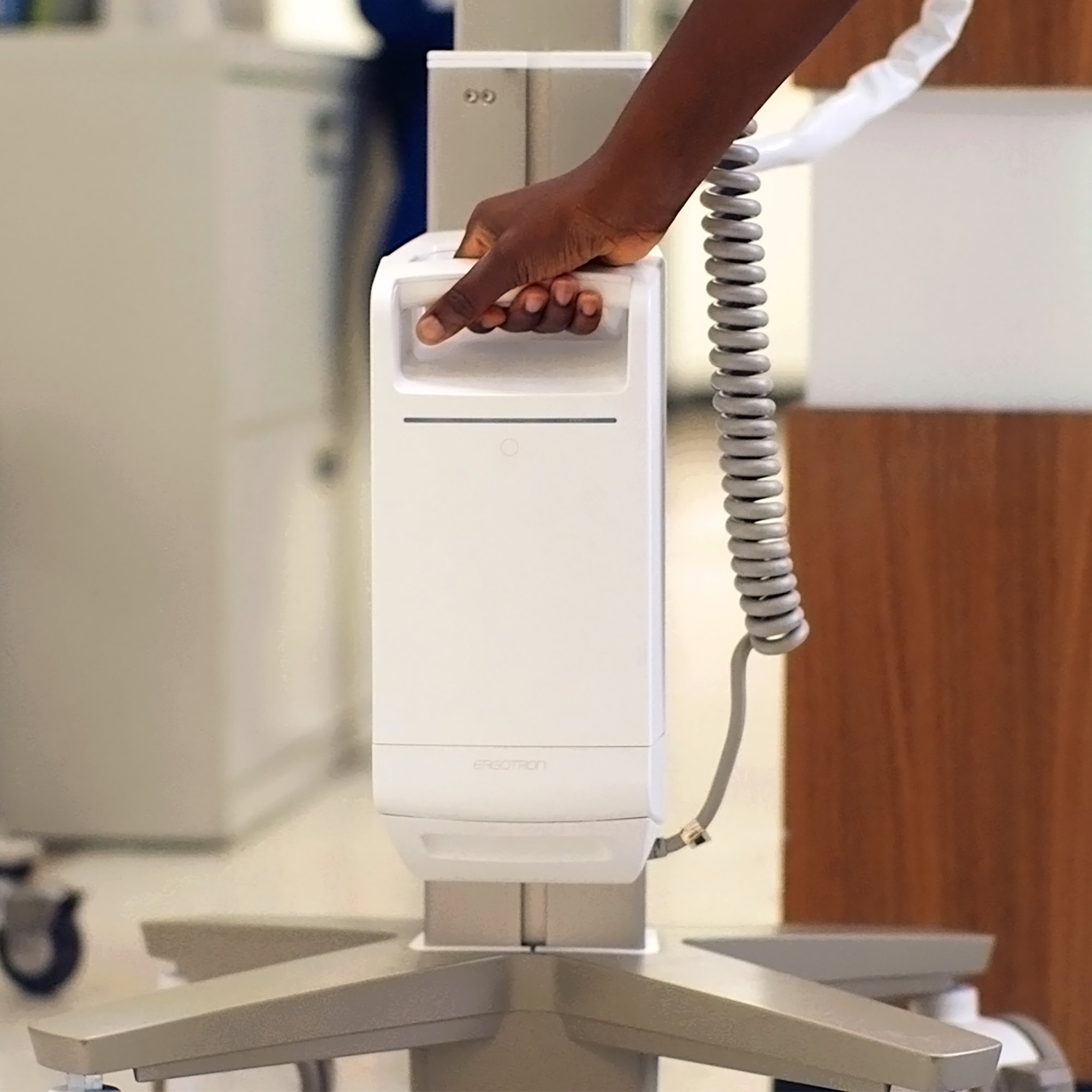

  • Unique magnetic alignment feature creates a quick and easy battery swap

  • User-friendly 3.5" LCD screen displays the remaining run time in hours and minutes

  • Allows you to check the battery charge level without being docked

  • Screen offers flexible mounting options, making it compatible with different carts, equipment and user preferences

  • Enhances existing cart design without adding bulk and creates a streamlined look with built-in cable management and cover

  • Integrates with Ergotron’s cloud-based fleet management software to provide data on battery time remaining, cycle count and more via a comprehensive dashboard

  • Optional compact, four-bay wall/desk charger sits on a desk or mounts on the wall or in a hallway to charge up to four batteries at once in under four hours with a battery light indicating the charge level

  • Compatible with StyleView SV10 and SV4X carts, CareFit Slim medical carts, Neo-Flex carts and WorkFit-C workstations

Model 98-247
Manufacturer Ergotron
Part Number 98-247
Input Voltage 100–240V (50/60Hz)
Output Voltage 100VAC/120VAC/230VAC (50/60Hz)
Compatible CareFit Slim carts, StyleView SV10, SV40, SV41 and SV43 series carts, Neo-Flex carts and WorkFit-C workstations
Dimensions (module with battery): 6" x 14" x 6.9" (15.3 x 35.6 x 17.4 cm)
Weight (module only): 9.9 lbs (4.5 kg)
Shipping Dimensions 16.9" x 9.1" x 10.2" (42.9 x 23.1 x 26 cm)
Shipping Weight 10.9 lbs (5 kg)
Warranty Two years

Be the first to review this product

Ergotron 98-247 LiFeKinnex Smart Battery Dock for Medical Carts

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
