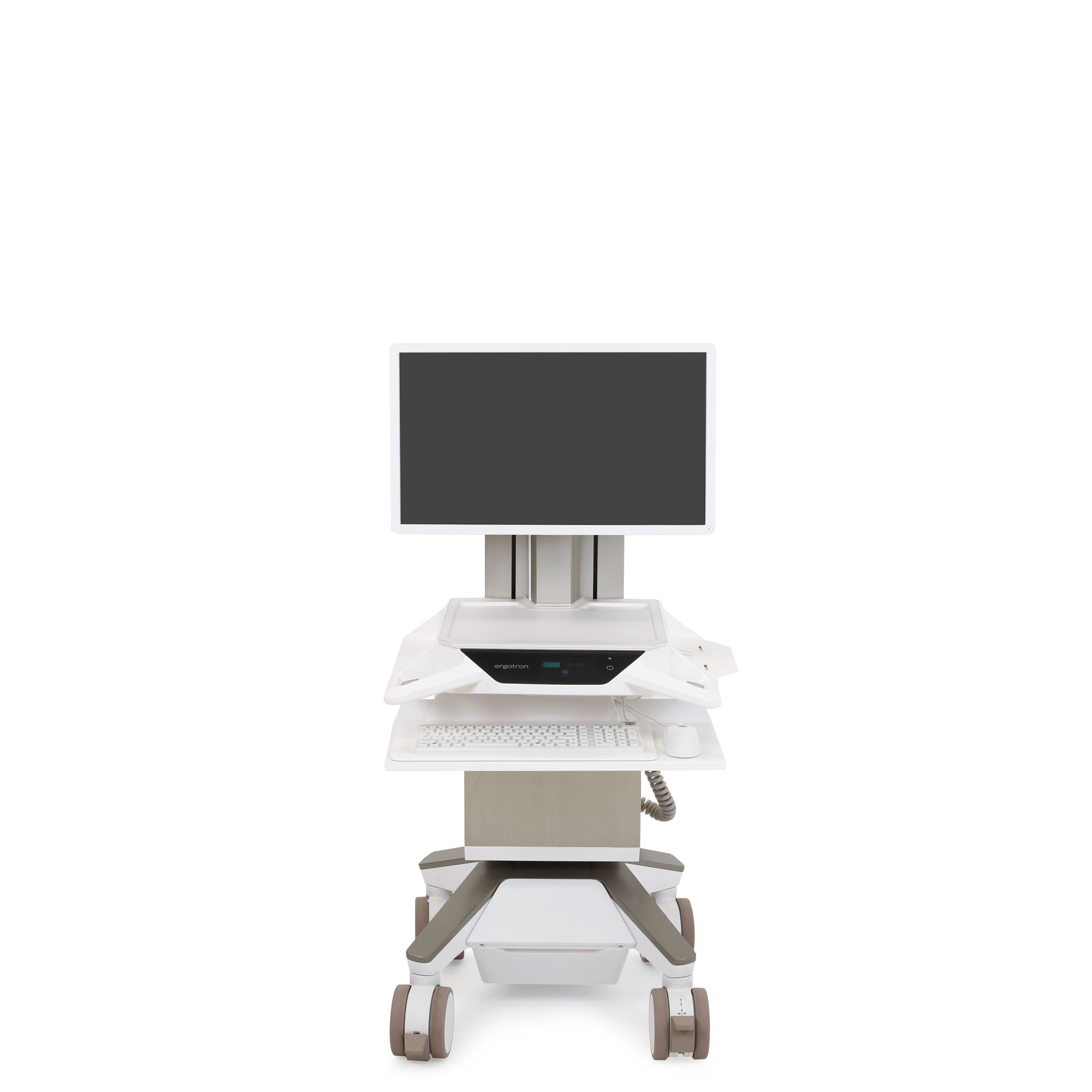

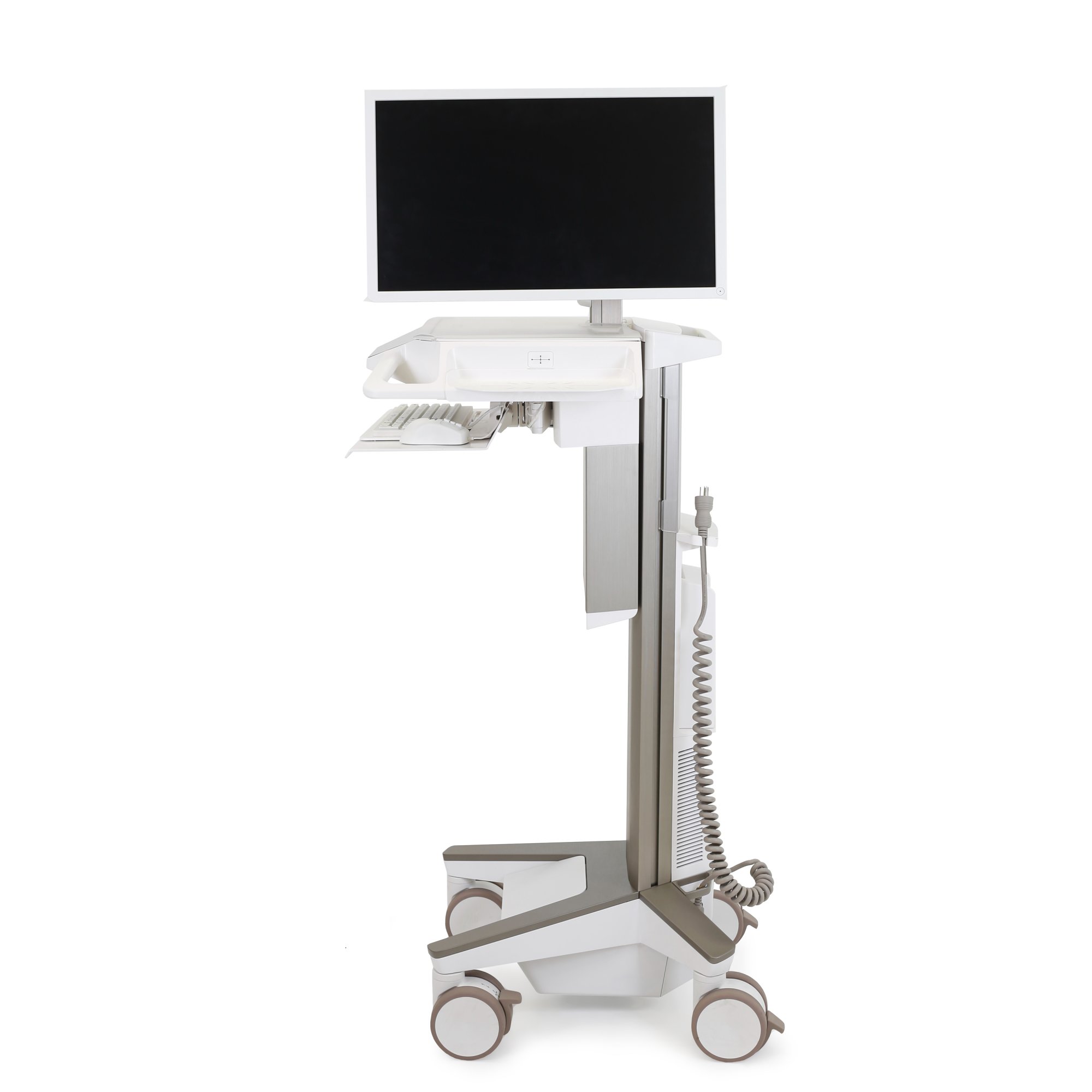

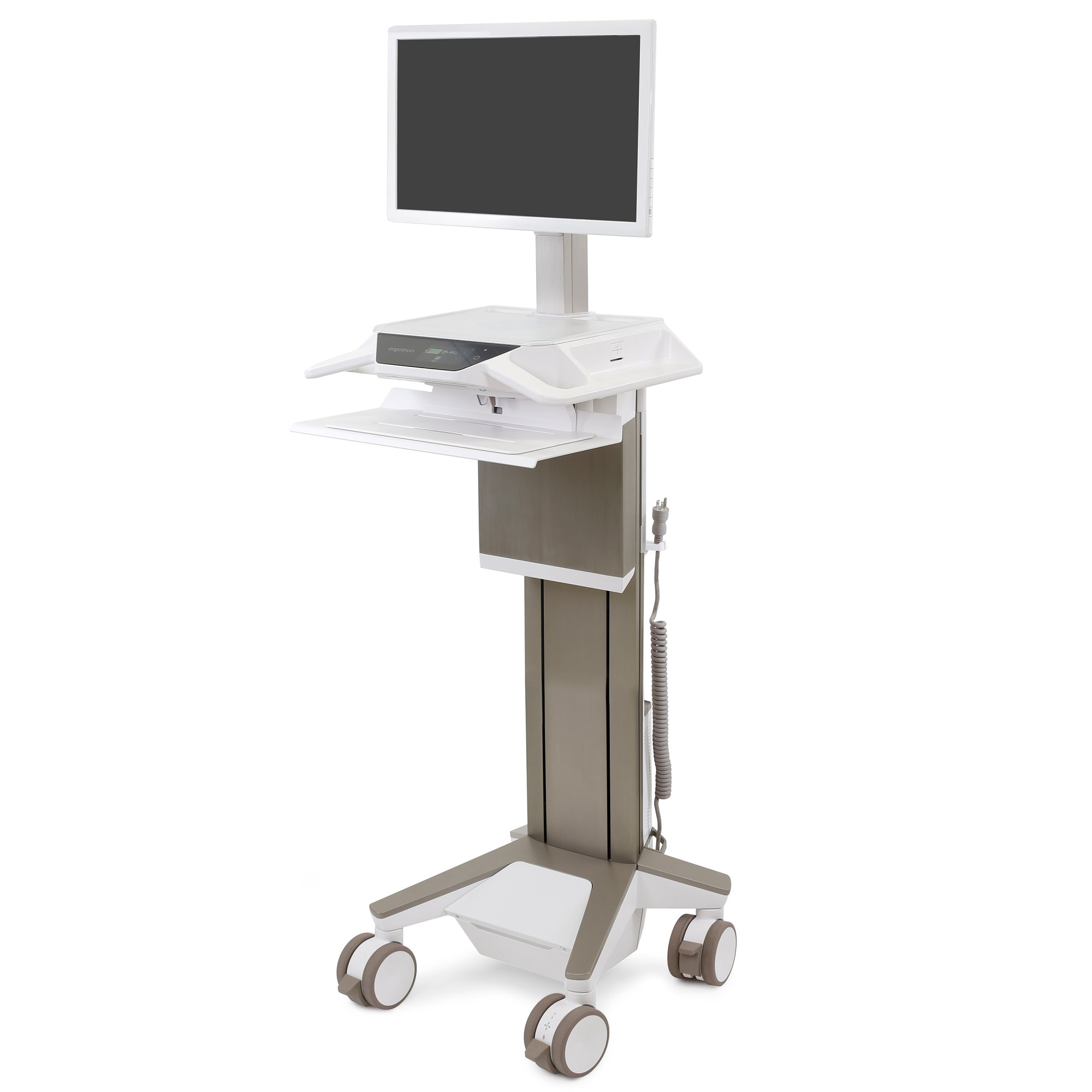

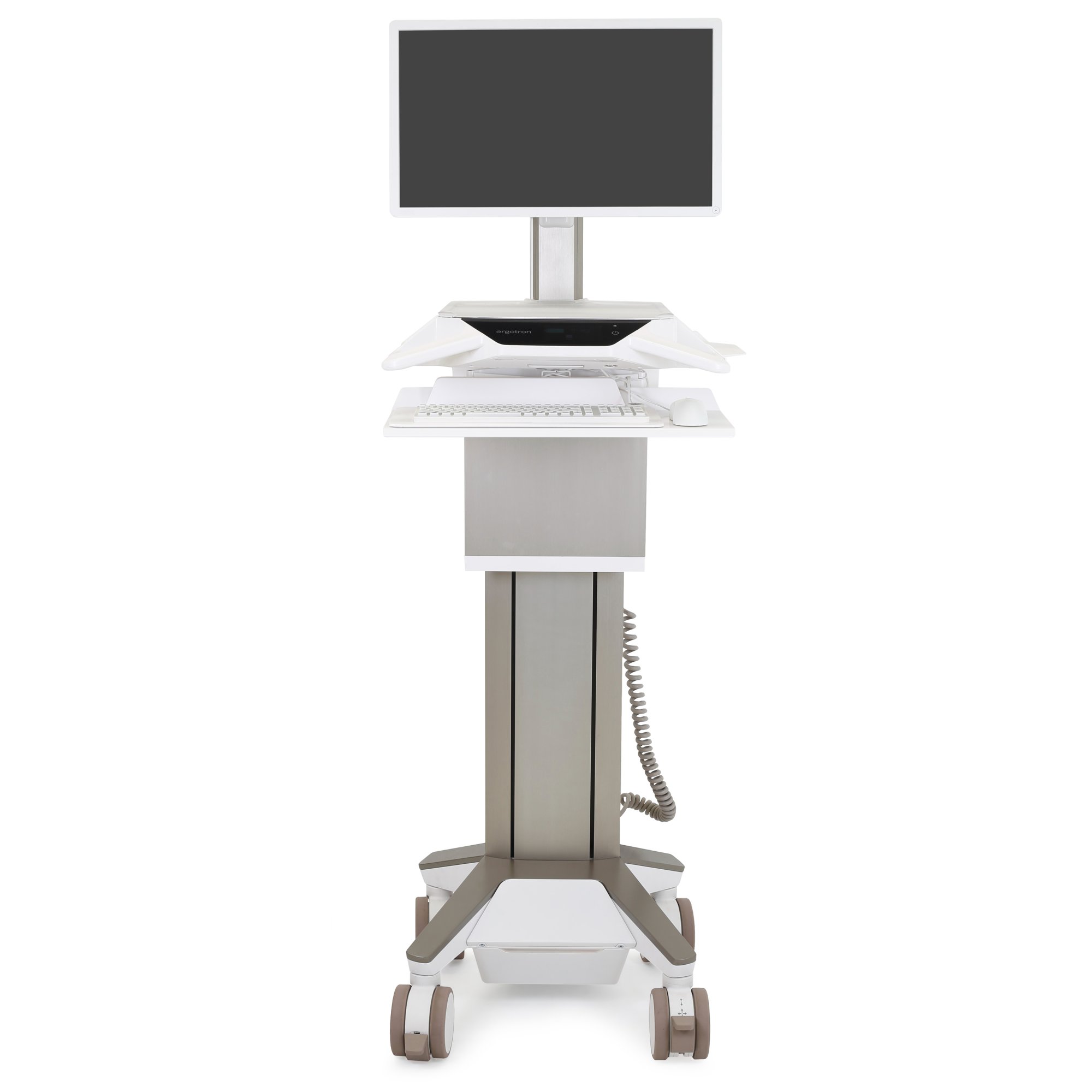

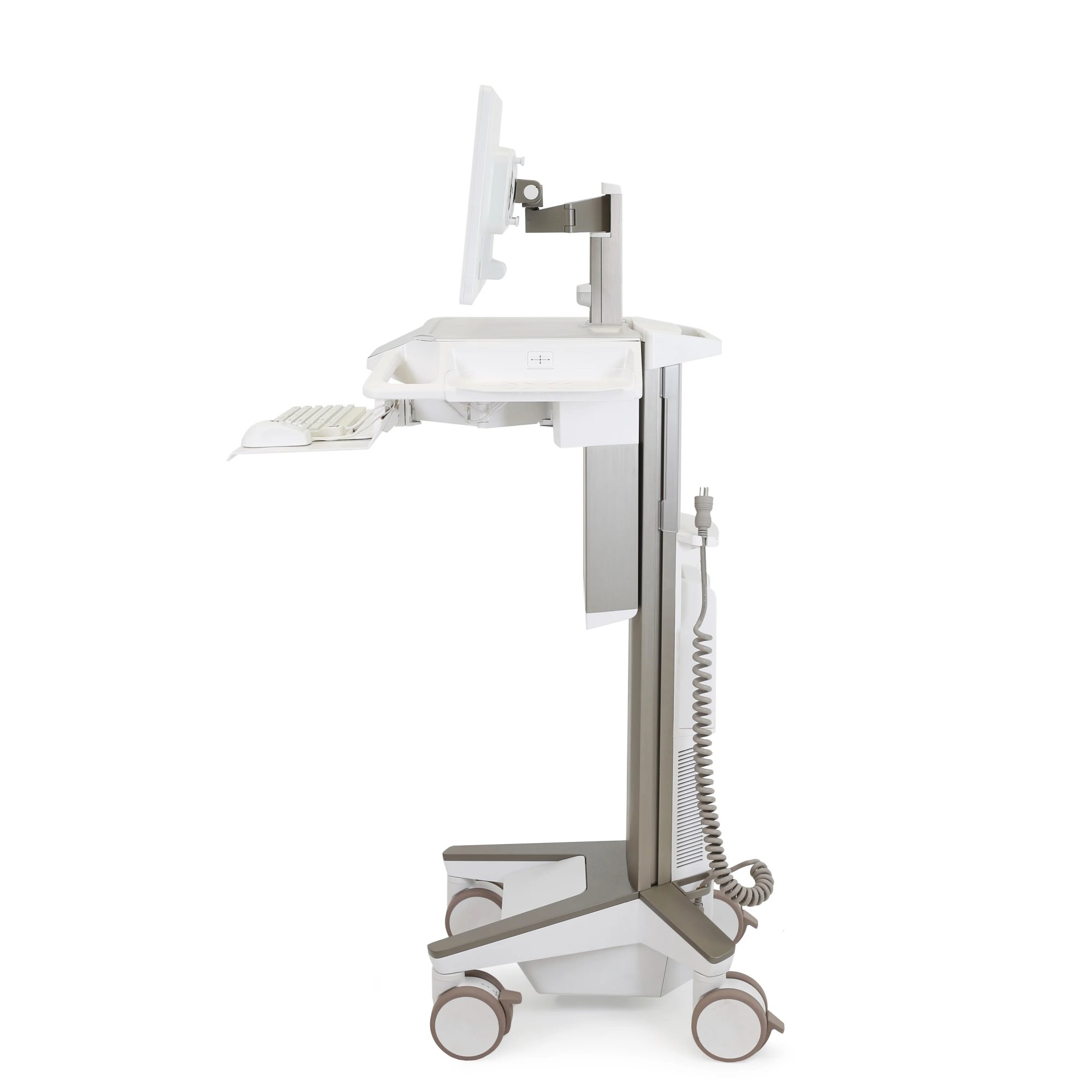

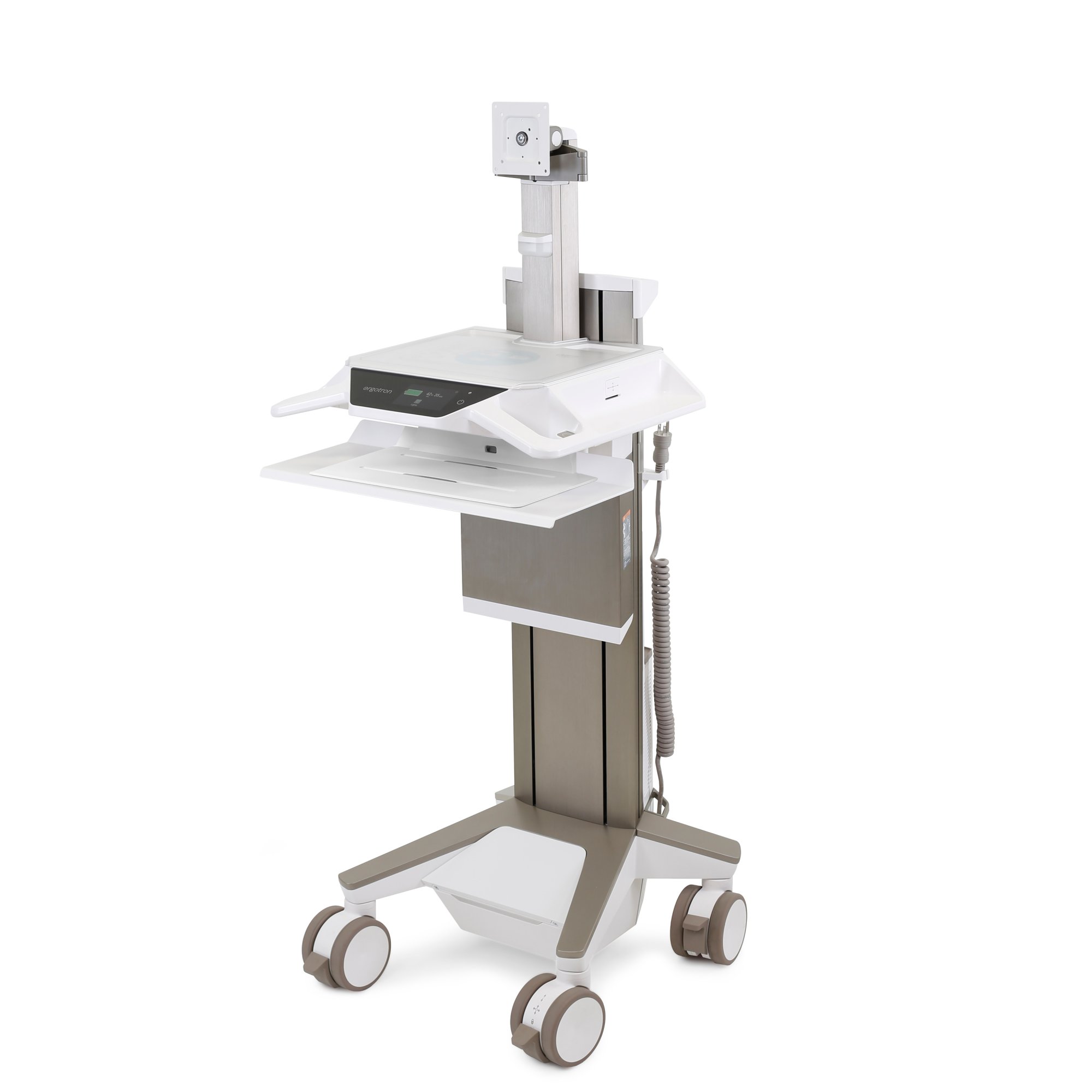

Ergotron C52-1201-1 CareFit Pro Full-Featured Medical Cart, LiFe Powered

Product ID 19408



  • Modern design - Sleek lines add warmth with convenient touchscreen to help improve uptime

  • Easy adjustment - Patented Constant Force technology with infinite brake mechanism offers sit-to-stand adjustment for comfortable caregiving

  • Long-lasting battery life - Integrated Lithium Iron Phosphate (LiFe) battery keeps carts safely powered for more cycles to alleviate power anxiety

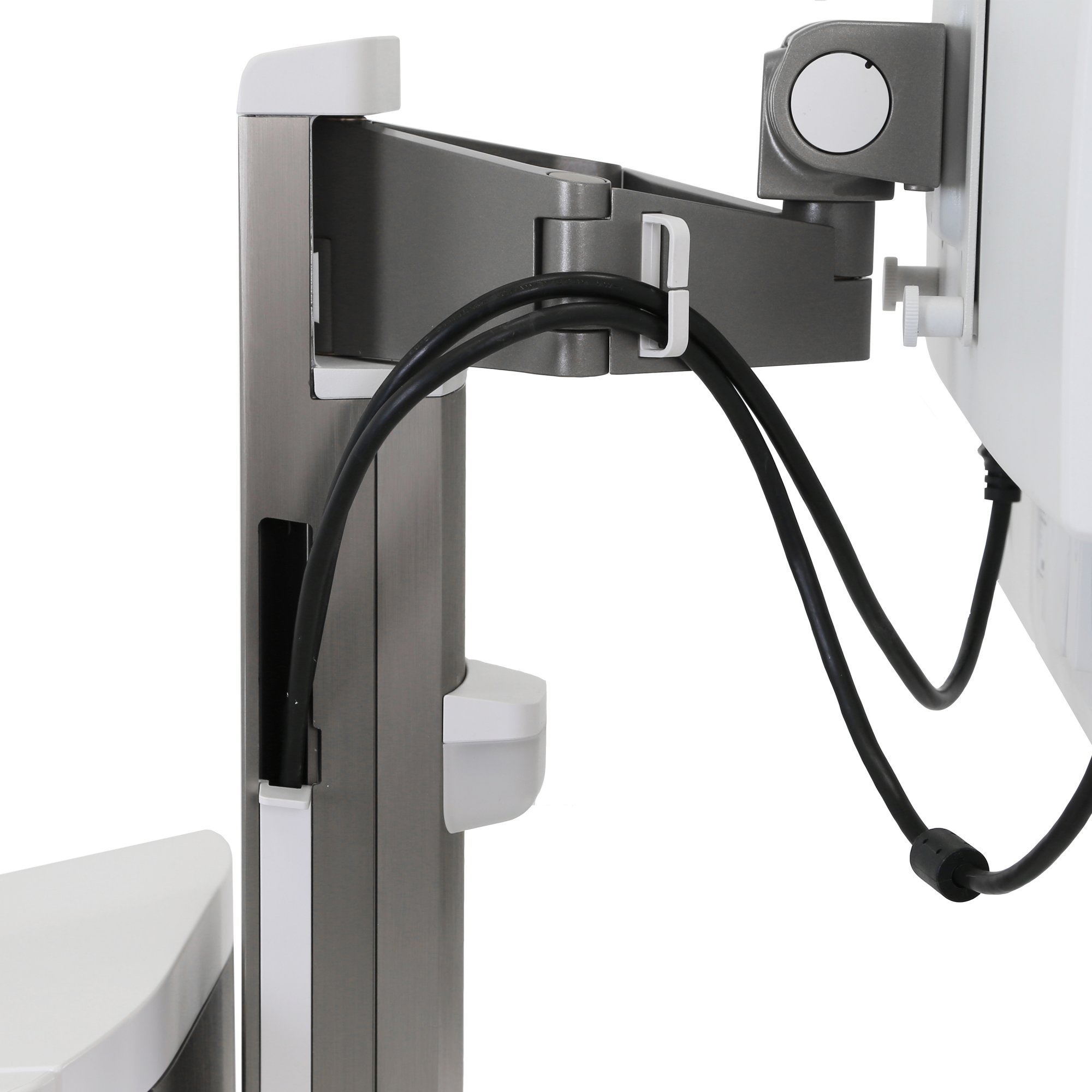

  • Hygienic and safe - Internal cable management and easy-to-clean surfaces support infection control with neutral-angle grip for ergonomic repositioning

  • Improved workflows - Intuitive lighting illuminates tasks without disrupting patients; 5" (13 cm) casters support smooth transitions between rooms and floors

  • Professional-grade reliability - Built for endurance and longevity with industry-leading load and cycle testing


Ergotron C52-1201-1 Full-Featured Medical Cart - Create healing patient environments that allow caregivers to thrive with Carefit Pro. The full-featured design enables untethered productivity with long-lasting, dependable power to navigate each shift. Personalized height and screen adjustment with intuitively placed features support caregiver well-being to keep the focus on patient care. Integrated technology streamlines CareFit Pro monitoring and service, and thoughtful finishes complement a calming environment of care.

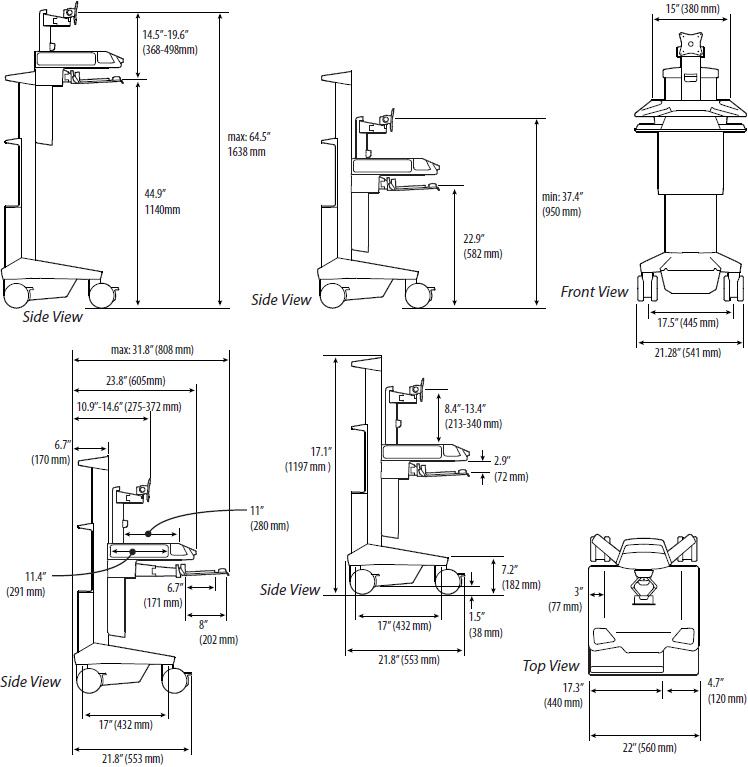

Technical Drawing

Technical drawing for Ergotron C52-1201-1 CareFit Pro Full-Featured Medical Cart, LiFe Powered

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 37.5 lbs

17.0 kg


68.6 cm

90° 180° 360° MIS-D

Product Information

Part Number
  • North America = C52-1201-1

  • Europe = C52-1201-2

  • United Kingdom/Ireland = C52-1201-3

  • Hong Kong/Malaysia/Singapore = C52-1201-3

  • Australia/New Zealand = C52-1201-4

  • China = C52-1201-5

  • Switzerland = C52-1201-C

Description CareFit Pro Cart, LiFe Powered (no drawers)
Color White/warm grey
TAA (Trade Agreements Act) compliant
  • Cart

  • LCD mount

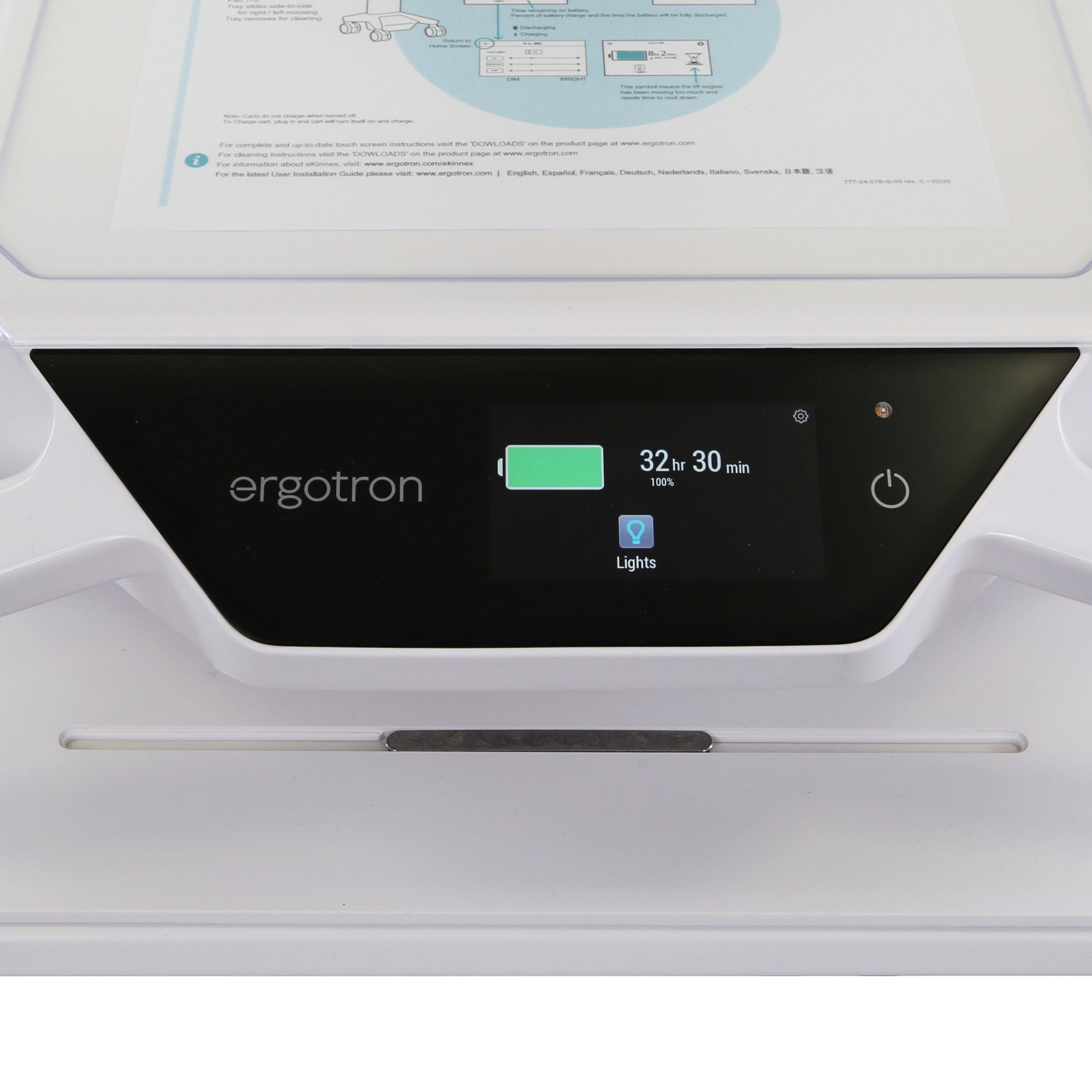

  • Touchscreen control panel

  • Technology enclosure (CPU storage compartment, cable storage compartment)

  • 7-port USB hub

  • Removable top worksurface

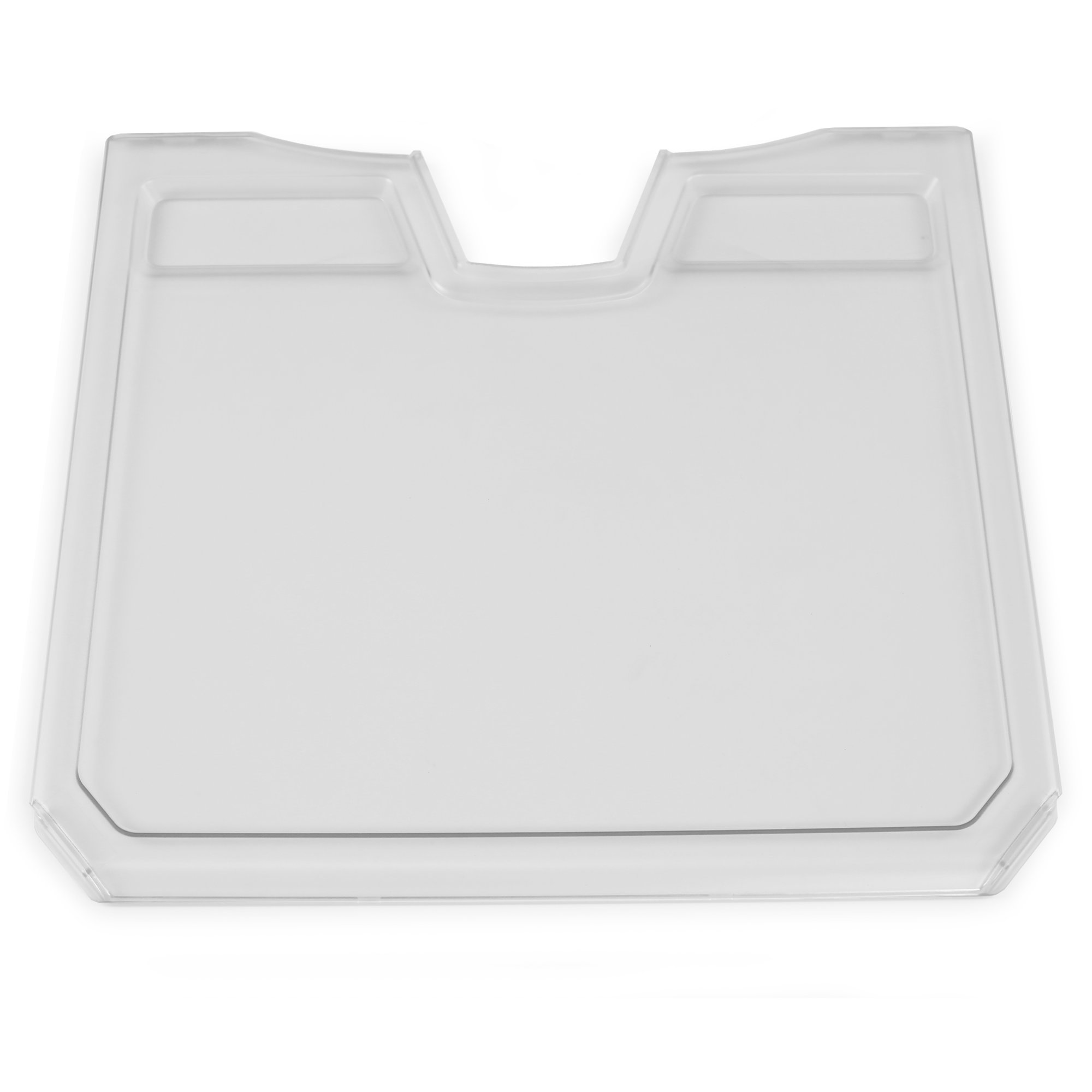

  • Worksurface document holder

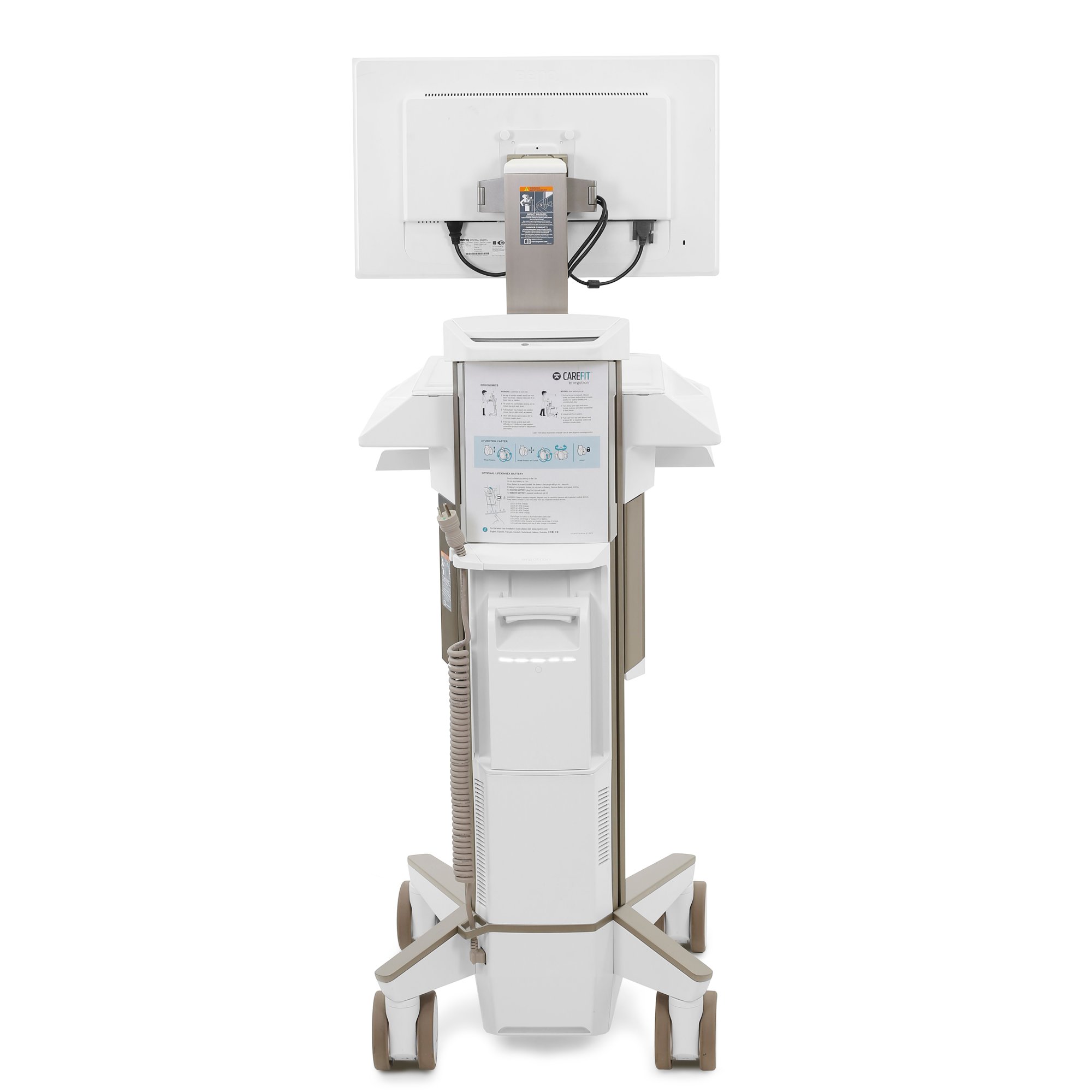

  • Rear document holder

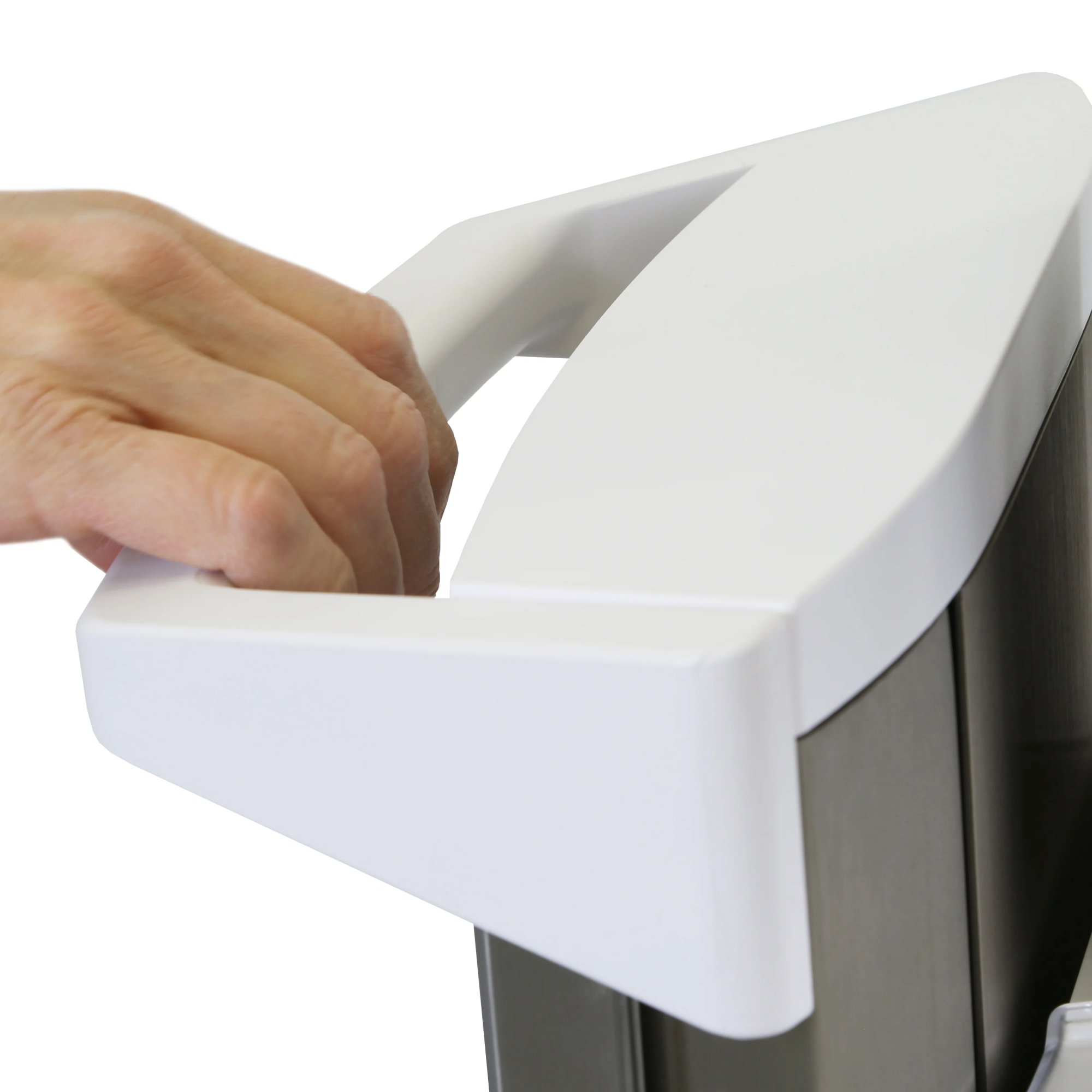

  • Front and rear handles

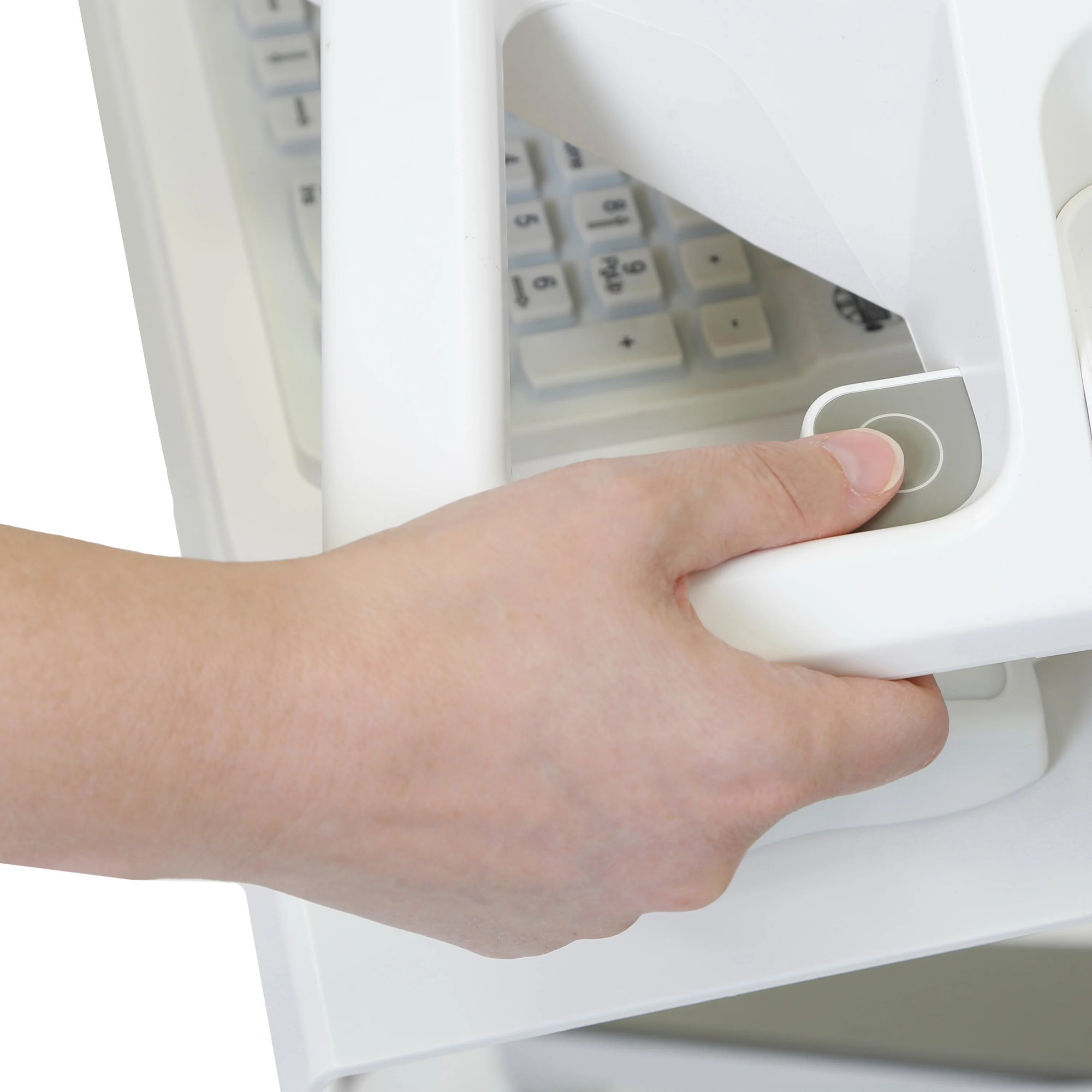

  • Keyboard tray with slide-out mouse area

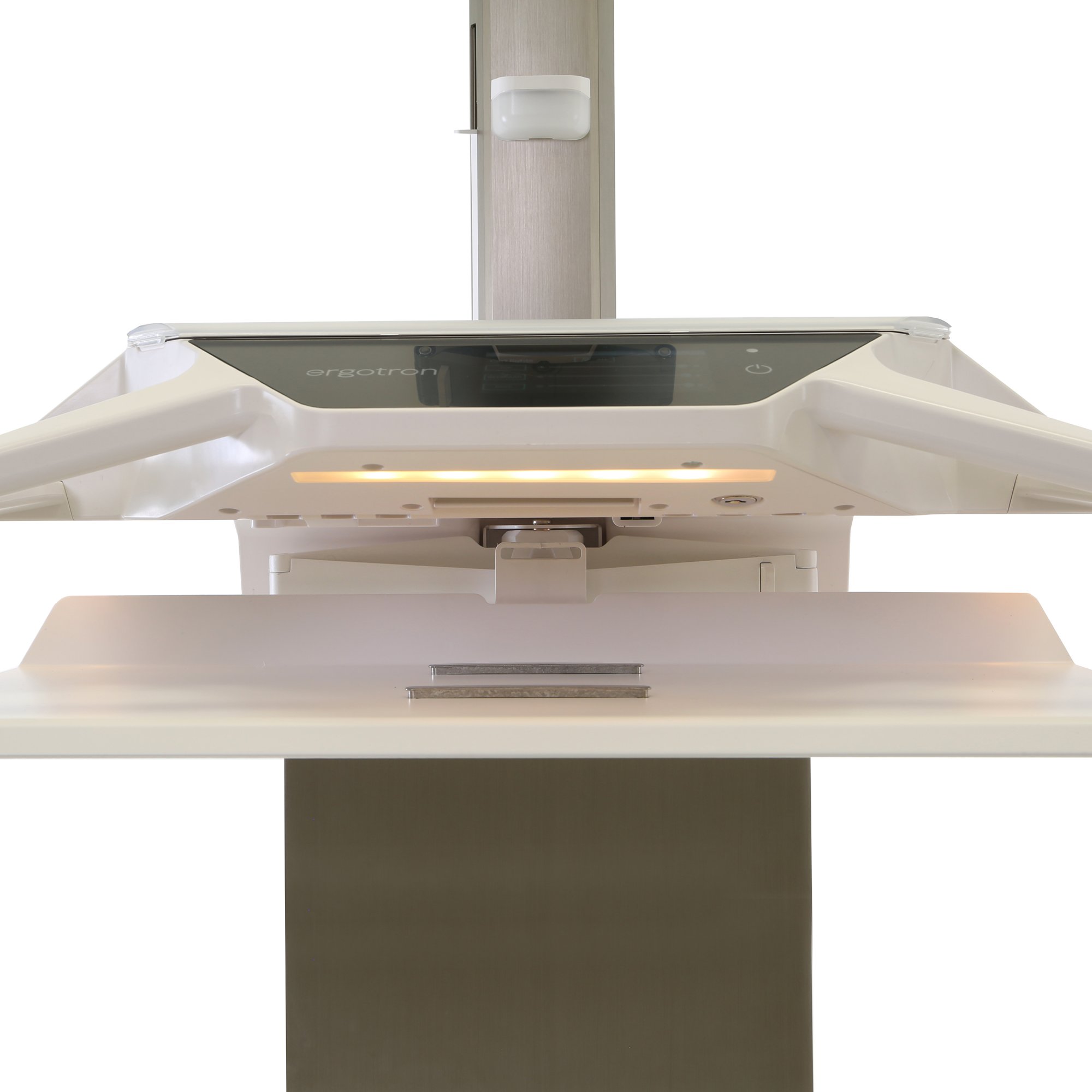

  • Worksurface light

  • Keyboard lights

  • Floor lights

  • 4 locking casters (1 tracking caster)

  • Power cord and hook

  • AC power system with LiFe battery

  • Charger for external "hot swap" battery (sold separately)

Weight Capacity Total maximum load on height-adjustment assembly = 37.5 lbs (17 kg), which includes combined weight of monitor, contents of keyboard tray and worksurface, technology enclosure, and added accessories. Maximum monitor weight = 20 lbs (9.1 kg)
Lift Range 27" (69 cm) total; 22" (56 cm) sit-to-stand adjustment + 5" (13 cm) independent monitor adjustment

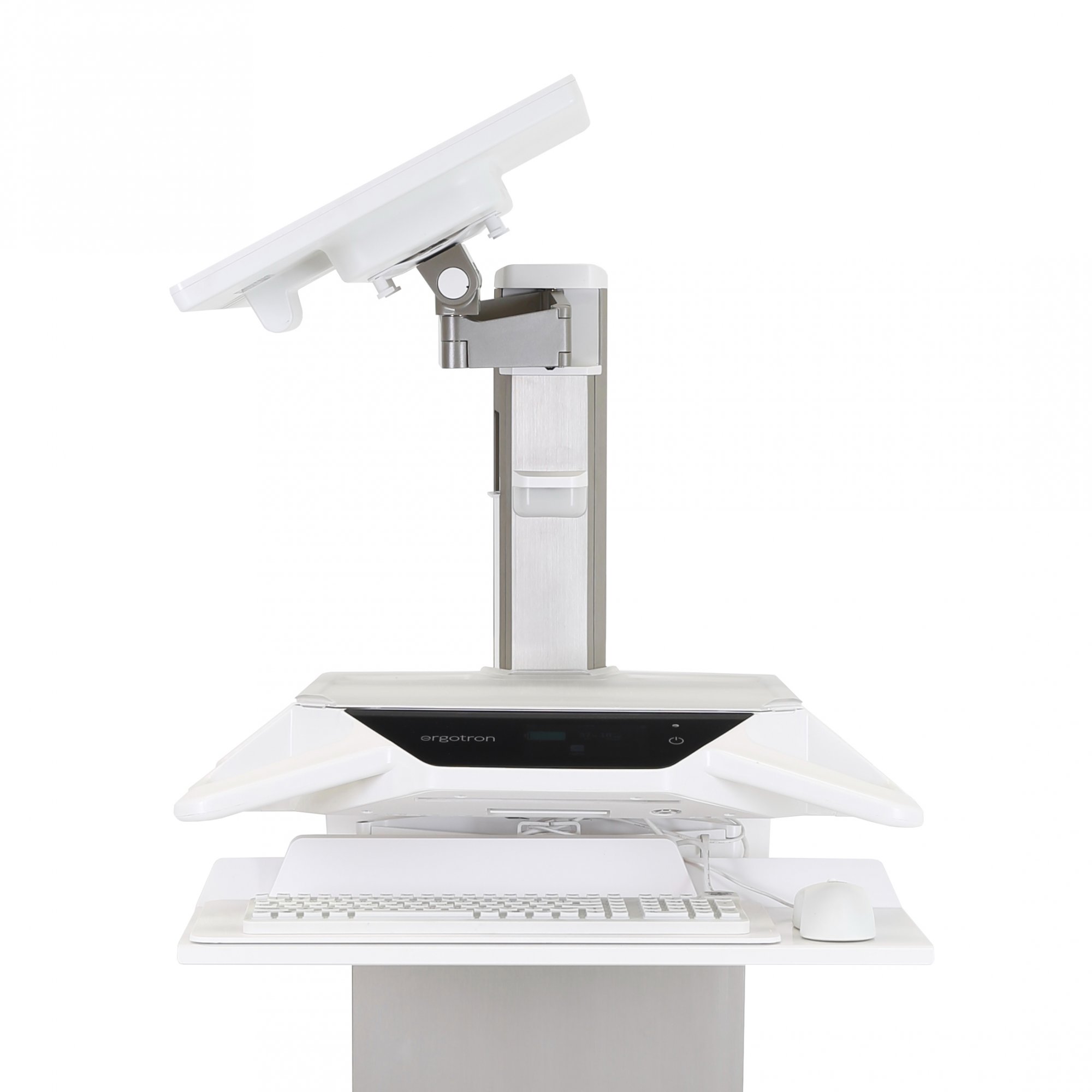

Pan Range Monitor and keyboard both turn up to 180°
Monitor Extends/Retracts 3.75" (9.5 cm)
Key Features and Dimensions
  • Open-architecture design accommodates future hardware upgrades

  • eKinnex-enabled connectivity for proactive fleet management

  • Integrated 7-port USB hub for data and power

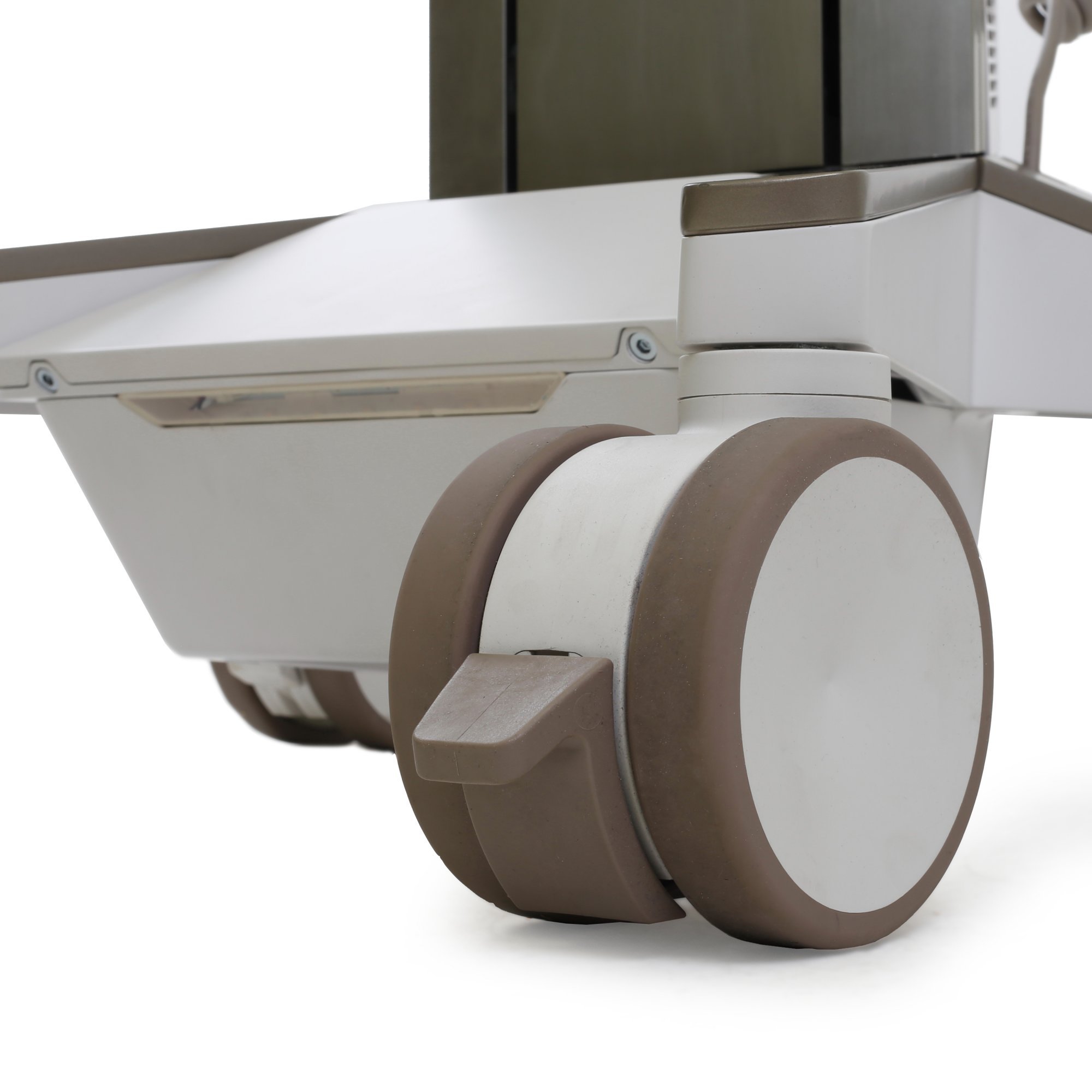

  • Dual-wheel 5" (13 cm) casters for extremely easy push/pull mobility (4 locking, 1 tracking)

  • Flex-platform accessory mounting system

  • Compact Footprint: 21.25" x 21.8" (54 x 55 cm)

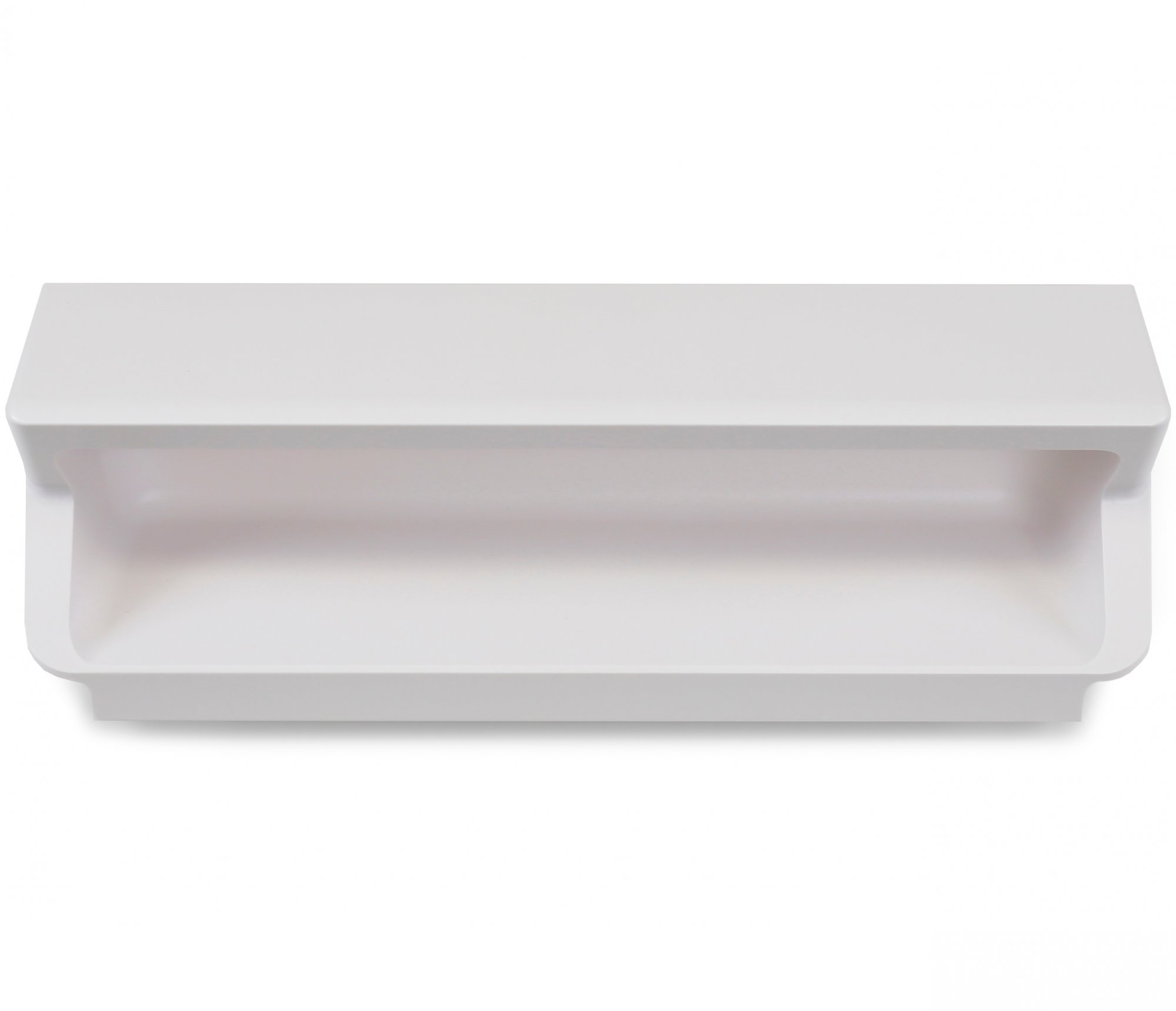

  • Worksurface Dimensions: 14" x 16" (36 x 41 cm), expandable to 14" x 23" (36 x 58 cm) with accessory add-ons

Electrical System
  • VAC: US/CA/MX = 120V/60Hz, EU = 230V/50Hz, UK/SG/MY/HK = 230V/50Hz, AU/NZ = 230V/50Hz, CN = 220V/50Hz, CHE = 230V/50Hz

  • Grounded Plug: US/CA/MX = NEMA 5-15P Hospital Grade, EU = European CEE 7, UK/SG/MY/HK = UK BS 1363, AU/NZ = AS/NZS 3112, CN = GB2009-1; GB1002-1, CHE = SEV 1011

  • Integrated 320Wh LiFe battery

  • Temperature Range: operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)

  • Relative Humidity Range: 5% to 95% (non-condensing)

  • The entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Cart Weight 122 lbs (55.3 kg)
Shipping Dimensions 25" x 33" x 51" (64 x 83 x 129 cm)
Shipping Weight 156 lbs (70.8 kg)
Warranty Five years for mechanical components, two years for power system, six months battery performance (one year with eKinnex demonstrated use)
Model C52-1201-1
Manufacturer Ergotron
Part Number C52-1201-1
UPC 698833072884
Monitor Size Up to 27"
Weight Capacity Up to 37.5 lbs (17.0 kg)
Lift (68.6 cm) 27 in
Tilt 90 degree
Pan 180 degree
Rotation 360 degree
Color White/warm grey
Extend/Retract Range 3.75" (9.5 cm)
Footprint 21.25" x 21.8" (54 x 55 cm)
Worksurface Dimensions 14" x 16" (36 x 41 cm), expandable to 14" x 23" (36 x 58 cm) with accessory add-ons
Temperature Operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)
Humidity 5% to 95% (non-condensing)
Cart Weight 122 lbs (55.3 kg)
Shipping Dimensions 25" x 33" x 51" (64 x 83 x 129 cm)
Shipping Weight 156 lbs (70.8 kg)
Warranty 5 years
Display Type 1 Monitor
Lift Technology Constant Force
Screen Size 24"-30" in

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.


  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history

LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.

Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.

For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.

Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.

Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
