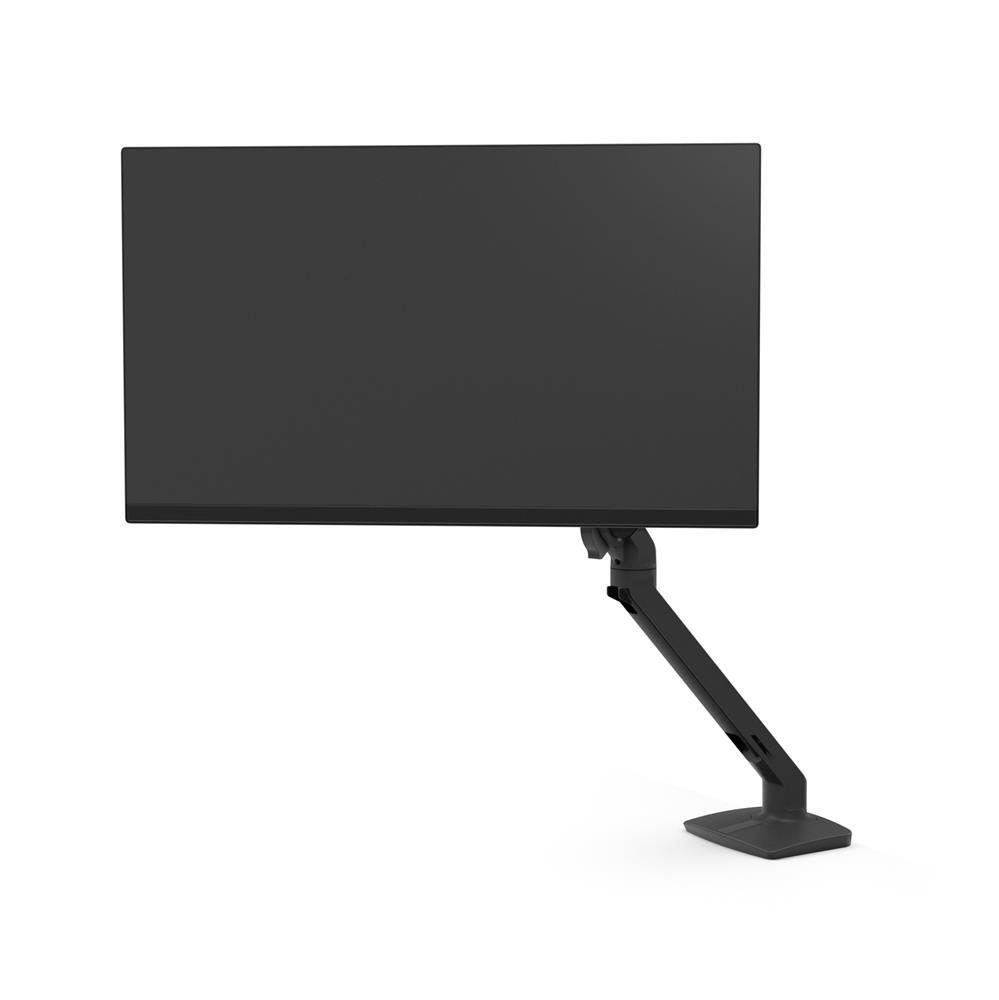

Ergotron 45-625-224 MXV Desk Mount Monitor Arm with Low-Profile Clamp (matte black)
Style meets functionality with Ergotron 45-625-224 MXV Desk Monitor Arm. Designed with a modern “V” shape, this sleek and lightweight arm keeps your screen stable as you adjust it for how you want to work. Slimmer than our LX family, the MVX fits in tight spaces and contains the cable chaos with thoughtful cable management.
|Up to 34"||
7 - 20 lbs
3.2 - 9.1 kg
|Description||MXV Desk Mount LCD Monitor Arm with Low-Profile Top-Mount C-Clamp (25 to 35 mm)|
|Notebook Tray||Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)|
|Quality Tested||10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment|
|Arm||Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas|
|Low-Profile Clamp||Low-profile clamp attaches to surface edge 25 to 35 mm (0.98" to 1.37") thick. Accessory clamps are available for other worksurface thicknesses|
|Requires||Open space of 0.8" (2 cm) behind surface for installation|
|Mounting Standards||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Tilt Range||90° backward, 90° forward|
|Pan Range||180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360°|

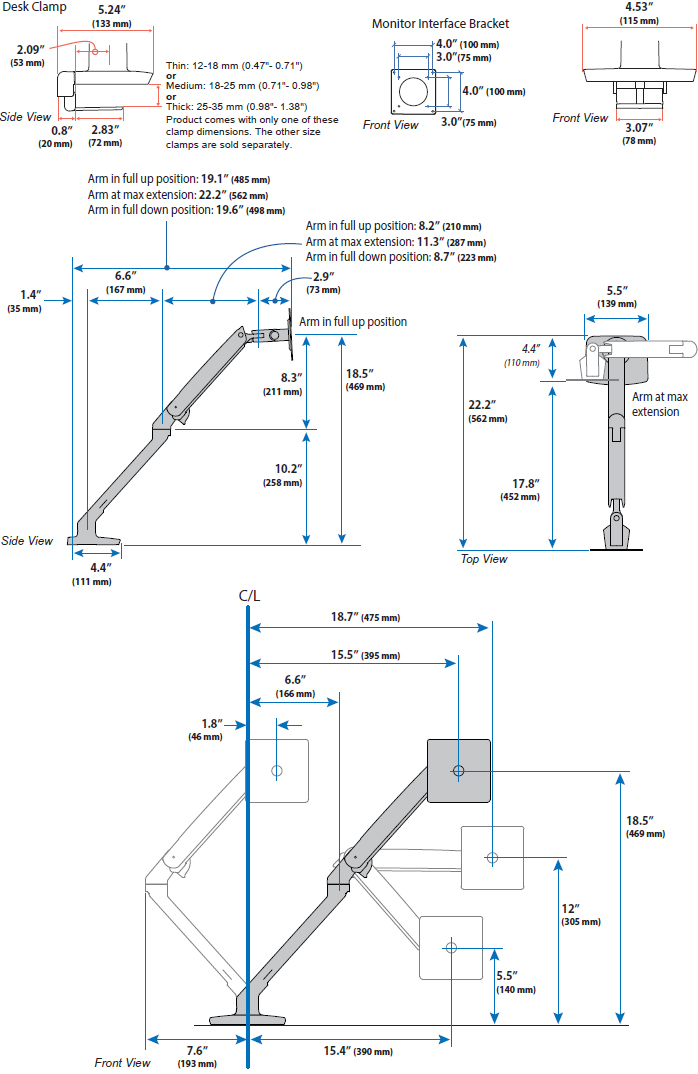

|Extension Range||17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate|
|Certified||This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)|
|Product Weight||7 lbs (3.2 kg)|
|Shipping Dimensions||32.3" x 8.1" x 7.2" (82 x 20.5 x 18.5 cm)|
|Shipping Weight||9.2 lbs (4.2 kg)|
Comfortable fit - Offers full monitor movement and improved ergonomics
Full-featured - Provides 13" (33 cm) of height adjustment, integrated tilt and more
Protect your space - Rotation-stop base keeps arm from hitting the wall or other desks
Fully assembled - Just attach to your desk, add your monitor and adjust the tension

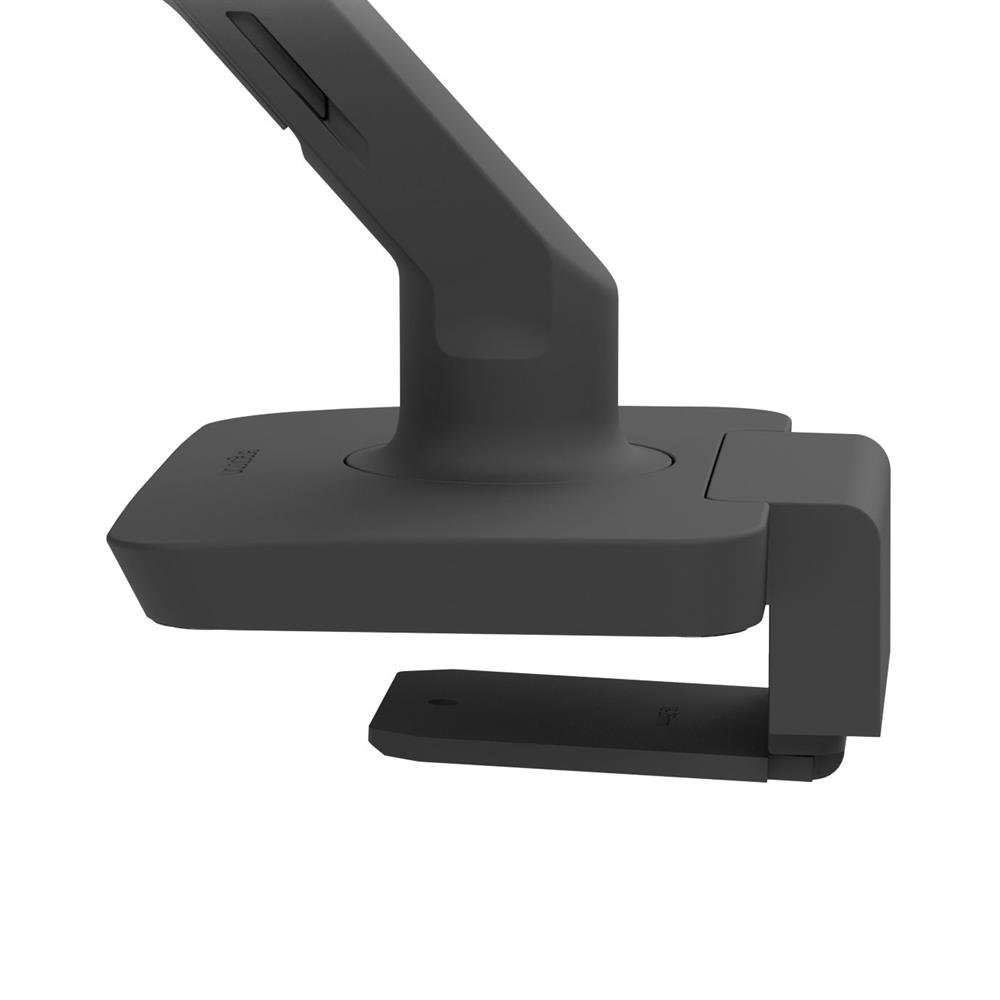

Low profile - Attaches securely with a desk clamp that fits in tight areas
Quality design - Built for years of use by passing our 10,000-cycle motion test
|Monitor Size||Up to 34"|
|Weight Capacity||7–20 lbs (3.2–9.1 kg)|
|Lift||(33.0 cm) 13 in|
|Mounting Pattern||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Surface Edge Thickness||25 to 35 mm (0.98" to 1.37")|
|Extension||17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate|
|Weight||7 lbs (3.2 kg)|
|Shipping Dimensions||32.3" x 8.1" x 7.2" (82 x 20.5 x 18.5 cm)|
|Shipping Weight||9.2 lbs (4.2 kg)|
|Warranty||Ten (10) years|
