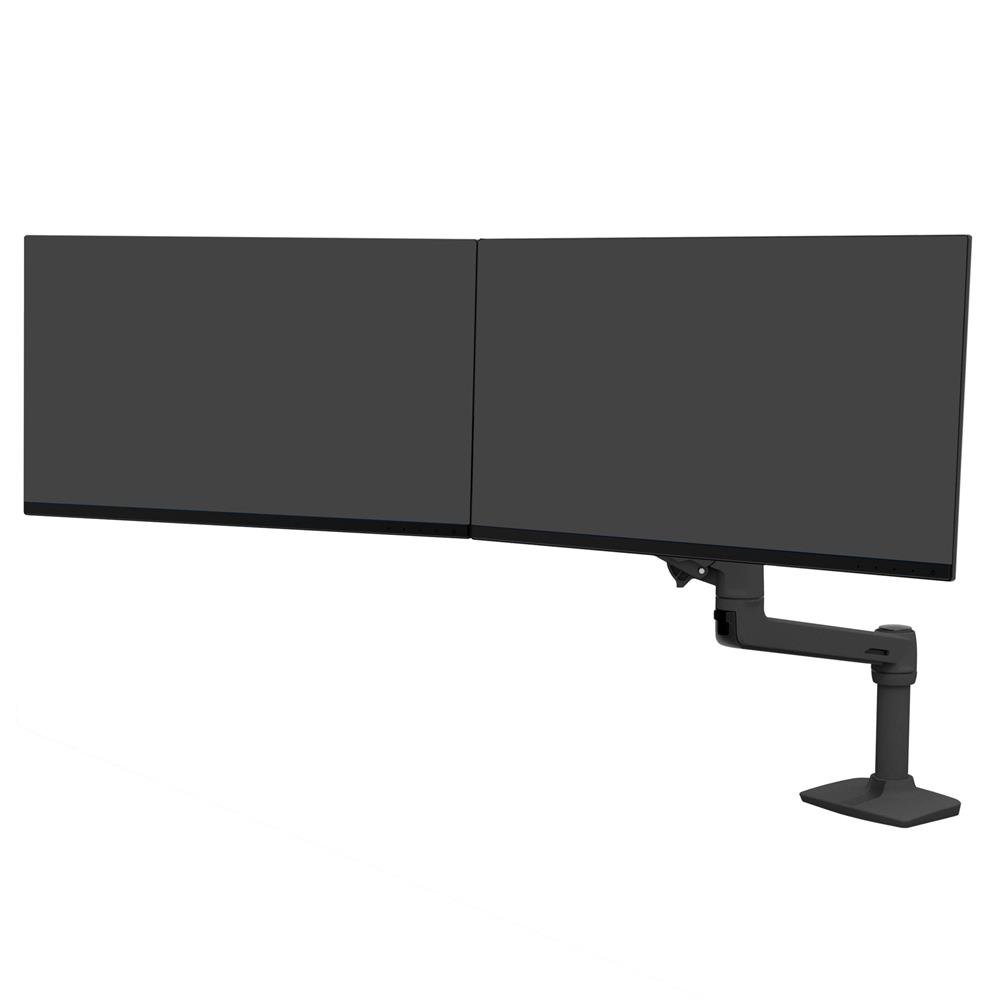

Ergotron 45-627-224 LX Desk Dual Direct Arm with Low-Profile Clamp (matte black)
Find your best view, save desk space and discover your most productive self, thanks to Ergotron 45-627-224 LX Desk Dual Direct Arm. The low-profile monitor cross-bar uses a compact range of motion to keep your space, your space. Project wrapped up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.
|Up to 25"||
4 - 22 lbs
1.8 - 10 kg
|Description||LX Desk Dual Direct Arm with Low-Profile Top-Mount C-Clamp (25 to 35 mm)|
|Maximum Outside Width of Display||Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness|
|Weight Capacity||Maximum individual LCD weight = 2–11 lbs (.9–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)|
|Vertical Height Adjustment||13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)|
|Tilt Range||13° backward, 17° forward. Each monitor tilts individually|
|Arm Extends||Arm extends out up to 24.3" (61.7 cm) extended reach|
|Mounting Standards||VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|

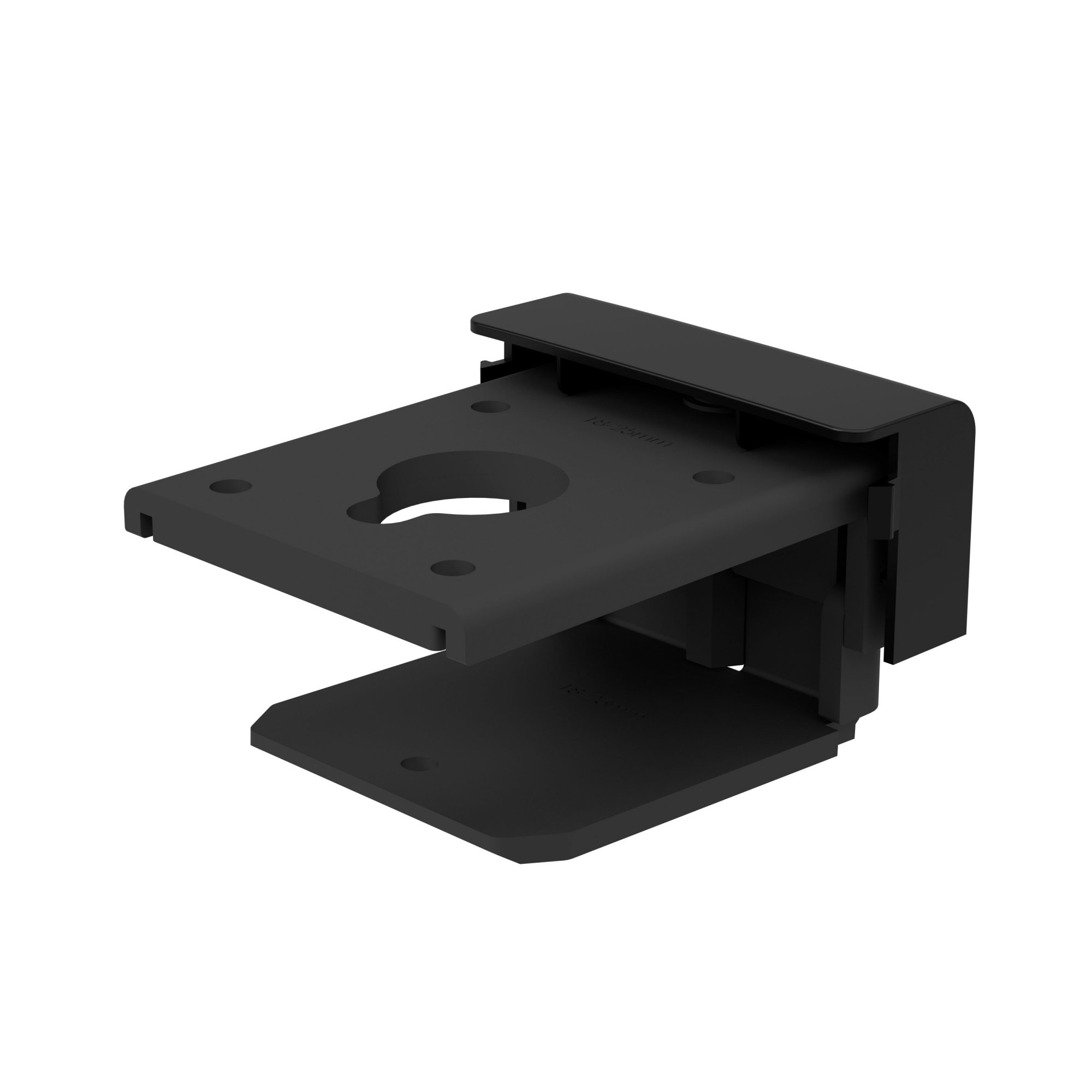

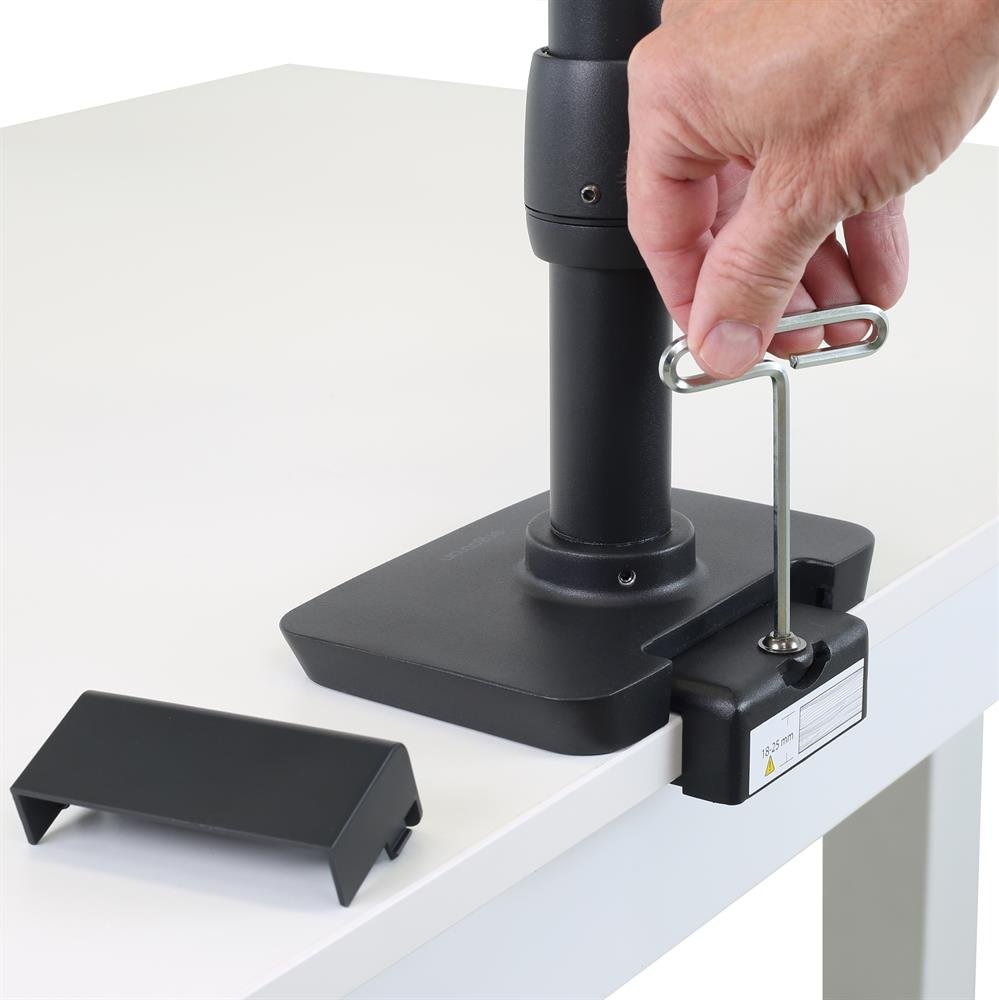

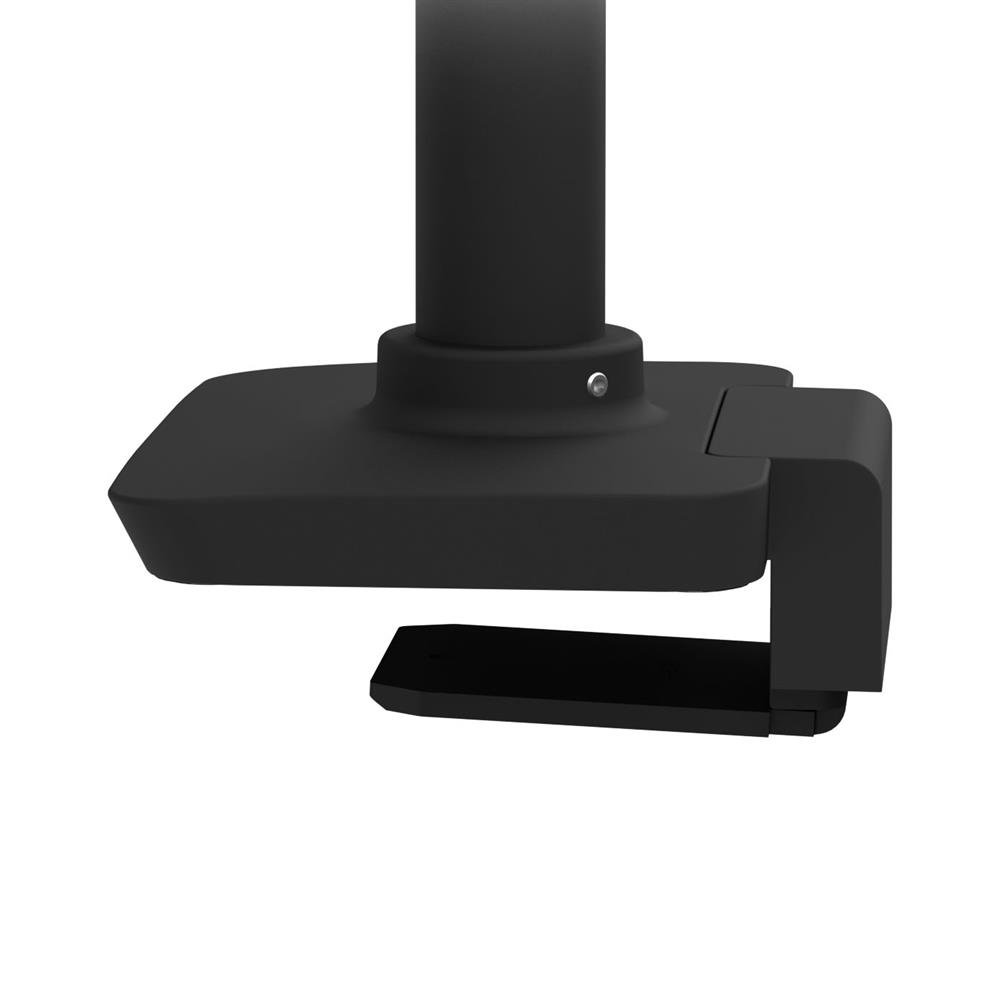

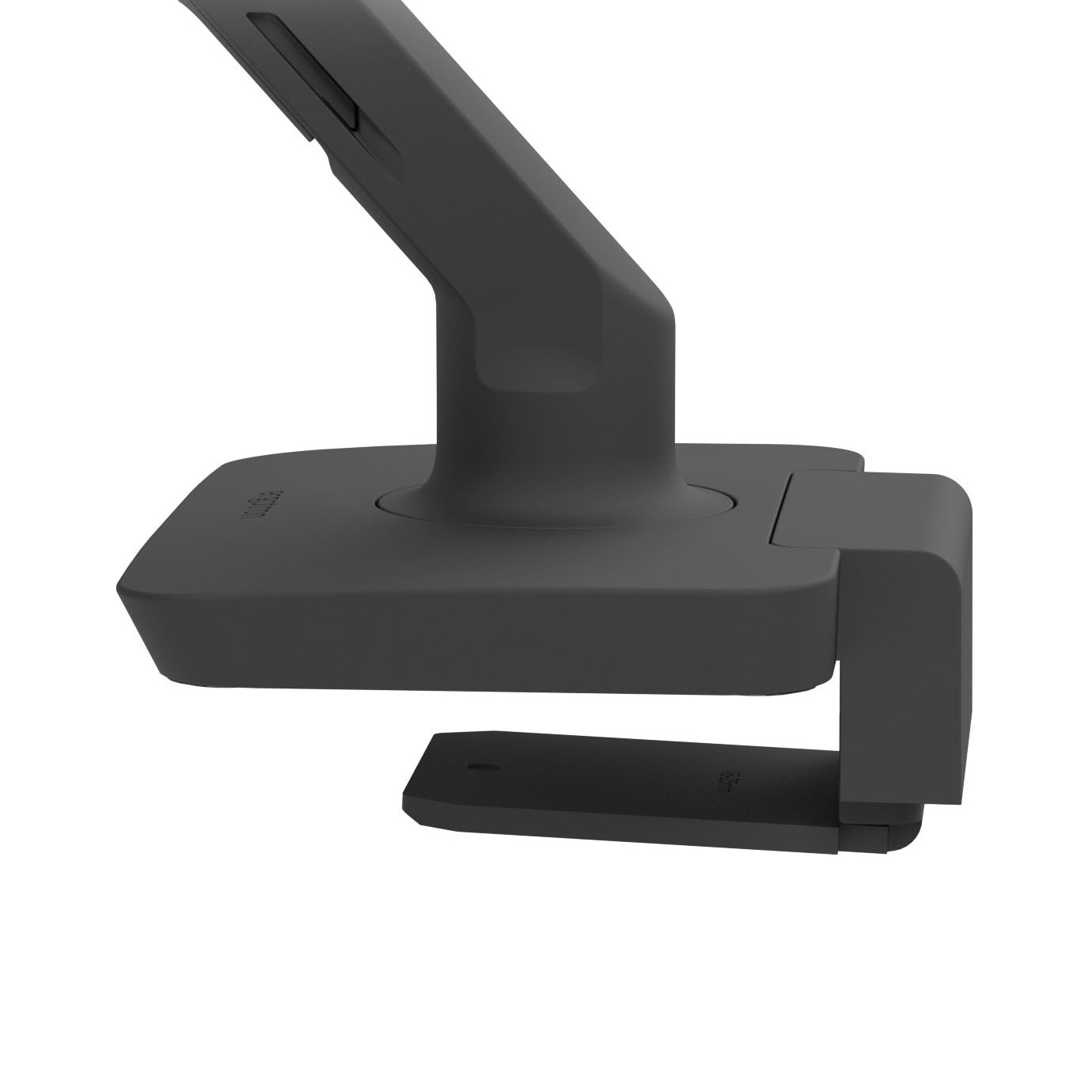

|Low-Profile Clamp||Low-profile clamp attaches to surface edge 25 to 35 mm (0.98" to 1.37") thick. Accessory clamps are available for other worksurface thicknesses|
|Requires||Open space of 0.8" (2 cm) behind surface for installation|
|Cable Management||Streamline cable management that routes cables under arm and within extension|
|Portrait/Landscape||Portrait/landscape rotation with lockout|

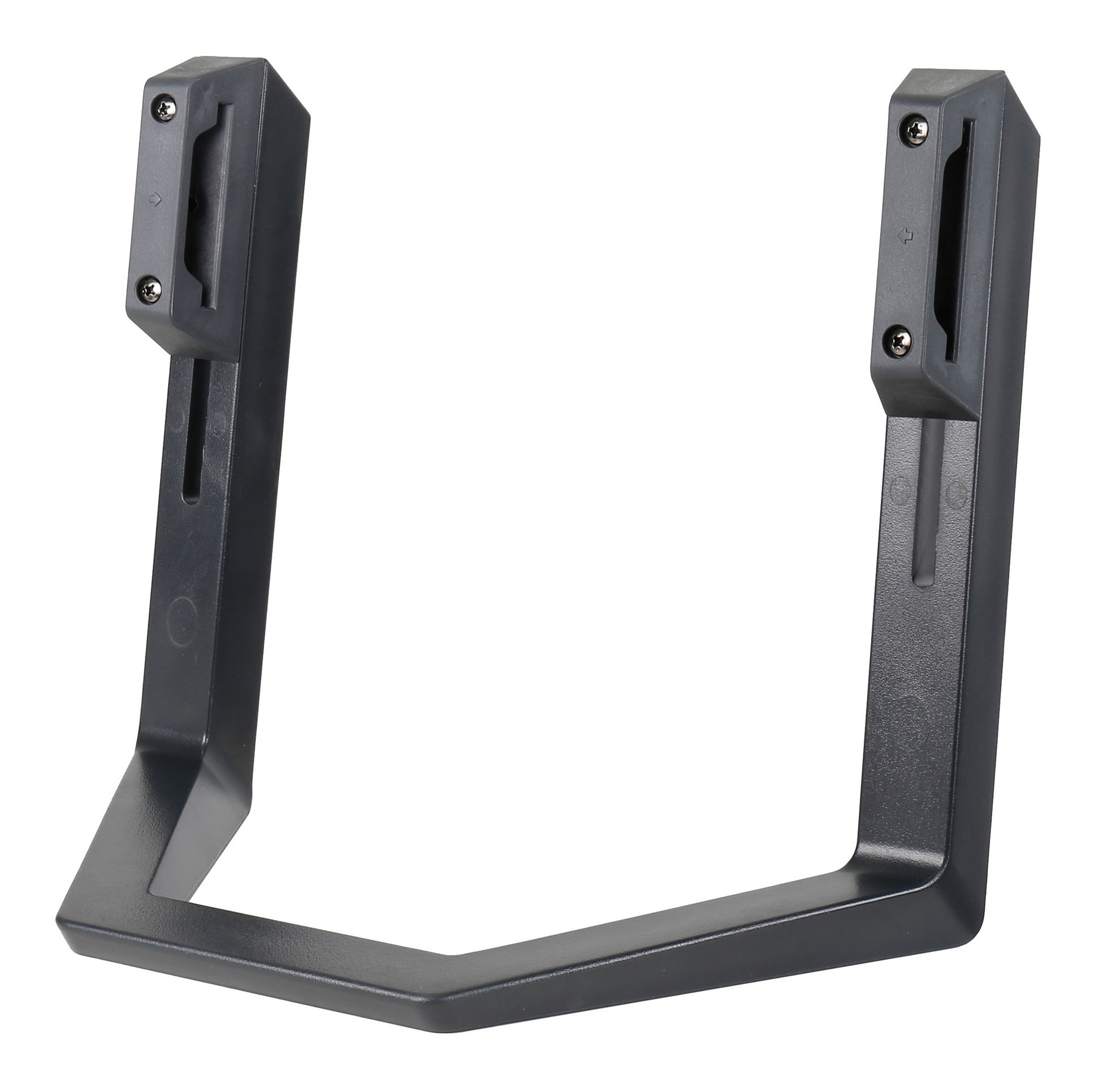

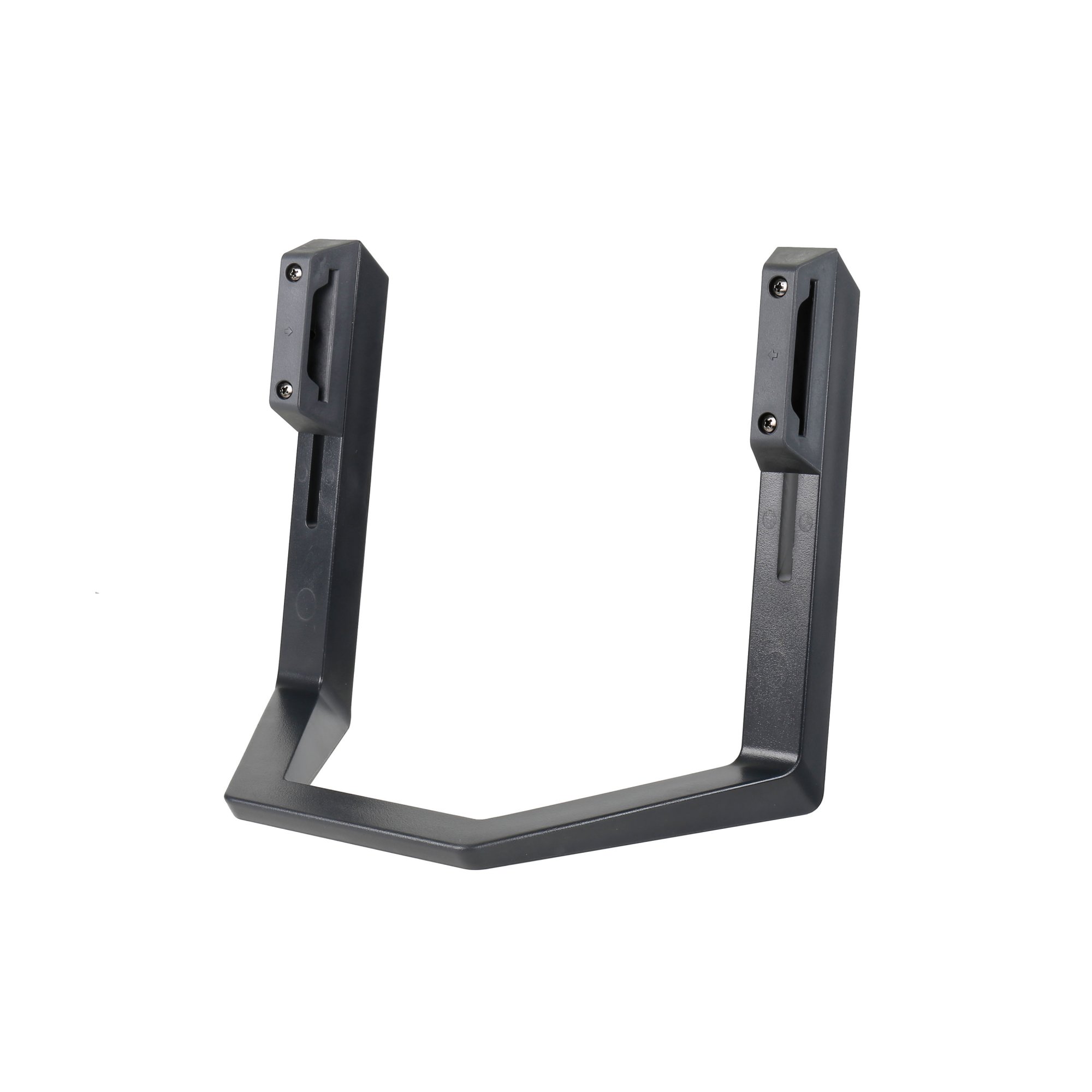

|Handle||Handle for Dual Direct Arm available as an accessory (98-037-062)|
|Product Weight||10.9 lbs (5 kg)|
|Shipping Dimensions||30.6" x 12.2" x 7.6" (78 x 31 x 19 cm)|
|Shipping Weight||13.2 lbs (6 kg)|
Comfortable fit - Moves two monitors in one easy motion
Dual purpose - Supports two screens up to 25" in size
Maximize space - Adjusts monitors in a compact range of motion
More workspace - Free up your desktop for office essentials
Sleek build - Streamlined look enhances your work area
Quality design - Built for years of use by passing our 10,000-cycle motion test
|Monitor Size||Up to 25"|
|Weight Capacity||4-22 lbs (1.8-10.0 kg)|
|Lift||(33.0 cm) 13 in|
|Mounting Pattern||VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Maximum Extension||Up to 24.3" (61.7 cm) extended reach|
|Surface Edge Thickness||25 to 35 mm (0.98" to 1.37") thick|
|Weight||10.9 lbs (5 kg)|
|Shipping Dimensions||30.6" x 12.2" x 7.6" (78 x 31 x 19 cm)|
|Shipping Weight||13.2 lbs (6 kg)|
|Maximum Monitor Size||25"|
