$216.32

Innovative 9189 Height Adjustable POS Through Counter Mount

The 9189 pole can pass through a counter with a grommet hole.

Product ID 16787
HIGHLIGHTS
Innovative 9189 Height Adjustable POS Through Counter Mount

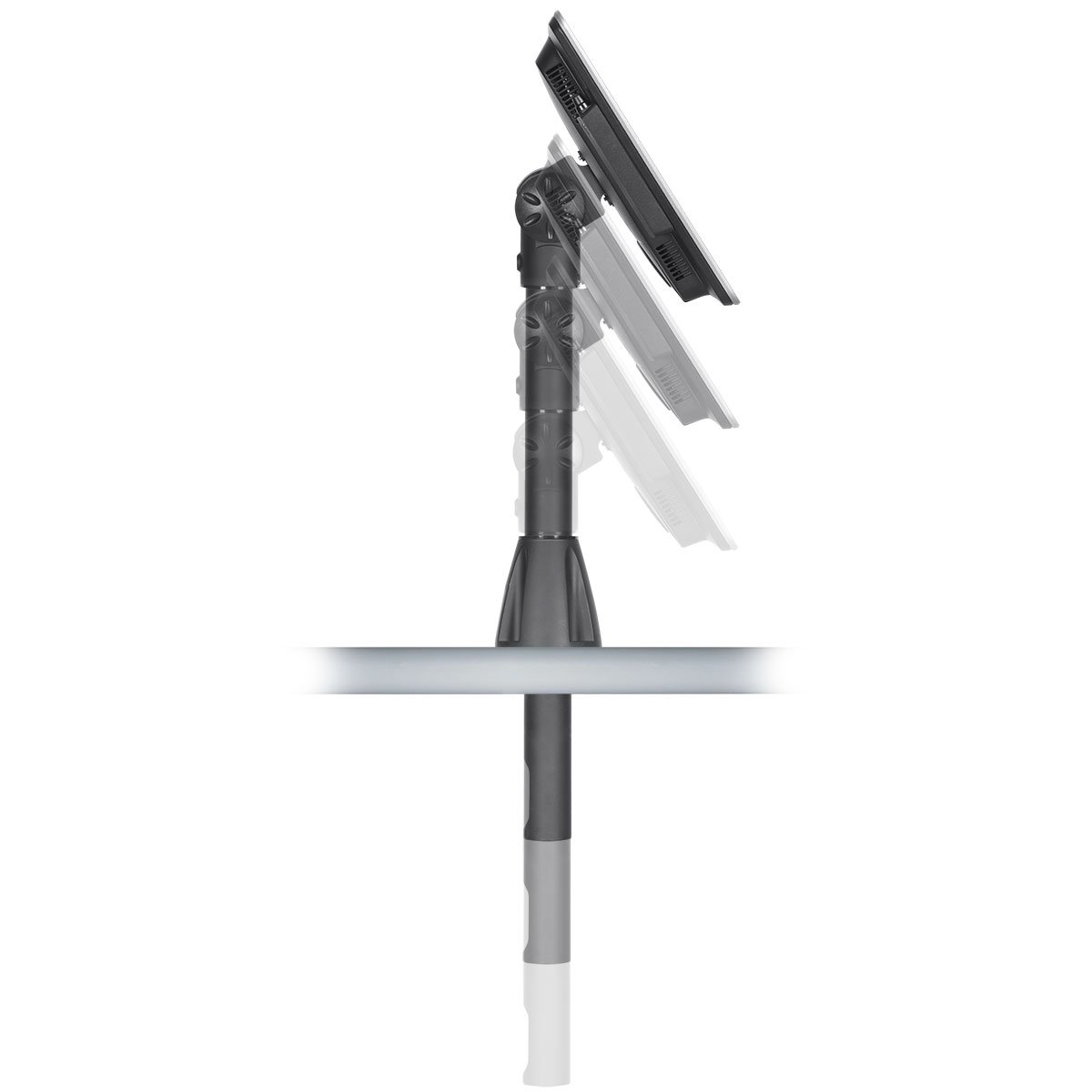

Pole height adjusts through counter

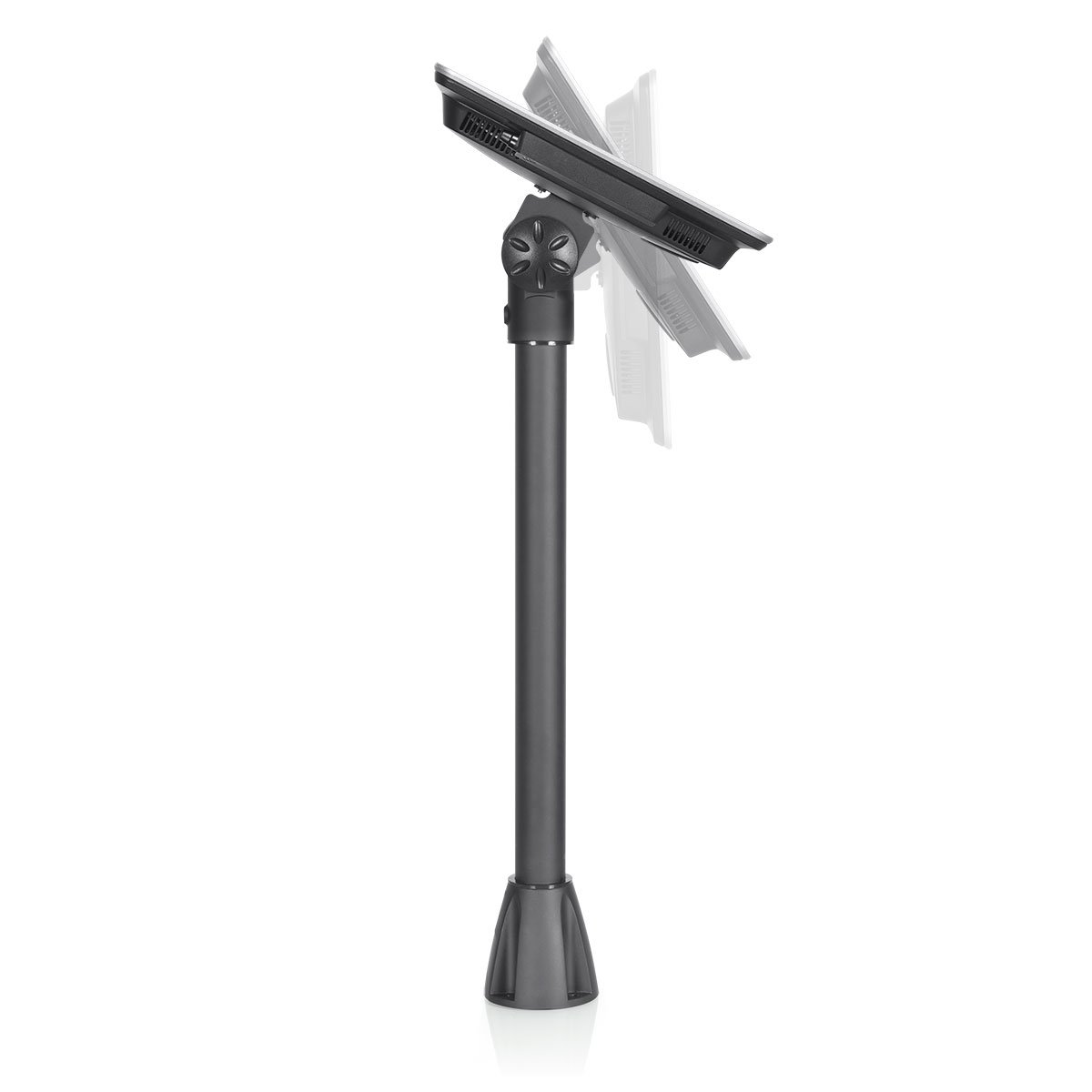

Adjustable display angle

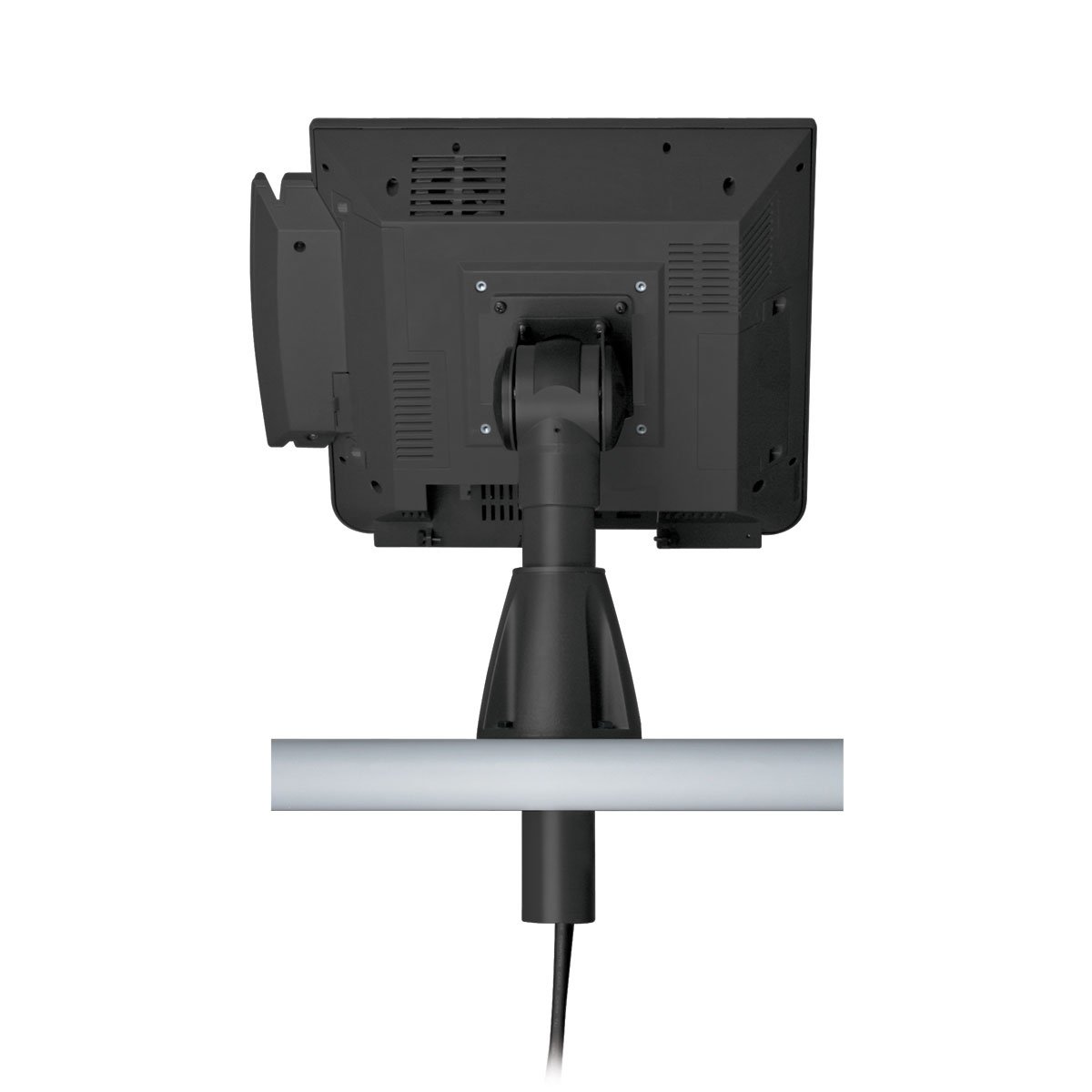

Back View of Innovative 9189

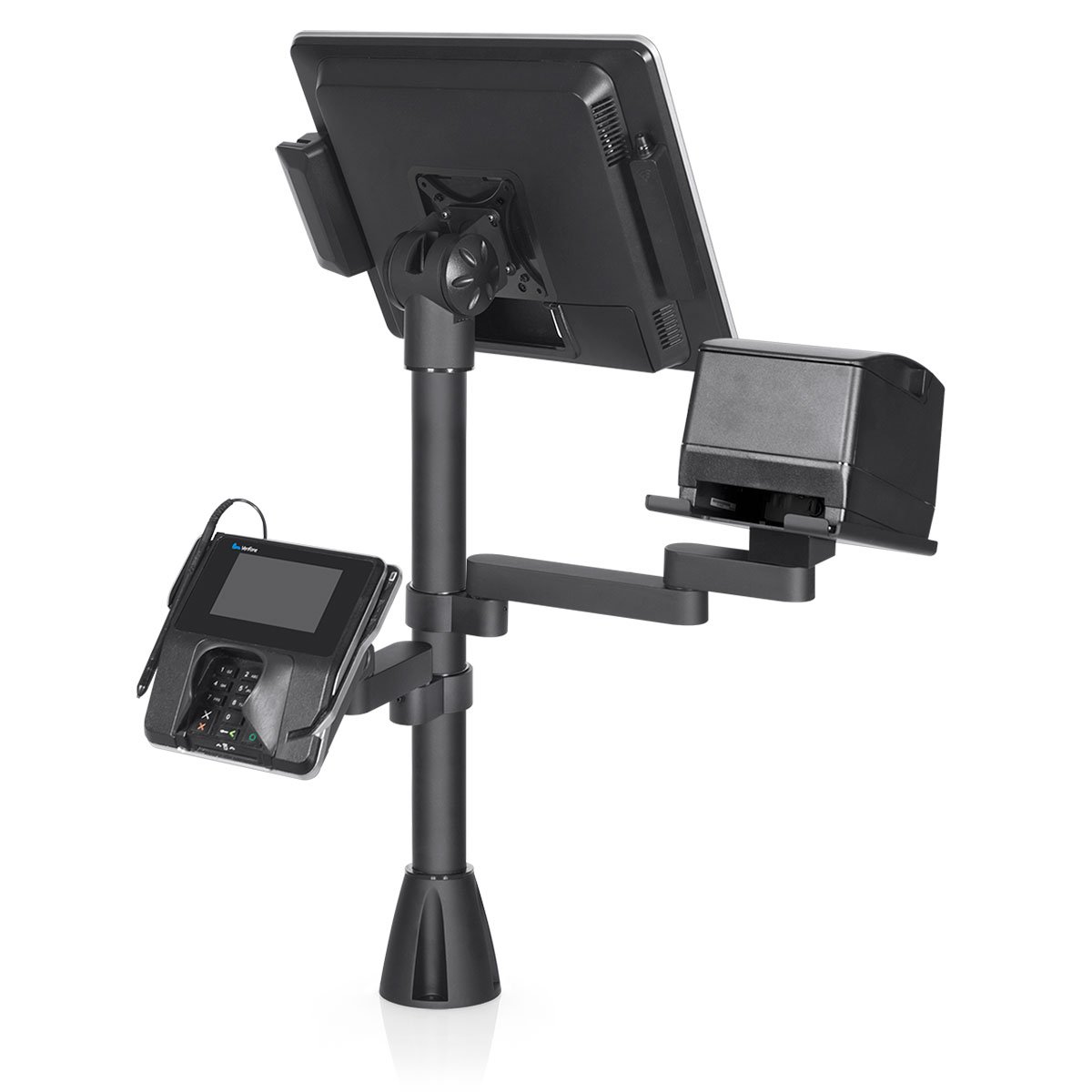

Compatible with our Modular Now accessories
Innovative 9189 Height Adjustable POS Through Counter Mount
Pole height adjusts through counter
Adjustable display angle
Back View of Innovative 9189
Compatible with our Modular Now accessories

Highlights

Description

Retail environments require retail-ready solutions. Our adjustable through-counter POS mount features easy height adjustment, attractive appearance, internal cable management and durable construction - all at an appealing price point.

Innovative 9189-12 enables monitor height to be adjusted between 7" and 12". 9189-24 enables monitor height to be adjusted between 7" and 24".

This mount is designed to pass through a hole in the counter, allowing cables to exit below the counter. This keeps cables entirely out of view (and out of harm's way). The monitor may be pivoted or turned to suit the user's needs (or may be locked in position if you don't wish to allow adjustment). Height is adjusted via a set screw in the mount.

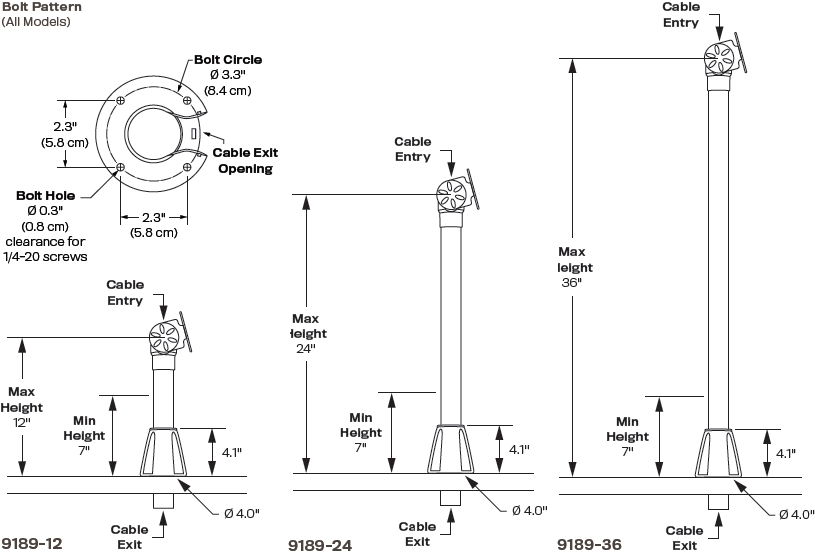

Technical Drawing

Technical Drawing for Innovative 9189 Series Adjustable POS Through Counter Pole Mount

Technical Specifications

Color 162 - Dark Grey
Height Range
  • 9189-12: 7"-12"

  • 9189-24: 7"-24"

Grommet Hole 1-13/16" minimum grommet hole is needed for pole to pass through counter. (2-3/8" standard grommet hole is also compatible)
VESA Compatibility VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options
Monitor Weight Up to 25 lbs

Features

  • Supports monitors, signature capture devices, kiosks and more

  • Tube passes through counter

  • Quickly adjust monitor height from 7 to 12" or 7 to 24" above counter

  • Pivot and turn monitor - lock monitor in place if desired

  • Internal cable routing - cables pass through counter, remaining out of view

  • Durable construction stands up to retail use and abuse

  • Fast setup

  • Supports monitors up to 25 lbs

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options

Model 9189
Manufacturer Innovative LCD Arms
Part Number 9189
Number of Monitors 1 Monitor
Height Range 7
Weight Capacity Up to 25 lbs
Color 104 - Vista Black
VESA 75 & 100mm, adapter included
Dimensions Base: Ø 4
Warranty 10 Years
