$535.00

Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)

Product ID 19672
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)
Ergotron 45-509-224 LX Dual Stacking Arm Tall Pole (matte black)

Description

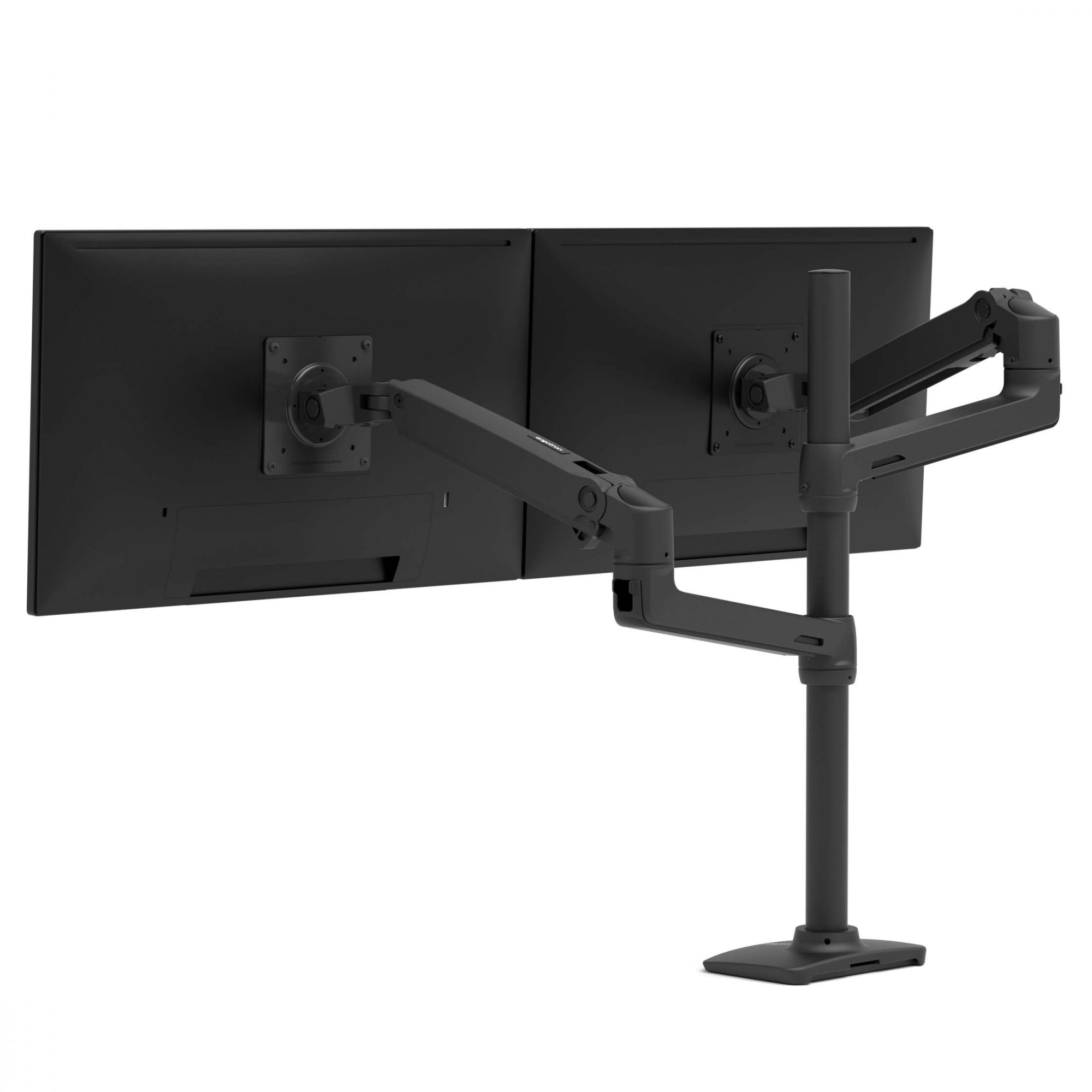

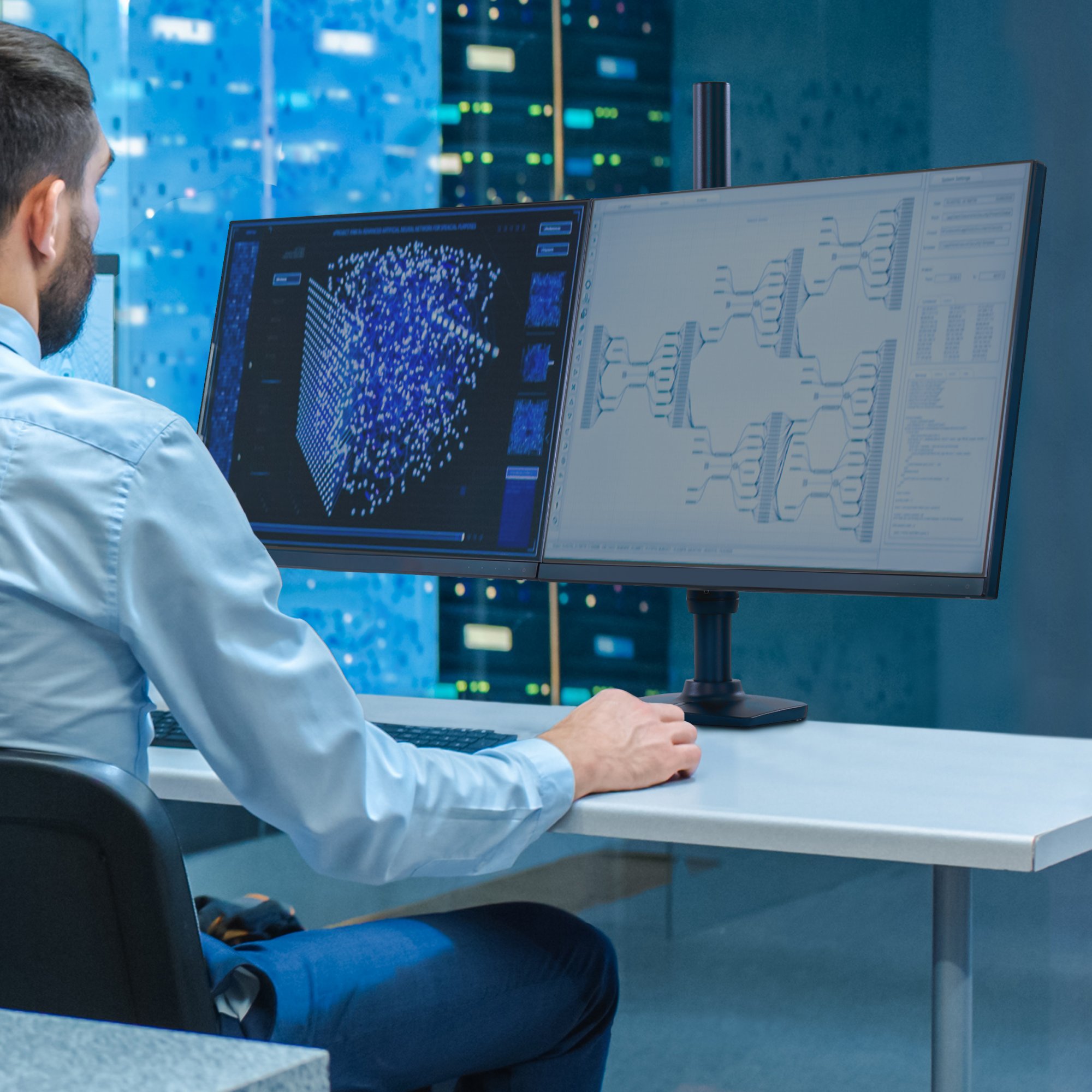

Find your best view, save desk space and discover your most productive self with the LX Dual Stacking Arm, Tall Pole. This multi-monitor mount lets you position large screens separately for a new level of flexible working.

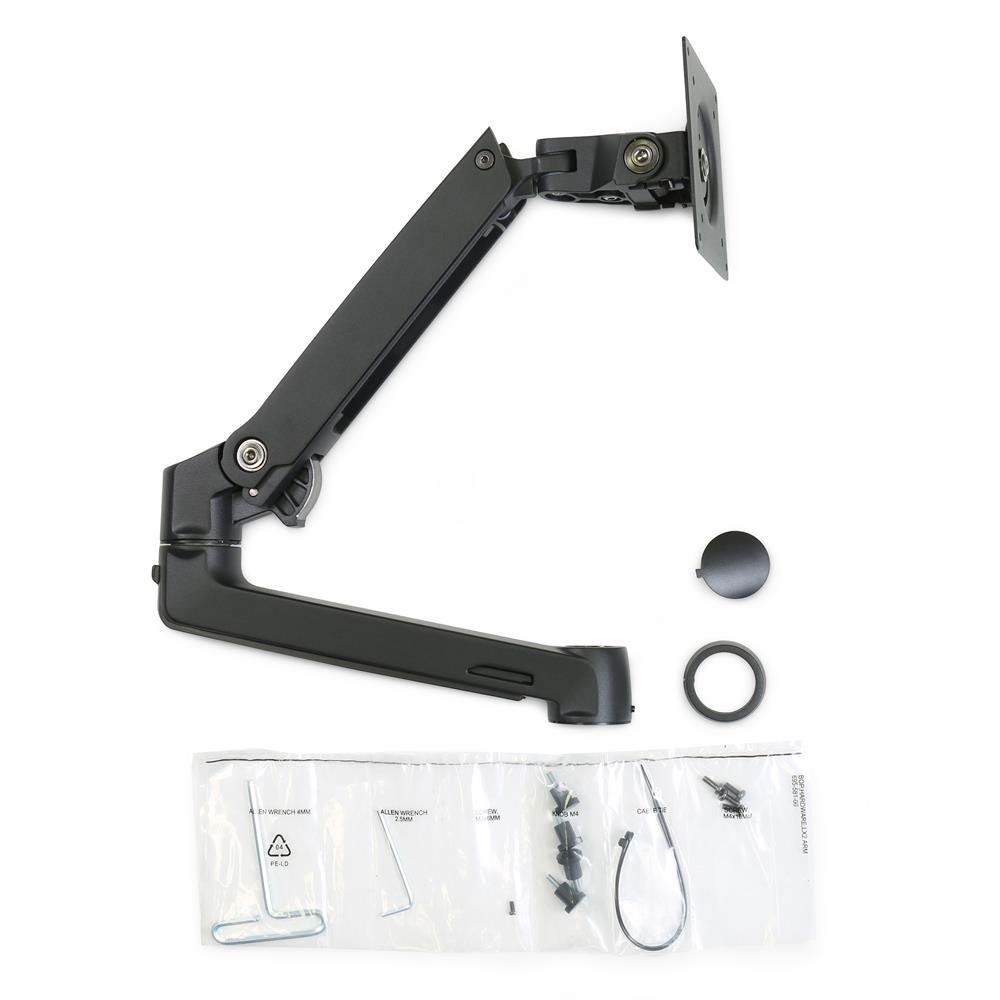

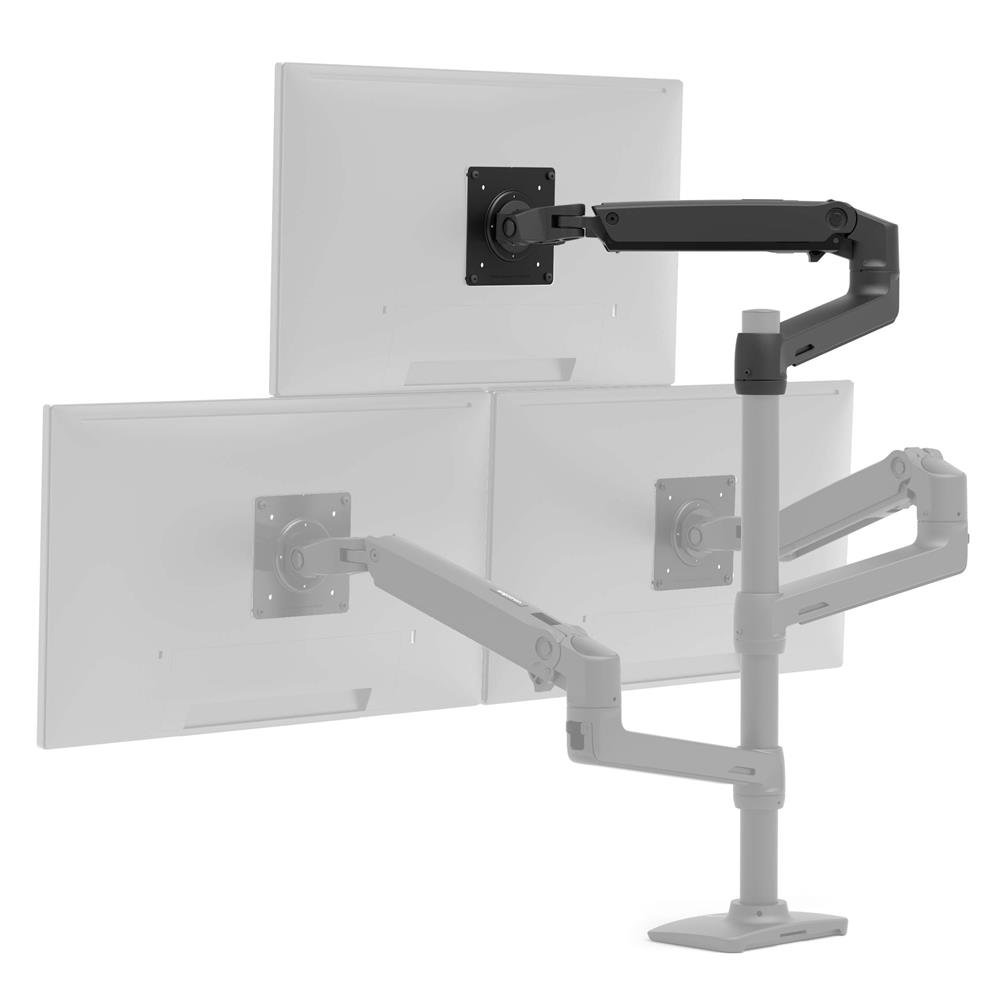

To add a third or fourth display, order the LX Arm, Extension and Collar Kit. To support a laptop, order the Notebook Tray.

Technical Drawing

Technical Drawing for Ergotron 45-509-216 LX Dual Stacking Arm with Tall Pole (white)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 40"

14-44 lbs

6.4-20.0 kg

13"

33.0 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-509-224 (matte black)
DescriptionLX Dual Stacking Arm, Tall Pole

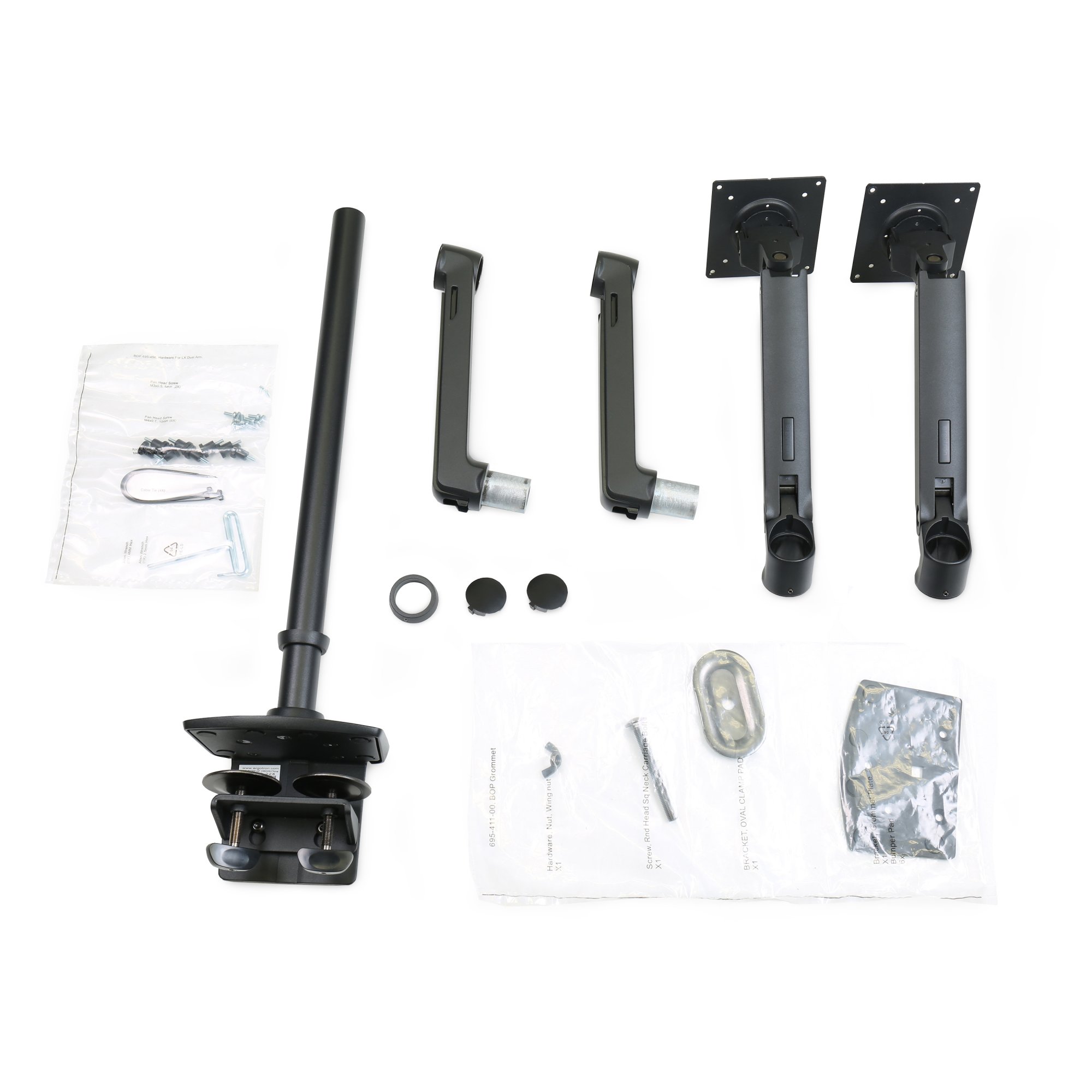

Includes
  • Two LX arms and extensions

  • 23" pole

  • Heavy-duty two-piece desk clamp base with dual screws

  • Two pole collars

  • Two caps

  • Grommet mount plate and hardware

  • Monitor mounting hardware

Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
ConstructionAluminum and steel construction offers greater durability
Clamp and Grommet Mount BaseNew clamp and grommet mount base ensures greater stability of display and arm
Maximum Outside Height of DisplayTo facilitate stacking of monitors, maximum outside height of display should be no more than 21" (53 cm). To align monitors side by side, maximum outside width should be no more than 40" (102 cm). Most monitors with screen sizes of 40" or less fit within this specification
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desk Clamp Desk clamp attaches to surface edge up to 2.6" (66 mm) thick
Grommet MountGrommet mount attaches through hole 0.31" to 2" (8–50 mm) wide and up to 3" (76 mm) thick
Weight Capacity
  • Two arms: 7–22 lbs (3.2–10 kg) each;

  • Three arms: 7–14.6 lbs (3.2–6.6 kg) each;

  • Four arms: 7–11 lbs (3.2–5 kg) each

Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Product Weight 19 lbs (8.62 kg)
Shipping Dimensions 17.1" x 17.7" x 29.9" (18 x 45 x 76 cm)
Shipping Weight 24 lbs (10.9 kg)
Warranty Ten (10) years

Benefits

  • Extra flexibility - Each arm lifts, extends and rotates for the best view

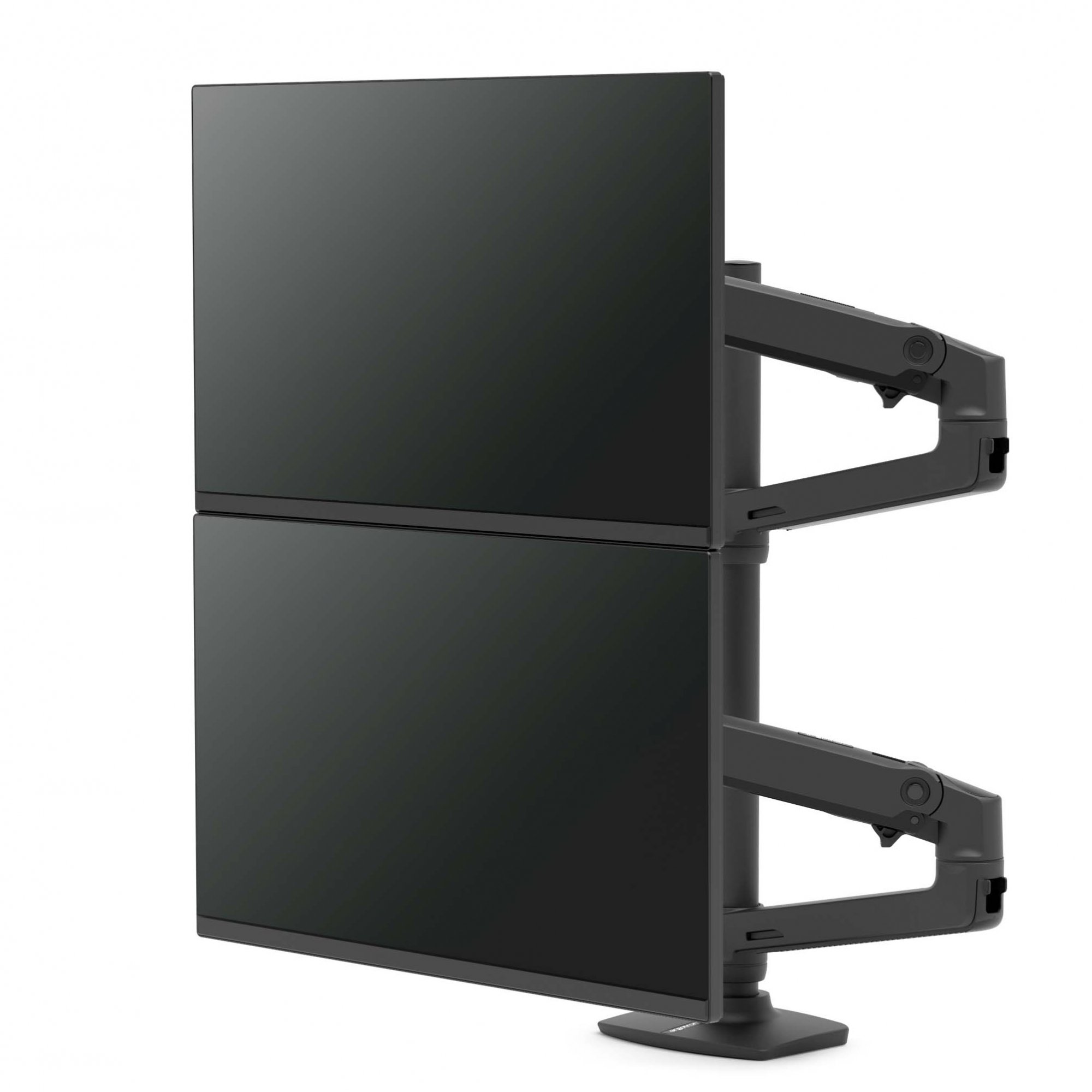

  • More motion - Places screens one over the other or on either side

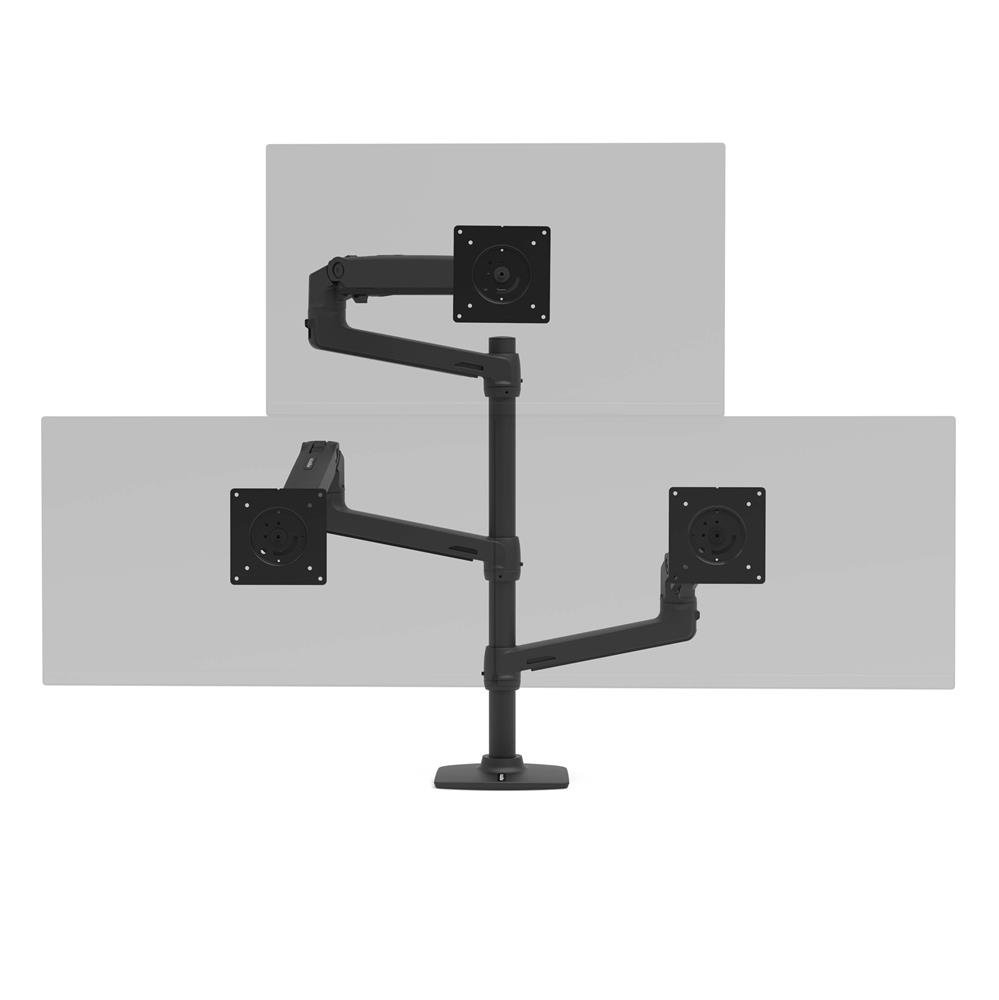

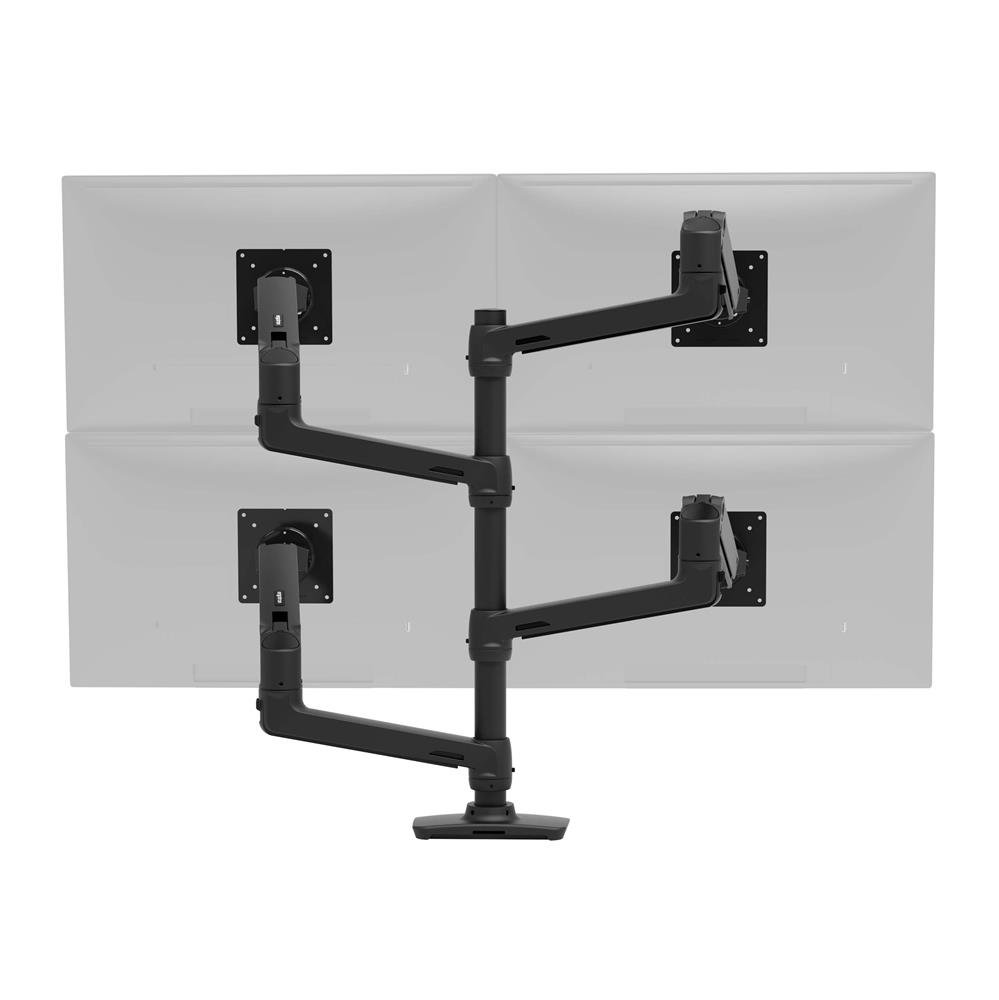

  • Multi-purpose - Support up to four screens with the LX Arm, Extension and Collar Kit accessory

  • Sleek build - Streamlined look enhances your work area

  • Stable fit - Durable construction keeps screens steady

  • Quality design - Built for thousands of movements by passing 10,000-cycle test

Model 45-509-224
Manufacturer Ergotron
Part Number 45-509-224
UPC 698833075700
Color Matte black
Monitor Size Up to 40"
Weight Capacity 14–44 lbs (6.4–20.0 kg)
Lift (33.0 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Surface Edge Thickness Up to 2.6" (66 mm) thick
Grommet Hole Size Range 0.31" to 2" (8–50 mm) wide and up to 3" (76 mm) thick
Weight 19 lbs (8.6 kg)
Shipping Dimensions 17.1" x 17.7" x 29.9" (18 x 45 x 76 cm)
Shipping Weight 24 lbs (10.9 kg)
Warranty Ten years
Maximum Monitor Size 40"
Monitor Placement Side-by-Side
