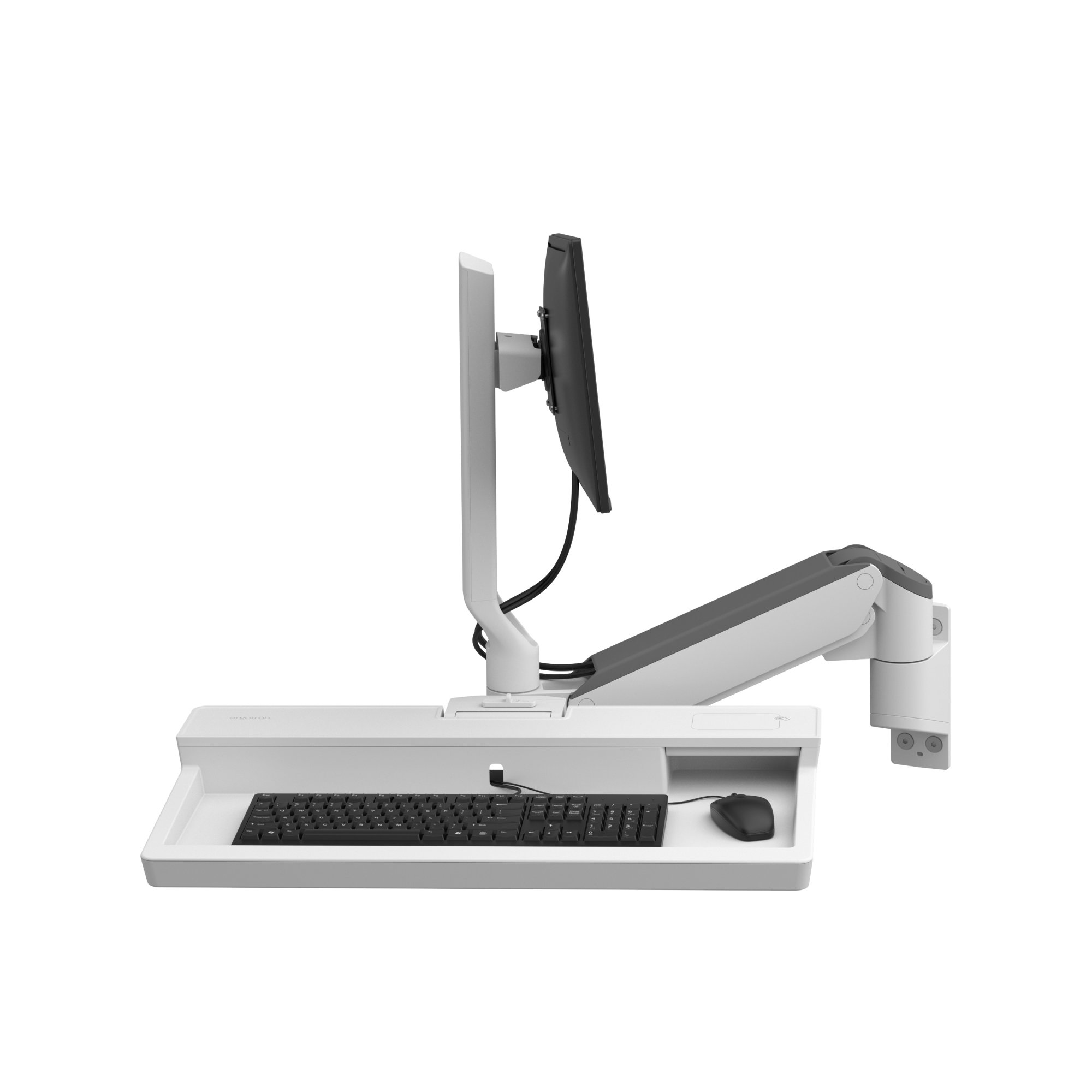

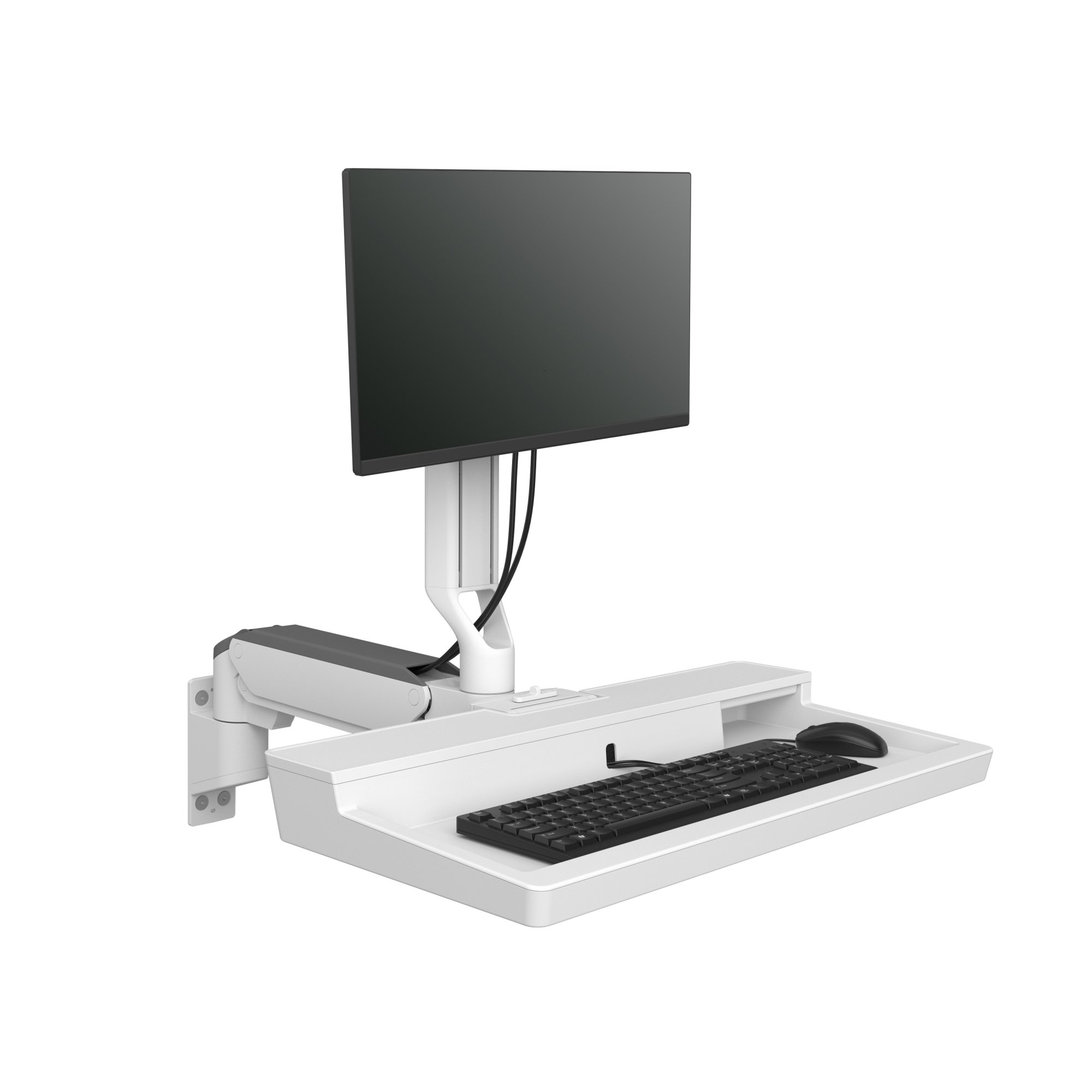

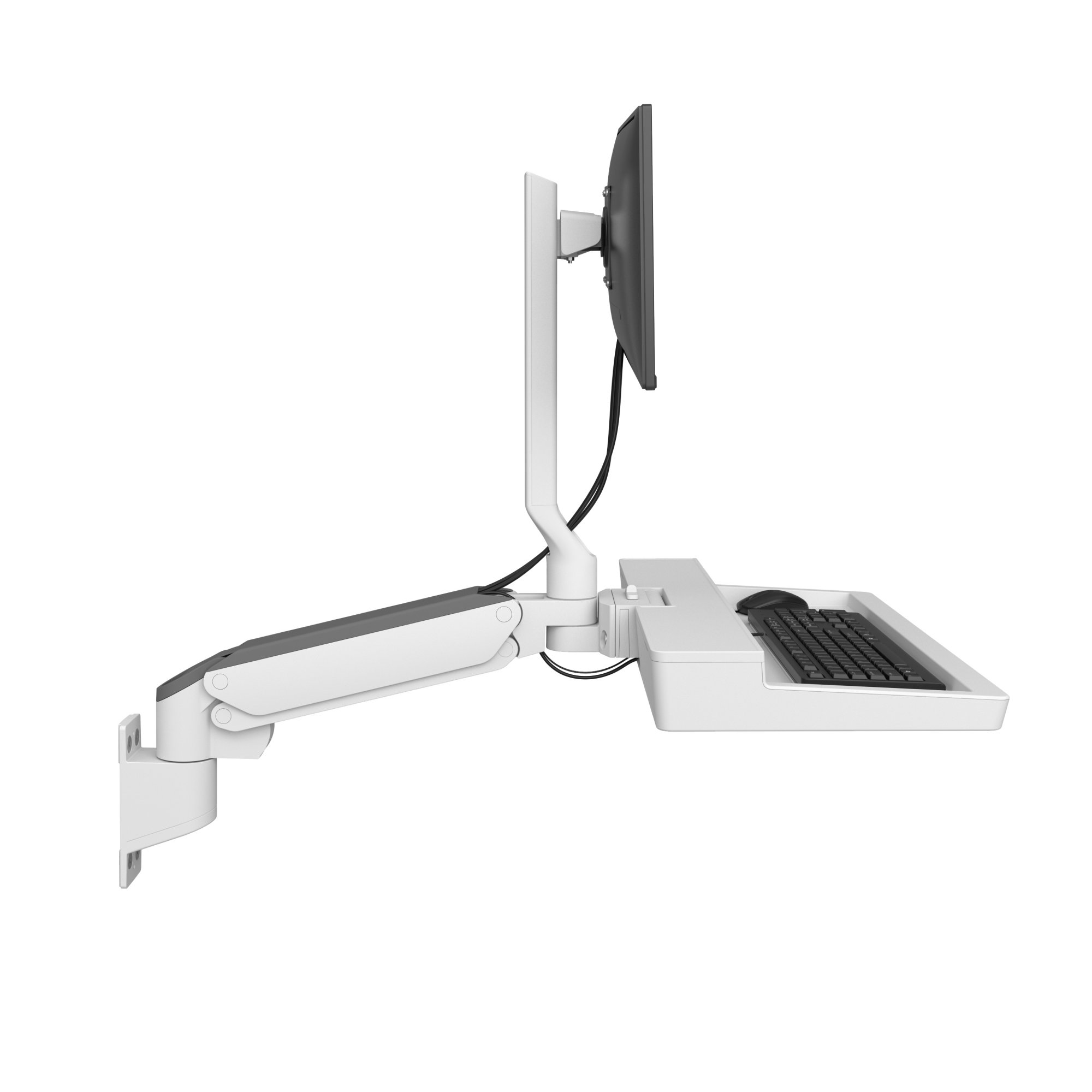

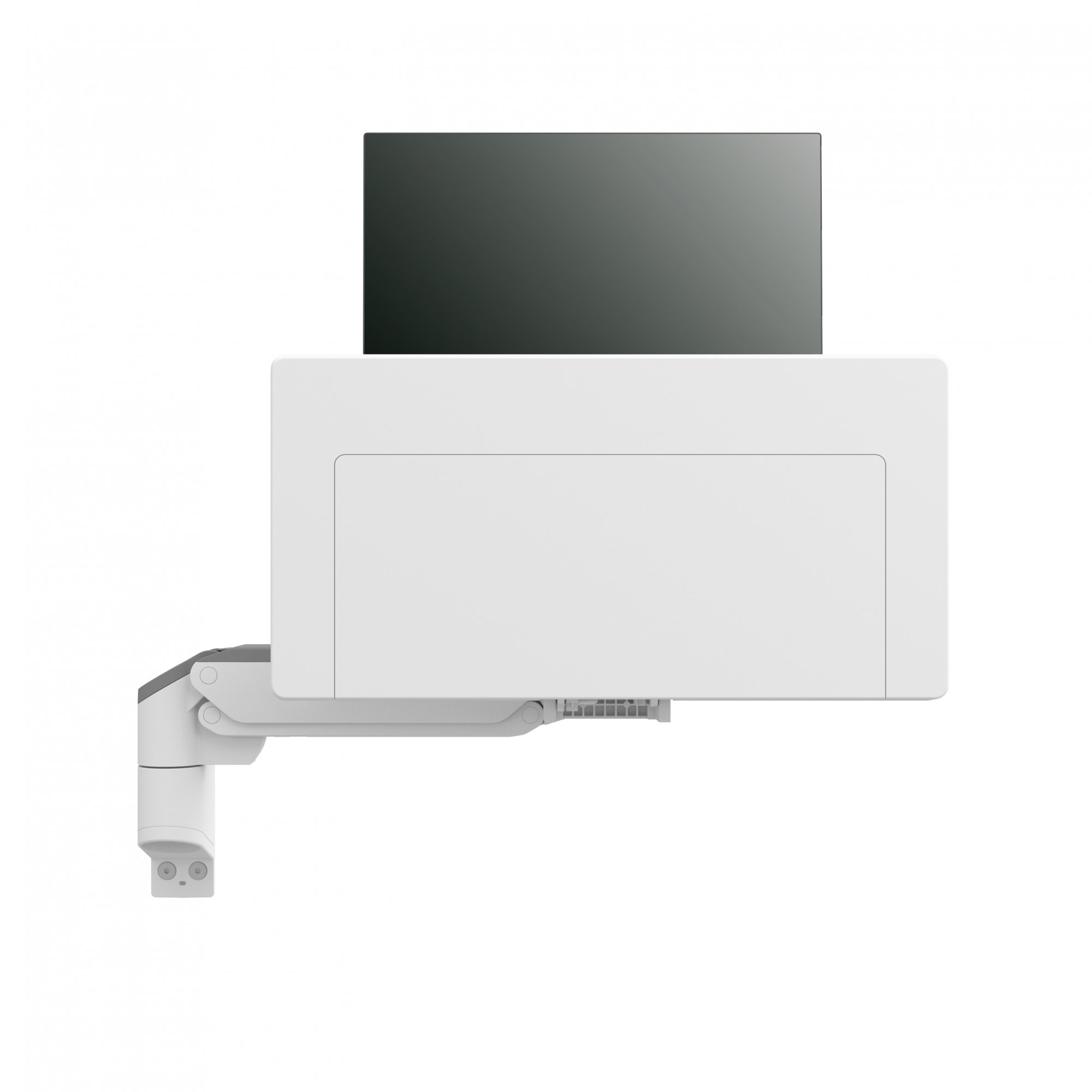

Ergotron 45-621-251 CareFit Combo Keyboard and Monitor Mount Arm

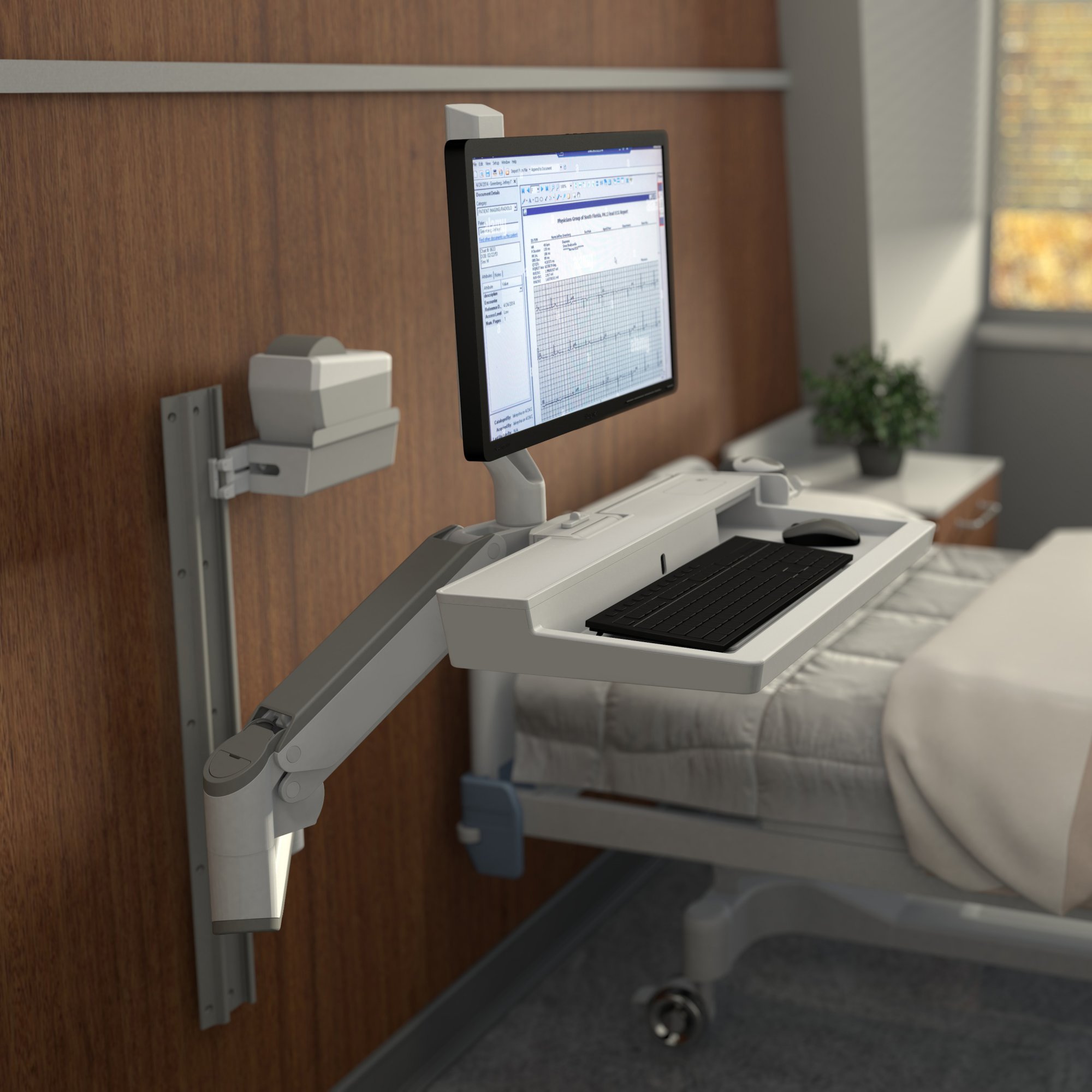

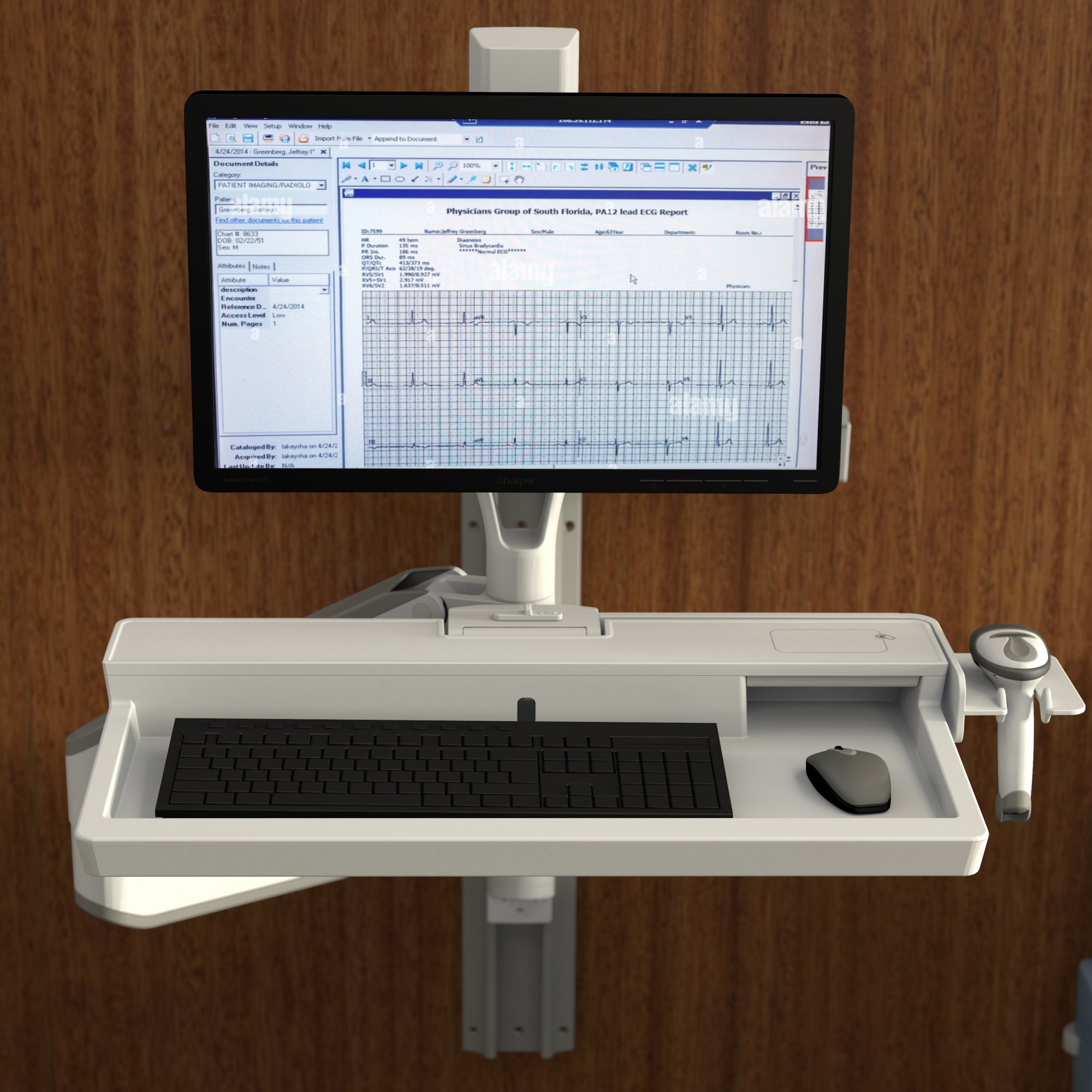

Ergotron 45-621-251 modular CareFit Combo Arm supports nurse-patient connections, caregiver comfort and uptime by enabling efficient documentation at the point of care. The wall mount is easy to reposition and store, offers an area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables.
|Up to 27"||
8 - 23.5 lbs
3.6 - 10.7 kg
|Description||CareFit Combo Arm|
|Exterior||Durable, easy-to-clean exterior composed of aluminum, high-grade plastic|
|Weight Capacity||Display = 8–22 lbs (3.6–10 kg); keyboard and mouse = 1.5 lbs (0.7 kg)|

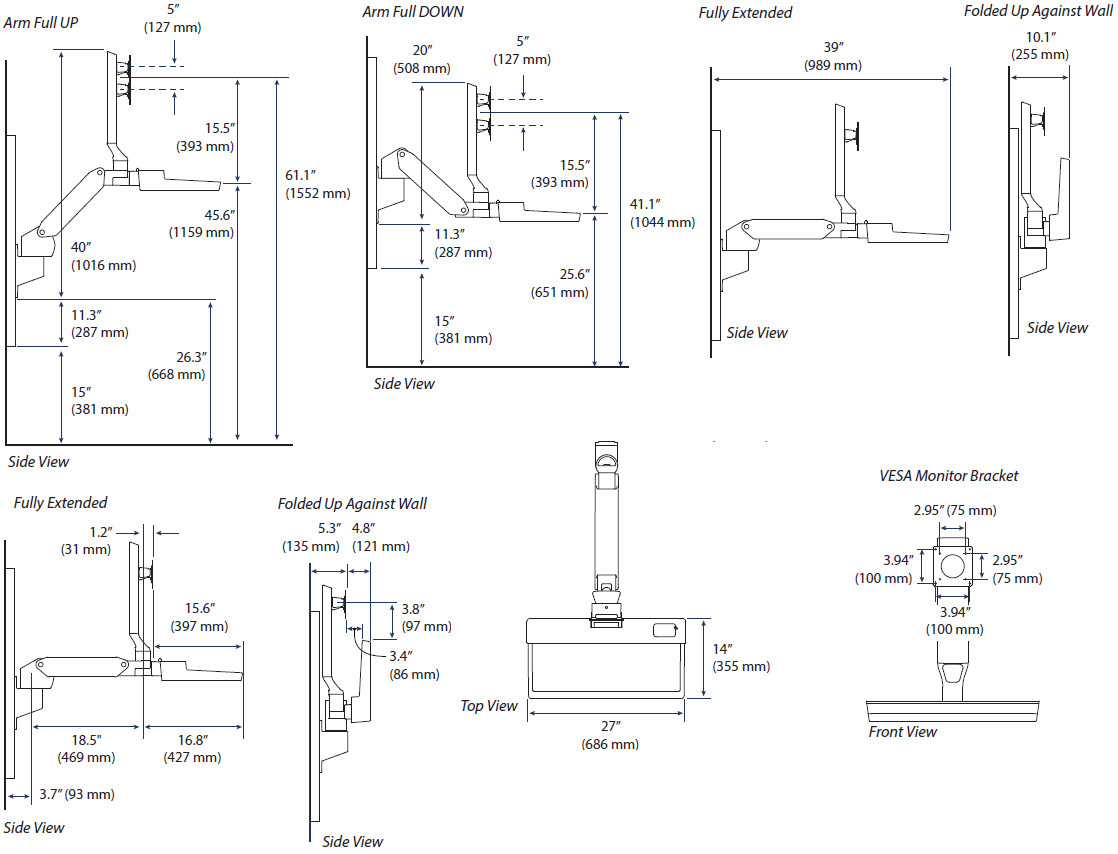

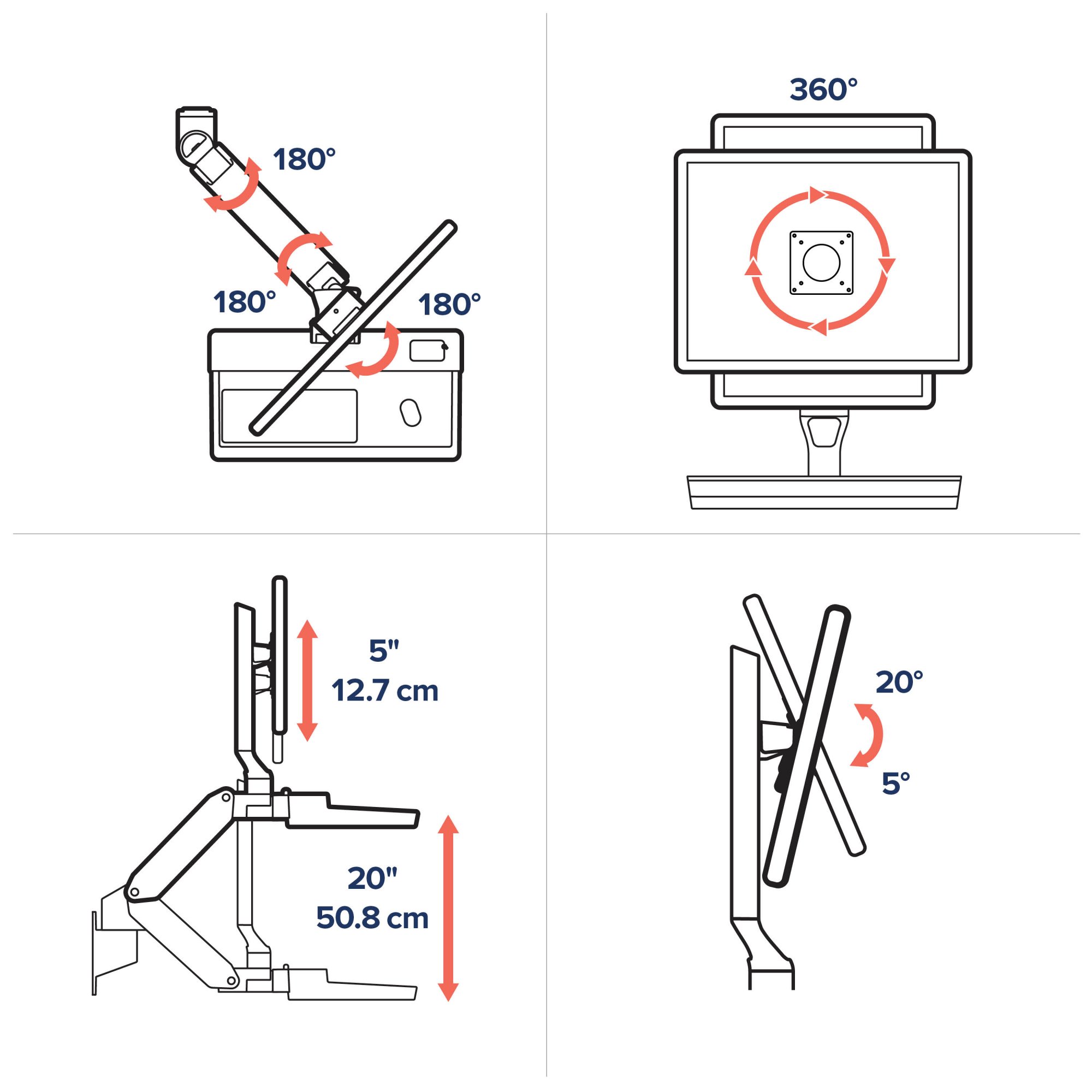

|Lift Range||Monitor and keyboard adjust 20" (51 cm) in tandem with single-motion; monitor adjusts 5" (13 cm) independently; maximum monitor height adjustment = 25" (64 cm)|
|Pan Range||Arm can turn 180° at two points for 360° total side to side motion; monitor can also turn 180° independently|
|Tilt Range||Monitor tilts 20° up / 5° down; keyboard tilts 90° up for space-saving storage|

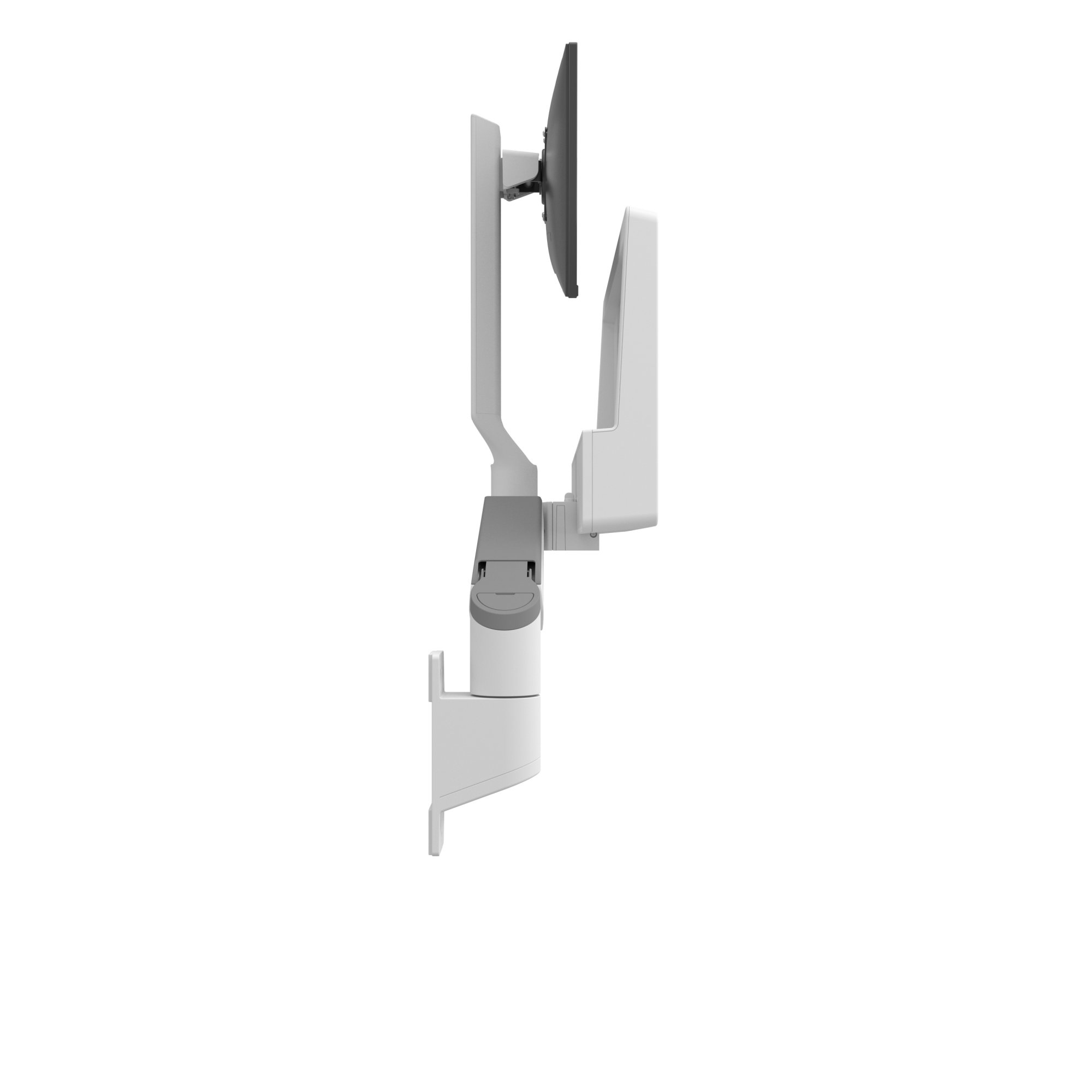

|Folds||Folds to within 9" (23 cm) of wall in stowed position|
|Mounting Standards||VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)|

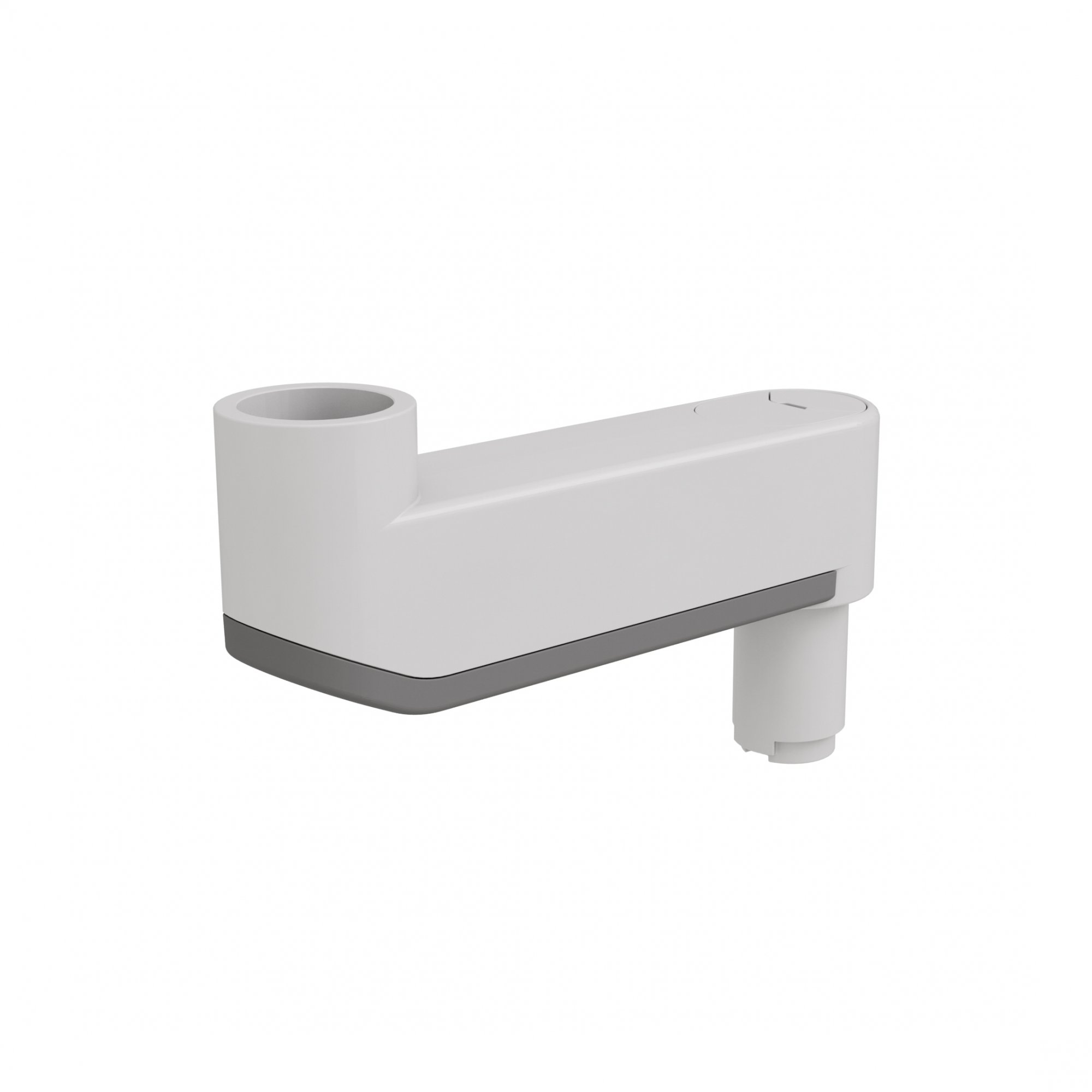

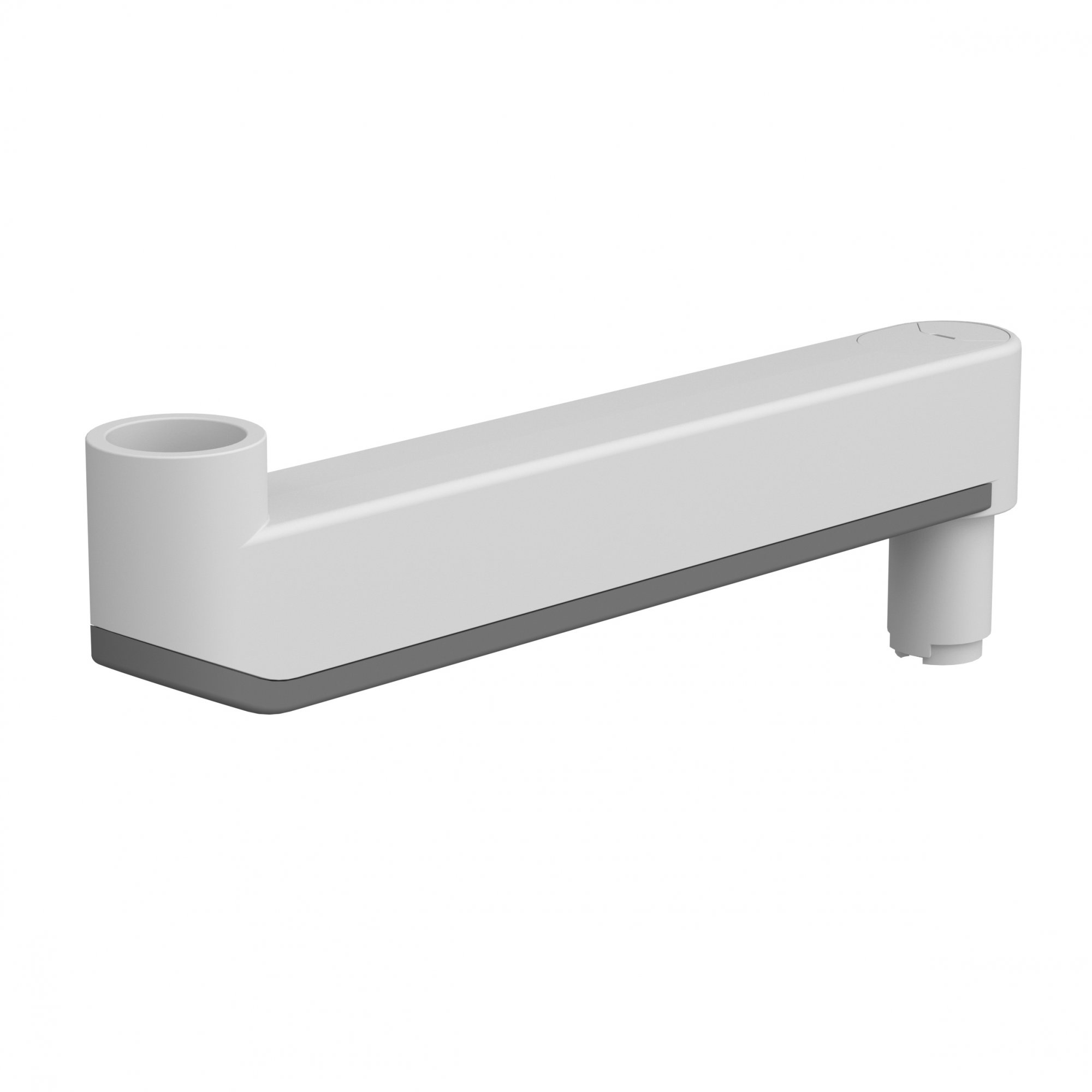

|Extender Accessory||To increase extension range, also order the CareFit Extender accessory, 98-547-251|
|Product Weight||40.5 lbs (18.4 kg)|
|Shipping Dimensions||25.5" x 22.1" x 11.1" (65 x 56 x 28 cm)|
|Shipping Weight||53 lbs (24.1 kg)|
|Warranty||Five (5) years|
Flexible workflows - Easy screen sharing and one-hand stowing enhances patient interactions
Comfortable documentation - Offers ergonomic height-adjustment and intuitive access to tools

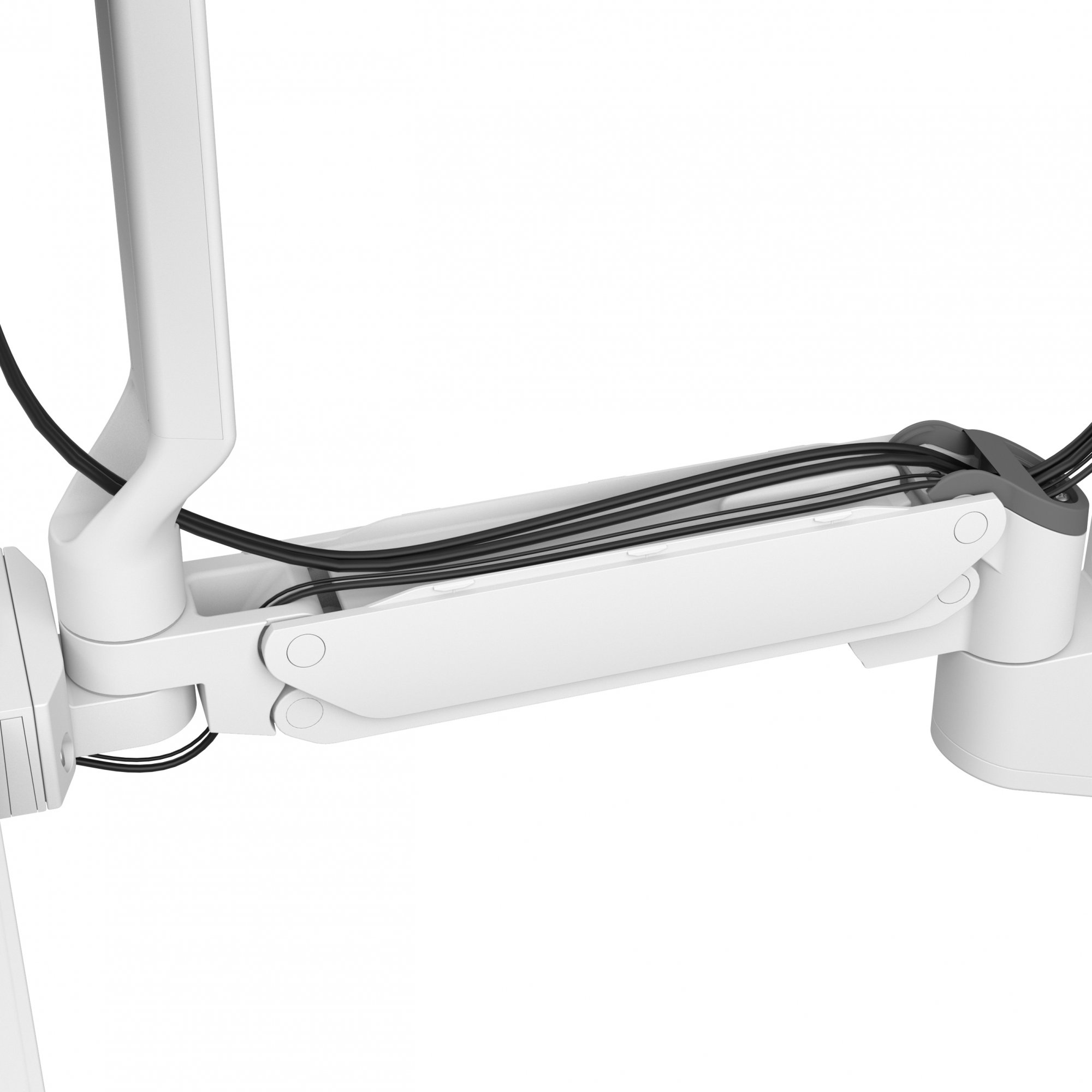

Neat workspace - Concealed cable management minimizes clutter and supports infection control
Supports uptime - Convenient cord access simplifies maintenance with timely support available from our expert team
Warm aesthetic - Modular wall mount enhances new and existing healing spaces
Quality construction - Sturdy design supports multiple configurations and installation options
|Monitor Size||Up to 27"|
|Weight Capacity||8–23.5 lbs (3.6–10.7 kg)|
|Lift||(63.5 cm) 25 in|
|Mounting Pattern||VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)|
|Weight||40.5 lbs (18.4 kg)|
|Shipping Dimensions||25.5" x 22.1" x 11.1" (65 x 56 x 28 cm)|
|Shipping Weight||53 lbs (24.1 kg)|
