Workrite ASCENT4 LX Electric Rectangular 2-Stage, 2-Leg Workcenter
Description
The Ascent4 Sit-Stand Desk offers all the performance and features you’ve come to know from Workrite, packed into a value based solution. The Ascent4 LX two-stage sit-stand model feature a limited height range of 27.5" to 47.2" for a good user height range at our lowest price offered. The Ascent4 EX features the BIFMA G1-2013 Ergonomic Height Range, giving you the most ergonomic option in sit-stand tables. Other thoughtful features include Digital Readout Programmable Memory controller, Standard Up/Down Button controls, One-Touch Auto Move, advanced Gyro Anti-Collision, and integrated cable management.
There is a 7 Year Warranty on all ASCENT4 desks.

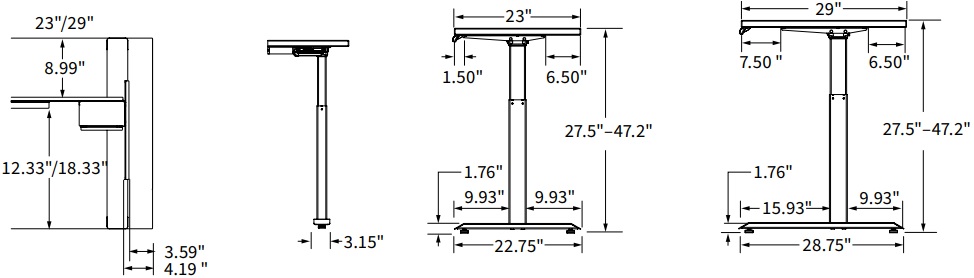

Frame Set Dimensions
Frame Set Features
Available for 24" and 30" deep worksurfaces
Rectangle sizes from 30" to 72" wide
Powdered coated steel finish in Silver, Black, or White
Gyro-Sensor Anti-Collision
Optional Digital Memory Switch & Standard Switch
Height range of 27.5" to 47.2"
2-leg payload carry capacity: 200 pounds (after top)
2-leg gross load capacity: 308 pounds (not including top and safety factor)
Adjustment speed: 1.2 inches per second
Maximum power draw: 4.0 A at 120 V, 60 Hz
Standby power draw: 0.3 W
9-foot power cord meets Chicago Code requirements
Meets or exceeds BIFMA X5.5 standards
GREENGUARD GOLD Certified
UL962 Listed
7-Year Warranty
Product Options/Accessories
Model | ASCENT4 LX |
Manufacturer | Workrite Ergonomics |
Part Number | ASCENT4 LX |
Frame Color | Silver, Black and White |
Width Range | 30" to 72" |
Worksurface Depth | 24" and 30" |
Height Range | 27.5" to 47.2" |
Weight Capacity | 200 lbs (after top), 308 lbs (not including top and safety factor) |
Maximum Current | 4 A at 120 V, 60 Hz |
Speed | 1.2" per second |
Power Cord | 9' |
Warranty | 7 year |
Switch | Digital Memory Switch and Standard Switch |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

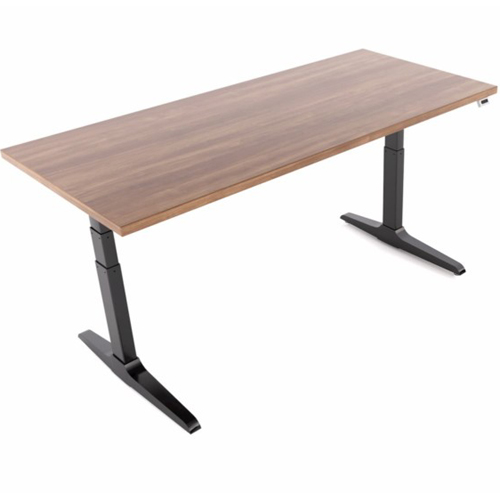

Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
