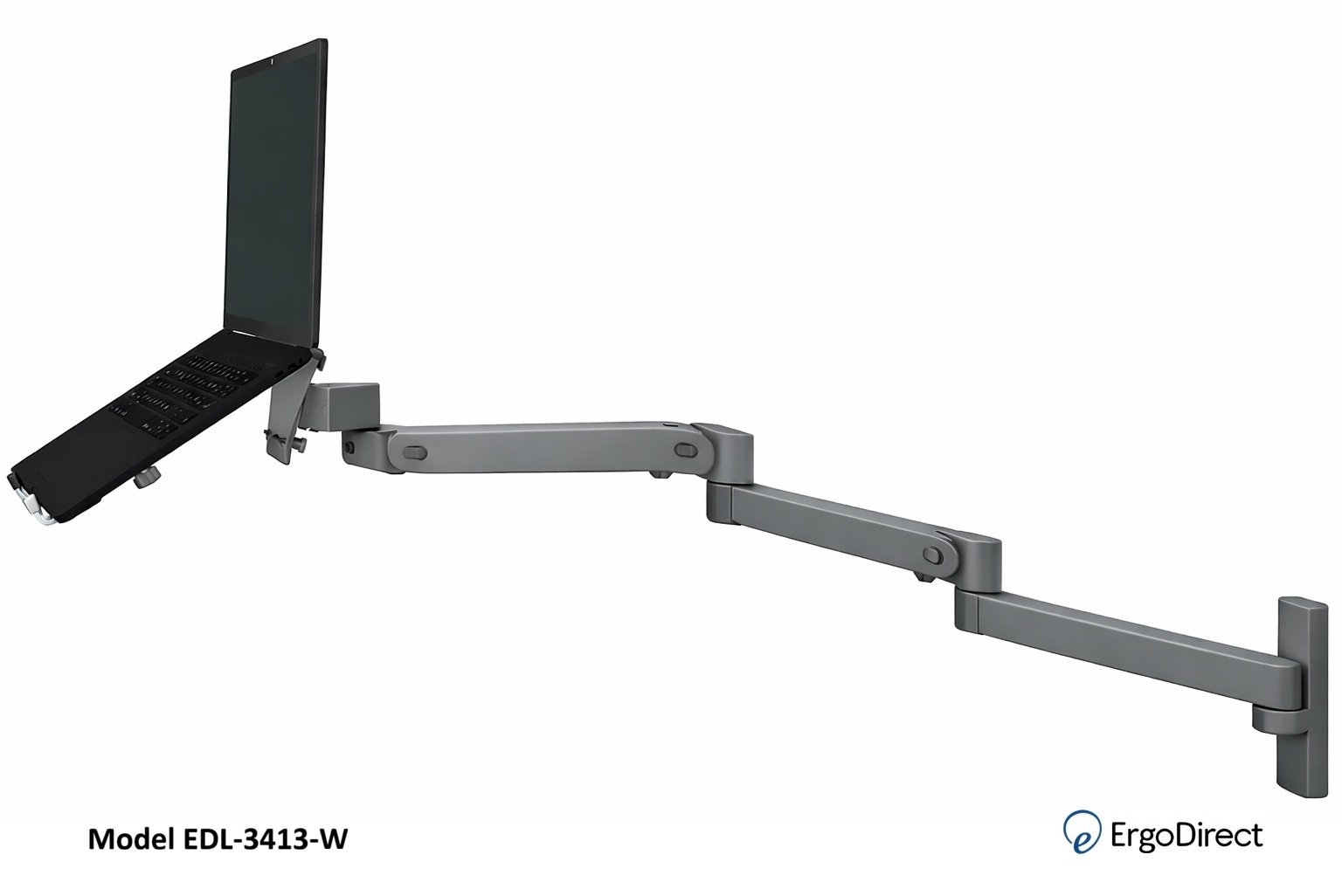

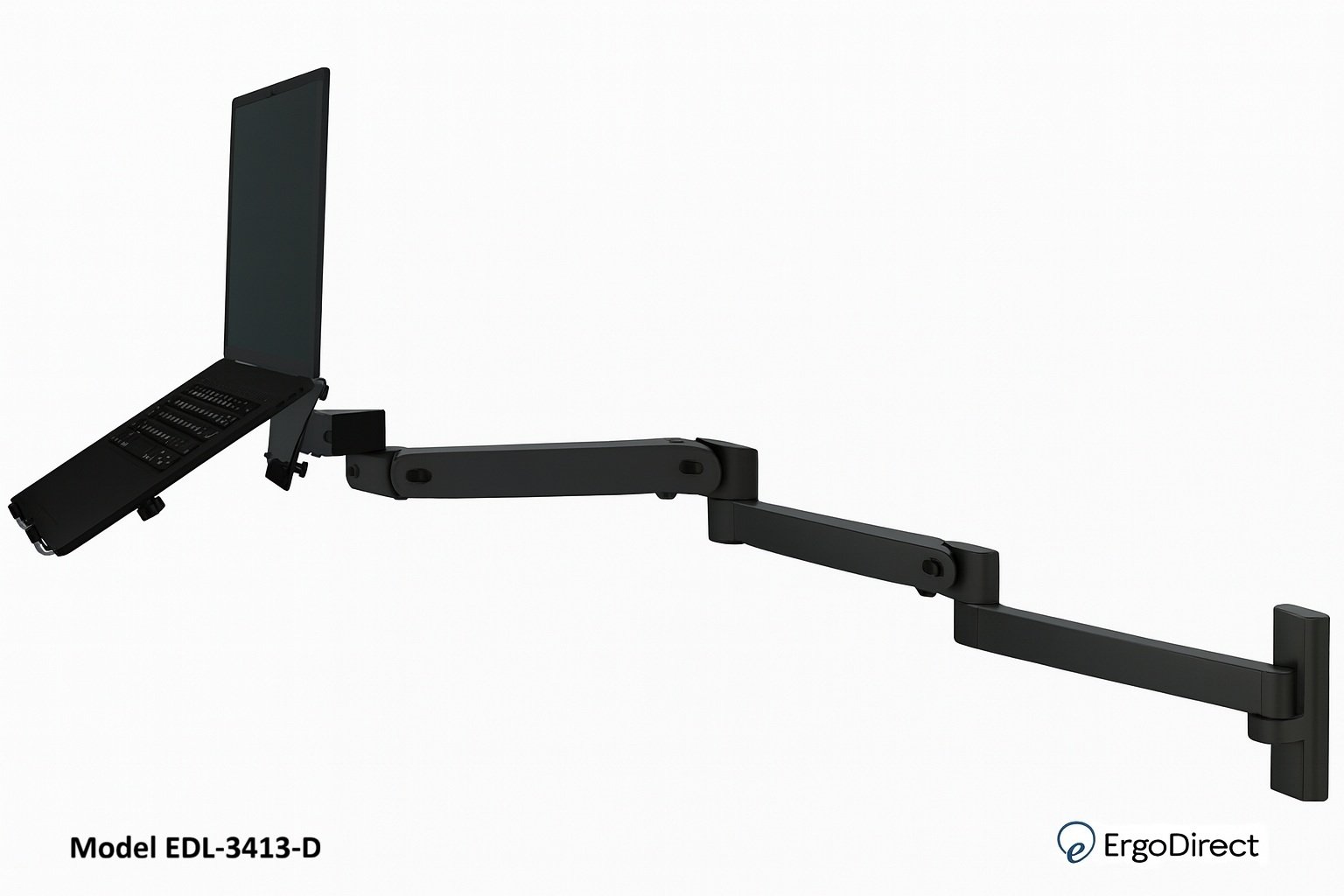

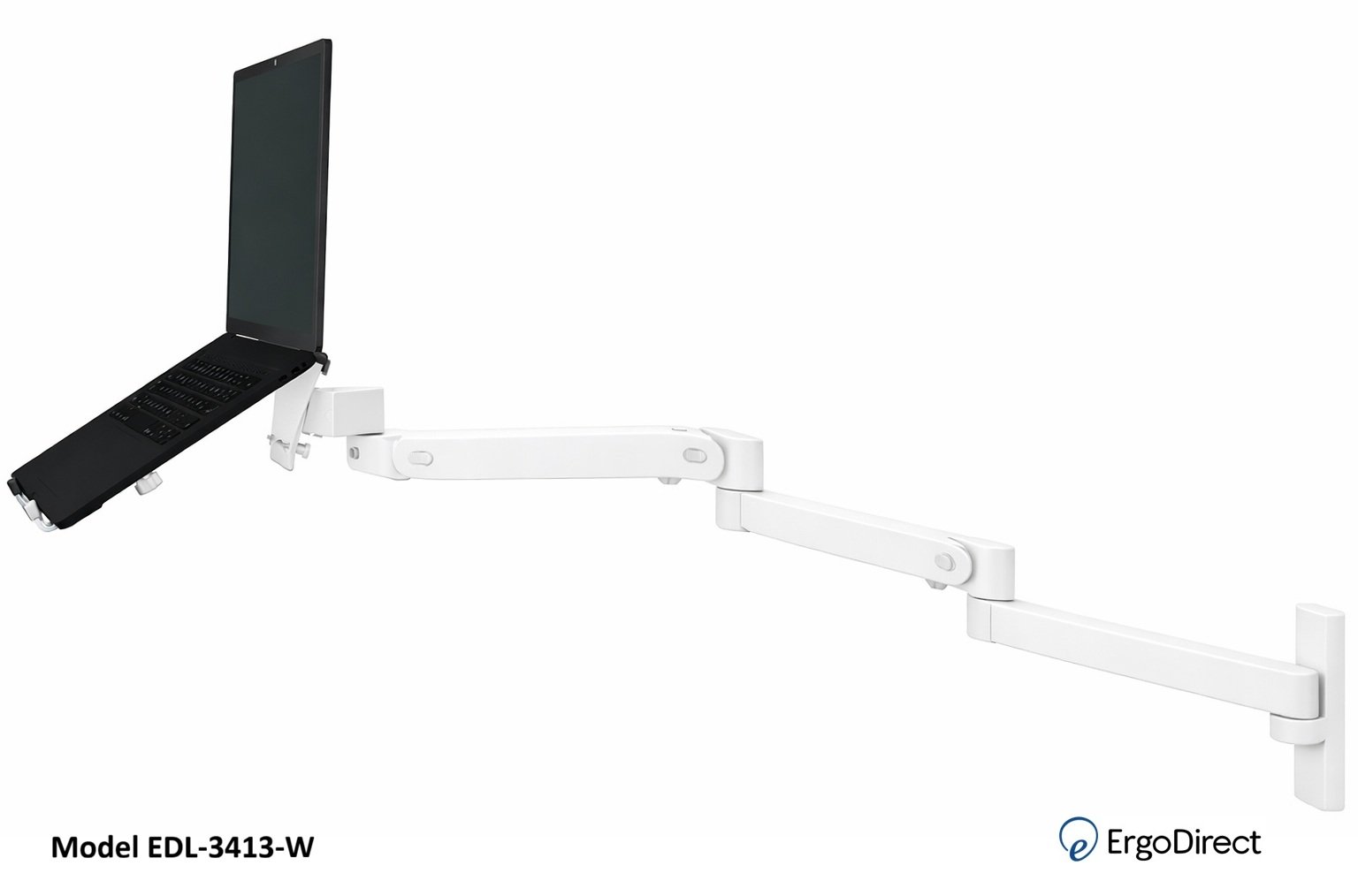

ErgoDirect EDL-3413-W Long Reach Wall Mount Laptop Arm
Description
This ingenious wall mount notebook arm makes viewing of a laptop screen more comfortable, offering far more adjustment capability than standard laptop mount products. When in space-constrained areas where a desk surface is unavailable, create a more productive workflow with your notebook computer being easily accessible.
Add even more adjustment flexibility with a second extension on your LX Pro Desk Monitor Arm, Wall Monitor Arm or Keyboard Arm. This accessory add-on can increase an arm’s reach by 9" (23 cm) while providing a fourth rotation point.
Note: Only one additional extension is allowed per arm. Not recommended for use with multi-monitor configurations. LX Pro components are not compatible with the legacy LX or other product lines.

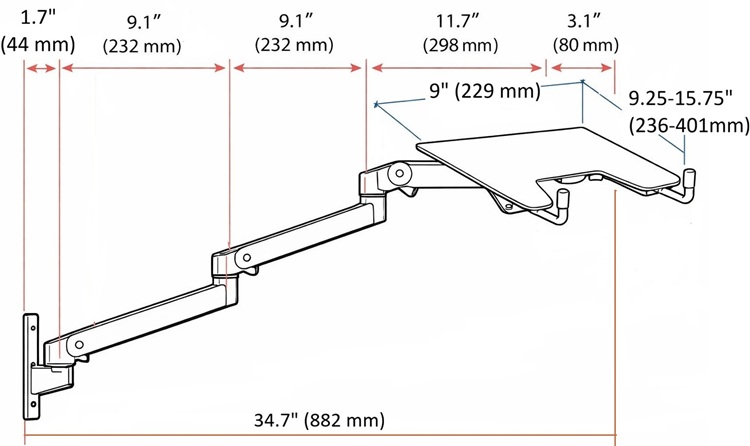

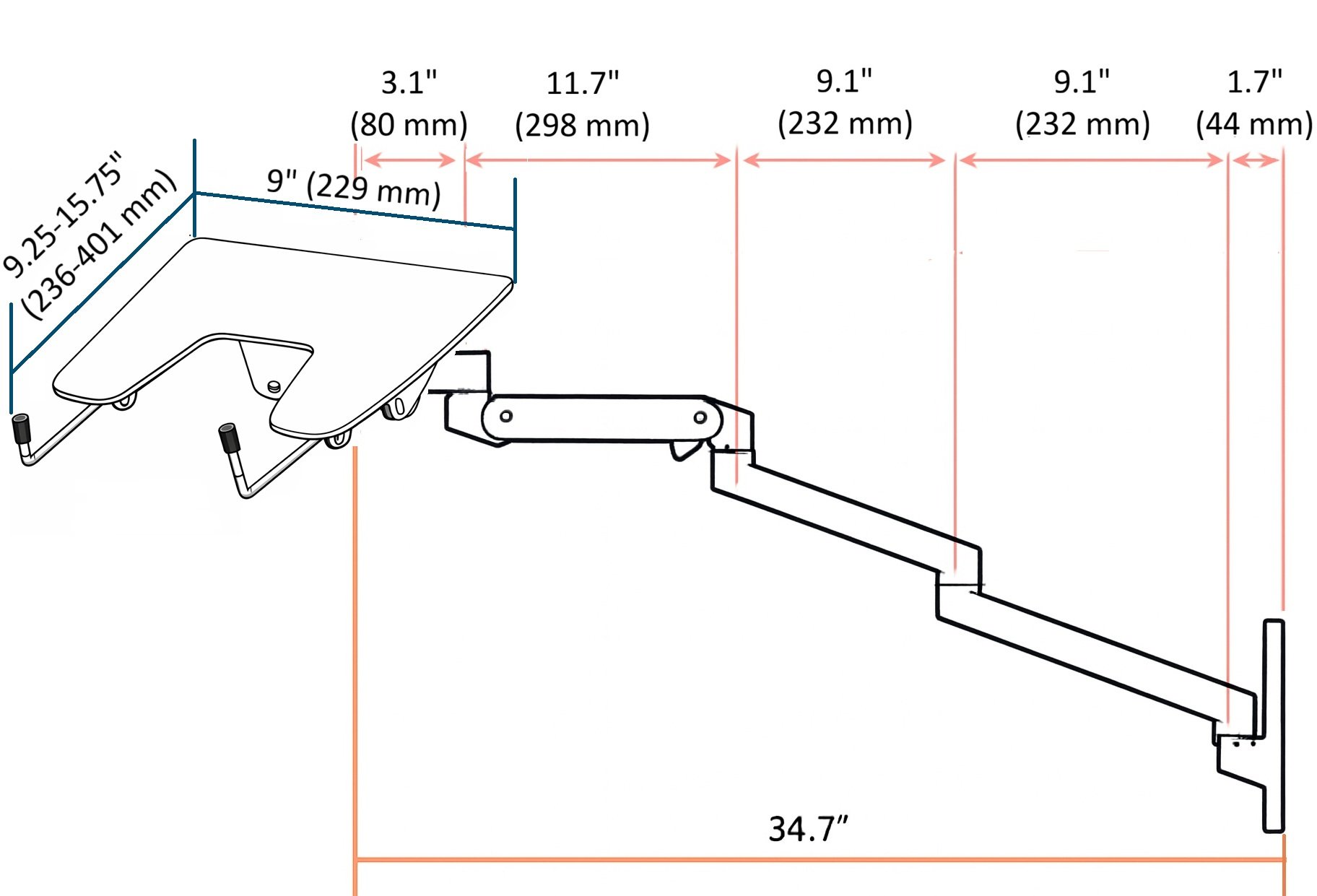

Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
|
Up to 17.3" |
– |
13" 33.0 cm |
85° |
360° | - |
MIS-D |
Product Information
| LX Pro Wall Monitor Arm | |
| Color | Black, Dark grey, White |
| Includes | Arm, extension, monitor pivot, wall mount base, fasteners for wood stud or concrete wall, attachment hardware |
| Attaches | Attaches directly to sturdy vertical surfaces. When extra support is needed, order a Wall Plate or Wall Track accessory (Wall Track also requires separately ordered bracket 97-091) |
| Product Weight | 6 lbs (2.7 kg) |
| Shipping Dimensions | 21.1" x 7.3" x 6.5" (53.5 x 18.5 x 16.5 cm) |
| Shipping Weight | 8.1 lbs (3.7 kg) |
| Warranty | Ten years |
| Notebook Tray | |
| Color | Black |
| Includes | Tray, adjustable rails, fasteners, attachment hardware |
| Comes | With fasteners that can hold a laptop or dock in place: use non-slip pads, clips or Velcro |
| Product Weight | 2.2 lbs (1 kg) |
| Shipping Dimensions | 9.6" x 9.25" x 3.5" (24.5 x 23.5 x 9 cm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Warranty | Five years |
| LX Pro Extension | |
| Color | Black, Dark grey, White |
| Includes | 9" extension, end cap |
| Note | Only one additional extension is allowed per arm Adding an additional extension is not recommended for multi-monitor arms |
| Important | Adding this extension to your mount may reduce its weight capacity. When used with the LX Pro Desk Monitor Arm, weight capacity is reduced to 18 lbs (8.1 kg); when used with the LX Pro Wall Monitor Arm, weight capacity is reduced to 20 lbs (9.1 kg) |
| Product Weight | 1.0 lbs (0.45 kg) |
| Shipping Dimensions | 18.7" x 14.2" x 9.6" (47.5 x 36 x 24.5 cm) |
| Shipping Weight | 1.8 lbs (0.82 kg) |
| Warranty | Ten years |
Benefits
Comfortable fit - Offers ergonomic screen positioning using Constant Force Technology
Flexible design - Use with or without a docking station; handles virtually any size laptop
Sleek build - Streamlined look enhances your work area
Easy storage - Folds flat against the wall for a zero-footprint solution
Neat look - Cables stay hidden under the arm and through the extension
Quality design - Built for thousands of movements by passing 10,000-cycle test
Extra flexibility - Increases the arm’s reach to fit more users and applications
Durable design - Aluminum construction is built to last
Neat workspace - Cable management routes cords under the arm, out of the way
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model EDL-3413-W
- Manufacturer ErgoDirect/Ergotron
- Part Number EDL-3413-W
- Color Black, Gray and White
- Horizontal Adjustment 34.7 in
- Height Adjustment 13"
- Weight Capacity Laptop weight between 3-8 lbs
- Weight LX Pro Wall: 8.3 lbs (3.8 kg) LX Pro Laptop: 2.2 lbs (1 kg) LX Pro Extension: 1.0 lbs
- Shipping Dimensions LX Pro Wall: 21.1" x 7.3" x 6.5" (53.5 x 18.5 x 16.5 cm) Laptop Tray: 9.6" x 9.25" x 3.5" (24.5 x 23.5 x 9 cm) LX Pro Extension: 18.7" x 14.2" x 9.6" (47.5 x 36 x 24.5 cm)
- Shipping Weight LX Pro Wall: 8.1 lbs (3.7 kg), Laptop Tray: 3 lbs (1.4 kg), LX Pro Extension: 1.8 lbs
- Warranty LX Pro Wall: 10 years, LX Pro Extension: 10 years, Laptop Tray: 5 years
