Ergotron 28-097-200 Desk Mount Arm 200 Series 28097200

Ergotron 28-097-200 Desk Mount Arm 200 Series 28097200

This product has been discontinued.



!cid_24F9AEAB140D40BF9D8FCCC587D000A3@De

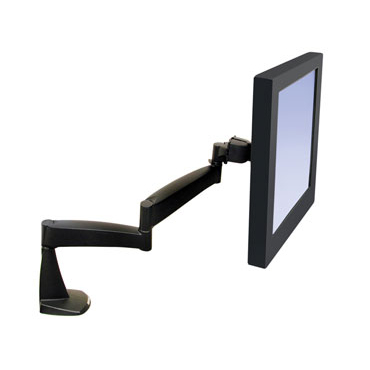

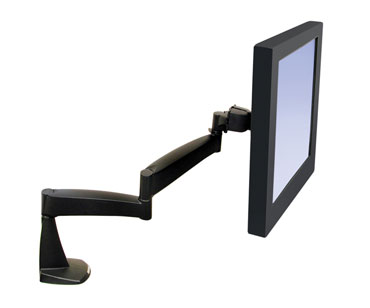

Ergotron 28-097-200 Desk Mount Arm 200 Series

General Information





Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically




Ergotron 28-097-200 Desk Mount Arm 200 Series

Ergotron 28-097-200 Desk Mount Arm 200 Series

   Ergotron 28-097-200 Desk Mount Arm 200 Series:

The interlocking design of the 200 Series provides telescoping adjustment.Easily extend or retract your monitor through a 23" range of motion.

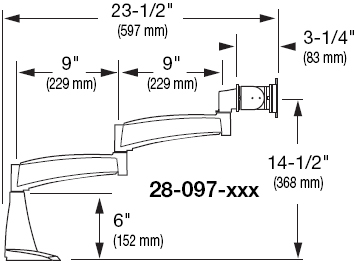

Ergotron 200 Series Desk Mount Monitor Arm Dimensional Diagram



Ergotron 200 Series Desk Mount Monitor Arm Dimensional Diagram




Technical Specifications:


 icon_weight.jpg icon_height.jpg icon_tilt.jpg icon_pan.jpg icon_pl.jpg icon_vesa.jpg

     LCD Size

  Wt. Capacity      Lift Tilt Pan Rotation VESA

 up to 22.9"

up to 58.3 cm

 up to 25 lbs

up to 11.3 kg

-

 180° 180° 360° P/L MIS-D


Comparison Chart for Ergotron Desk Mounts:



LCD size image

Weight capacity image

Lift image

Tilt image

Pan image

Rotation image

VESA image

Product No

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

45-179-195

up to 20"

up to 51 cm

5-20 lbs

2.3-9.1 kg

13"

33 cm

 80°

180°

90° P/L

MIS-D

45-179-194

up to 20"

up to 51 cm

5-20 lbs

2.3-9.1 kg

13"

33 cm

80°

180°

90° P/L

MIS-D

33-310-060

up to 20"

up to 51 cm

6-16 lbs

2.7-7.2 kg

5"

13 cm

30°

270°

90° P/L

MIS-D

33-315-194

 -

3.5–14 lbs

1.6–6.3 kg

6"
15 cm

+25°

-15°

360°

-

-

45-192-194

-

2.5-12 lbs

1.14-5.45 kg

13"

33 cm

80°

180°

-

-

45-192-195

-

2.5-12 lbs

1.14-5.45 kg

13"

33 cm

80°

180°

-

-

45-174-300

up to 20"

up to 51 cm

up to 18 lbs

up to 8.2 kg

8"

20 cm

180°

180°

360° P/L

MIS-D

28-097-200

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

-

180°

180°

360° P/L

MIS-D


Product Information:
Part Number: 28-097-200
Description: 200 Series Desk Mount LCD Arm (black)
Includes: Desk clamp and grommet mount
Weight Capacity: 25 lbs (11.3 kg)
Mounting Options: Desk Clamp attaches to surface edge 1/2" to 2-1/8" (13 to 54 mm) thick; Grommet Mount attaches through surface holes 3/8" to 3" (10 to 76 mm) wide and up to 4" (152 mm) thick .
Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight: 16.5 lbs (7.5 kg
Warranty: Five (5) years


Benefits:
Sturdy steel construction.
Position an LCD at the point of need, then push it back out of the way when not in use.
Cable management system routes and conceals cables under the arm.
Patented friction system provides long-life adjustment while maintaining touch-screen stability.



Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustration

reader-14.jpg - pdf

275 KB

Product Sheet

reader-14.jpg - pdf

341 KB

Installation Manual

reader-14.jpg - pdf

1071 KB

Installation Manual

reader-14.jpg - pdf

1109 KB
