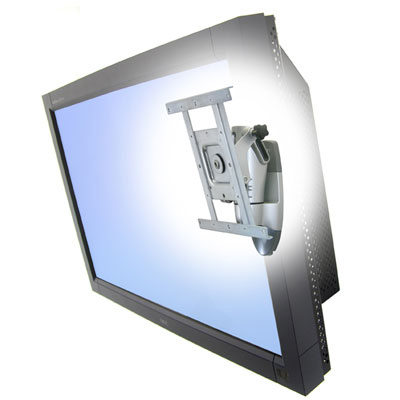

This pivot offers a flexible alternative to rigid wall mounts for displays weighing up to 50 lbs (23 kg). Embedded CF technology enables effortless screen adjustment for optimal viewing comfort.

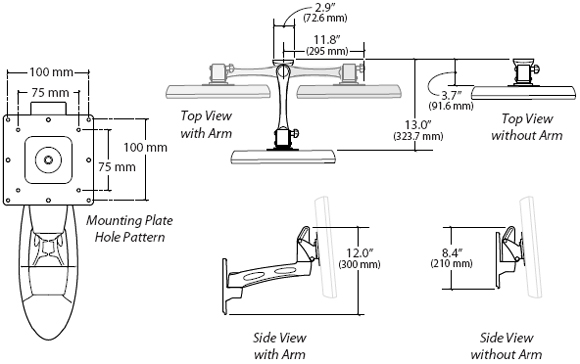

Dimensional Diagram for Ergotron Neo-Flex HD Wall Mount
Technical Specifications:
LCD Size
Wt. Capacity
Lift
Tilt
Pan
Rotation
VESA
19"-32"
48-81 cm
up to 50 lbs
22.7 kg
-
20 degree
40 degree
360 degree P/L
MIS-D/E/F
Product Information:
Part Number:
45-195-194 (retail : 45-196-194)
Description:
Neo-Flex HD Wall Mount Pivot (silver)
Mounting Options:
Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately).
Weight Capacity:
50 lbs (22.7 kg)
Display depth:
Greater than 4" (10 cm) may diminish capacity.
UL Compliant:
Neo-Flex HD has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
Mounting Standards:
VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm ONLY)
Shipping Dimensions:
9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)
Shipping Weight:
4.55 lbs (2.1 kg)
Warranty:
Three (3) years
Benefits:
Most affordable solution for medium displays.
Rock-solid construction secures your display investment.
Effortless adjustment for premium viewing.
Easy three-step installation.
Pleasing aesthetics make it perfect for the home or office.
Integrated tilt lock-down feature.

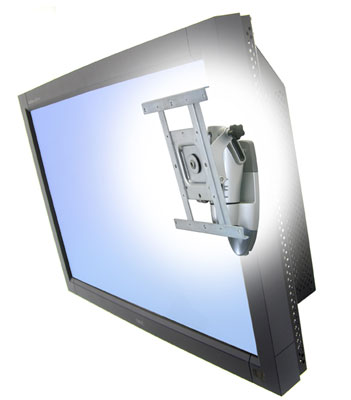

Images:
