The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 24-183-194 LX Video Conferencing Cart discontinued replaced 24-191-057

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 14429
Our Price: $1,034.91
Shipping: $75.22 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Accessories for Ergotron 24-183-194 LX Video Conferencing Cart



Ergotron 80-102-064 Universal CPU Holder

Universal CPU Holder

80-102-064


Small CPU Holder

80-063-200




Medium CPU Holder

80-058-200

Ergotron 83-002 Power Strip

Ergotron Power Strip

 83-002

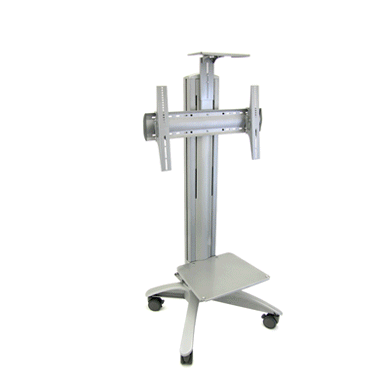

Ergotron 24-183-194 LX Video Conferencing Cart Animated Image







Ergotron 24-183-194 LX Video Conferencing Cart

General Information









Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically






Ergotron 24-183-194 LX Video Conferencing Cart



Ergotron 24-183-194 LX Video Conferencing Cart







Ergotron 24-183-194 LX Video Conferencing Cart



Transform any space into a videoconference center. Twenty inches (51 cm) of effortless height adjustment enables optimal positioning for both seated and standing audiences. This sleek all-in-one package is ready to roll.

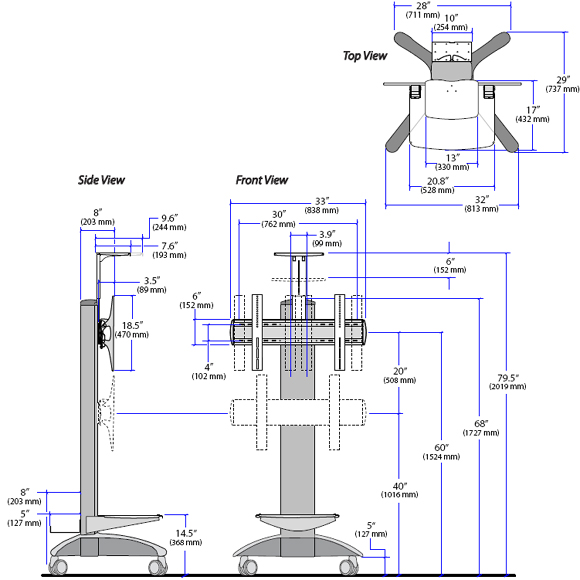

Dimensional Diagram for Ergotron LX Video Conferencing Cart

Dimensional Diagram for Ergotron LX Video Conferencing Cart






Technical Specifications:


icon_weight.jpg icon_height.jpg icon_tilt.jpg icon_pan.jpg icon_pl.jpg icon_vesa.jpg

     LCD Size

 Wt. Capacity      Lift Tilt Pan Rotation VESA

40"–50"

102–127 cm

60–90 lbs

27–41 kg

20"
50.8 cm

20°

-

-

MIS-F



Product Information:

Part Number

24-183-194

Description

LX Video Conferencing Cart (VHD Version)

Includes

LX cart and display assembly, camera shelf, lower main shelf, casters, rear cable shelf, cable channel kit, bracket kit for attaching accessory arm. Videoconferencing equipment is not included.

Accessory options

Include Universal CPU Holder, Power Strip, LX Wall Mount LCD Arm, LX Keyboard Arm, LX Notebook Tray. If adding accessory LX Arm, extension should be removed to avoid tip hazard.

 Integrate

To integrate a laptop computer, order these accessories: LX Wall Mount LCD Arm (45-180-194) and LX Notebook Tray (50-193-200)

Weight Capacity

Display = 60–90 lbs (27–41 kg); main shelf = 30 lbs (13.6 kg); camera shelf = 6 lbs (2.7 kg); cable shelf = 5 lbs (2.2 kg)

Compatible Displays

40"–50"

Complies

With UL Tip Standards 1667 and 1678

Monitor Attachment

Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 750 mm (max.)
Vertical = 100 mm (min.) to 450 mm (max.)

Shipping Dimensions

66.1" x 19.8" x 13.9" (1680 x 503 x 335 mm)

Shipping Weight

130 lbs (59 kg)

Warranty

Five (5) years



Benefits:

Convenient all-in-one system allows for quick set-up—less expensive than other combined solutions.
Easily moves through standard-size doorways and over thresholds.
Save money by sharing a large display over multiple rooms.
Constant Force CF™ technology enables smooth, in-tandem motion of display and camera.
Adjusts with just a touch—no knobs or levers.
Modular cable management channels conceal and organize cables.
Customize to your needs. Add a keyboard arm, laptop arm or CPU holder.


Images:

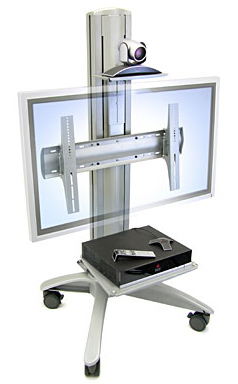

Ergotron 24-183-194 LX Video Conferencing Cart Inuse Picture

Inuse Image

Ergotron 24-183-194 LX Video Conferencing Cart

 Cablechannel View









Ergotron 24-183-194 LX Video Conferencing Cart

Cablecshelf view

Ergotron 24-183-194 LX Video Conferencing Cart

Closeup View





Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustration

reader-14.jpg - pdf

563 KB

Product Sheet

reader-14.jpg - pdf

597 KB

Installation Manual

reader-14.jpg - pdf

13615 KB
