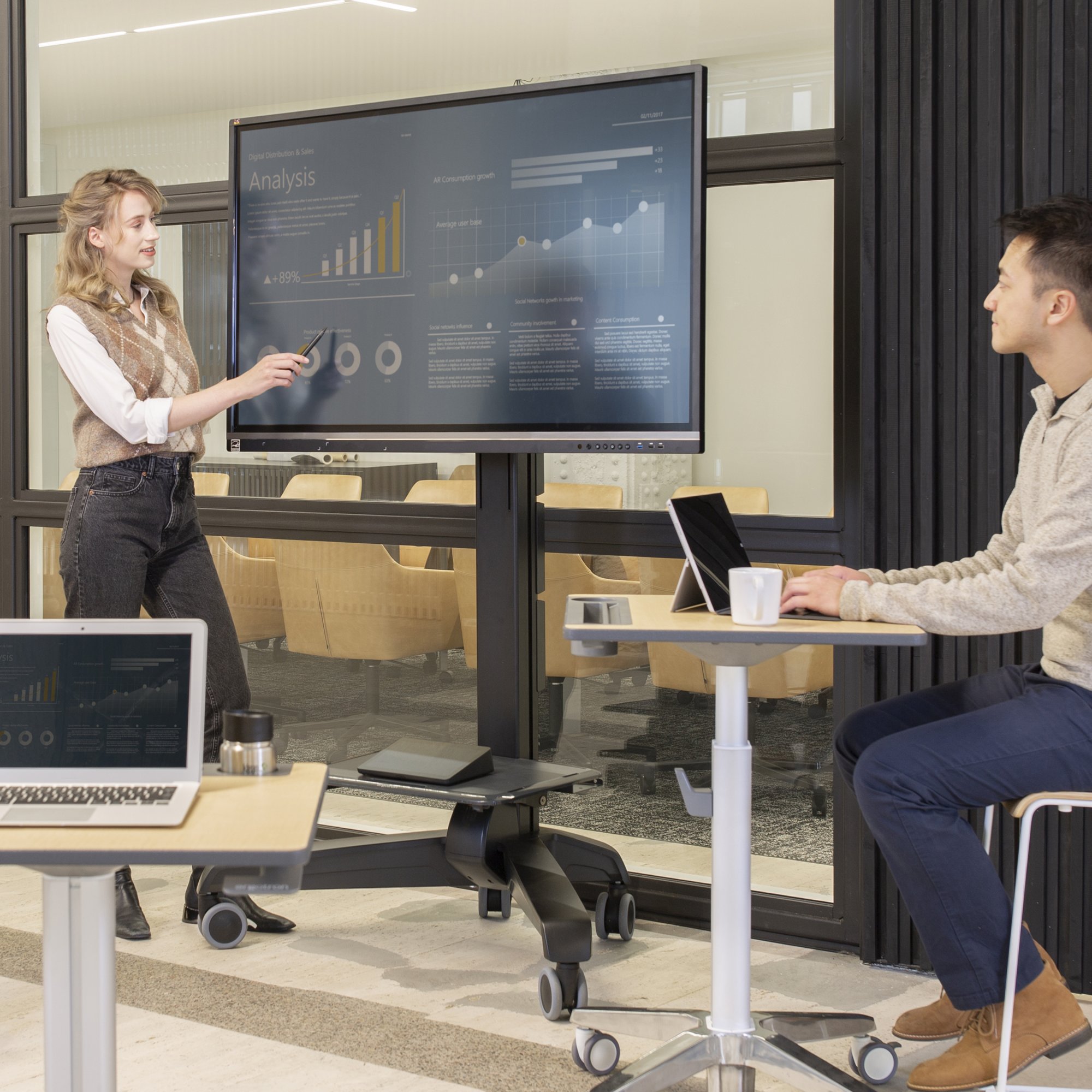

Ergotron 24-191-085 flat panel cart stretches your investment by serving a variety of projection needs. Features include portrait-to-landscape rotation, 20" (51 cm) effortless height adjustment and 20° independent display tilt. Handles displays weighing 50–90 lbs (23–41 kg). Get optimal positioning for both seated and standing audiences, in any application, in any part of your facility.
|37" - 75"||
50 - 90 lbs
22.7 - 40.8 kg
|Description||Neo-Flex Mobile MediaCenter VHD, Very Heavy Duty (black)|
|Complies||With UL Tip Standards 1667 and 1678|
|Shelf||Rugged plastic-composite shelf conveniently attaches to cart at any height|
|Cable Channel System||Modular cable channel system is adaptable for various wiring configurations|

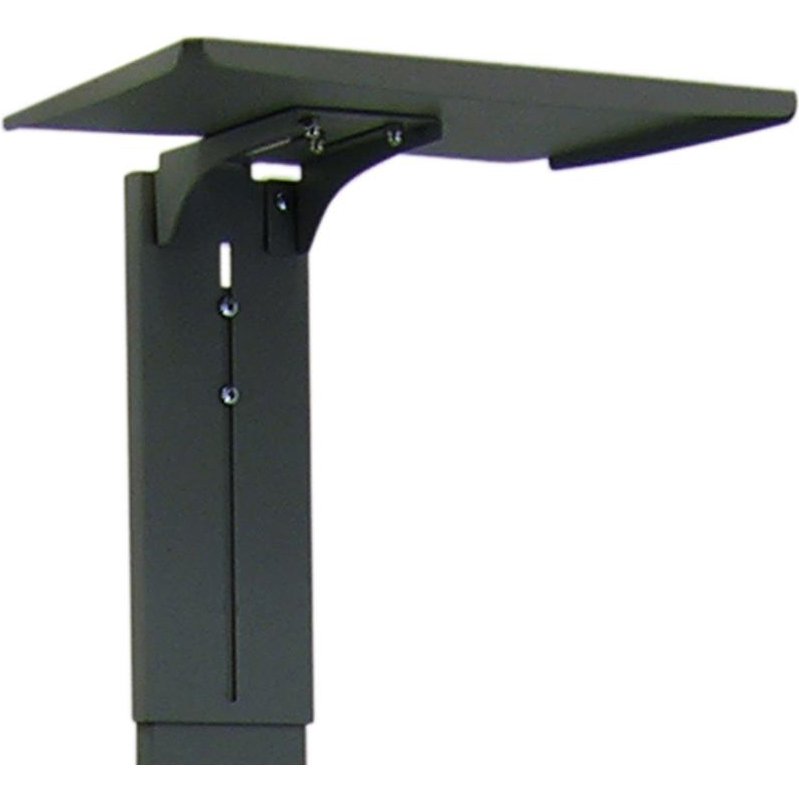

|MMC Camera Shelf Kit||Add the MMC Camera Shelf Kit to place adjustable camera shelf above the display (ordered separately)|
|CPUs||CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)|
|Screen Size||Listed screen size represents typical size of display used with this cart. However, weight of display and its VESA hole pattern - not its screen size - are the determining factors for compatibility|
|Weight Capacity||Weight Capacity: main shelf = 30 lbs (13.6 kg); cable shelf = 5 lbs (2.2 kg); if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 5 lbs (2.3 kg); if 800 mm Accessory Kit is added, display weight capacity is diminished by 5 lbs (2.3 kg)|

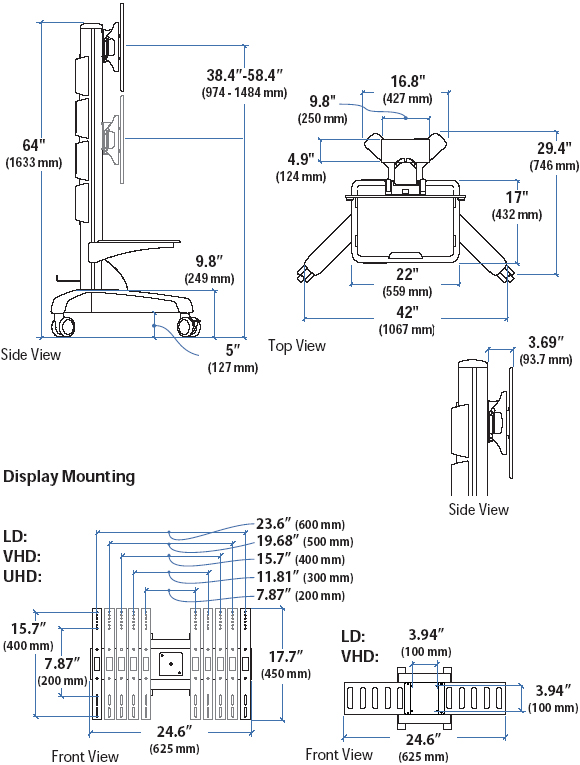

|Mounting Hole Patterns||Horizontal measurement = 200 mm, 300 mm, 400 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm to 400 mm. Also accommodates MIS-D 100 x 100 mm hole pattern. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measurement can be expanded to 800 mm or 660 mm|
|Note||Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology)|
|Shipping Dimensions||66"L x 20"H x 14"D (1680 x 503 x 335 mm)|
|Shipping Weight||101 lbs (46 kg)|
|Warranty||Three (3) years|
Move digital content to where you need it

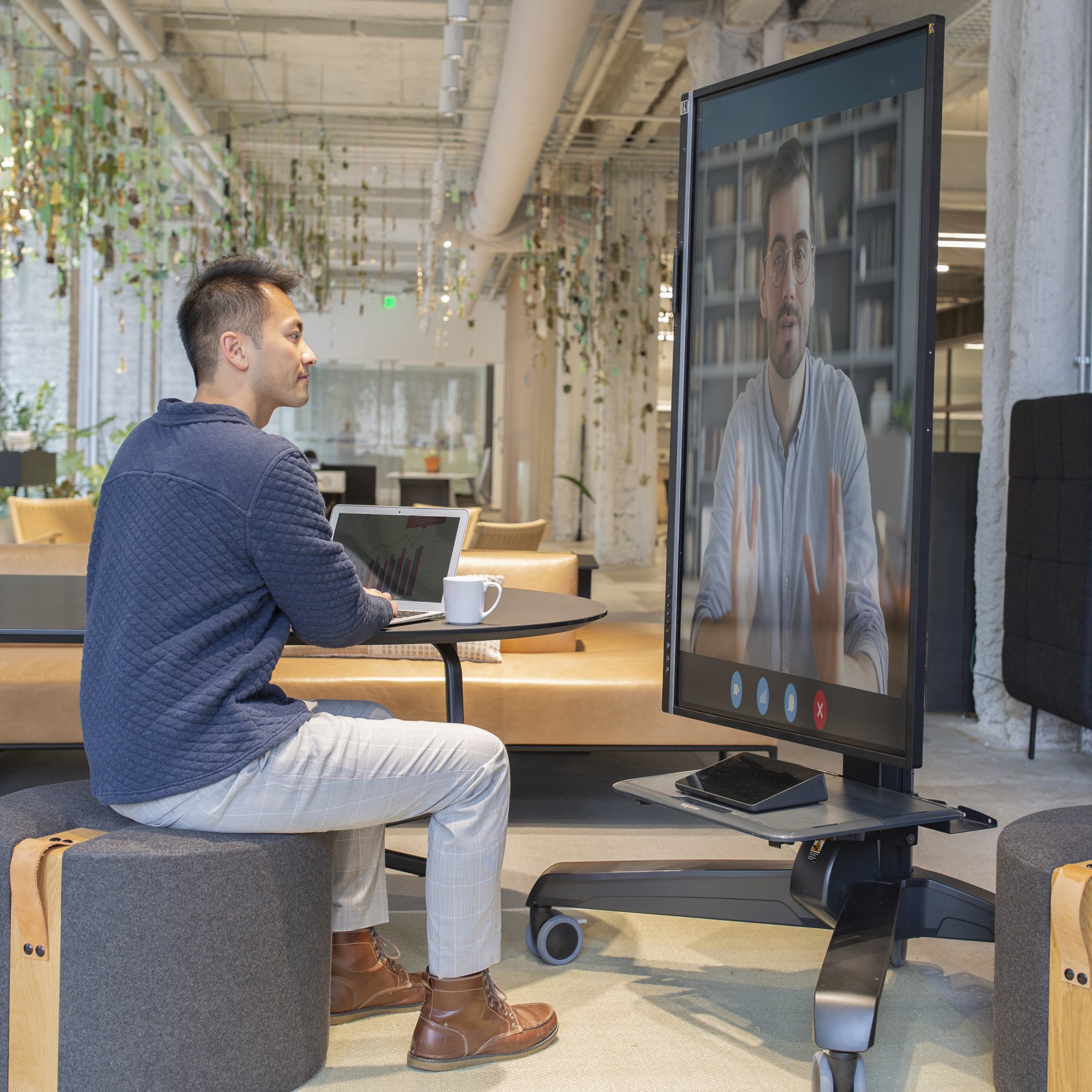

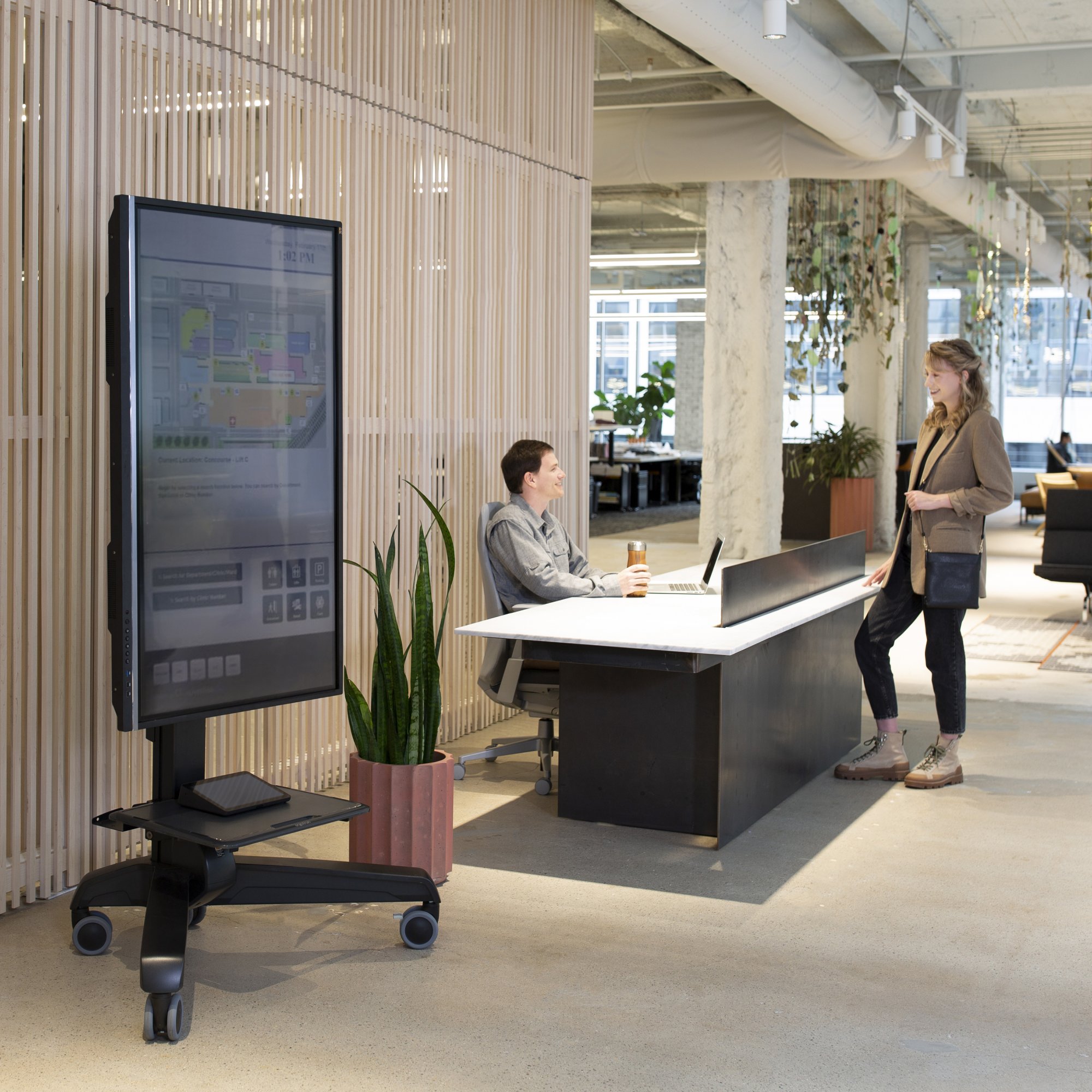

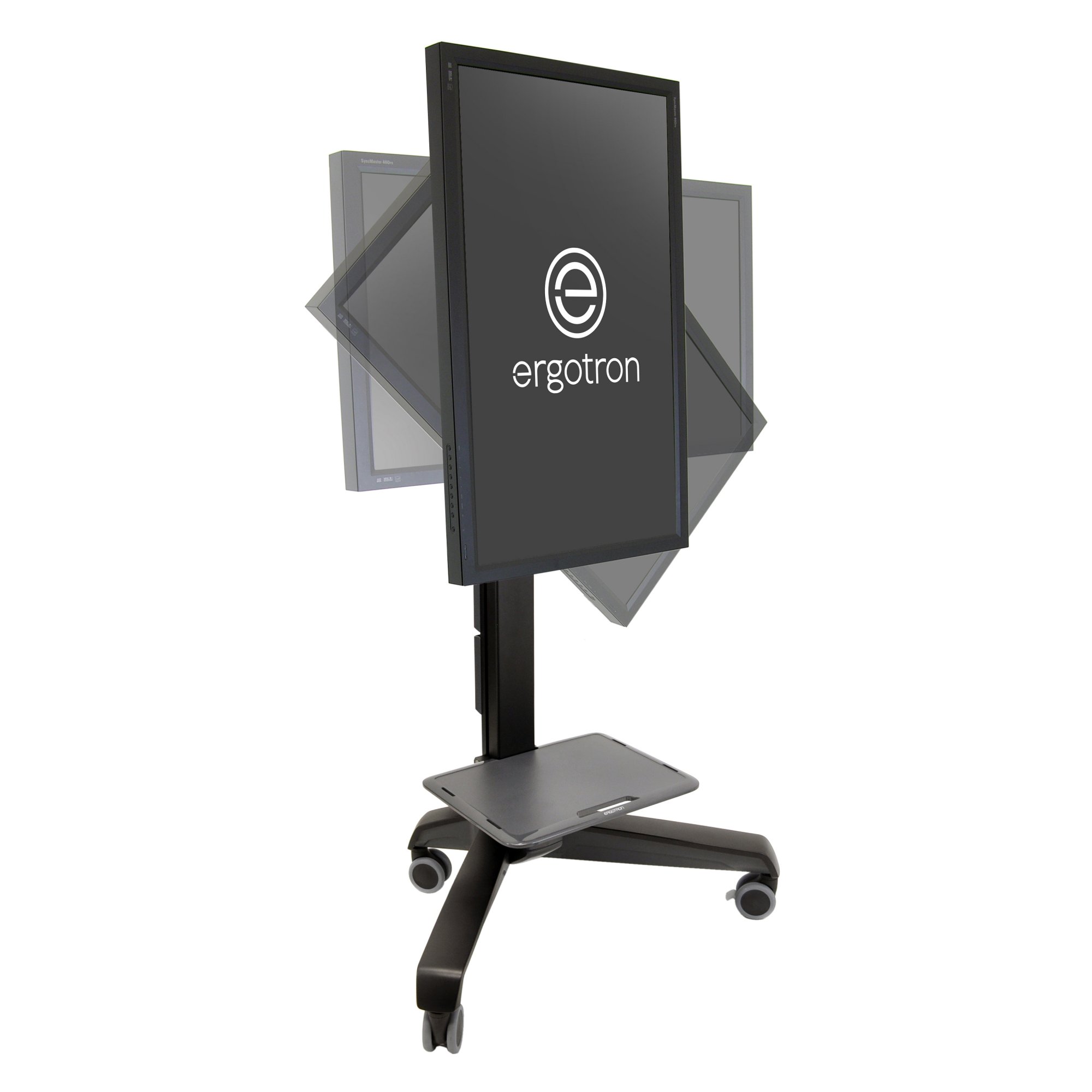

Rotate your display to portrait or landscape orientation - no need to reinstall display

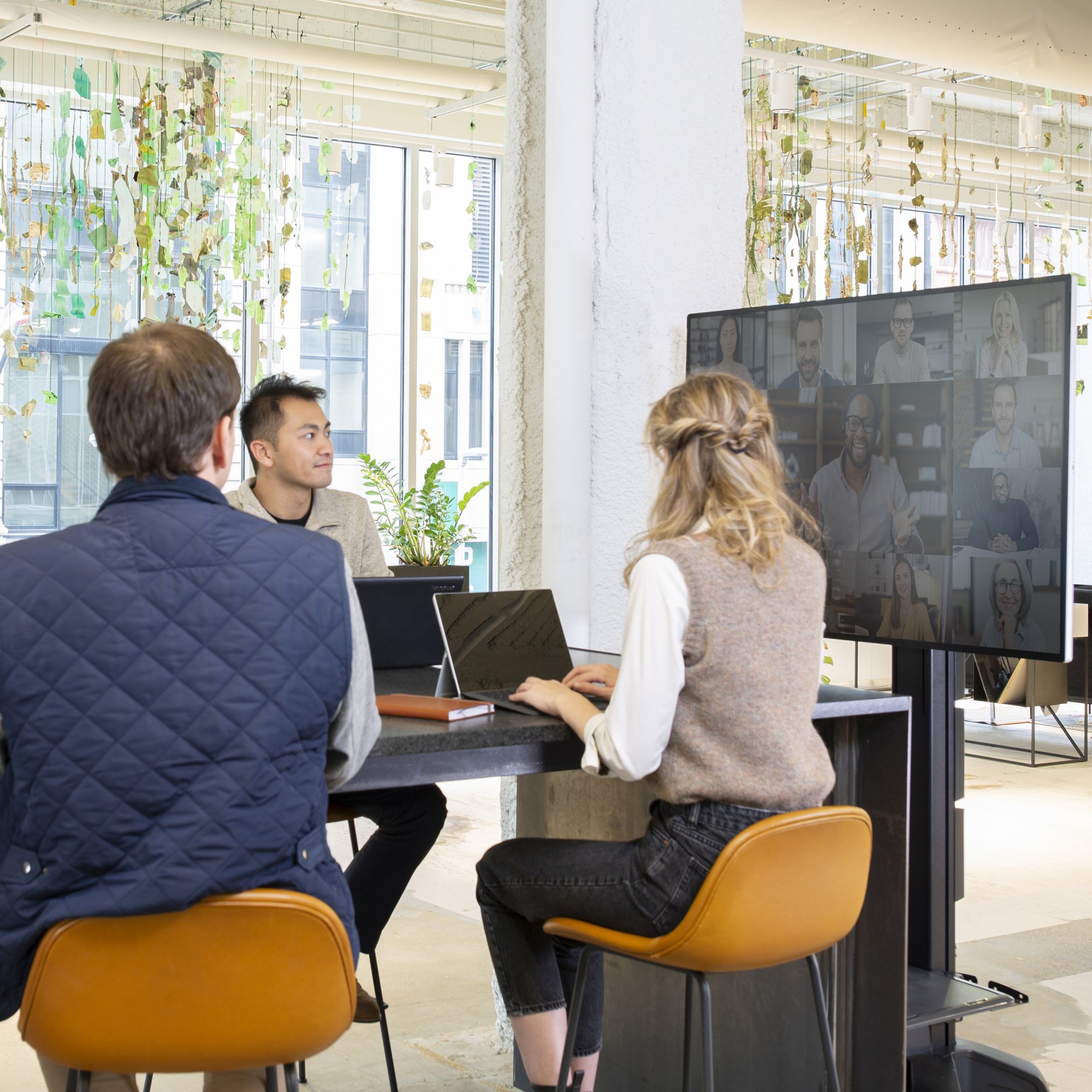

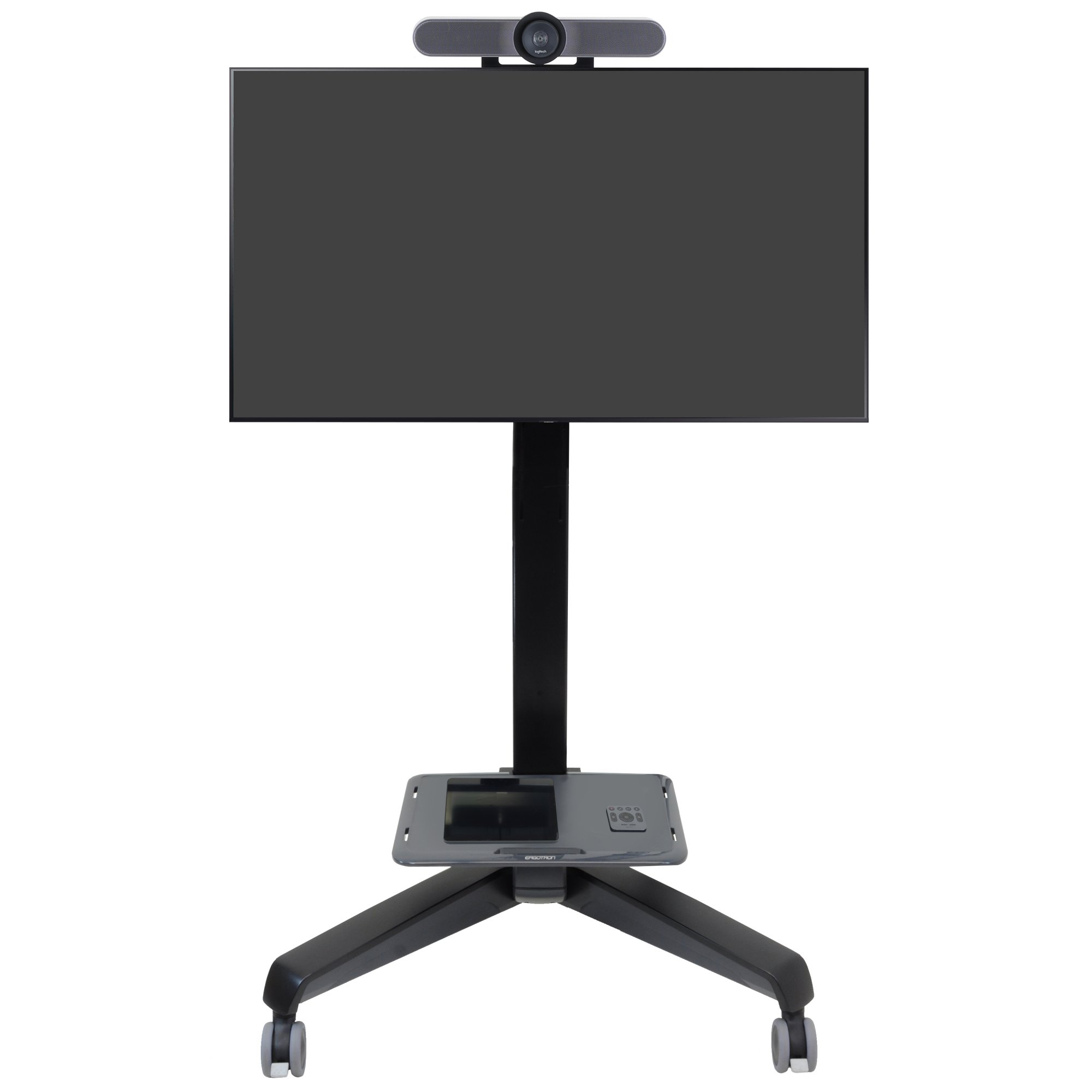

Optional camera shelf accessory converts any space into a videoconference center

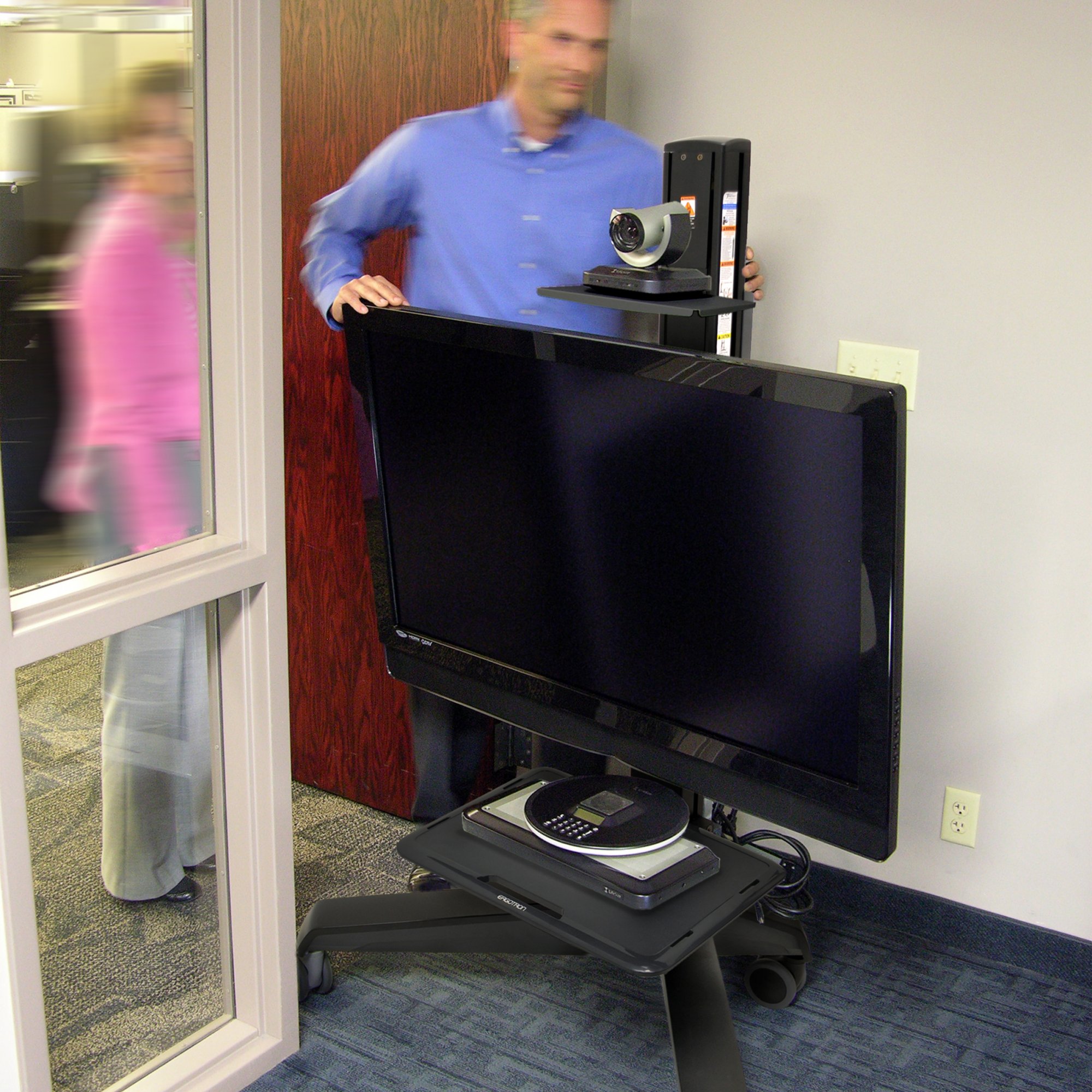

Easily roll cart through standard-size doorways and over thresholds
Narrow footprint allows presenter to move closer to the display; easily tucks into corners or nests with other carts for space-saving storage

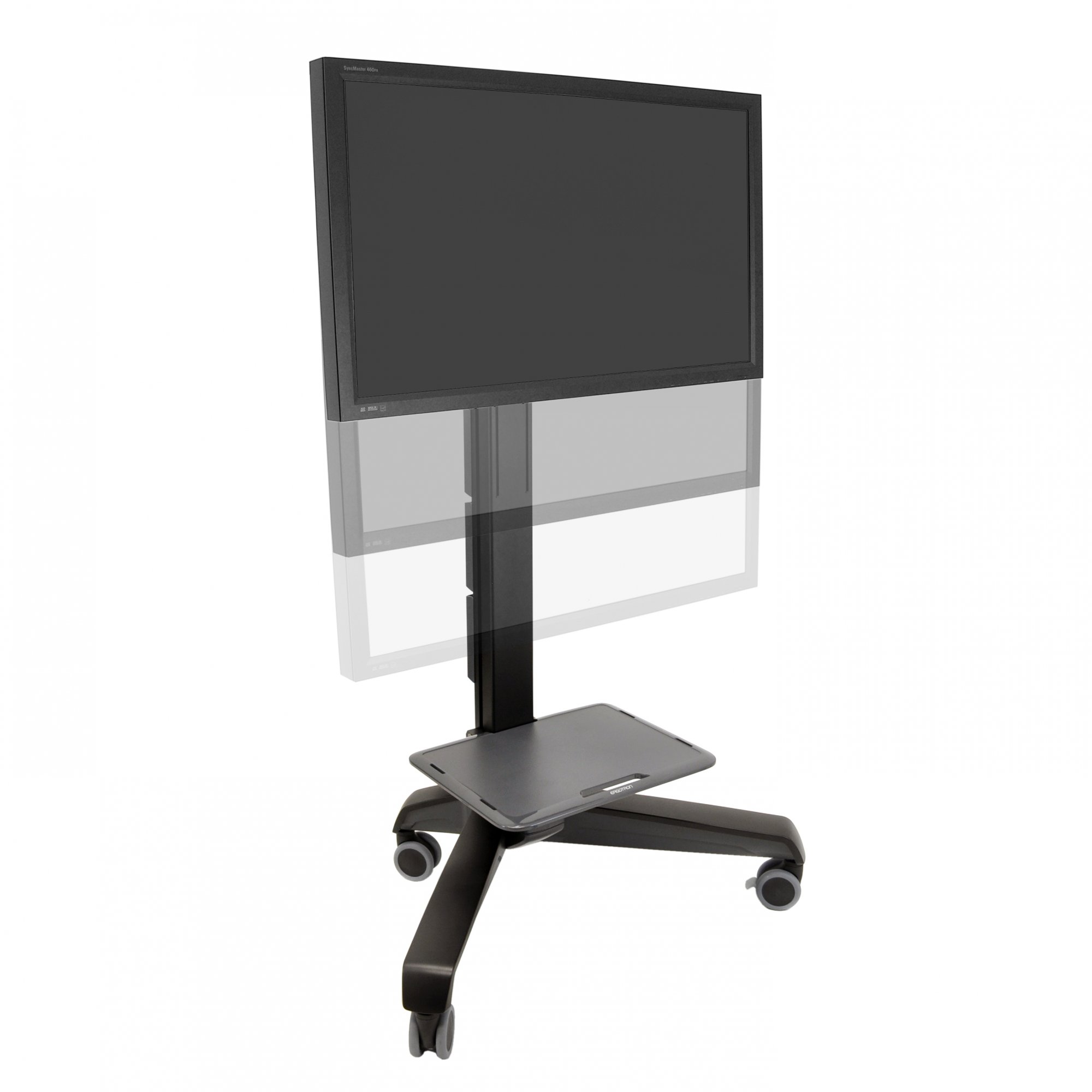

Constant Force technology enables smooth, effortless portrait-to-landscape rotation, tilt and height adjustment. Adjusts with just a touch - no knobs or levers

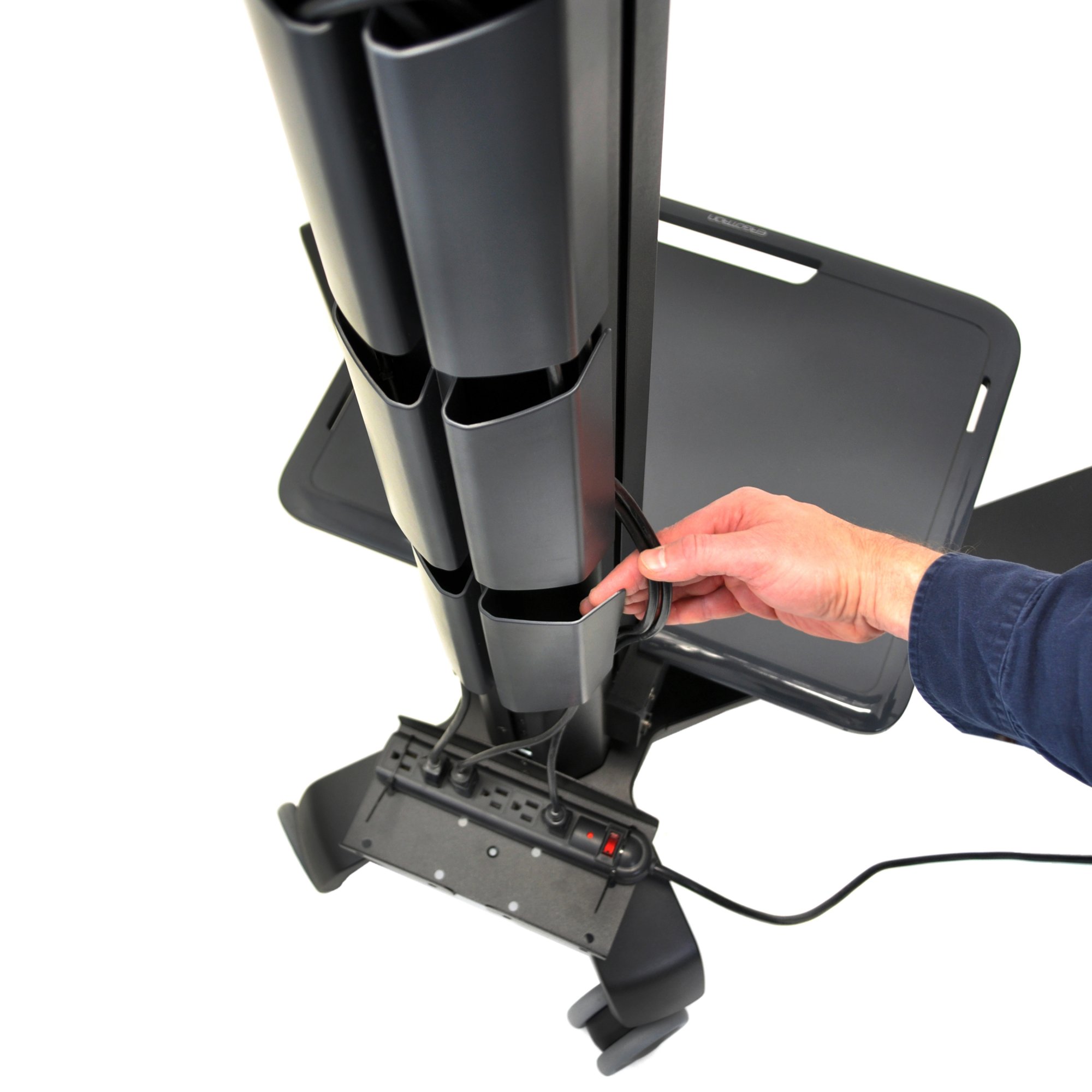

Modular cable management channels conceal and organize cables
Maximize your technology investment by sharing a large display over multiple rooms
Second-generation design and 47 separate quality tests ensure reliability and optimum performance
Speedy assembly and installation

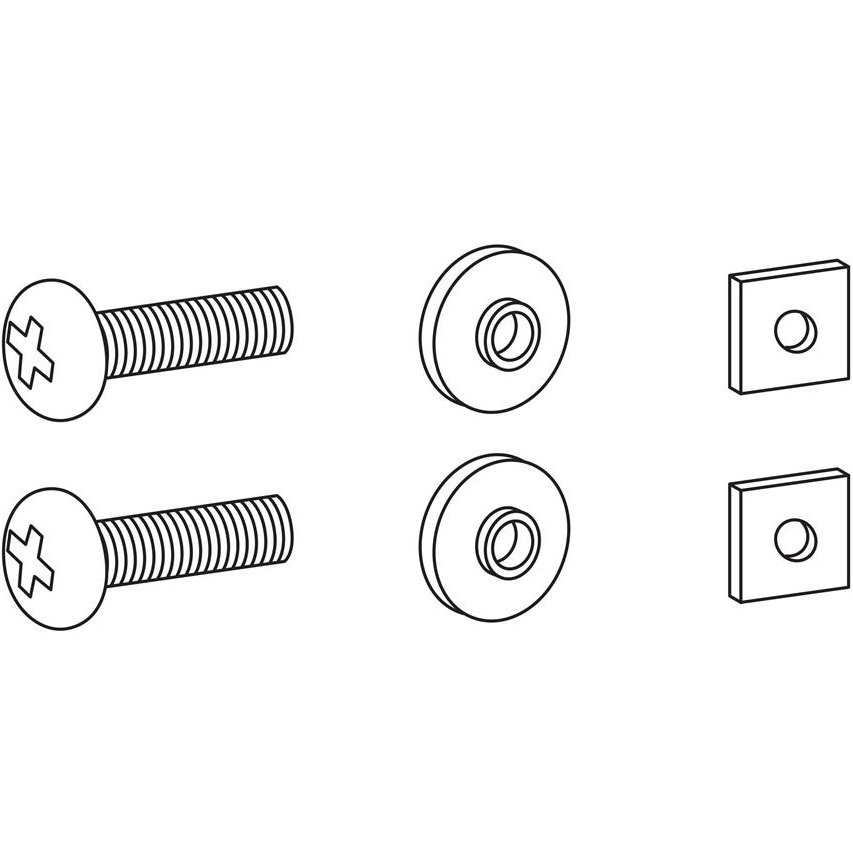

Product Options/Accessories60-575-003 T-Slot Bracket $60.00 $39.50 60-590 Power Strip Mounting Kit $65.00 $34.99 97-464 Coiled Extension Cord $185.00 $134.07 97-491-085 MMC Camera Shelf Kit $70.00 $61.65 97-527-009 MMC VESA CPU Mount $85.00 $67.12 80-105-064 Universal CPU Holder $85.00 $60.54 97-711 Six Outlet Power Strip $135.00 $104.18 Ergotron 97-999 Storage Hook (white) $20.00 $18.09 Ergotron 97-439 Arm Mounting Kit $30.00 $21.44 LiFeKinnex Battery for Medical Carts - Ergotron 98-246 $1665.00 $1335.52 LiFeKinnex Smart Battery Dock - Ergotron 98-247 $2500.00 $1923.20 LiFeKinnex 4-Bay Charger - Ergotron 98-258 $4080.00 $3058.19
|Weight Capacity||50–90 lbs (23–41 kg). Main shelf=30 lbs (13.6 kg); cable shelf = 5 lbs (2.2 kg); if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 3 lbs (1.4 kg); if 800 mm Accessory Kit is added, display weight capacity is diminished by 5|
|Lift||(51 cm) 20 in|
|Rotation||(P/L) 90 degree|
|Mounting Pattern||Horizontal measurement = 200 mm, 300 mm, 400 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm to 400 mm. Also accommodates MIS-D 100 x 100 mm hole pattern. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measuremen|
|CPU Dimension||Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)|
|Shipping Dimensions||66"L x 20"H x 14"D (1680 x 503 x 335 mm)|
|Shipping Weight||101 lbs (46 kg)|
|Warranty||Three (3) years|
|Screen Size||31-45" in|
|Screen Size||46-60" in|
|Screen Size||61" and larger in|
