The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

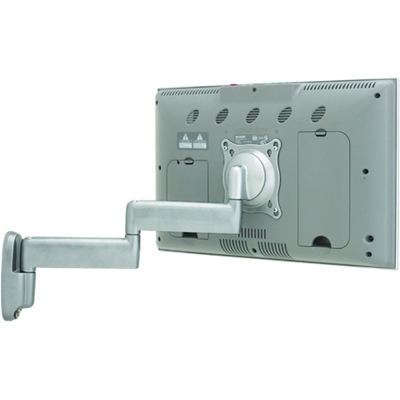

Chief FWDVB or FWDVS Small Swing Arm Wall Mount - 16" Extension

Wall Mount LCD Monitor Arm
Be the first to review this product
Product ID: 15299
Recommended Accessories
List Price: $155.00
You save $48.60
Our Price: $106.40
Shipping: $0.00 * - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:

Part Number

Description

FWDVB

Black Wall Mount Flat Panel Dual Swing LCD Arm for 10 to 32 inch Displays

FWDVS

Silver Flat Panel Dual Swing LCD Arm Wall Mount for 10 to 32 inch Displays

FWD110B

Black Wall Mount Flat Panel Dual Swing LCD Arm for 10 to 32 inch Displays

FWD110S

Silver Flat Panel Dual Swing LCD Arm Wall Mount for 10 to 32 inch Displays





Chief FWDVB Wall Mount Flat Panel Dual Swing LCD Arm with Tilt





Accessories for Chief FWD Series Wall Mount

Chief KSA1003B or KSA1003S Extension Arm

Chief KSA1003 Extension Arm

Chief KSA1005B or KSA1005S Display Security Kit for non Height Adjustable Arms

 Chief KSA1005 Display Security Kit

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall Extrusion (Wall Track)

Chief KSA1024B or KSA1024S Quick Release Bracket

Chief KSA1024 Quick Release Bracket



Chief KSA1013B or KSA1013S Laptop Notebook Tray

Chief KSA1013 Laptop Notebook Tray

AnchorPad 31177ARM Lockdown Arm Mount on Wall and Desk (Arm is not included)

 Anchor Pad 31177ARM Lockdown Arm Mount

Chief KWK110B or KWK110S Height Adjustable Keyboard Wall Mount

Chief KWK110 Keyboard Wall Mount

Chief KSA1002B or KSA1002S Small Flat Panel Desk Mount Adapter Accessory

Chief KSA1002 Small Flat Panel Desk Mount Adapter





General Information



Image of Warranty and Returns








Chief FWDVB or FWDVS Wall Mount Flat Panel Dual Swing LCD Arm

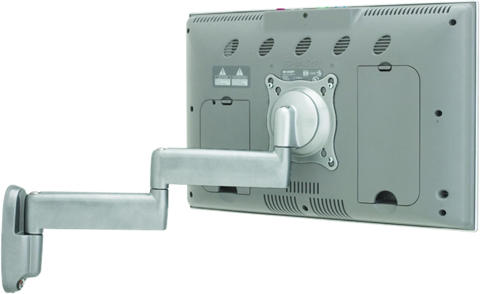

Chief FWD110S Wall Mount Flat Panel Dual Swing LCD Arm Silver









Features of Chief FWD110B or FWD110S Wall Mount:

    1.  Centris Fingertip Tilt (PATENTED FEATURE): provides smooth tilt adjustment in all

         directions and self-adjusts to securely hold different display weights.



    2.  Smooth Extension: Extends 15.94” (405 mm) to achieve ideal viewing angle.



    3.  Cable Management: Easily route cables through predefined pathway inside arms. Quick,

         easy cable management.



    4.  Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and

         easy.



    5.  Independently adjustable tension at pivot points for customized control.



    6.  Sleek, attractive design hides all hardware.

    7.  Ships assembled.



    8.  Compatible with VESA 75 x 75 mm and 100 x 100 mm mounting patterns (interface

         brackets available for non-VESA compliant displays)









Technical Drawing for Chief FWD110 Wall Mount Flat Panel Dual Swing LCD Arm



Technical Drawing for Chief FWD Wall Mount Flat Panel Dual Swing LCD Arm









Description of Chief FWDV or FWD110:

The FWD provides a broad range of motion for viewing small flat panel TVs, LCDs and monitors from multiple angles.

  • Ergonomic solution for the home or office providing excellent adjustability

  • Folds in close to the wall for a low-profile appearance





Specifications:

Depth from Wall (closed):

2.17" (55 mm)

Maximum Extension:

15.94" (405 mm)

Tilt:

+/-15º

Pivot:

180º

Dimensions (H x W x D):

12.2" x 9.33" x 2.17" (310 x 237 x 55 mm)

Weight Capacity:

40 lbs (18.14 kg)

Color:

Silver or Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)







Images:

Chief FWDVB Wall Mount Flat Panel Dual Swing LCD Arm with extension

Chief FWD110B Wall Mount Flat Panel Dual Swing LCD Arm





Chief FWD110B Wall Mount Flat Panel Dual Swing LCD Arm Black

 Chief FWDVB Wall Mount Flat Panel Dual Swing LCD Arm





Chief FWD110B Wall Mount Flat Panel Dual Swing LCD Arm Black

Chief FWD110S Wall Mount Flat Panel Dual Swing LCD Arm Silver






Literature (Please open the following documents for more technical information)

Description

File Type

Chief FWDV Wall Mount Swing LCD Arm - Catalog Page

- pdf

Chief FWDVB or FWDVS Wall Mount LCD Swing Arm - Installation Instructions

- pdf

Chief FWD110 Wall Mount Swing LCD Arm - Technical Drawing

- pdf

Chief FWD110B or FWD110S Wall Mount LCD Arm - Quick Reference Guide

- pdf
