Humanscale M4 Monitor Arm (Build-Your-Own) Desk or Wall Mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15454
Recommended Accessories
Our Price: $225.00
Shipping: $24.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

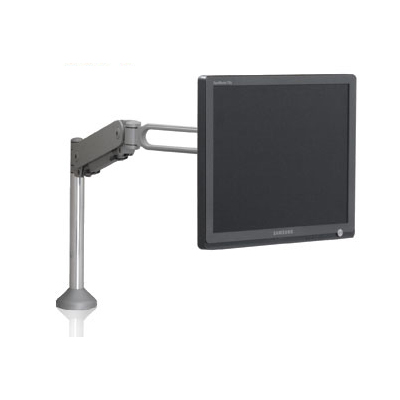

Humanscale M4 Monitor Arm Desk Mount - Wall Mount





Humanscale M4V Monitor Arm Desk Mount























Description:

Featuring effortless height and depth adjustability, Humanscale’s new M4 adds impressive functionality to Humanscale’s already broad range of flat panel monitor arm offerings.



Features:

  • Extended 11" range of finger-tip height adjustment

  • Accommodates monitors weighing from 5 to 20 lbs.

  • Small desktop footprint maximizes usable space

  • Incredibly easy to use

  • Made from 80% recycled and 95% recyclable material

  • 10-year warranty on gas cylinder. Lifetime warranty on all other components.

Specification:

  • VESA compatible

  • 360° monitor rotation

  • 160° vertical angle range

  • 200° lateral angle range

  • Steel and die-cast aluminum construction for strength and durability

  • Pneumatic cylinder supports 5 lb. to 15 lb. monitors

  • Powder coat finish

  • Comes standard with 75mm and 100mm VESA brackets

  • 8 year warranty on gas cylinder component. Lifetime on all other part

  • The adjustability of the M4 monitor arm is 6” up and 5.5” down (vertical lift)

Humanscale M4 Monitor Arm Desk Mount - Wall Mount





Humanscale M4Y Monitor Arm Wall Mount



Humanscale M4 Monitor Arm Desk Mount - Wall Mount





Humanscale M4 Monitor Arm Diagram

M4-1.jpg M4-2.jpg

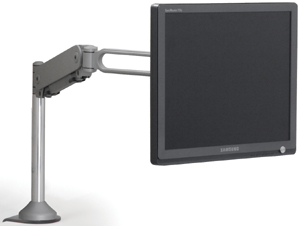

1. M4Y : Desk Mount Monitor Arm



Features:

  • Black (M4B-Y) and silver (M4S-Y)

  • Top-Mount Bracket,

  • M4 Adjustable Double-Link Arm

  • Two-Piece Low-Profile Clamp Mount with Slim Post

  • Accommodates one monitor

  • 5 – 20 pounds.

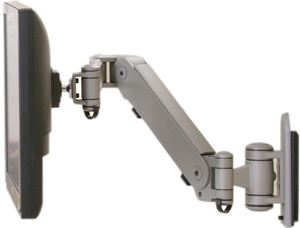

1. M4V : Wall Mount Monitor Arm

Features:

  • Black (M4B-V-PP) and silver (M4S-V-PP)

  • N1 No-Post Bracket

  • M4 Adjustable Double-Link Arm

  • Panel Mount

  • Accommodates one monitor

  • 5 – 20 pounds.











Step 1: Bracket Style



Six Bracket Styles (N1, N2, T1, B1, B2, B3) are available to support one or multiple monitors in any display environment.



Bracket Styles are divided into three primary categories based on application: No-Post Brackets(N1, N2), Top-Mount Bracket (T1) and Bracket Mounts (B1, B2, B3).





A. No-Post Brackets- Are designed for vertical surfaces such as slat wall, panels or wall studs. They are available for one or two monitors.

  • N1 - No-Post Bracket for One Monitor

  • N2 - No-Post Bracket for Two Monitors



B. Top Mount Brackets- Insert directly into a Post to support the Monitor Arm at a fixed position at the top of the Post. Top-Mount Brackets provide a continuous, clean look extending from the Post, and are an excellent choice when used with an M4 Adjustable Arm or M7 with FEA because the Bracket itself cannot be adjusted along the Post.



  • T1 - Top Mount Bracket




N1 : No-Post Bracket for One Monitor






N2 : No-Post Bracket for Two Monitors








T1 : Top Mount Bracket





C. Bracket Mounts- In contrast to Top-Mount Brackets, fit over the Post and are designed to support the Monitor Arm anywhere along the Post (above the Friction Knob on Standard and Horizontal Stackable Posts). In this way, the dedicated user (in non-shared environments) can set the monitor at the optimal height without the need to readjust it vertically.

  • B1 - Bracket Mount for One Monitor

  • B2 - Bracket Mount for Two Monitors

  • B3 - Bracket Mount for Three Monitors


B1 : Bracket Mount for One Monitor


B2 : Bracket Mount for Two Monitors






B3 : Bracket Mount for Three Monitors







Step 2: Color



Humanscale monitor arms are available in the following finishes. For exact color samples,
contact your Humanscale representative.








Silver


Code: S


Description
Silver monitor arms ship with a silver mount, base and arm, and a polished aluminum post.






Black


Code: B


Description
Every component of a black monitor arm is black.


Polished Aluminum
Code: A
Description

Every component of a polished aluminum monitor arm is polished aluminum. Please note this color selection requires extended lead times and a color up charge and is available only on M7 Monitor Arms. The M4 is not available in Polished Aluminum.







Step 3: Arm Style



M4 Adjustable Monitor Arm Styles:

M4 Adjustable Monitor Arm styles offer 11.5” of dynamic, one-touch vertical adjustment and are ideal for workstations supporting multiple users or where dynamic adjustment is required.



Both Adjustable and Non-Adjustable Arms are available with all Bracket Styles (No Post Brackets, Top-Mount Brackets, and Bracket Mounts).



For M4 two arm styles are available:

  • B : Adjustable Single Link Arm

  • A : Adjustable Double Link Arm




B : Adjustable Single Link Arm




A : Adjustable Double Link Arm







Step 4: Mount Style



Humanscale offers a variety of monitor arm mounting options to accommodate any workstation environment. Mounting styles are dependent on the surface to which the monitor arm is being mounted, the monitor application, the desired degree of adjustability, and the weight of the monitor. Mounts are divided into two primary categories:



Horizontal Surface Mounts: are used to mount posts to horizontal surfaces such as desks, counters, tabletops and other work surfaces.

  • NM - No Mount

  • BT - Bolt Through Mount

  • CM - Heavy Duty Clamp Mount

  • LC - Low Profile Two Piece Clamp Mount

  • LP - Low Profile One Piece Clamp Mount

  • DM - Direct Mount




BT: Bolt Through Mount




CM: Heavy Duty Clamp Mount




LC: Low Profile Two Piece Clamp Mount








DM: Direct Mount








LP: Low Profile One Piece Clamp Mount







Vertical Surface Mounts: enable monitor arms to be affixed vertically to walls such as slatwall, panels or wall studs, and may or may not support a post, depending on style. There are three styles of Vertical Surface Mounts: Slatwall Mounts, Panel Mounts and Wall Stud Mounts.



Slatwall Mounts- There are two styles of Slatwall Mounts: Standard Slatwall Mounts (support single or multiple monitors and/or posts to mount monitors higher than mounting point) and Universal Slatwall Mounts (compatible with numerous slatwall systems to support one monitor only; not compatible with posts).





Standard Slatwall Mounts

Universal Slatwall Mounts
  • SD- Dates Weiser Slatwall

  • SW- EDP Contour Slatwall

  • SS- EDP Slatwall

  • SR- Eurocraft Slatwall

  • SN- Evans Slatwall

  • SW- Forecast Slatwall

  • SE- Herman Miller Slatwall

  • SU- Humanscale Access Rail

  • SI- Innovant (CBA) Slatwall

  • SU- Kimball Slatwall

  • SX- LaCour Extrusion (Beam)

  • SC- LaCour Slatwall

  • SL- Novalink Slatwall

  • SS- SBFI Slatwall

  • SN- SBFI/Triax Slatwall

  • SB- TBC Slatwall

  • SB- Wallstreet Trading Slatwall

  • SN- Wilson Slatwall

  • SW- Woodtronics Slatwall

  • S2- Dates Weiser Slatwall

  • Eurocraft Slatwall

  • Evans Consoles Slatwall

  • Forecast Slatwall

  • Haworth Slatwall

  • Kimball Slatwall

  • Knoll Currents Slatwall

  • Knoll Extra Slatwall

  • Innovant (CBA) Slatwall

  • LaCour Slatwall

  • Teknion Transit Slatwall

  • Teknion Leverage Slatwall

  • SBFI Slatwall

  • Steelcase Details Slatwall

  • TBC Slatwall

  • Woodtronics Slatwall

  • Wright Line Slatwall

  • S4- Humanscale Access Rail








Standard Slatwall Mount






Standard Slatwall Mount
(with Post)


Universal Slatwall Mount







Panel Mounts

Wall Stud Mounts

  • PC- Allsteel Concensys

  • P2- Allsteel Terrace 2.6, 3.4

  • PH- Haworth Places

  • PM- Haworth Premise

  • PH- Haworth Unigroup

  • PA- Herman Miller Action Office

  • PE- Herman Miller Ethospace

  • PR- Herman Miller Resolve

  • P9- Steelcase Series 9000

  • PI- Teknion ie

  • PL- Teknion Leverage

  • WD- Standard Wall Stud Mount, supports Multiple Monitors

  • WU- Universal Wall Stud Mounts, Single Monitor only

  • WK- Knuckle Wall Stud Mounts










Panel Mount with B2 Bracket


WD: Standard Wall Stud Mounts










WU: Universal Wall Stud Mounts




WK: Knuckle Wall Stud Mount







Step 5: Post Style



Humanscale offers three Post styles to accommodate a range of requirements. There are three different Post Styles: Standard Posts, Slim Posts and Stackable Posts.



Standard Posts: Standard Posts are comprised of a large outer tube and narrow inner pole and are appropriate for heavy-duty applications such as workstations requiring multiple monitors. They may be adjustable or non-adjustable in height, and are available only in one-row configurations.

  • NP: No Post

  • SP: Standard Post, Non-Adjustable



Slim Posts: Slim Posts are appropriate for lightweight applications such as workstations requiring only one or two smaller monitors. The diameter of the Slim Post is the same for the entire length of the post making it easy to adjust B1 or B2 brackets anywhere along the post height.

  • SL Slim Post




SP: Standard Post, Top Mounted




SP: Standard Post, Bracket Mounted








SL: Slim Post, Top Mounted




SL: Slim Post, Bracket





Stackable Posts: Stackable Posts support up to two rows of one to three monitors per row. Stackable Posts can also be used to raise the position of a single arm (for example, one monitor positioned 30” above the surface). Stackable Posts are available for both horizontal and vertical surfaces. Stackable Posts are the only solution available for Vertical Mounting Surfaces.



Stackable Posts for Horizontal Surfaces- Stackable Posts for Horizontal Surfaces are used with monitor arms that are mounted to horizontal surfaces such as desks, counters, and tabletops.

  • 1H: One-Row Stackable Post for Horizontal Surfaces

  • 2H: Two-Row Stackable Post for Horizontal Surfaces

  • TH: Top Row Stackable Post



Stackable Posts for Vertical Surfaces- Stackable Posts for Vertical Surfaces are used with monitor arms that are mounted to vertical surfaces such as slatwall, panel systems, or wall studs.

  • 1V: One-Row Stackable Post for Vertical Surfaces

  • 2V: Two-Row Stackable Post for Vertical Surfaces

  • TV: Top Row Stackable Post

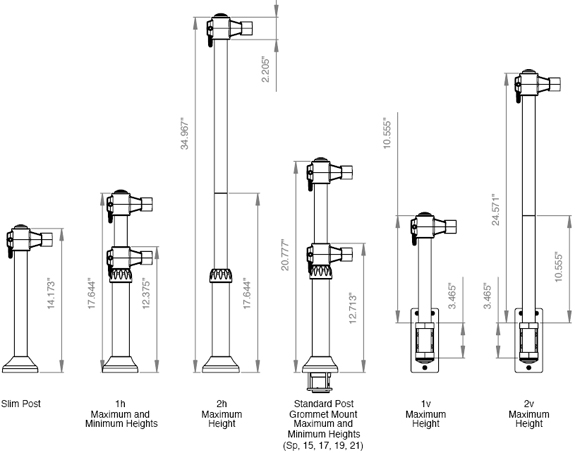

Bracket Mount Post Heights







M4 User Instructions



Height Adjustment:

Welcome to Humanscale's M4 Monitor Arm user instructions.

To adjust the height of the monitor, simply move it up or down to the desired position. The monitor will stay in place once released.

Ergo Tip: The monitor should be positioned so that the top line of text is at or slightly below eye level.



The different positions of Height Adjustment of M4 Monitor Arm are shown below:

m4-height-1-1.jpg m4-height-2-1.jpg m4-height-3-1.jpg





Depth Adjustment:

To adjust the horizontal position of the monitor, simply move it to the desired location. You can adjust monitor depth for improved viewing comfort or to move the monitor out of the way to clear up desk space for other tasks.

Ergo Tip: For extended computer work, your monitor screen should be positioned at an arm’s length from your eyes. This will minimize eye strain. In addition, adjust the monitor depth by a few inches every few hours to change the focal point, which will help reduce eye muscle fatigue.

The different positions of Depth Adjustment of M4 Monitor Arm are shown below:

m4-depth-1.jpg m4-depth-2.jpg m4-depth-3.jpg





Tilt Adjustment:

To change the monitor’s angle, simply tilt it up or down to the desired position.
Ergo Tip: Angle the monitor so that the screen is square to your line of sight.



The different positions of Tilt Adjustment of M4 Monitor Arm are shown below:








Swivel Adjustment:

To change the monitor’s angle, simply tilt it left or right to the desired position.
Ergo Tip: Angle the monitor so that the screen is square to your line of sight.



The different positions of Swivel Adjustment of M4 Monitor Arm are shown below:








Landscape/Portrait Adjustment:

To change the monitor’s orientation, simply swivel it from landscape to portrait mode as desired.



The different positions of Landscape/Portrait Adjustment of M4 Monitor are shown below:








Literature:

Description

File Type

Brochure

reader-14.jpg - pdf

Specification Guide reader-14.jpg - pdf













Model M4
Manufacturer Humanscale
Part Number M4
Mounting Options Wall
Mounting Options Desk
Monitor Arm Types 1 Monitor

Be the first to review this product

Humanscale M4 Monitor Arm (Build-Your-Own) Desk or Wall Mount
