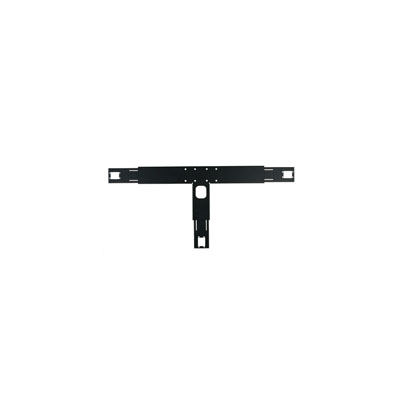

Peerless MSA301 or MSA301S Multi Channel Flat Panel Speaker Mount
FeaturesofPeerless MSA 301 or MSA 301S:
1. Side-to-side and vertical adjustability for positioning three speakers.
2. Mounts to Peerless pivot, articulating, ceiling and floor mounts.
3. Determine that combined weight of speakers, screen and MSA do not exceed rated load
capacity of mount.
Technical Drawing forPeerless MSA301 Multi-Channel Flat Panel Speaker Mount
Description of Peerless MSA-301S or MSA-301:
The MSA-301 will allow the customer to mount a specific set of left, center, and right speakers from Atlantic Technology to our PLA mounts. The specific speakers that will work with this product are the Atlantic Technology model numbers FS-3200C and FS-3200LR, where the C stands for center and the LR stands for left and right.
Specifications:
Dedicated Model:
MSA-301 and MSA-301S: Includes theft resistant hardware for attaching screen to mount
Speaker Adapter:
Technologies FS3200LR side and FS3200C center channel speakers and Polk audio Surround Bar models.
Available Color:
Black and Silver
Product Weight:
22 lbs (10 kg)
Product Dimensions
(W x H x D):
49"-64" x 27"-32" x .93" (1234-1618 x 697-801 x 23 mm)
Ship Weight:
23.5 lb (10.6 kg)
Shipping Dimensions
(L x W x H):
38.5" x 19.5" x 3.75" (978 mm x 495.3 mm x 95.3 mm)
Package UPC Code:
MSA-301: 735029248590
MSA-301S: 735029248606
Maximum Load:
50 lb (22 kg)
Literature(Please open the following documents for more technical information)
