Peerless PC930B PRO Universal Ceiling Mount for 15"-24" LCD LED Screens PC-930B

This product has been discontinued.

Peerless PC 930B PRO ceiling Mount for 15"- 24" Screens

General Information

Peerless PC930B Paramount ceiling Mount for 15"- 24" Screens

Dimensional Diagram for PC-930B PRO ceiling Mount for 15"- 24"

Dimensional Diagram for PC-930B Paramount ceiling Mount for 15"- 24"

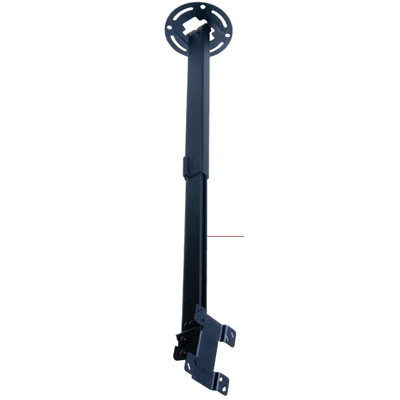

PC 930 Ceiling Mount:

The ceiling is a great place to mount a flat panel when there is no wall available. Ceiling installation is made simple with PC930s one, two, three design. Simply attach the ceiling plate, attach the adapter to the screen and hook-on the TV on to the mount. This VESA compliant LCD mount delivers the ultimate in positioning options with its tilt and infinite swivel to achieve an ideal flat panel viewing experience.

Features:

VESA 75 / 100 compatible
+15 degree/-5 degree of adjustable tilt to achieve the ideal screen viewing position
Continuous tilt with optional lock in 5 degree increments for easy adjustment and perfect viewing angle
Comes in adjustable height ranges of 10" to 14", 14" to 22" and 20" to 34" for the optimal viewing height
360 degree swivel provides limitless screen placement opportunities
Internal cable management allows cables to be routed through extension column for a clean, clutter-free installation
Mounts to wood joist or concrete
Supports up to 50 lb LCD flat panel screen

Product Information:

Model Numbers	Universal Models with 9.7" - 13.9" extension: Security Fasteners PC930A Black, PC930A-S Silver, PC930A-W White Universal Models with 13.78" - 21.89" extension: Security Fasteners PC930B Black, PC930B-S Silver, PC930B-W White Universal Models with 20.24" - 34.02" extension: Security Fasteners PC930C Black, PC930C-S Silver, PC930C-W White
Screen Adapter	Universal Models: Includes universal screen adapter to accommodate VESA 75 and 100 mounting holes
Product Specifications
Dimensions (W x H x D)	PC930A(-S)(-W): 6.5" x 9.8"-13.9" x 6.5" (16.5 x 24.8-35.3 x 16.5 cm) PC930B(-S)(-W): 6.5" x 13.78"-21.89" x 6.5" (16.5 x 35-55.6 x 16.5 cm) PC930C(-S)(-W): 6.5" x 20.24"-34.02" x 6.5" (16.5 x 51.4-86.4 x 16.5 cm)
Tilt	+15/-5 degree
Swivel	360 degree
Maximum Load	50 lb (22.67 kg)
Ship Weight	PC930A(-S)(-W): 4.85 lb (2.17 kg) PC930B(-S)(-W): 5.4 lb (2.4 kg) PC930C(-S)(-W): 6.35 lb (2.88 kg)
Mounting Surfaces	Wood joist and concrete
Screen Size	Minimum size: 15" (PC930A(-S)(-W) PC930B(-S)(-W) PC930C(-S)(-W)) Maximum Size: 24" (PC930A(-S)(-W) PC930B(-S)(-W) PC930C(-S)(-W))
UPC Code	PC930A : 735029255574 PC930A-S: 735029255581 PC930A-W: 735029255598 PC930B: 735029255604 PC930B-S: 735029255611 PC930B-W: 735029255628 PC930C: 735029255635 PC930C-S: 735029255642 PC930C-W: 735029255659

Additional Images:

Literature (Please open the following documents for more technical information)

Description	File Type
Peerless PC930B PRO Universal Ceiling Mount - Catalog	- pdf
Peerless PC930B Universal Ceiling Mount - Installation Sheet	- pdf
