Peerless PC-932B or PC-932B-S or PC-932B-W LCD LED TV Ceiling Mount
with 14" - 22" Adjustable Length
|
|

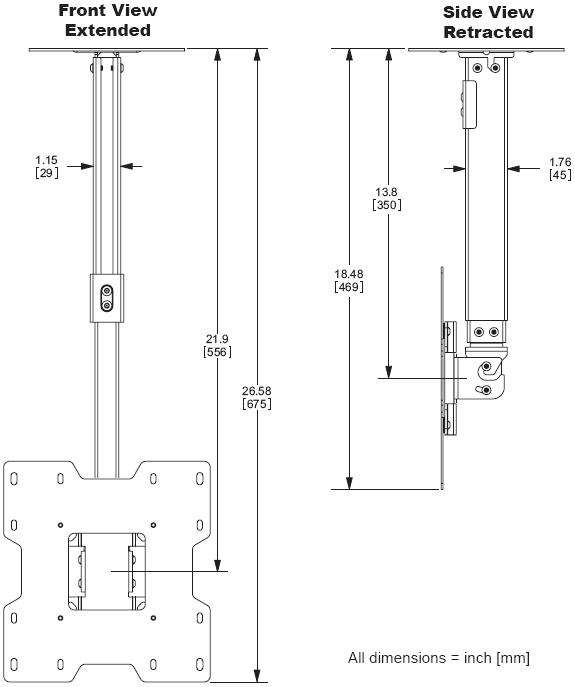

Technical Drawing for Peerless PC-932B LCD Ceiling Mount for 15"- 37" Screens
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Peerless PC932 Ceiling Mount:
|
|
This VESA compliant LCD LED TV ceiling mount gets the TV up easily and offers an incredible range of viewing options. Installation is made simple with its one, two, three design. Simply attach the ceiling plate, attach the adapter to the screen and hook-on the TV on to the mount. This LCD LED TV mount delivers the ultimate in positioning options with its tilt and infinite swivel options for that ultimate flat panel viewing experience.
|
|
Features:
-
VESA 75, 100, 200x100, and 200x200 compatible
-
+15 degree/-5 degree of adjustable tilt to achieve the ideal screen viewing position
-
Continuous tilt with optional lock in 5 degree increments for easy adjustment and perfect viewing angle
-
Comes in adjustable height ranges of 10" to 14", 14" to 22" and 20" to 34" for the optimal viewing height
-
360 degree swivel provides limitless screen placement opportunities
-
Internal cable management allows cables to be routed through extension column for a clean, clutter-free installation
-
Mounts to wood joist or concrete
-
Supports up to 80 lb LCD flat panel screen
|
|
Product Information:
|
Model Numbers
|
Universal Models with 9.8" - 13.9" (249 - 353 mm) extension. Includes theft resistant hardware for attaching screen to mount.
PC932A Black, PC932A-S Silver, PC932A-W White
Universal Models with 13.78" - 21.89" (350 - 556 mm) extension. Includes theft resistant hardware for attaching screen to mount.
PC932B Black, PC932B-S Silver, PC932B-W White
Universal Models with 20.24" - 34.02" (514 - 864 mm) extension. Includes theft resistant hardware for attaching screen to mount.
PC932C Black, PC932C-S Silver, PC932C-W White
|
|
Screen Adapter
|
Includes universal screen adapter to accommodate VESA 75, 100, 200 x 100 and 200 x 200 mm mounting holes
|
|
Product Specifications
|
|
Dimensions (W x H x D)
|
PC932A(-S)(-W): 6.5" x 9.8"-13.9" x 6.5" (16.5 x 24.8-35.3 x 16.5 cm)
PC932B(-S)(-W): 6.5" x 13.78"-21.89" x 6.5" (16.5 x 35-55.6 x 16.5 cm)
PC932C(-S)(-W): 6.5" x 20.24"-34.02" x 6.5" (16.5 x 51.4-86.4 x 16.5 cm)
|
|
Tilt
|
+15/-5 degree
|
|
Swivel
|
360 degree
|
|
Maximum Load
|
80 lb (36.2 kg)
|
|
Product Weight
|
PC932A(-S)(-W): 4.50 lb (2.04 kg)
PC932B(-S)(-W): 5.1 lb (2.31 kg)
PC932C(-S)(-W): 6 lb (2.72 kg)
|
|
Mounting Surfaces
|
Wood joist and concrete
|
|
Finish
|
Scratch resistant fused epoxy
|
|
Package Specifications
|
|
Package Contents
|
Ceiling plate, adjustable extension channels, tilt bracket and VESA 75/100, 200 x100 and 200 x 200 mm adapter, mounting and screen attachment hardware
|
|
Units in Package
|
1
|
|
Package Size
|
PC932A/B(-S)(-W): 12.25" x 4" x 9.63" (31.1 x 10.1 x 24.4 cm)
PC932C(-S)(-W): 19.50" x 4.50" x 10" (49.5 x 11.4 x 25.4 cm)
|
|
Package Ship Weight
|
PC932A(-S)(-W): 6.1 lb (2.7 kg)
PC932B(-S)(-W): 6.7 lb (3 kg)
PC932C(-S)(-W): 7.6 lb (3.4 kg)
|
|
UPC Code
|
PC932A : 735029255291
PC932A-S: 735029255307
PC932A-W: 735029255314
PC932B: 735029255321
PC932B-S: 735029255338
PC932B-W: 735029255345
PC932C: 735029255352
PC932C-S: 735029255369
PC932C-W: 735029255376
|
|
Warranty
|
Limited 5 year
|
|
|
|
