Peerless PC932C or PC932C-S or PC932C-W Universal Ceiling Mount for 15-37" LCD LED TV Screens

This product has been discontinued.

Related Products:

Part Number	Description
PC932C	Black LCD Ceiling Mount with 20" - 34" Adjustable Length for 15" - 37" Screens
PC932C-S	Silver LCD Ceiling Mount with 20" - 34" Adjustable Length for 15" - 37" Screens
PC932C-W	White LCD Ceiling Mount with 20" - 34" Adjustable Length for 15" - 37" Screens

Accessories for Peerless PC932C Ceiling Mount

Peerless ACC575 Threaded Connector Accessory

General Information

Peerless PC-932C or PC-932C-S or PC-932C-W LCD LED TV Ceiling Mount

with 20" - 34" Adjustable Length

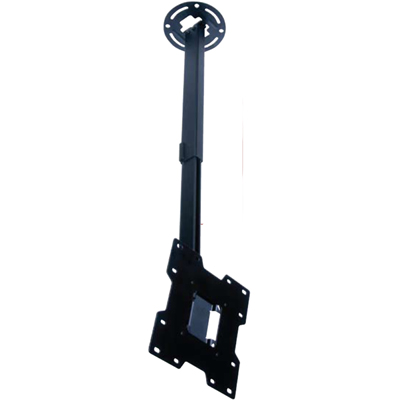

Peerless PC932C Paramount ceiling Mount for 15"- 37" Screens

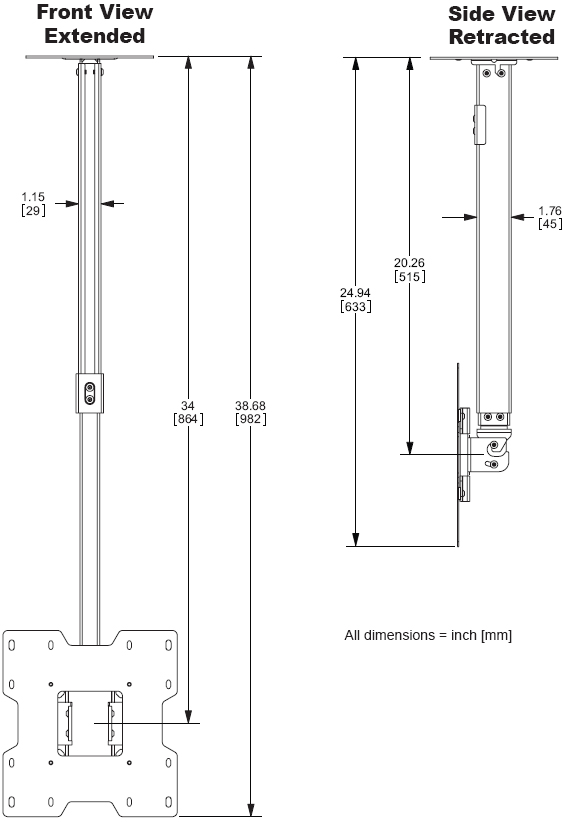

Technical Drawing for Peerless PC-932C LCD Ceiling Mount for 15"- 37" Screens

Technical Drawing for Peerless PC-932C LCD Ceiling Mount for 15"- 37" Screens

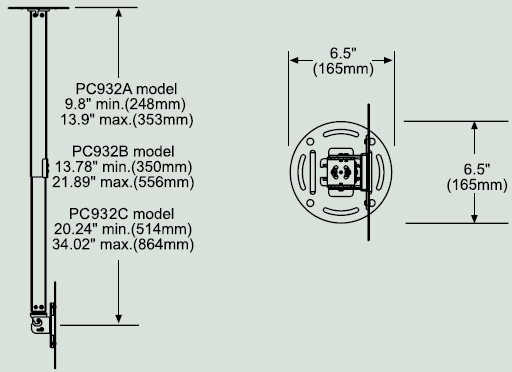

Dimensional Diagram for PC-932A Paramount ceiling Mount for 15"- 37"

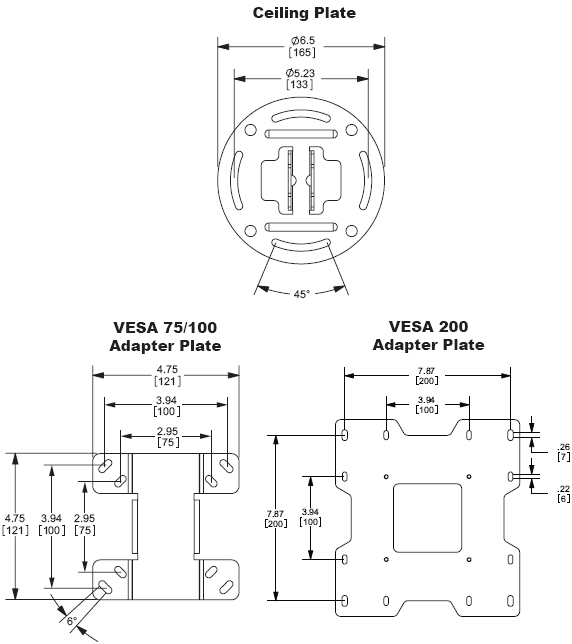

Drawing for Peerless Ceiling Plate and Adapter Plate

Peerless PC932 Ceiling Mount:

This VESA compliant LCD LED ceiling mount gets the TV up easily and offers an incredible range of viewing options. Installation is made simple with its one, two, three design. Simply attach the ceiling plate, attach the adapter to the screen and hook-on the TV on to the mount. This LCD LED TV mount delivers the ultimate in positioning options with its tilt and infinite swivel options for that ultimate flat panel viewing experience.

Features:

VESA 75, 100, 200x100, and 200x200 compatible
+15 degree/-5 degree of adjustable tilt to achieve the ideal screen viewing position
Continuous tilt with optional lock in 5 degree increments for easy adjustment and perfect viewing angle
Comes in adjustable height ranges of 10" to 14", 14" to 22" and 20" to 34" for the optimal viewing height
360 degree swivel provides limitless screen placement opportunities
Internal cable management allows cables to be routed through extension column for a clean, clutter-free installation
Mounts to wood joist or concrete
Supports up to 80 lb LCD LED TV flat panel screen

Product Information:

Model Numbers	Universal Models with 9.8" - 13.9" (249 - 353 mm) extension. Includes theft resistant hardware for attaching screen to mount. PC932A Black, PC932A-S Silver, PC932A-W White Universal Models with 13.78" - 21.89" (350 - 556 mm) extension. Includes theft resistant hardware for attaching screen to mount. PC932B Black, PC932B-S Silver, PC932B-W White Universal Models with 20.24" - 34.02" (514 - 864 mm) extension. Includes theft resistant hardware for attaching screen to mount. PC932C Black, PC932C-S Silver, PC932C-W White
Screen Adapter	Includes universal screen adapter to accommodate VESA 75, 100, 200 x 100 and 200 x 200 mm mounting holes
Product Specifications
Dimensions (W x H x D)	PC932A(-S)(-W): 6.5" x 9.8"-13.9" x 6.5" (16.5 x 24.8-35.3 x 16.5 cm) PC932B(-S)(-W): 6.5" x 13.78"-21.89" x 6.5" (16.5 x 35-55.6 x 16.5 cm) PC932C(-S)(-W): 6.5" x 20.24"-34.02" x 6.5" (16.5 x 51.4-86.4 x 16.5 cm)
Tilt	+15/-5 degree
Swivel	360 degree
Maximum Load	80 lb (36.2 kg)
Product Weight	PC932A(-S)(-W): 4.50 lb (2.04 kg) PC932B(-S)(-W): 5.1 lb (2.31 kg) PC932C(-S)(-W): 6 lb (2.72 kg)
Mounting Surfaces	Wood joist and concrete
Finish	Scratch resistant fused epoxy
Package Specifications
Package Contents	Ceiling plate, adjustable extension channels, tilt bracket and VESA 75/100, 200 x100 and 200 x 200 mm adapter, mounting and screen attachment hardware
Units in Package	1
Package Size	PC932A/B(-S)(-W): 12.25" x 4" x 9.63" (31.1 x 10.1 x 24.4 cm) PC932C(-S)(-W): 19.50" x 4.50" x 10" (49.5 x 11.4 x 25.4 cm)
Package Ship Weight	PC932A(-S)(-W): 6.1 lb (2.7 kg) PC932B(-S)(-W): 6.7 lb (3 kg) PC932C(-S)(-W): 7.6 lb (3.4 kg)
UPC Code	PC932A : 735029255291 PC932A-S: 735029255307 PC932A-W: 735029255314 PC932B: 735029255321 PC932B-S: 735029255338 PC932B-W: 735029255345 PC932C: 735029255352 PC932C-S: 735029255369 PC932C-W: 735029255376
Warranty	Limited 5 year
