The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 60-594-216 Style View Vertical Lift for Patient Room 60594216 DISCONTINUED replaced by 60-609-216

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15695
Recommended Accessories
Our Price: $629.75
Shipping: $40.00 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Ergotron 60-594-216 is DISCONTINUED and replaced by 60-609-216

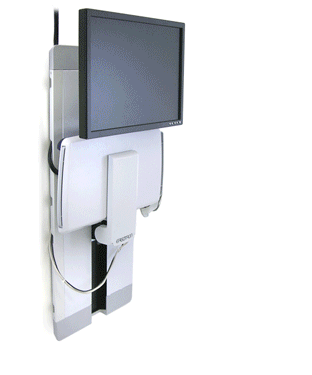

Animated Image for Ergotron 60-594-216 StyleView Vertical Lift for Patient Room







Ergotron 60-594-216 StyleView Vertical Lift for Patient Area 60594216



General Information

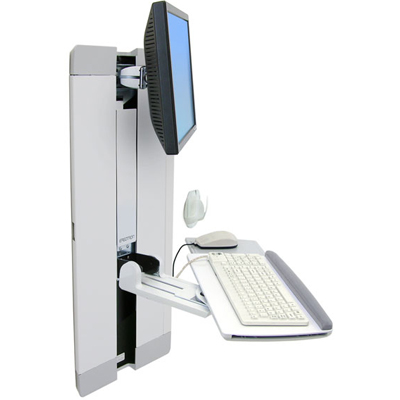

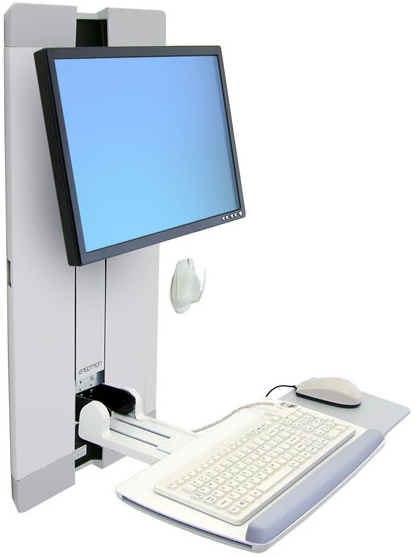

Ergotron 60-594-216 StyleView Vertical Lift for Patient Room 60594216



Ergotron 60-594-216 StyleView Vertical Lift for Patient Room 60594216

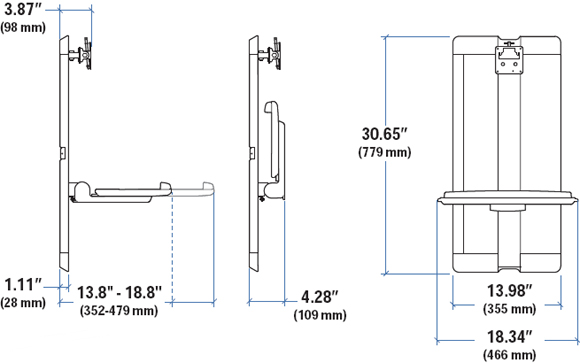

Dimensional Diagram for Ergotron 60-594-216 Style View Vertical Lift



Dimensional Diagram for Ergotron 60-594-216 Style View Vertical Lift







Ergotron 60-594-216 StyleView Vertical Lift:



Perfect for space-constrained and high-traffic areas. The low profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use - less than 4" (10.2 cm) from the wall.



The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap






Technical Specifications:



     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 24"

8 - 33 lbs

3.6 - 14.9 kg

9"
22.9 cm

10°

50°

-

MIS-D






Product Information:



Part Number:

60-594-216

Description:

StyleView Vertical Lift, Patient Room version (white)

Includes:

Mouse pad, wrist rest, mouse pouch

Keyboard Tray:

Negative-tilt keyboard tray is adjustable ( 0 to -10 degrees)

Keyboard tray extends out up to 5" (127 mm) inches when in use

Keyboard tray pans left/right up to 120°

Monitor:

Monitor pans left/right up to 50° (varies per size of monitor)

Others Information:

  • Larger display sizes may inhibit the keyboard tray folding flat in storage position

  • Fold-down keyboard with built-in mouse pad surface

  • Integrated cable management system can be configured on either side

  • Easy-to-clean exterior

Weight Capacity:

Listed weight capacity represents total load, including both the monitor and contents of keyboard tray

Mounting Standards:

VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions:

39.5" x 16" x 10.75" (1000 x 406 x 273 mm)

Shipping Weight:

35.5 lbs (16.1 kg)

Warranty:

Five (5) years







Benefits:

  • Side-to-side pan of keyboard and display promote patient caregiver interaction while access data

  • Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry

  • With the keyboard folded up, total system depth is as little as 4.5" (114 mm)

  • Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry

  • Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability

  • 9" (229 mm) vertical adjustment enhances ergonomics for multiple users

  • Steel construction for long-lasting durability

  • Right or left-side cable management system conceals and organizes cords and makes cleaning a snap





Additional Images:





















Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 60-594-216 Product Sheet

- pdf

Ergotron 60-594-216 Dimensional Illustrations

- pdf

Ergotron 60-594-216 Installation Manual

- pdf








Ergotron Logo





Hyperlink of all Ergotron products





Model 60-594-216
Manufacturer Ergotron
Part Number 60-594-216
UPC 698833010275
