The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm DISCONTINUED replaced by 45-245-026

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15696
Our Price: $269.78
Shipping: $24.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

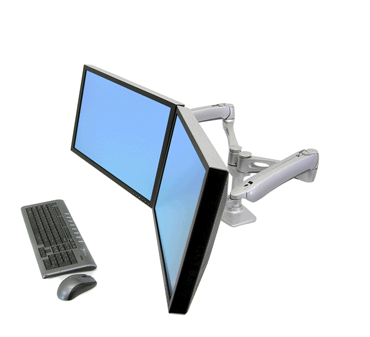

Animated image of Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm







Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm 45218194



General Information












Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm 45218194



Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm 45218194









Ergotron 45-218-194 LX Dual Adjustable Side by Side Arm



Create a fully adjustable side-by-side configuration that lifts both LCD screens up to where they’re easier to see while reclaiming valuable work surface.

Reposition your LCDs with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion. Save time by using multiple applications at once - eliminate toggling back and forth between documents and programs

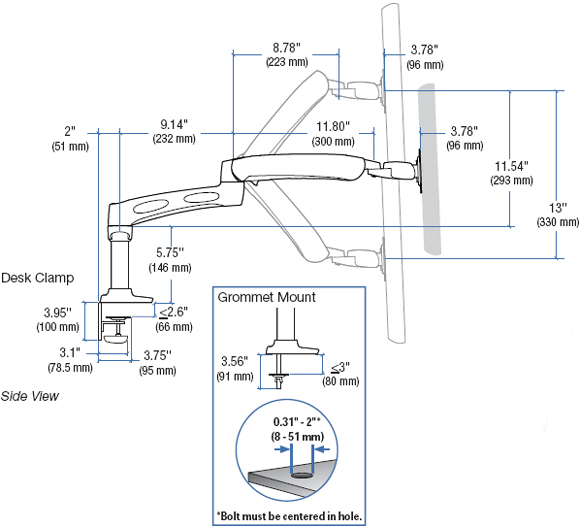

Dimensional Diagram for Ergotron 45-218-194 LX Dual Side by Side Arm



Dimensional Diagram for Ergotron 45-218-194 LX Dual Side by Side Arm






Technical Specifications:










     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 24"

40 lbs

18 kg

13"
33 cm

80°

180°

90° P/L

MIS-D






Product Information:



Part Number:

45-218-194

Description:

LX Dual Side-by-Side Arm (Silver)

Includes:

LX LCD arms, 2 extensions, desk clamp and grommet mount

Weight Capacity:

Individual monitor weight = 7 - 20 lbs (3.2–9.1 kg); maximum combined weight = 40 lbs (18.1 kg)

Mounting Standards:

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm and 75 x 75 mm)

Laptop Mounting:

For laptop mounting, use optional LX Notebook Tray (50-193-200, sold separately)

Desk Clamp:

Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick

Shipping Dimensions:

23.5" x 13.0" x 9.75" (597 x 330 x 248 mm)

Shipping Weight:

21 lbs (9.5 kg)

Warranty:

Five (5) years







Benefits:

  • Position LCD screens for maximum ergonomic comfort with unparalleled range of motion - promotes wellness in any work area

  • Free up your desktop to increase your workspace

  • 13-inch (33 cm) height range meets the ergonomic needs of more than nine out of ten adults

  • Extends/retracts LCDs up to 18" (457 mm), push your displays out of the way when not in use

  • Experience productivity gains. Check out our Multi-Display Payback Calculator - determine the cost benefit associated with adding a second display

  • Open and view multiple applications and documents, eliminating the need to toggle between applications

  • Easily turn one or both screens from landscape mode to portrait mode - view entire pages without scrolling

  • Embedded with patented motion technology, these arms enable light-touch adjustments without any knobs or levers

  • Cable management feature routes cables under the arm, out of the way

  • Easy to use - simple installation and effortless operation





Additional Images:



45-218-194-LX-Dual-Side-by-Side-Arm-Cabl



45-218-194-LX-Dual-Side-by-Side-Inuse-im

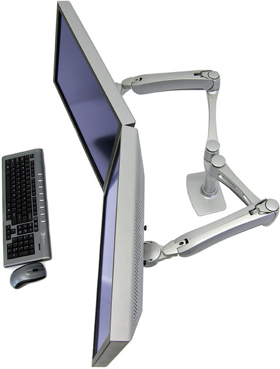

45-218-194-LX-Dual-Side-by-Side-top-View

ergotron-45-218-194-LX-Dual-Side-By-Side






45-218-194-LX-Dual-Side-by-Side-Inuse-pi

Ergotron-45-218-194-LX-Dual-Side-by-Side











Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 45-218-194 Product Sheet

reader-14.jpg - pdf

Ergotron 45-218-194 Dimensional Illustrations

reader-14.jpg - pdf

Ergotron 45-218-194 Installation Manual

reader-14.jpg - pdf
